scrap briquetting machine copper chip
- Category: >>>
- Supplier: Jiangyin Metallurgy Hydraulic Machinery Factory
Share on (60601288062):
Product Overview
Description
scrap briquetting machine copper chip
Product Description
SBJ Vertical Briquetting Press
Technical Parameter
| Model | Nominal Pressure (kn) | Inner Diameter of Main Cylinder (mm) | Size of Briquette (mm) | Density (t/m3) | Weight of Briquette (kg) | Productivity (block/min) | Output in One Shift (t) | Total Power (kw) | Weight of Machine (t) | Overall Dimension (mm) | Operational |
| SBJ-150A-2737 | 1225 | Φ250 | Φ80×(50-70) | ≥5.0 | 2.0-2.5 | 2-2.5 | 4-5 | 15 | 3.4 | 2100×1400×2000 | Manual |

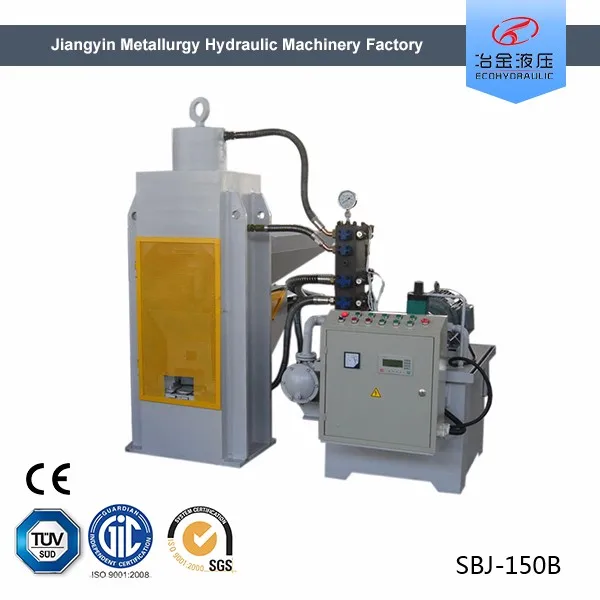

| SBJ-150B | 1225 | Φ250 | Φ80×(60-80) | ≥5.0 | 2.0-2.5 | 3 | 4-5 | 15 | 3.4 | 2100×1400×2000 | PLC Automatic |

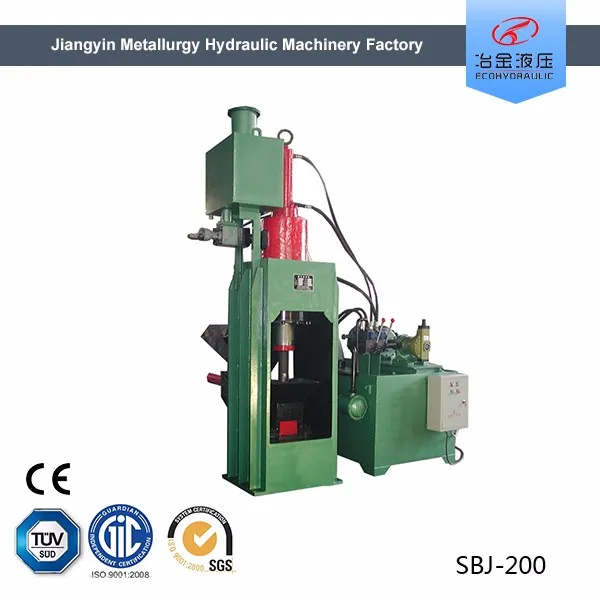

| SBJ-200A | 1538 | Φ280 | Φ80×(60-80) | ≥5.0 | 2.5-3.0 | 5 | 4-5 | 15 | 4 | 2200×1450×2800 | Manual |
| SBJ-200B | 1538 | Φ280 | Φ80×(60-80) | ≥5.0 | 2.5-3.0 | 5 | 4-6 | 15 | 4 | 2200×1450×2800 | PLC Automatic |
| SBJ-250A | 2009 | Φ320 | Φ80-90×(60-80) | ≥5.2 | 2.5-3.0 | 6 | 5-6 | 18.5 | 5 | 2400×2100×3100 | Manual |
| SBJ-250B | 2009 | Φ320 | Φ80-90×(60-80) | ≥5.2 | 2.5-3.0 | 6 | 5-6 | 18.5 | 5 | 2400×2100×3100 | PLC Automatic |
| SBJ-250E | 2009 | Φ320 | Φ90-110×(70-100) | ≥5.2 | 2.5-3.5 | 6 | 6-7 | 18.5 | 5 | 2400×2100×3100 | PLC Automatic |
| SBJ-315 | 2543 | Φ360 | Φ90-110×(70-100) | ≥5.5 | 3.0-4.0 | 6 | 8-12 | 30 | 6 | 3100×2900×3200 | PLC Automatic |

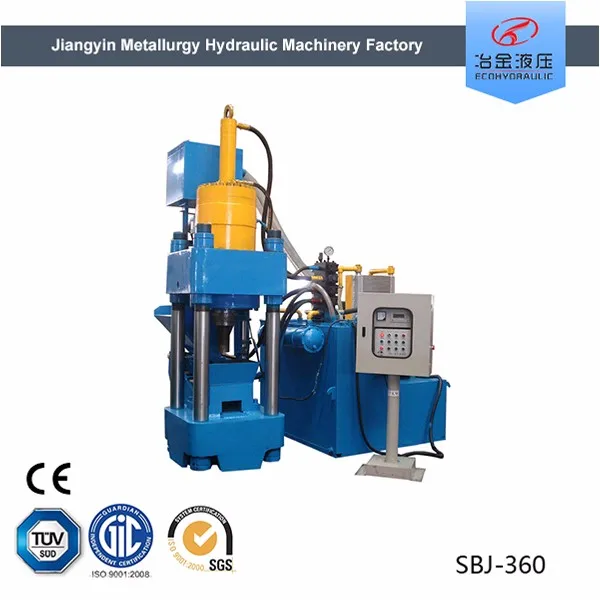

| SBJ-360 | 3140 | Φ400 | Φ100-140×(70-100) | ≥6.0 | 3.5-5.0 | 6 | 10-12 | 30 | 6.5 | 3200×3000×3200 | PLC Automatic |

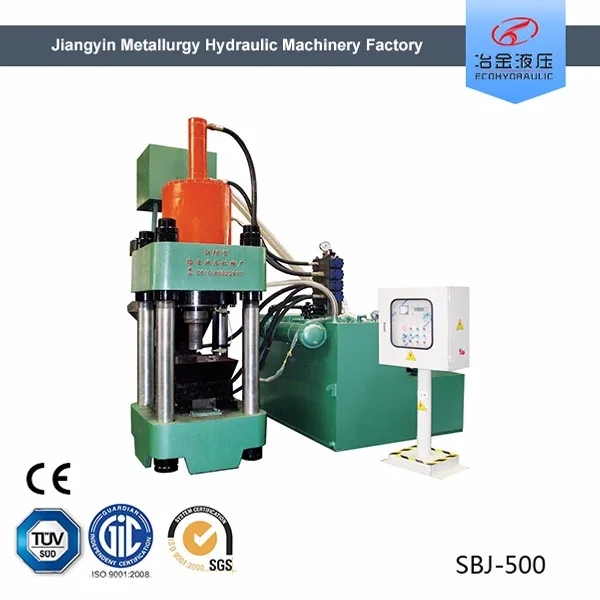

| SBJ-500 | 3974 | Φ450 | Φ120-150×(70-100) | ≥6.0 | 5.0-8.0 | 5 | 16-20 | 37 | 10 | 3300×3000×3600 | PLC Automatic |
| SBJ-630 | 5306 | Φ520 | Φ130-160×(100-120) | ≥6.0 | 6.0-12.0 | 5 | 20-30 | 45 | 15 | 3400×3100×4000 | PLC Automatic |
Application:
Particle shape cast iron powder, high grade of dructile cast iron, alloy, steel, copper and other metal filings can be cold pressed to cylindrical by SBJ-Series briquetting press, with density of 5.5-6 ton/m3(adhesion agent is not used) and production of 8-20 tons in every shift. The scrap briquetting machine copper chip machine is vertical structure with upper and lower beams made of cast steel,and it outputs block antomatically once feeded with materials.It also can be equipped with different circulation cooling systems.
The patented invention:
"Speed-up" system
Coordinated with the customized speed-up integrated valve block,the speed of initiative hydraulic speed-up system can be increased more than one time.We are the best among so many imitators.
Selectable cooling system
We recommend suitable cooling system,air cooling or water cooling systems according to working condition of machine to make sure it work continuously.
Briquet with high density
The maximum density can be more than 5.5 t/m3,and the briquet won't break into pieces even if it falls to the ground.
Customized accessories
We persist providing long-term cooperated suppliers with timely feedback on value body and oil pump.Improve the design and quality of accessories.
HBJ Series Horizontal Briquetting Press
Brief Introduction
HBJ-series automatic horizontal high speed briquetting press is our factory newly developed horizontal product on the basis of SBJ series.The new circular feeding system saves the pre press and the push block action.Its horizontal structure will reduce the time of press by 20%,and the output of the shift is doubled.
Technical Parameter for scrap briquetting machine copper chip
| Model | Size of Briquette (mm) | Density (t/m3) | Weight of Briquette (kg) | Productivity (block/min) | Output in One Shift (t) | Total Power (kw) | Weight of Machine (t) | Overall Dimension (mm) | Remark |
| HBJ-250 | Φ80×(60-100) | ≥5.2 | 1.6-2.6 | 6 | 4.5-7.5 | 18.5 | 5 | 3600×2200×1700 | Automatic |
| HBJ-360 | Φ100×(80-120) | ≥5.5 | 3.5-5.2 | 6.5 | 10.8-16.2 | 30 | 6.5 | 4000×2200×1700 | Automatic |
| HBJ-500 | Φ120×(80-120) | ≥5.4 | 4.9-7.3 | 6.5 | 15.2-22.9 | 37 | 10 | 5000×2300×1800 | Automatic |
The patented invention:
"Super fast"
On the basis of hydraulic speed-up system and with advantage of horizontal structure,its press speed is 1.2 times faster than that of vertical briquetting press,reaching speed of 7 briquets per minute.Nobody faster than this.
Selectable cooling system
We recommend suitable cooling system,air cooling or water cooling systems according to working condition of machine to make sure it work continuously.
Briquet with high density
The maximum density can be more than 5.5 t/m3,and the briquet will not break into pieces even if it falls to the ground.
Customized accessories
We persist in providing long-term cooperated suppliers with timely feedback on value body and oil pump.Improving the design and quality of accessories should start with details.
Introduction to structure of our vertical briquetting press
More items of our scrap briquetting machine copper chip
Production Flow - scrap briquetting machine copper chip
Packaging & Shipping
All the goods will be well packed and shipped by container.
Company Information
Established in 1989, Jiangyin Metallurgy Hydraulic Machinery Factory is located in Jiangyin, an economic leading city in eastern China. As a professional manufacturer of hydraulic machineries, our company integrates with capabilities of design, research, development and production.
After 25 years of rapid development, we have become a well-known factory in domestic metal scrap recycling industry. Our products scrap metal baler payment protection are widely applied to the industries of metal recycling, foundry and metallurgy and are well received. Currently, we have two plants, the machining plant and the assembling plant, cover an area of 12000 square meters. There are more than 150 staff members, 17 professionals among them. And we have obtained 12 national patents so far.
Our main products are as follows, namely, scrap briquetting machine copper chip, hydraulic scrap metal baler payment protection and hydraulic alligator shear. Our products are not only popular in China, but also have market shares in more than 20 Countries, for example, India, Russia, Ukraine, Japan, Thailand, Kuwait, Vietnam, Indonesia, Canada and Columbia.
For the sake of the benefits of our new and old customers, we will ceaselessly improve the product quality as much as we can.
scrap briquetting machine copper chip
Enterprise Culture:
(1)Enterprise spirit:
progressive, persistence, practical, innovation and always to be first.
(2)Enterprise target:
Industrial model, world brand
(3)Enterprise value:
Brand + employee + sacrifice= enterprise value
(4)Enterprise idea:
Ideas guiding thought, thinking promote innovation, quality build brand, efficiency improve speed, science create perfection.
(5)Management ideas:
Persistent effort, improve marketing, build environment, extend market
(6)Quality standard:
The satisfaction of customer (user) are products’ standards.
(7)Service ideas:
Customer satisfaction is our eternal pursue.
Our company has a highly qualified team of professionals with challenges and opportunities of the new certury. We always adhere to continuous innovation and the pursuit of excellence in developing our products.
Why are we different?
* Our founder is the first entrepreneur entered metal recycling equipment industry in 1989.
* National industrial standard drafter, over 15 national patents.
* Over 15 years' relationship with suppliers to ensure all parts quality.
* 5 engineers with over 10 years' experience, capable to fully customize.
| Ecohydraulic | Competitor | |
| Painting | polyurethane, epoxy zinc-rich | Ordinary |
| Welding | Outsourced to professionals | Self-made |
| Assemble | 10 years experienced workers | Ordinary |
| Workshop | Tidy, in order | Mass |
| Fairs | 2 overseas fairs every year |
Trade Shows
We attend some international trade exhibitions as follow: 2016 USA Castexpo , Iran TIIE 2016, ISRI 2017 scrap recycling etc.
Certifications
Our factory was awarded the quality control approval certificate ISO9001, from material test, process inspection to final test complete quality control system is already in place.
scrap briquetting machine copper chip
FAQ
1. Are you a factory or a trade company?
We are manufacturer with own factory for more than 25 years, export proportion 50%~60%.
2. How can I trust your company?
A. With professional design and sales team, we can serve you the perfect solution with lowest cost.
B. Assessed by third party, national patents for all equipment.
C. Welcome to inspect any time, we are near Shanghai airport.
D. About the machine, we are the first manufacturer of briquette machine, hydraulic balers, alligator shears, shredders are also our main products.
3. Is your price competitive?
Surely.We will give you best factory price based on superior product and service.
