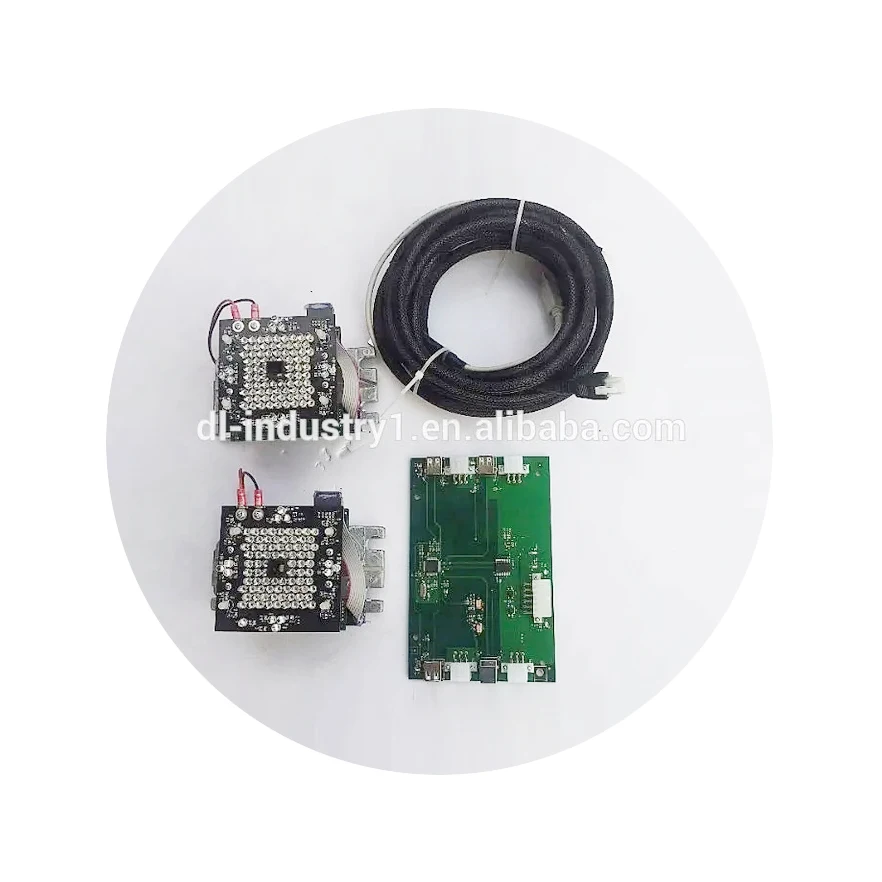

3D Wheel Alignment JBC Alignment Software Camera, JBC HOF*MANN 1.3 Million Pixels Standard Definition 3D Wheel Alignment Camera

Product Overview

Description

3D Wheel Alignment JBC Alignment Software Camera, JBC 3D Wheel Alignment Camera, 3D Wheel Alignment Camera, Hofmann 3D Wheel Alignment Camera



Auto Inspection 3D Wheel Alignment Machine Specialized Cameras





1. With a 1.3 / 5.0 million pixel CMOS sensor, the image is more clear, can support a smaller target disk, greatly reducing the weight of the target disk.


2. With the Ti Da Vinci (DaVinci) high performance video processing DSP and large capacity high-speed DDR2 cache, the image signal were high-speed processing, directly to complete the target disk identification and spatial location calculation, greatly reduce the CPU load.


3. The camera is fully intelligent, embedded 3D positioning software module, the direct output of the space coordinates of the wheel. Full support for SDK two development, greatly reduce the difficulty of the four round of positioning software development.


4. The camera is highly integrated, the main chip using BGA and QFN package, chip pin inside the tube, using the placement machine welding. Improve oxidation resistance, reliability, service life extended 2 times, greatly reduce the after-sales service.



Measurement Range and Precision:



Measurement Project	Measurement Range	Precision
Total Toe	±20º	±0.02º
Individual Toe	±20º	±0.02º
Camber	±12º	±0.02º
Caster	±25º	±0.05º
SAI	±25º	±0.05º
Back Angle	±10º	±0.01º
Thrust Angle	±10º	±0.01º





Details of 3D Wheel Alignment 3D Camera Assembly:





Camera 3D Wheel Alignment Parts:





3D Wheel Alignment Spare Parts:



Target Plate for 3D Wheel Alignment Machine





Turntable for 3D Wheel Alignment Machine

This set of turntables is also called 3D turnplates, which is used with the four wheel alignment machine. Each turnplate is packed with two wheel iron bridges. The accessories are manufactured with precise casting technology that it s high intense, wear and tear resistant, flexible and high precise.





Power Supply Unit for 3D Wheel Alignment Machine

Features:

1. This wheel clamp is well known for its control accuracy and performance.


2. The wheel clamp applies to all kinds of wheel aligners.


3. The depth of parallelism is within ±0.02mm between steel claw plane and hub plane, when the steel claw is installed on the hubs.


4. The concentricity of feeler lever axle hole and the circle center fixed by 4 steel claws.


5. Precision screw with high precision, super mechanical intensity, easy to slide.


6. The wheel clamp is suitable for all kinds of tires.





RCP Calibration Kit for 3D Wheel Alignment Machine

Professional 3D Field Calibration Operation





Lifting Device & Camera Beam for 3D Wheel Alignment Machine

Descriptions of Lifting Device:

1. Variable height camera support.


2. It is also shown with standard camera beam assembly.


3. No need of fixed-position and level surfaces during alignments.


4. During the alignment process, it is easy to position cameras in range by pressing a button.



Hofmann John Bean 3D Wheel Alignment Clamp Jaw

Hofmann John Bean Car Wheel Clamp Stiffening Plate

3D Wheel Alignment Machine Car Steering Wheel Holder

3D Wheel Alignment Machine Remote Wheel Alignment Sensor

Hofmann John Bean Car Turntable Safety Pin Unit

Hofmann John Bean 3D Wheel Alignment Machine Car Turntable Stand Unit

3D Wheel Alignment Parts Standard Camera Stick

3D Wheel Alignment Parts Rubber Block/Wheel Alignment Ramp Wedge Pads

Car Wheel Alignment Tools Rubber Cord

3D Wheel Alignment Parts Wire Wheel
