Product Overview
Description
Product Description
Ultrasonic insole machine, also known as leather insole embossing machine, shoe flower machine, it uses the principle of ultrasonic to heat-print printing leather, non-woven fabrics, etc. The ultrasonic machine uses high-frequency oscillation to transmit sound waves from the welding head to the welding surface of the workpiece, which instantaneously causes the working object molecules to friction, and the material is welded to complete the welding; the textile can be neatly cut and sealed neatly. The stitching also plays the role of decoration, strong adhesion, clear embossing, more stereoscopic effect on the surface, fast working speed, good product effect and high-grade appearance.
Model | CC-200 |
Speed | 0-80pcs/min |
Power | 3500w |
Frequency | 20khz |
Voltage | 220v |
Weight | 300kg |
Direction for use
使用说明
1 Adjust the level between the pressure roller and the flower wheel.
2 When the embossing is unbalanced, first loosen the eccentric locking screw on the left cover of the mold base, and then rotate the eccentric (clockwise, the flower wheel moves upwards; counterclockwise, vice versa, lock the eccentric, repeat the above action, Until the balance.
3 Adjust the pressure of the flower wheel according to the thickness of the stitched or knurled material. Thicker material pressure is increased, and vice versa.
4 Depending on the material to be blown, the thickness is different, and the pattern of the flower wheel is complex. Three factors affecting the printing effect: (1) flower line speed; (2) flower wheel pressure; (3) ultrasonic power.
5 When the speed of the flower wheel is low, the processing material receives the ultrasonic energy for a long time, and the contact time between the flower wheel and the steel mold is longer, and it is relatively easy to be blown.
6 When the pressure of the flower wheel is large, the processed material receives a large amount of ultrasonic energy and is relatively easy to be blown. (At the same time, the wear of the flower wheel on the mold is also increased)
7 Under the premise of the same material and the same processing speed, the smaller the flower wheel pressure, the better. (small wear and long equipment life)
2 When the embossing is unbalanced, first loosen the eccentric locking screw on the left cover of the mold base, and then rotate the eccentric (clockwise, the flower wheel moves upwards; counterclockwise, vice versa, lock the eccentric, repeat the above action, Until the balance.
3 Adjust the pressure of the flower wheel according to the thickness of the stitched or knurled material. Thicker material pressure is increased, and vice versa.
4 Depending on the material to be blown, the thickness is different, and the pattern of the flower wheel is complex. Three factors affecting the printing effect: (1) flower line speed; (2) flower wheel pressure; (3) ultrasonic power.
5 When the speed of the flower wheel is low, the processing material receives the ultrasonic energy for a long time, and the contact time between the flower wheel and the steel mold is longer, and it is relatively easy to be blown.
6 When the pressure of the flower wheel is large, the processed material receives a large amount of ultrasonic energy and is relatively easy to be blown. (At the same time, the wear of the flower wheel on the mold is also increased)
7 Under the premise of the same material and the same processing speed, the smaller the flower wheel pressure, the better. (small wear and long equipment life)
Description of application effect
使用效果描述

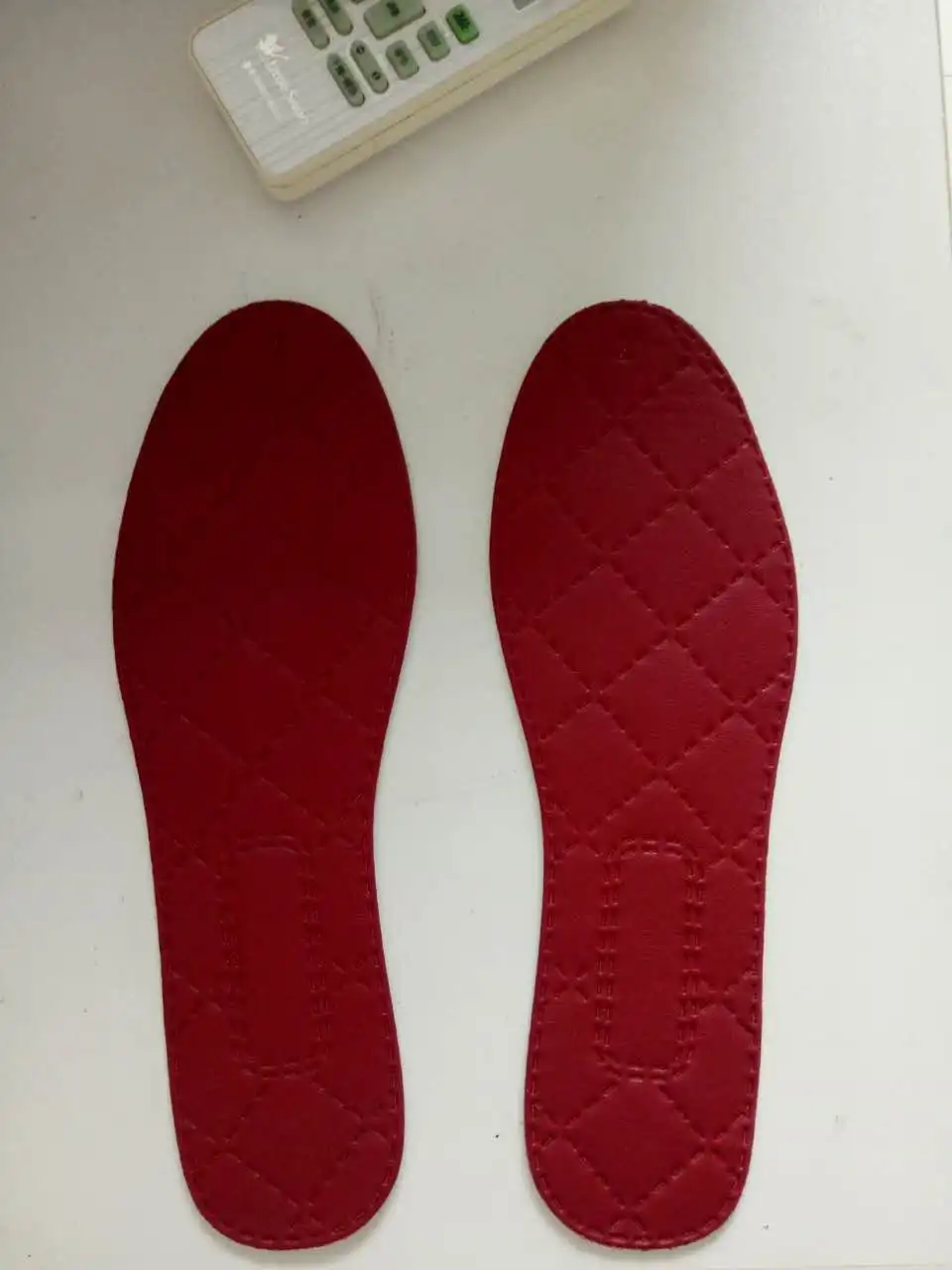

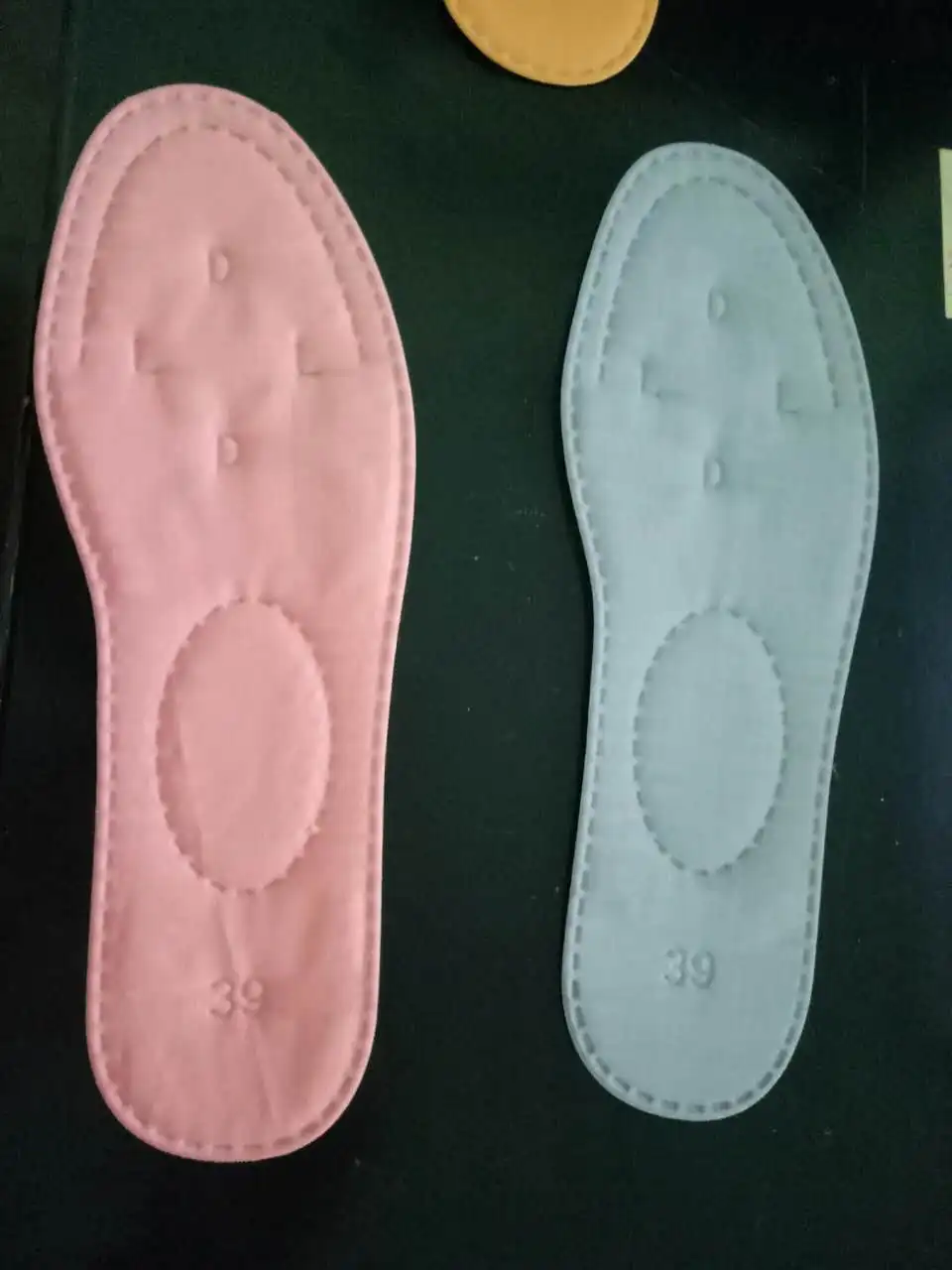

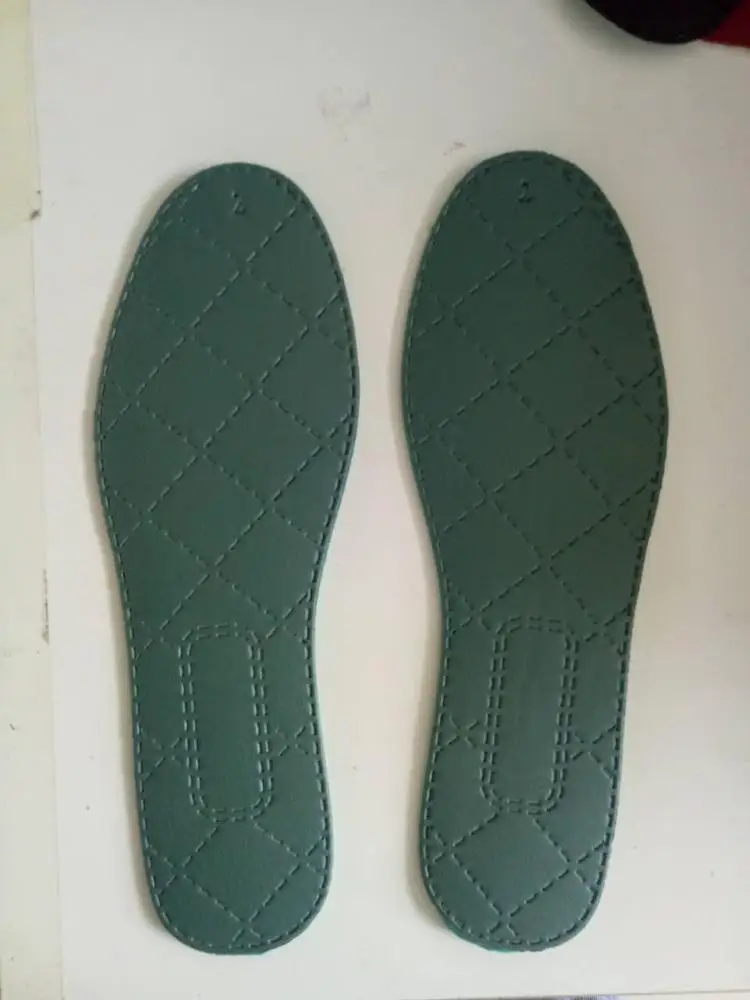

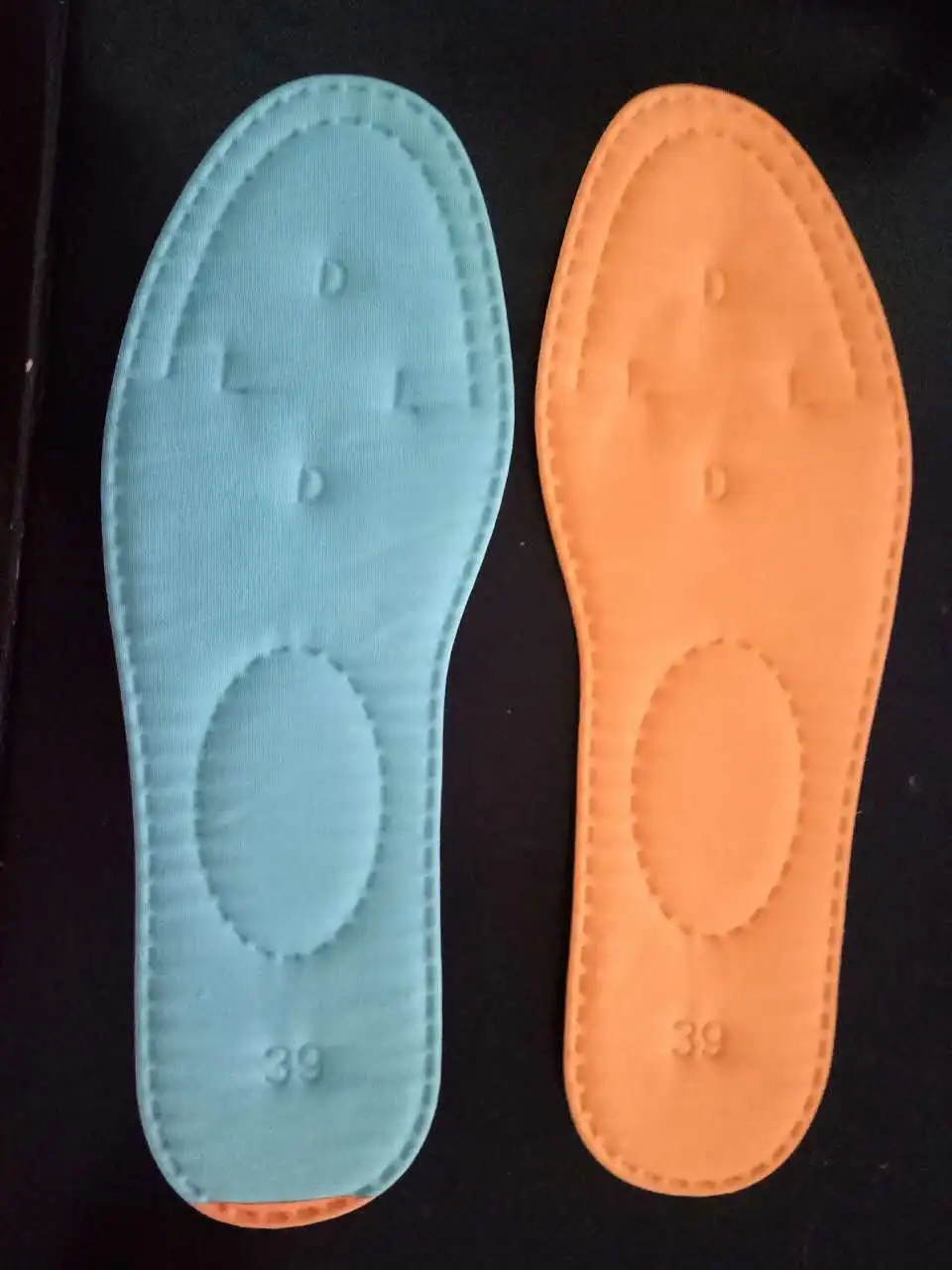

Strong adhesion, clear embossing, more three-dimensional effect on the surface, the product is more high-end and beautiful;
After processing, the finished product has no pinholes and no water seepage, which is more waterproof and protective;
After processing, the finished product has no pinholes and no water seepage, which is more waterproof and protective;
Detailed Images

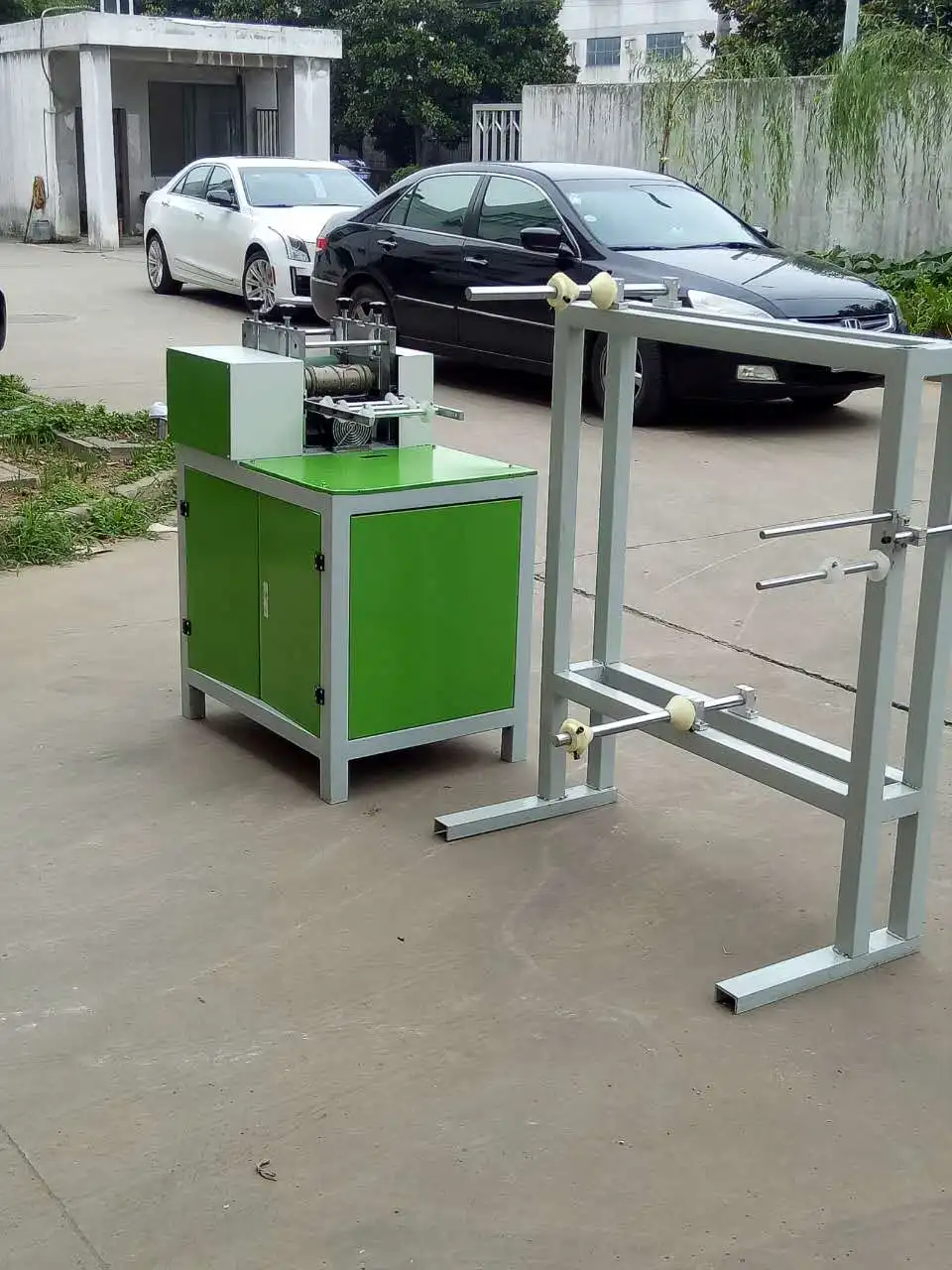

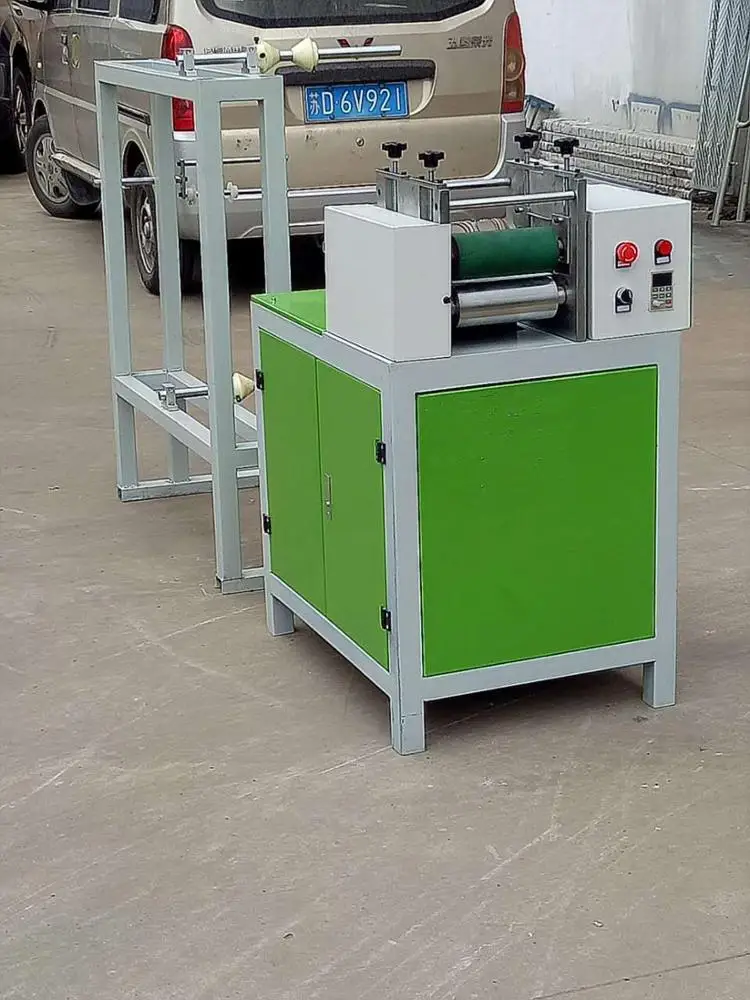

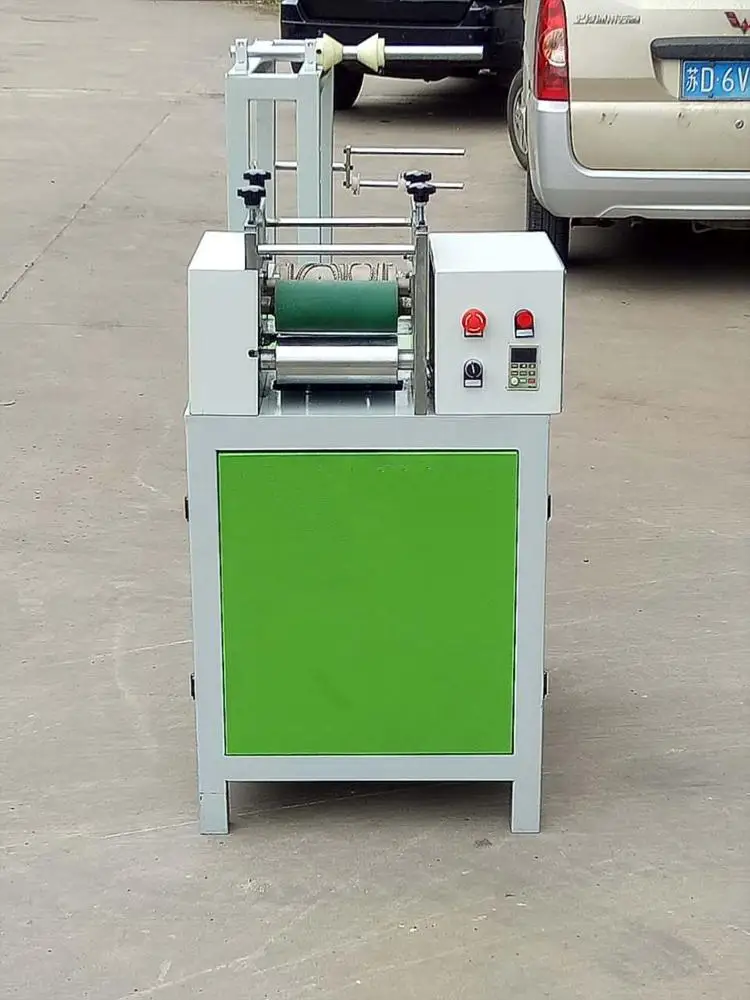

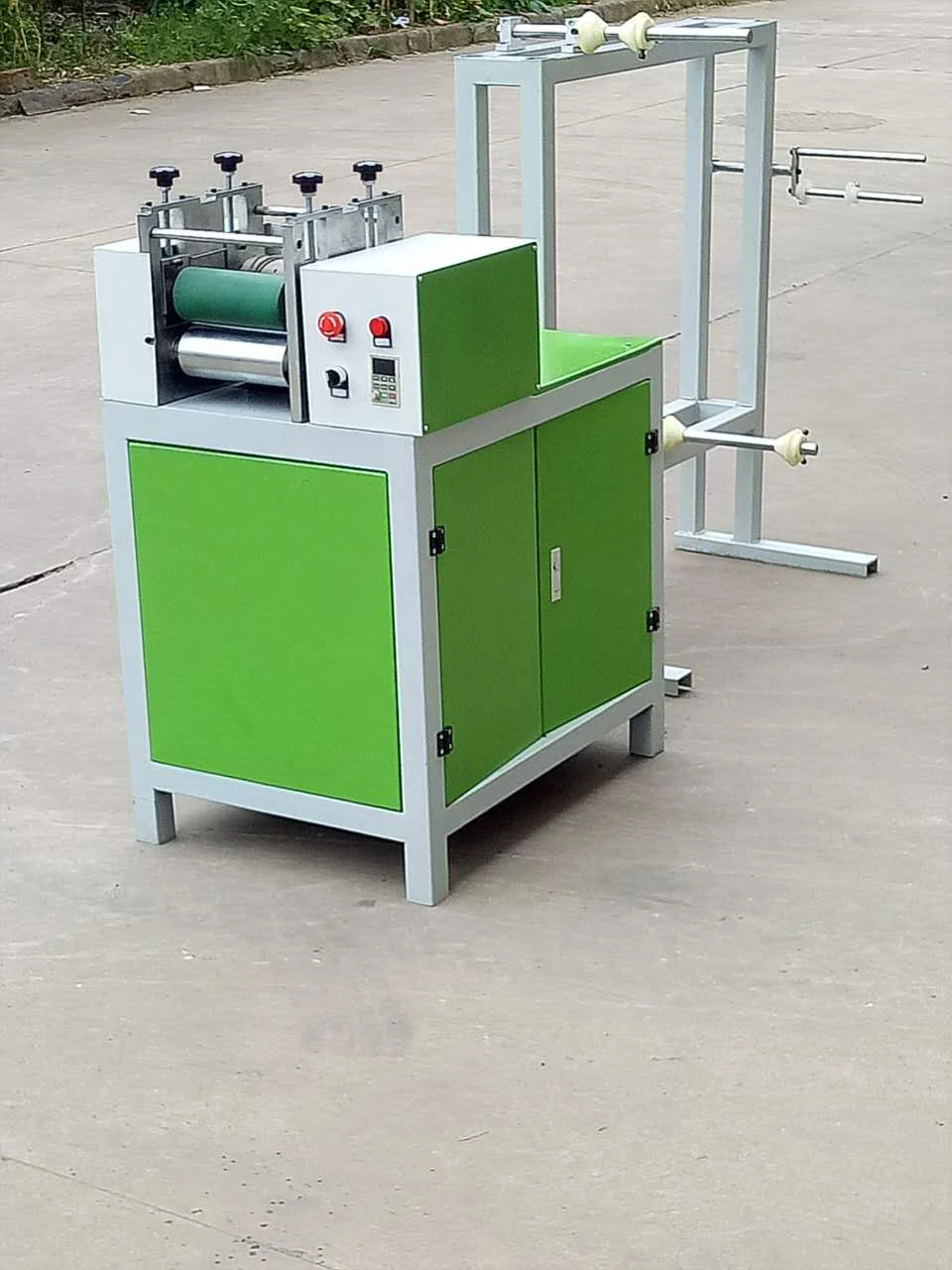

All pictures are real shots of our factory
Related Products
Packing&Shipping
The outer packaging of the product is a composite wooden box
Company Introduction
Changzhou Shuangchao Ultrasonic Technology Co., Ltd. specializes in producing all kinds of ultrasonic equipment. Founded in 2000, it covers an area of over 7,000 square meters.
