Электростатическая промышленная автоматическая покраска распылением, роботизированная рука, Мексика, Япония, Турция, Россия
- Category: Metal Coating Machinery >>>
- Supplier: Dongguan Haosheng Automation Equipment Technology Co. Ltd.
Share on (60601489670):
Product Overview
Description
Why Choose Us
Technical Characteristics of HAOSHENG Spraying Robot
1.More environmentally friendly --Compared with traditional manual spraying save 25%~50% paint use
2.Higher work efficiency -- more products can be sprayed in the same time
3.High-quality spray effect --Coating&painting effect are more better than hand spray painting
4.Full automatic machine -- 10s to set up the coating of a plane. Say goodbye to complex control!
5.Human Health friendly -- Spraying booth without additional dust and paint emissions protect the health of our employees
2.Higher work efficiency -- more products can be sprayed in the same time
3.High-quality spray effect --Coating&painting effect are more better than hand spray painting
4.Full automatic machine -- 10s to set up the coating of a plane. Say goodbye to complex control!
5.Human Health friendly -- Spraying booth without additional dust and paint emissions protect the health of our employees
6.Accurate spray painting, long normal running time, low paint consumption, 24 hours of uninterrupted work, and high reliability.
7.The spraying speed is fast and the spraying is uniform. The spray gun level and the front and rear angle positions can be adjusted according to the changes of the workpiece. The spraying size control is flexible.
7.The spraying speed is fast and the spraying is uniform. The spray gun level and the front and rear angle positions can be adjusted according to the changes of the workpiece. The spraying size control is flexible.
8.Explosion-proof, environmental
protection, high safety performance, simple operation and easy to learn.
protection, high safety performance, simple operation and easy to learn.
9.Long life and easy maintenance.
Our Advantages
Comparison Between
Automatic Spraying Machine and Manual Spraying
Widely Range of Applications
PRODUCT SPECIFICATIONS
Structure | 6 axis robotic arm | Acceptance torque | J4 axis 8.0N.m (0.82kgs.m) |
Loading | 6KG | J5 axis 8.0N.m (0.82kgs.m) | |
Repeated positioning accuracy | ±0.05mm | J6 axis 3.0N.m (0.3kgs.m) | |
Action range | J1axis(rotation)-170°~+170° (arm-hanging-60°~+60°) | Acceptance inertia moment | J4 axis 0.2kg.m2 |
J5 axis 0.2kgs.m2 | |||
J2 axis(lower arm)-65°~+120° | J6 axis 0.07kgs.m2 | ||
J3 axis(upper arm)-165°~+205° | The maximum length of arm | 1500MM | |
J4 axis(arm rotation)-190°~+190° | The weight of the body | 110kg | |
J5 axis(wrist swing)-145°~+145° | Temperature 0~+400 | ||
J6 axis(wrist rotation)-360°~+360° | Humidity 20-80%RH | ||
The maximum speed | J1 axis(rotation)185°/s | Vibration 4.9m/s2 | |
J2 axis(below arm)185°/s | Others: keep away from the electrical noise source | ||
J3 axis(upper arm)185°/s | Capacitance | 1.5kVA | |
J4 axis(arm rotation)360°/s | Installation method | Floor and arm hanging | |
J5 axis(wrist swing)410°/s | |||
J6 axis(wrist rotation)500°/s |
PRODUCT CONFIGURATION
Japan TAMAGAWA Servo Motor
Japan Teijin Reducer
Germany Wagner Spray Gun
Successful Project
Project in Thailand
Project in India
Project in Russia
Our Service
1. Installation Services: In the period of installation and debugging, we shall offer training about effective operation and maintenance.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
Company Profile
HAOSHENG TECH IS A NATIONAL HIGH-TECH ENTERPRISE
We has been focusing on the R&D, production, sales, and service of industrial spray painting equipment, providing high cost-effective products and services to customers to improve quality, increase efficiency and reduce costs. Haosheng Tech is based on Dongguan city with branches in Beijing, Suzhou, Chongqing and Xiamen. Since 2004, we have sold more than 6000 machines to automate client painting production.
WE'RE NOT ONLY JUST PROVIDE MACHINE
Dongguan Haosheng Company is specialized in robotic spray paint machine development and sales. We provide 1~6 axis automatic spray paint machines, robots and spray booth. With over 2000 square meters workshop and high end CNC machines, our smart team be able to produce out real machine from drawing in quick time. Each machine and robot will be fully tested before delivery to client workshop. Our 200 square meter sample painting room has multiple model machines to offer painting tests. WE'RE NOT ONLY JUST PROVIDE MACHINE ALSO THE WHOLE PAINTING SOLUTIONHAOSHENG TECH IS THE TOP LEADER FROM THE INDUSTRY
We're high end source center of over 50% automatic coating line providers from south China. We're one of the very few companies that be able to offer turnkey projects stand alone.Our machines have been delivered to each continent on the planet.

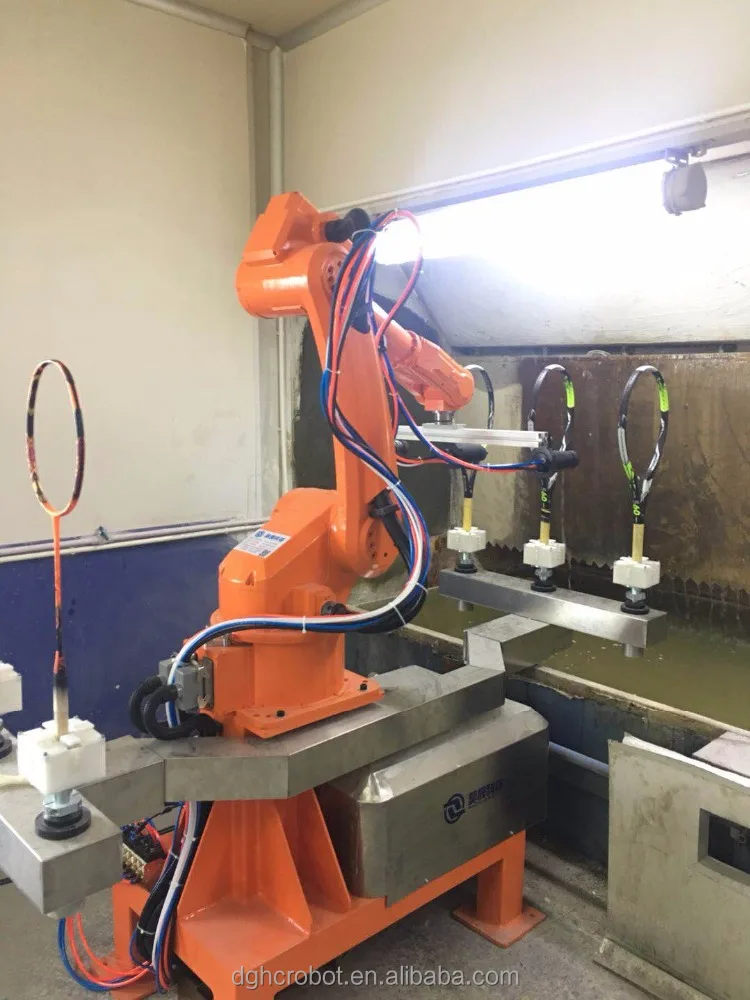

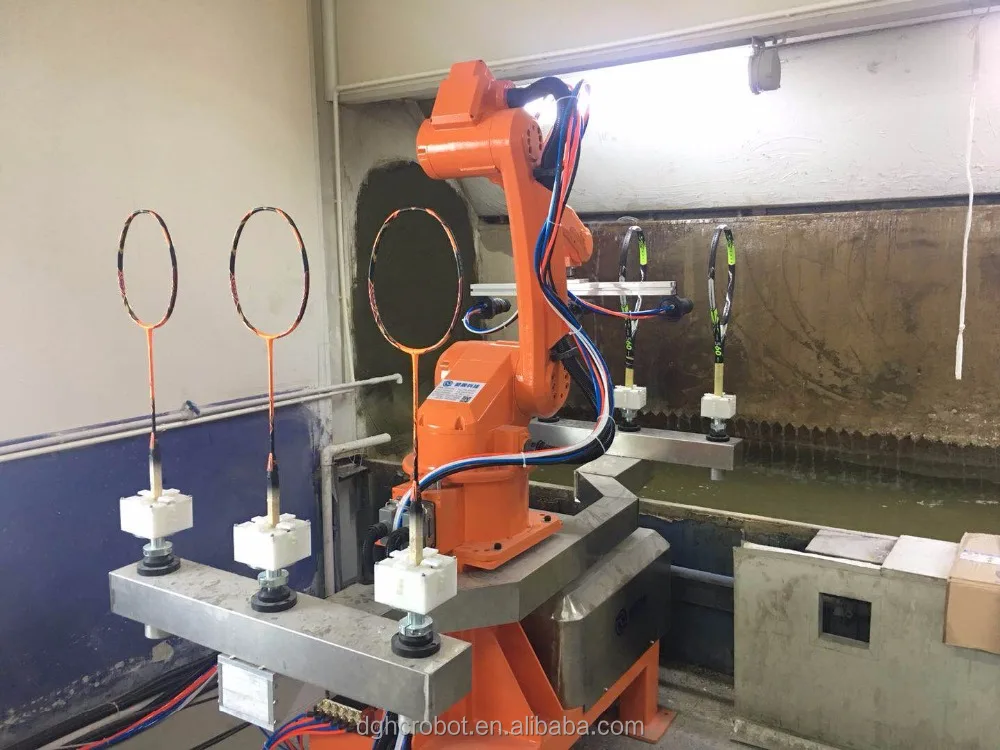

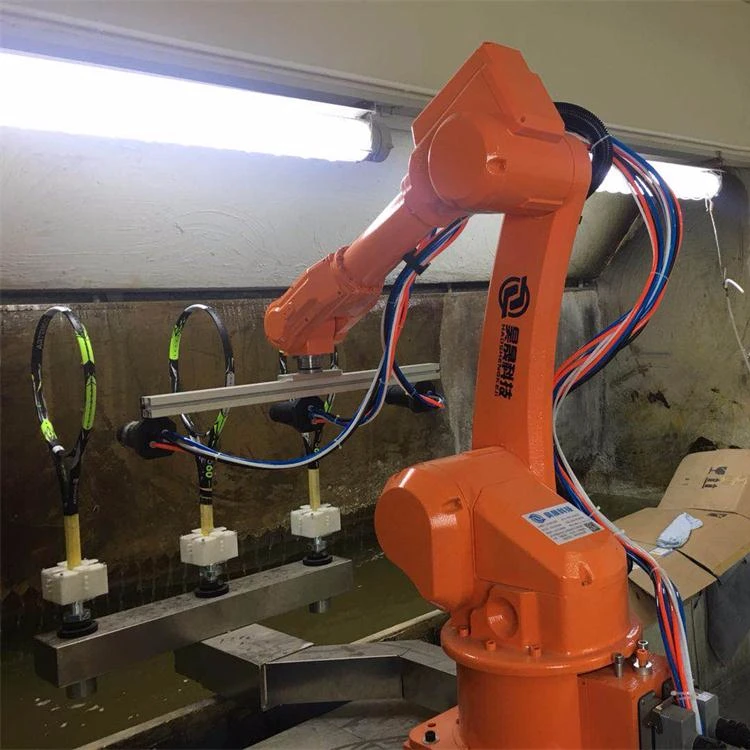

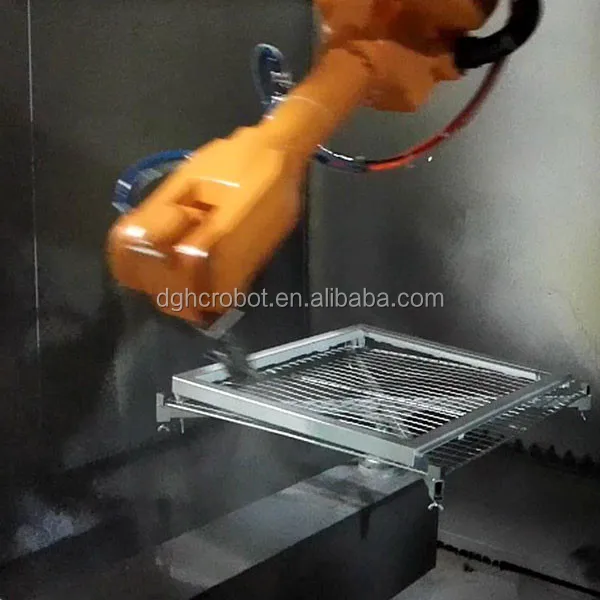

Painting Scene
FAQ
Q1 How to purchase?
A1 Please describe the workpiece details to us, like dimension and the painting required etc, we will make out an appropriate painting system and equipment installation proposal to comply with your required.
Q2 Supporting service
A2 We will offer the whole plant design proposal freely before place order. We are welcome customer visiting the coating line onsite anytime.We will prepare the detailed technology proposal after get approval between customer and manufacturer. Further we will share information about paint and dedust etc to you.
Q3 Quotation
A3 The price showing on website is not the real because vary item with different price. The final quotation based on two side (customer and manufacturer) confirmed the technology project afterwards.
Q4 Payment term
A4 The stock & small and middle-sized machine & large equipment & whole coating system deposit by 50%, the qualified machine before shipping should pay 50%.
Q5 Installation and training
A5 Customer can arrange staff come to our company receive training if possible. Once the complete coating line start building, we will assign related technician come to onsite to proceed with until trial production complete
Q6 Discounts
A6 Normally, if you place an big order, you will get a 10% discount. But now, As long as you are a top 50 inquiry customer, you can get a 10% discount.
Q2 Supporting service
A2 We will offer the whole plant design proposal freely before place order. We are welcome customer visiting the coating line onsite anytime.We will prepare the detailed technology proposal after get approval between customer and manufacturer. Further we will share information about paint and dedust etc to you.
Q3 Quotation
A3 The price showing on website is not the real because vary item with different price. The final quotation based on two side (customer and manufacturer) confirmed the technology project afterwards.
Q4 Payment term
A4 The stock & small and middle-sized machine & large equipment & whole coating system deposit by 50%, the qualified machine before shipping should pay 50%.
Q5 Installation and training
A5 Customer can arrange staff come to our company receive training if possible. Once the complete coating line start building, we will assign related technician come to onsite to proceed with until trial production complete
Q6 Discounts
A6 Normally, if you place an big order, you will get a 10% discount. But now, As long as you are a top 50 inquiry customer, you can get a 10% discount.
