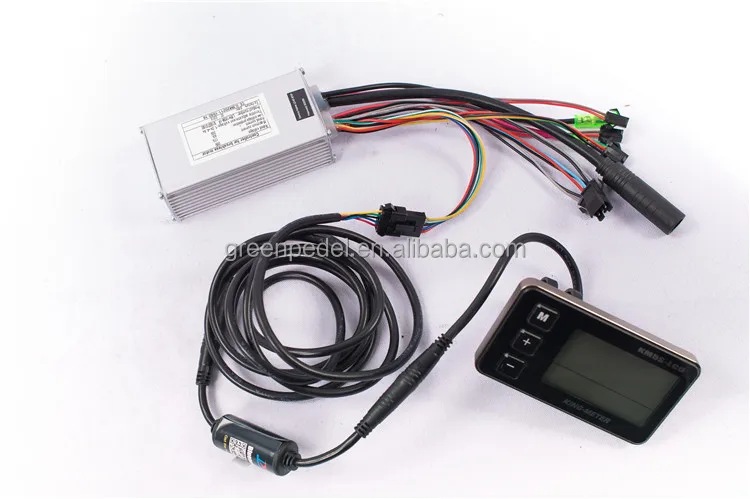

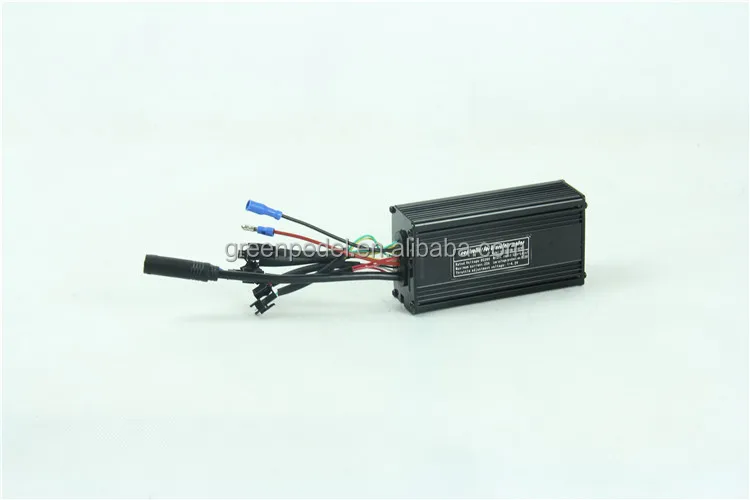

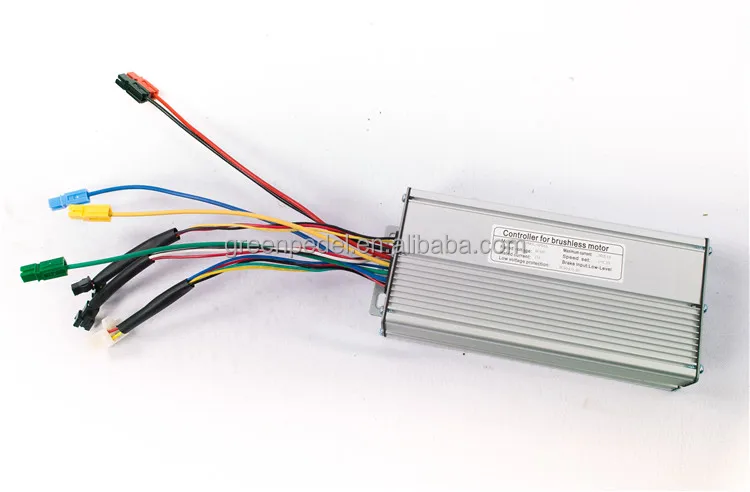

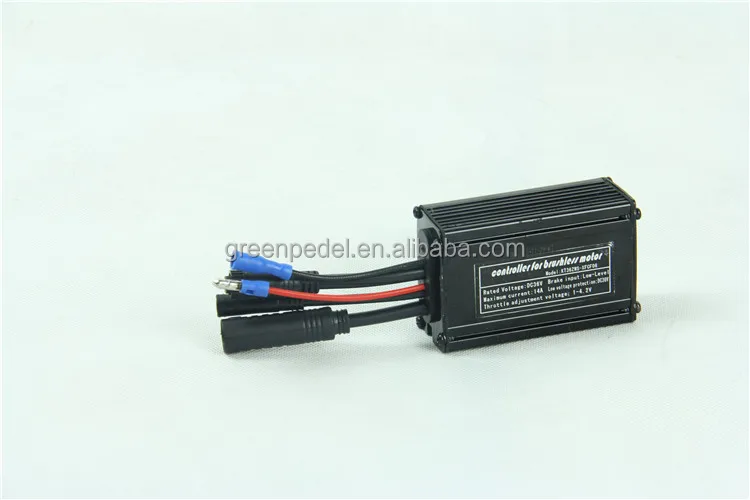

GreenPedel KT Electric Bike Motor Controller for 36v 48v E Bike Kits
- Category: >>>
- Supplier: Changzhou Green Pedel Co. Ltd.Changzhou Ltd.
Share on (60601521815):
Product Overview
Description
Product Description
Use imitate torque control mode can help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural. Electric power assist is with fast response and always consistent with the rider’s pedal action to achieve the effect of the torque boost. With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic. There are motors with or without Hall, which fit all kinds of high and low speed motors.
ATTENTION:
ATTENTION:
1.KT controller only compatible with KT display (same communication protocol). Please make sure that your system is KT system. Please check your motor cable if it is Julet or Higo 9 pin waterproof plug (there are some letters on the connector). Julet is better.But for 250W 350W 500W,Higo is also OK.
2.There are 2 versions. sinewave and squarewave for option. This is the square wave one, if you want the sine wave,plz leave a message.
3. For more function you want on the controller, plz leave a message, we can make it customized.
Detailed Images
ILLUSTRATION OF CONNECTOR
SPECIFICATION
9 Mosfet Controller | ||
Model | 36V/48V 22A--Normal | |
Rated voltage | DC36/48V | |
Rated current | 11A | |
Maximum current | 22A | |
Rated power | 264W-792W | |
Maximum power | 1800W | |
Static power comsuption | <50mA | |
Under-voltage protection | it can be set according to customer requirements | |
Driving mode | Sinewave or Square wave for option | |
Electromagnetic compatibility(EMC) | Outgoing lines can be added with the jacketed ring for interference protection | |
Lights drive | Optional headlight control and instrument headlight indicator | |
Housing color | aluminum natural or black | |
Product certification | CE certification | |
Related Products
48v 500w Ebike Kit
48v 500w-750w Ebike Kit
Bafang BBS01 BBS02
Packing & Delivery
Our Company
Changzhou Green pedel Co.,Ltd is a professional and scientific enterprise that specialises in researching, producing and selling electric bicycles,electric scooters, K-Shaped cars, Shilly-cars and conversion kits. We ensure the quality of the first-class production equipment and the international standard operating procedures, as well as the professional operating staff. We always uphold the priciples of "quality first , integrity first, and reputation first. " In the past 7 years, our customers vary from government to industrial organizations, from distributors to retailers.
Certification
Our service
1.Warranty :motor is 3 years ,battery is 2 years,other e bike parts are 1 year.
2.OEM &ODM are available as customers demand.
3.We have professional team on e bike parts ,10 years working experience engineers and sales 4.Workers are well trained ,testing every single parts before packing.
5.Sales reply to you within 24 hours .online time is long ,easy to contact .
6.After service is fast ,send replacement parts as soon as you send fault parts to check.
