Stainless Steel 304 316L Horizontal vertical Milk Beer transfer Tri Clamp sanitary Centrifugal Pump with motor
- Category: >>>
- Supplier: Zhejiang Kedun Machinery Co. Ltd.
Share on (60601568072):
Product Overview
Description
PRODUCTS

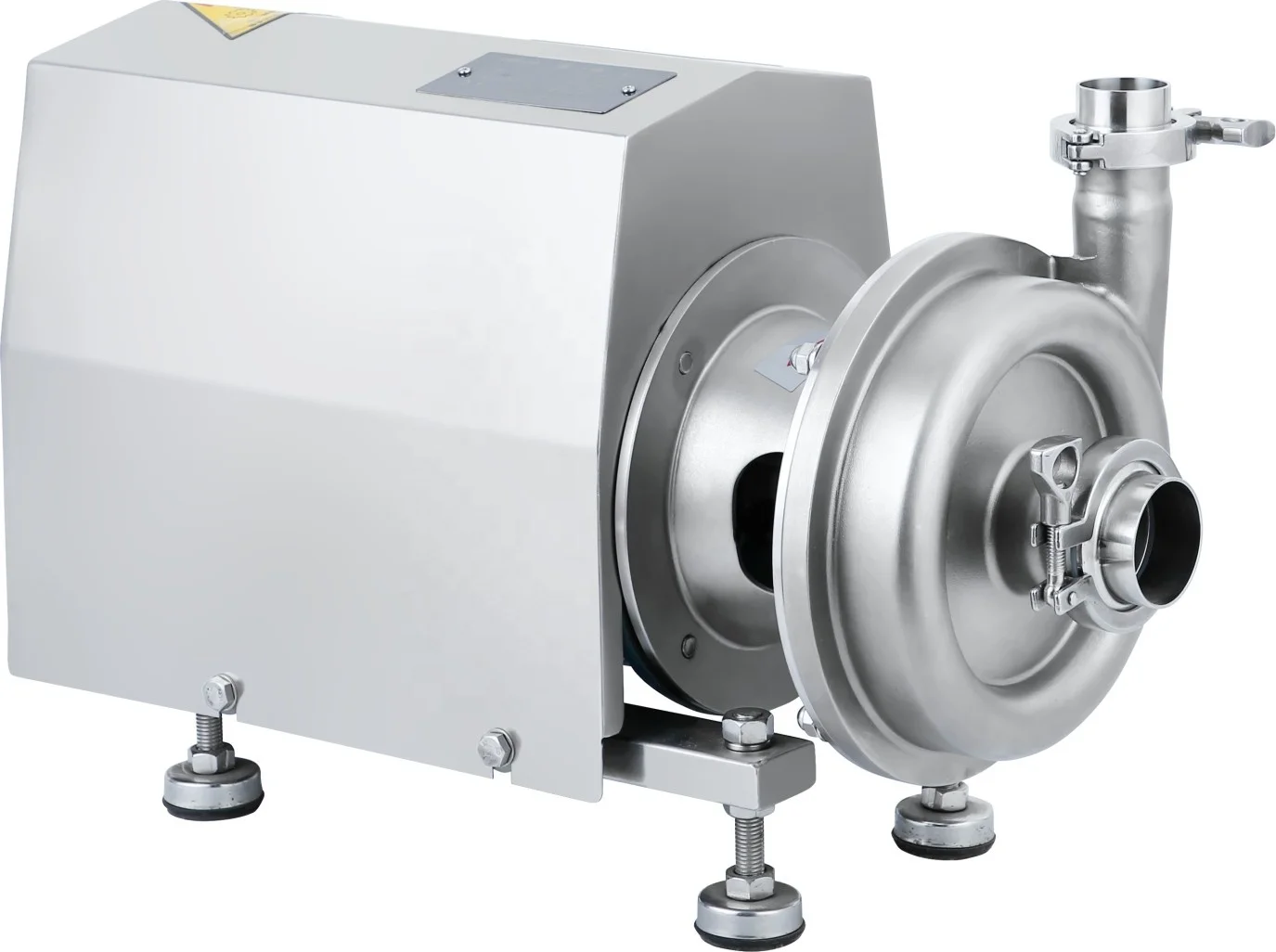

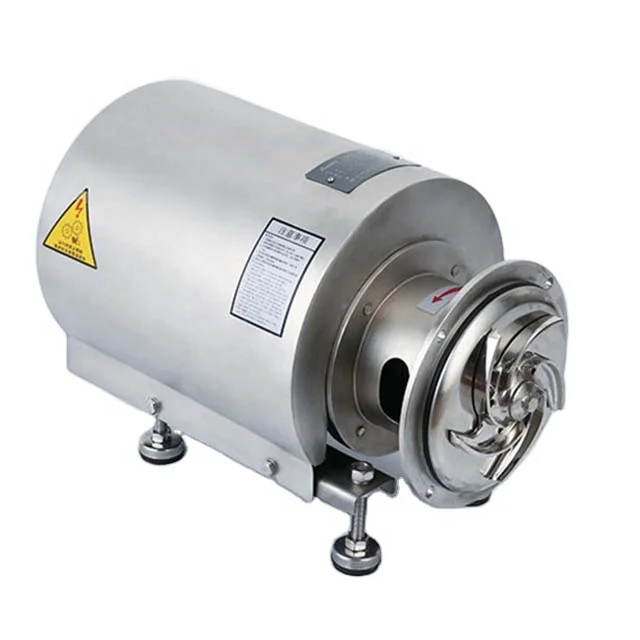

Efficiency Centrifugal Theory Stainless Steel Single Stage Liquid Water Pump
The centrifugal pump is manufactured internal stainless steel and with a shrouded motor.Its sanitary and cost-efficient design makes it perfect for the dairies,beverage, food-processing,pharmaceutical and fine chemicals industries.
Application:
Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry. 1. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
2. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
3. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.
4. Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.
FEATURES AT A GLANCE
Name: | Efficiency Centrifugal Theory Stainless Steel Single Stage Liquid Water Pump | ||||||
Pump Body Material: | SS304,SS316L | ||||||
Seal Material: | EPDM | ||||||
Max. Flow: | 130 m3/h | ||||||
Max. Speed: | 3600 min | ||||||
Max. Working Pressure: | 7 bar | ||||||
Max. Working Temperature: | 120°C | ||||||
Sealing type: | Flushed double mechanical seal/single mechanical seal | ||||||
Motor power: | 1.1kw, 1.5kw, 2.2kw | ||||||
Voltage: | 220V, 380V | ||||||
Surface treatment: | Inner polished and Sandblast outside | ||||||
Available connection: | Clamp, Thread, Flange | ||||||
Available standard: | DIN, SMS, 3A, ISO/IDF | ||||||
DETAILS
WORKING PRINCIPLE

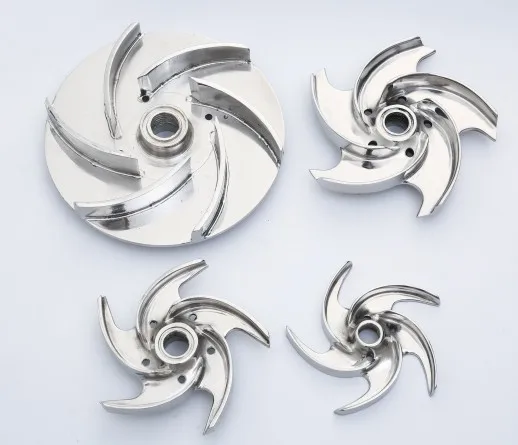

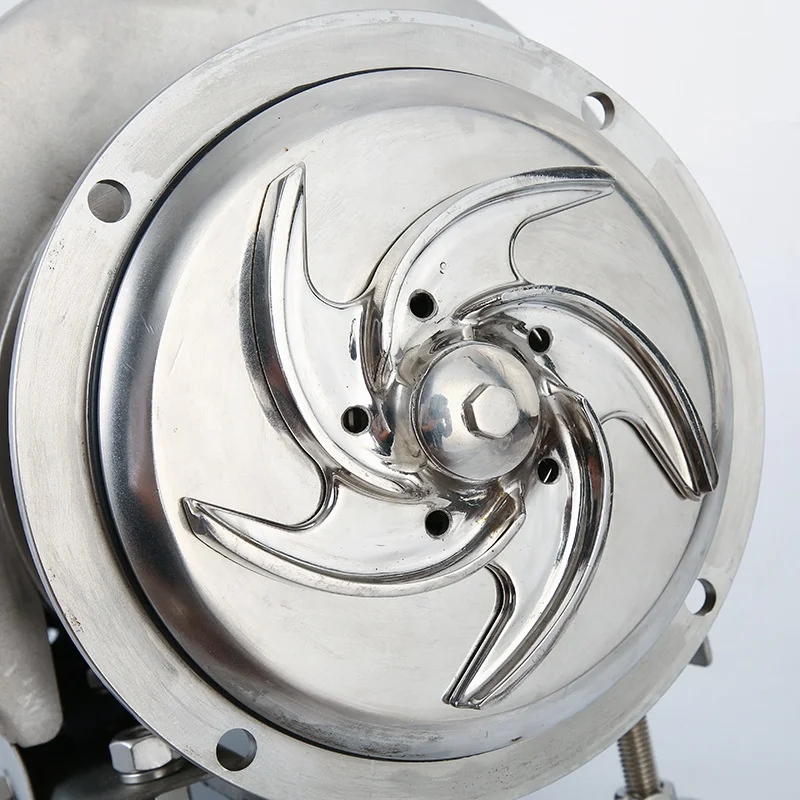

●Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.
●This pump is not reversible by simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.
●This pump is not reversible by simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.
PRODUCT SPECIFICATION
FEATURES AT A GLANCE
Name: | Efficiency Centrifugal Theory Stainless Steel Single Stage Liquid Water Pump | ||||||
Pump Body Material: | SS304,SS316L | ||||||
Seal Material: | EPDM OR VITON | ||||||
Max. Flow: | 130 m3/h | ||||||
Max. Speed: | 2900 rpm | ||||||
Max. Working Temperature: | 150 ℃ （Higher temperatures require special customization） | ||||||
Sealing type: | Flushed double mechanical seal/single mechanical seal | ||||||
Motor power: | 1.1kw~132KW | ||||||
Voltage: | 220V, 380V,etc | ||||||
Surface treatment: | Inner polished and Sandblast outside | ||||||
Available connection: | Clamp, Thread, Flange | ||||||
Available standard: | DIN, SMS, 3A, ISO/IDF | ||||||
Packaging Logistics
FAQ
1.Q:What is your packing?
A: We usually packing in plywood case.
2.Q:How long is the service time?
A:It could use several year without external force factors.
3.Q:Do you have warranty?
A:We have 1-2 years warranty.
4.Q:What is the MOQ?
A:The majority of products are fully in stock,we accept 1 pieces as the minimum order quantity.
5.Q:What is the payment terms?
A:We accept T/T and L/C,also can using trade assurance.
6.Q:How to choose the shipment way?
A:It is according to the order quantity,delivery time,costs and customs policy,etc.(Or decide by customs).
7.Q:How about the surface finishing?
A:Machine finished,matt and mirror polished,it will be confirmed by customer’s requirement.
A: We usually packing in plywood case.
2.Q:How long is the service time?
A:It could use several year without external force factors.
3.Q:Do you have warranty?
A:We have 1-2 years warranty.
4.Q:What is the MOQ?
A:The majority of products are fully in stock,we accept 1 pieces as the minimum order quantity.
5.Q:What is the payment terms?
A:We accept T/T and L/C,also can using trade assurance.
6.Q:How to choose the shipment way?
A:It is according to the order quantity,delivery time,costs and customs policy,etc.(Or decide by customs).
7.Q:How about the surface finishing?
A:Machine finished,matt and mirror polished,it will be confirmed by customer’s requirement.
