cone bobbin sewing thread winder/ winding machine with oil device
- Category: >>>
- Supplier: Jiangsu Tangshi Textile Machinery Group Co. Ltd.
Share on (60601651471):
Product Overview
Description
Product Description

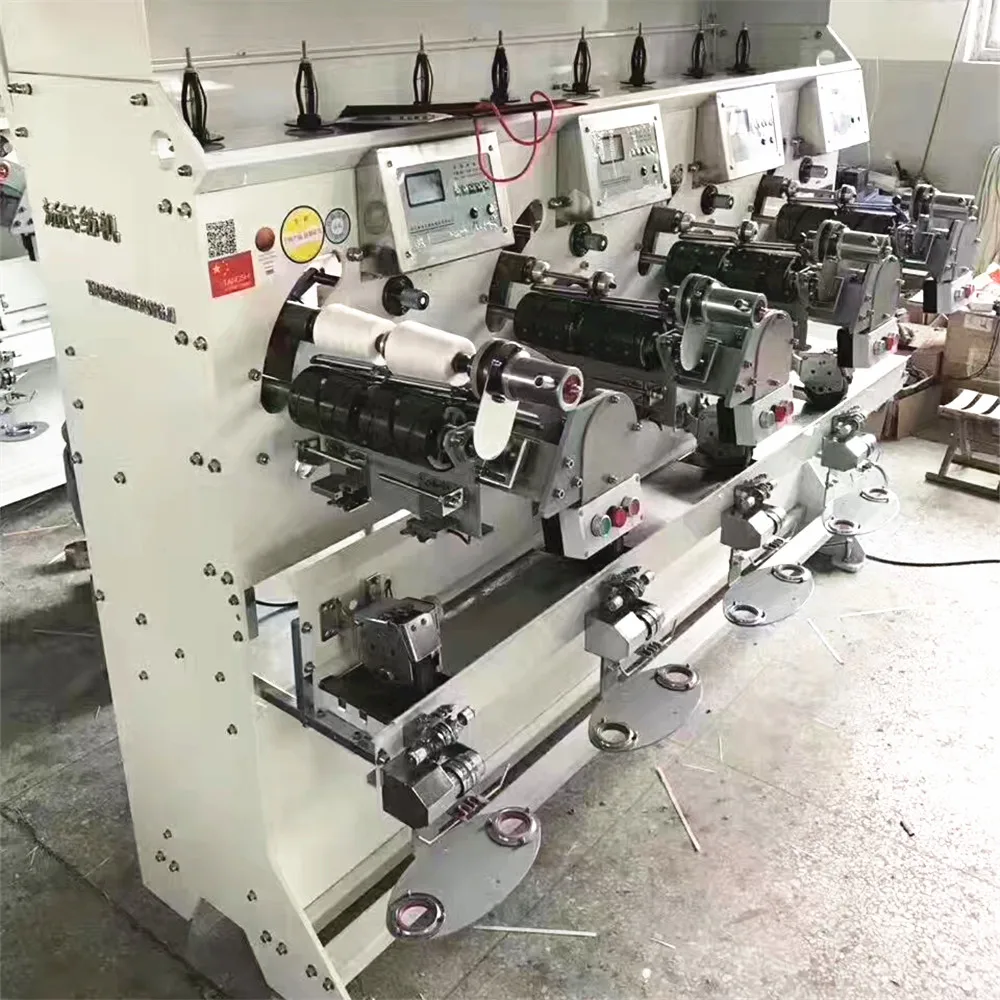

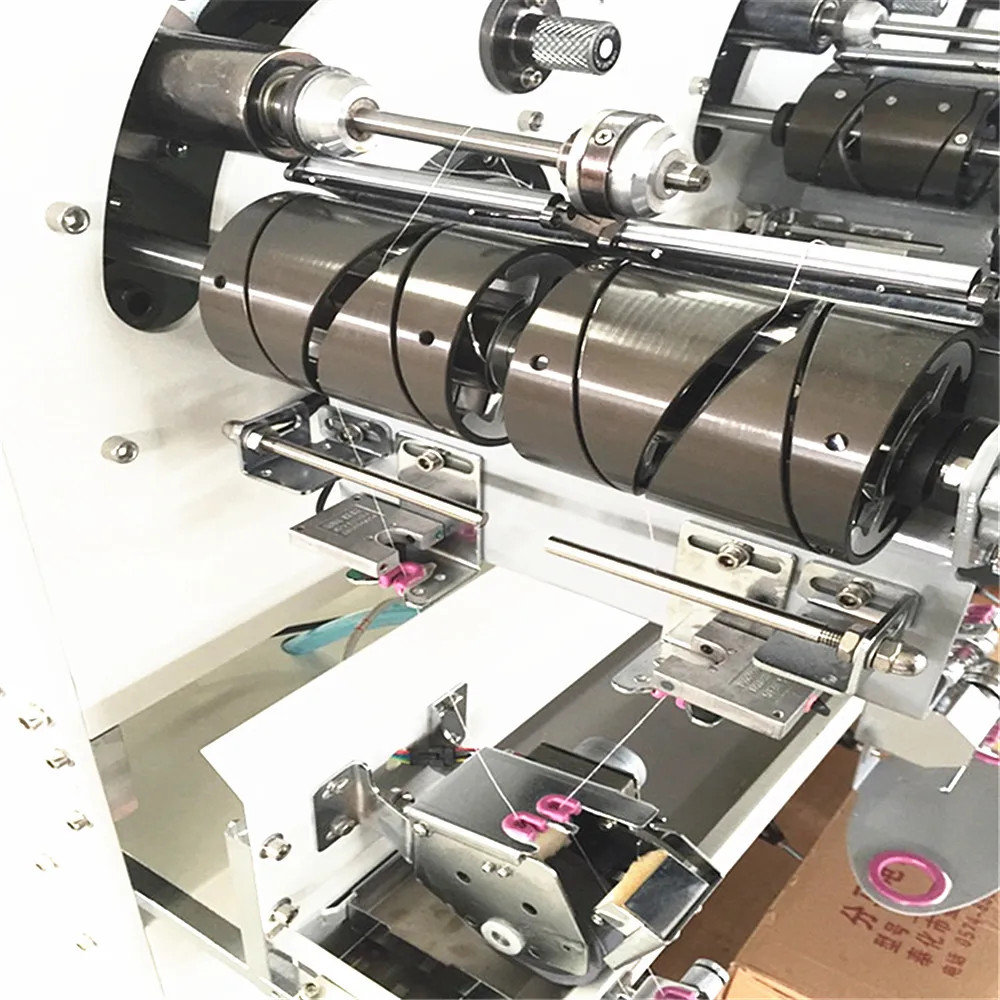

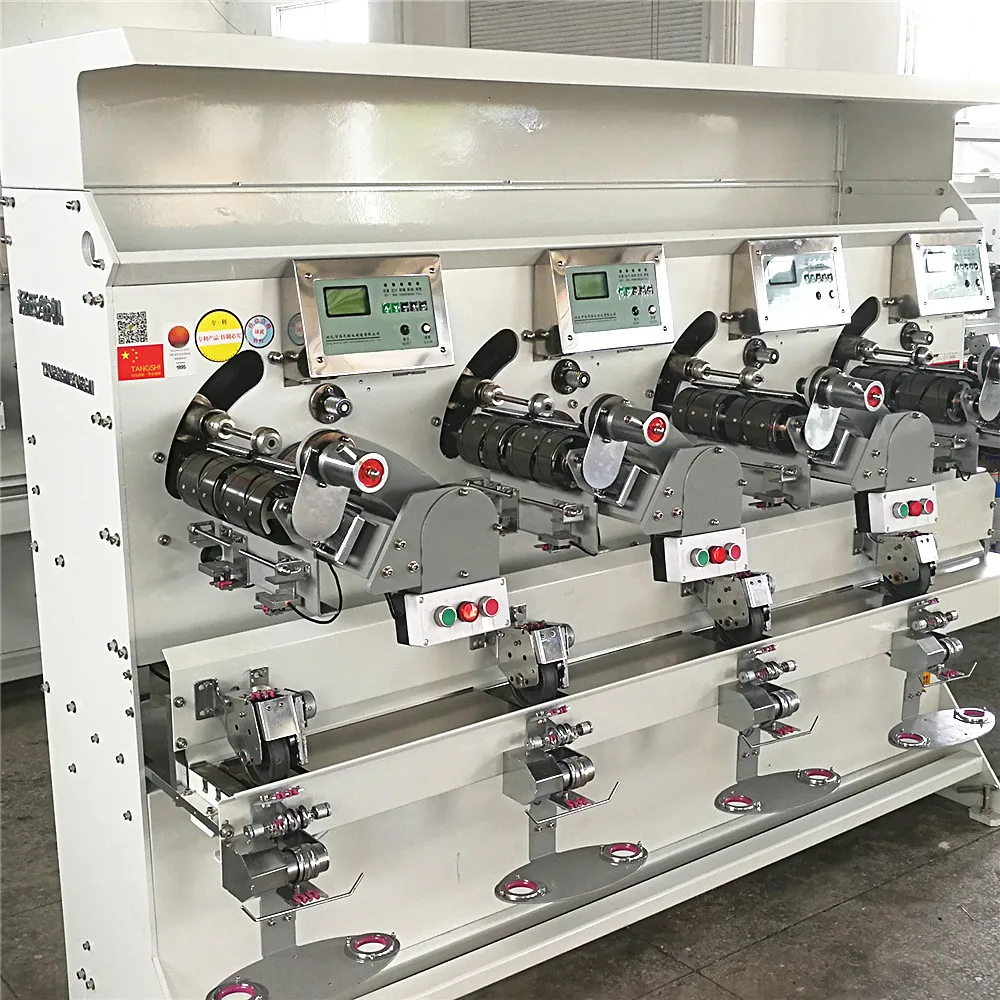

cone bobbin sewing thread winder/ winding machine with oil device
Please click here to view more products
Product Specification
TS008O sewing thread winding machine with semi-auto oiling device is suitable for winding sewing thread, polyester, nylon, embroidery thread.It is with solid frame , high quality spare parts and perfect design.
Main features
1. The winding speed of each spindle is 100 to 1000 meters per minute which is adjusted according to the yarn.
2. The take-up cone is beautiful and with high quality.Low noise when is works.
If the bobbin length is 2.5 ~ 5 inch,one spindle with two heads. If the bobbin length is 5~7inch,one spindle with one head.
| Model Number | TS008O |
| Brand | TANGSHI |
| Place of Origin | Jiangsu, China (Mainland) |
| Application | Winding Thread |
| Automatic Grade | Semi-Auto |
| Memory Capacity | 999999m |
| Production Ability | High Speed |
| Speed | 100-1000m/min |
| Driving | Independence Control |
| Tension | Electronic tensioner |
| Bobbin Type | Y-Shape, Cone, Cylinder 2.5inch-6inch, Customized |
| Auto Stop Device | Included |
| Package Diameter | 115mm |
| Control | Touch Screen Control |
| Lubrication System | Auto-Recycle Lubricate |
| Bobbin Nos. | 4 Spindles with 8 bobbins/4 bobbins |
| Certification | ISO9001:2008/CE |
| Power(W) | 1kW/set |
| Voltage | 380V,220V |
| Weight | 650KG |
| Warranty | 1 year |
| After-sales Service | engineer service to available machinery |
| Dimension(L*W*H) | 2250*1050*1650mm |
