Отличный аксессуар для цементного силоса, фильтр для сбора пыли на продажу
- Category: Dust Collector >>>
- Supplier: Shandong DOM Machinery Equipment Co. Limited
Share on (60601684692):
Product Overview
Description
Product Description
Dust collector
TechnicalFeatures • Maintenance height = 1,080mm • High filtration efficiency low dust emission level • Maintenance easy • No tools required for filtering element removal. Complete replacement of filter media by only one person within a few minutes |
Technical data
| Product model | SV-V2 | SV-J1 |
| Filtration area | 24m2 | 24m2 |
| Wind capacity | 1500m3/h | 1500m3/h |
| Filtration efficiency | 99.9% | 99.9% |
| Noise | under 85dB | under 75dB |
| Cleaning method | Vibration cleaning intermittent working way | Pulse air-jet cleaning continuous working |
| Compressed air | - | 4-6 bar |
| Control panel power | 380V/50Hz | 220V/50Hz |
| Structure | Stainless steel | Stainless steel |
| Connecting way | Flange connection | Flange connection |

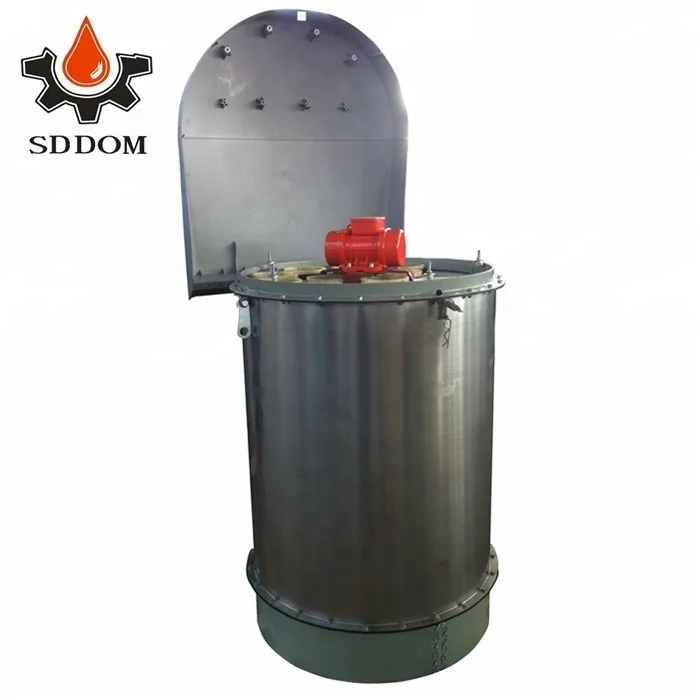

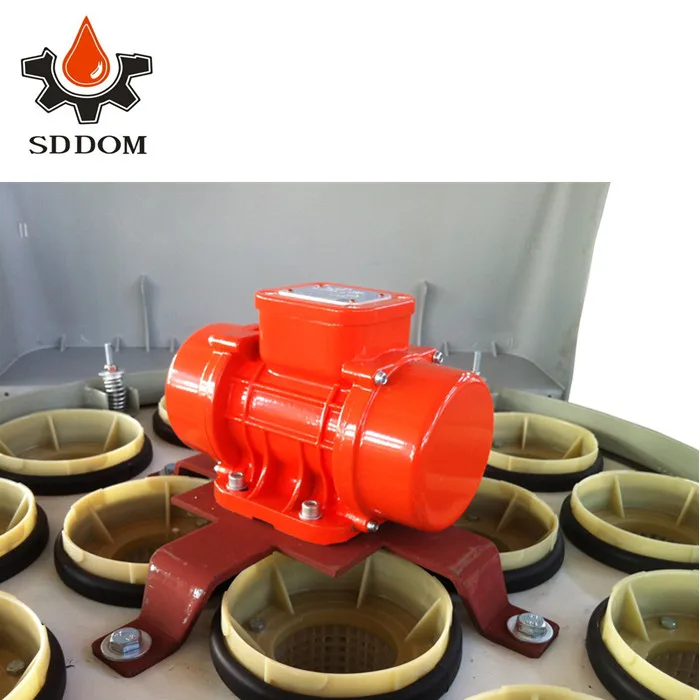

1.SV-V2: Vibrating Type
| Vibrating type is used on top silo.Dust separated from the air flow by filter elements drops back into the silo after vibration. |

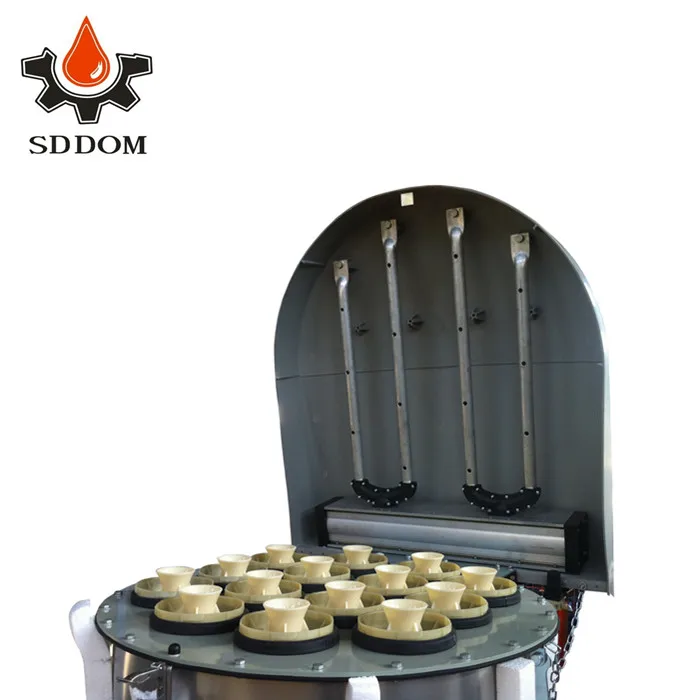

2.SV-J2:Air-Jet Type
Dust separated from the air flow by filter elements drops back into the silo after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements. The air jet cleaning system is integrated in the hinged weather protection cover. |

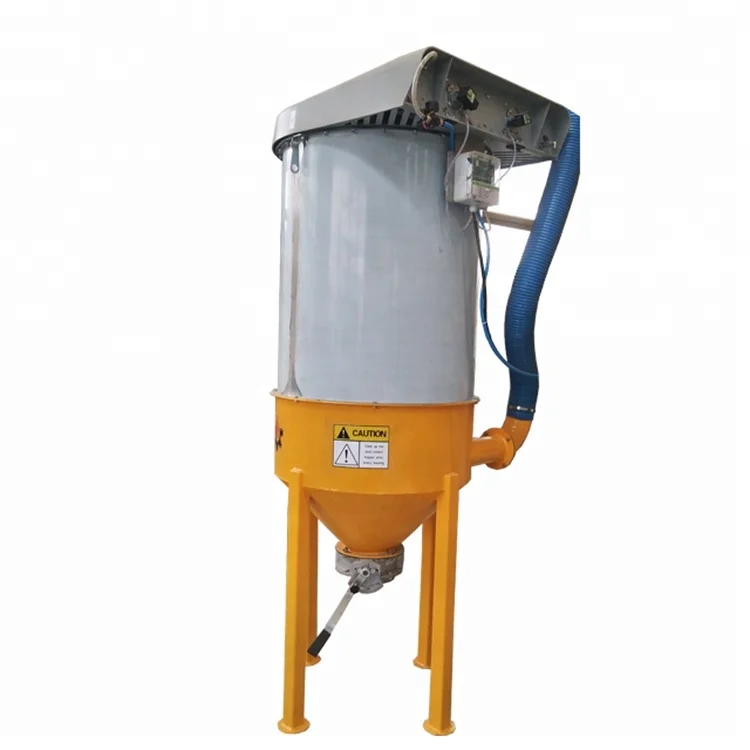

3. Dust collector with blower and dust collector hopper:
| Dust separated from the air flow by filter elements drops back into the dust collector hopper after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements. The fan system provide negative pressure which help to keep air filtration more efficient. |
4.Filter inside
Filter inside is folded PET filter.
Thickness of the filter is only 0.2mm,easy to clean and have long working life.

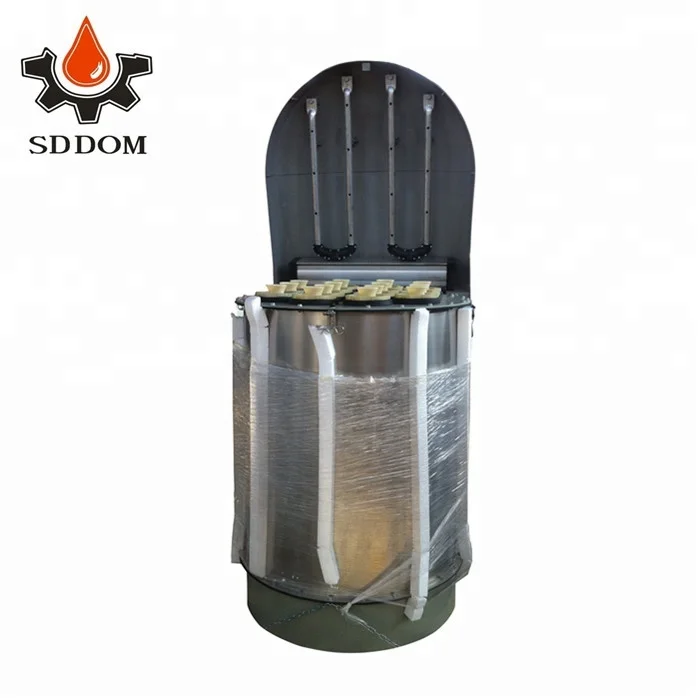

Packaging & Shipping
It can be put in container.Save transport fees,easy for transportation.
Our Services
Service
1.Technical files service provided
2.On-site training service provided.
3.Spare parts replacement and repair service provided
4.Our Products can be customized according to clients' different requirement.
5.Technical support online service provided.
After-sale Service
1.May enjoy the life-long service and technical consultation after you buy our products.
2.Training the operator for free.
3.We will dispatch one or two skilled healthy and competent technician to the job site for technical service on-site with a period of 14 days
4.Under the condition that foundation, water source, power source, aggregate, hosting equipment, auxiliary staff is ready. Engineers are available if you need.
5.Certain quantity stochastic tool will be provided while delivering goods.
6.Within 48 hours service will be available according to different regions after received the telephone.
7.The time of warranty is for a whole year
8.Promptly provides the fittings according to users’ demands, handles for the user consigns for shipment.
9.Provides the technology advisory service as necessary.
10.Please contact me when you have any problems with the plant.
