new technology nano micro bubble generator gas liquid mixing pump for aquaculture fish farming

Product Overview

Description

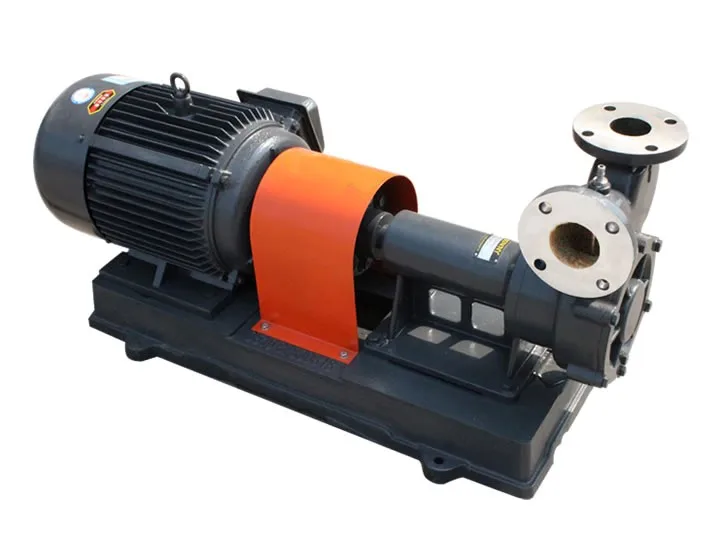

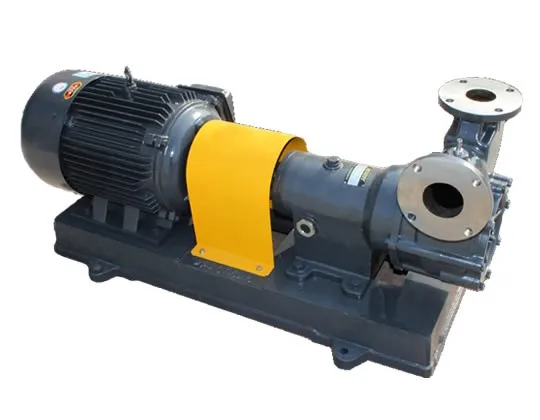

new technology nano micro bubble generator gas liquid mixing pump for aquaculture fish farming



Feature

-It can suck water while sucking gas and pressurize and mix them inside it. Ultra fine air

bubble 20~30µ. It renders a good gas liquid solving effect.

-It has stable performances, high efficiency and low noise level, and its gas liquid solving

efficiency is as high as twice that of the traditional mode.

-When it is used in air suspension unit, air compressors, various mixers, high pressure air

solving tanks and releasers may be saved and thus the weakness of instable air supply and

boiling of large air bubble which likely occur in traditional working model will be eliminated.

-When it is used in ozone water preparing equipment, many mixers and large oxidation

towers may be saved and thus the cost for equipment will be greatly reduced. In addition,

its gas liquid solving ratio may exceed 95%.

-It is simple in structure and operation, easy in maintenance and durable and needs less

components. It has a good self suction capacity and a wide application range.



Applications

-Air suspension treating equipment, ozone water preparing equipment, and biological

treatment equipment.

-Feeding of heating or cooling medium for various temperature adjusting devices.

-Various filters: sucking or high pressure transferring low viscosity liquid from underground

tank, such as gasoline and various solvent.

-Treatment of clear water, pure water, foods, chemical solution and waste solution.

-Strict applications (continuous running, abruot variation in hydraulic pressure): such as

small scale stream boiler, high building water supply, high pressure water injection to high

pressure tank, and suction from vacuum tank.

-Sampling from river or tank, transfer foamable liquid, transfer liquid through long and

horizontal pipeline, where air pockets likely occur.



Working condition

ZA and ZAL designed for clear and low viscosity liquid, or liquid containing extra-fine

foreign matters.

ZAB and ZALB design for clear and low viscosity liquid, or explosive flammable liquid

which containing very little solids.

Liquid temperature: -150C ~ 1200C

Maximum ambient temperature: +400C

Gas-liquid ratio 1:9 (Gas suction volume 8~10%)

Inlet: horizontal, Outlet: Vertical



Specification

Item	20ZA-1SS	20ZA-1DS	25ZA-2SS	25ZA-2DS	40ZA-6SS	50ZA-12
Head of delivery	40M				50M
Flow rate	1T/Hr		2T/Hr		6T/Hr	12T/Hr
Water input size	0.75’’		1’’		1.5’’	2’’
Water output size	0.5’’		0.75’’		1.2’’	1.5’’
Power	0.55Kw		1.1Kw		3Kw	5.5Kw
Voltage	380V	220V	380V	220V	380V	380V
Speed	2900r/min
Size of Tank	φ200×320mm (3mm thickness)				φ273×720mm (3mm thickness)



Product show

used with ss304/316L mixing tank

 SS Mixing Tank

Nano Bubble Generator Assembled With Oxygen Or Ozone Machine For Water Treatment:

Drinking Water Treatment, Aquaculture Water Treatment

Other mixing devices

Disc diffuser

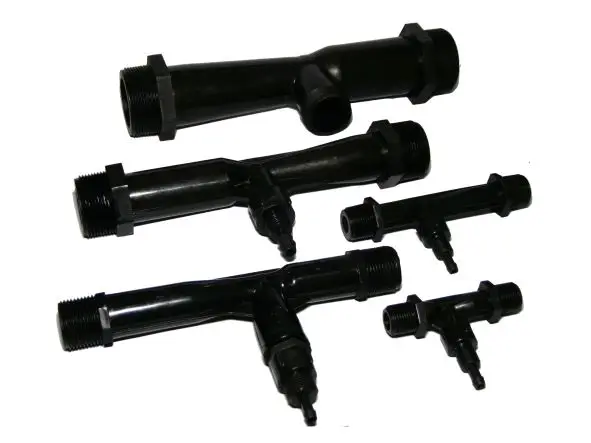

 Venturi with water flow 0.05T/H-50T/Hr

Static mixer ss304/316l or pvc material

Oxygen cone for increasing dissolved oxygen in water tank



Delivery term

1. 2-5 days for sample and small quantity order;

2. 10-20 days for mass production order;

3. delivery by courier, air line or by sea;



Payment term

Welcome to pay by T/T, Western Union, Paypal, L/C, Credit card



About us

Zeao Ozone manufacturer supply high quality ozone generator, oxygen generator, the related spare parts, and UV & aquaculture water systems.

All of our products are favored and trusted by customers with contemporary design(simplicity,innovation,practicability,multifunction and fashion),

convenient operate,durable and its competitive price.



Excellent after-sales service

1. 24 hours on line customer service.

2. Delivery of replacements within 5 days.

3. Free parts and replacements during one year warranty



Quality guarantee

Committed to the standardization of the ozone market, Zeao make strict control of

every step from assembling to packing. All the products must be tested and qualified before packaging.

1. 3 inspection line for sample, mass productiion, and urgent order;

2. Running test one by one;

3. Defective rate under 0.2%





Please don't hesitate to contact with us, you are strongly expecting and welcoming to be the one of our partners in the coming day!
