CETC Solar High Efficient Wholesale 360W Monocrystalline Solar Panel
- Category: >>>
- Supplier: Zhejiang JEC New Energy Technology Co. Ltd.
Share on (60601864000):
Product Overview
Description
CETC Solar High Efficient Wholesale 360W Monocrystalline Solar Panel
Solar Panel Data Sheet | ||||||
Description of Specification | Configuration | Units | Model | |||
NES72-6-360M | ||||||
General Data | ||||||
Maximum Power | Pm(W) | Watts | 360W | |||
Watt Tolerance | Watts | 0-5 | ||||
Application | DC24V | |||||
Storage & Operating Temperature | Deg .C | -45~85 | ||||
Standard Test Conditions:Cell Temperature:25 Deg. C,Irradiance:1kW/,Air Mass: 1.5 | ||||||
Voltage & Ampereage | ||||||
Maximum System Voltage | Volts | 1000VDC | ||||
Maximum Operating Voltage | Vmp | Volts | 37.00 | |||
Maximum Operating Current | Imp | Amps | 9.72 | |||
Open Circuit Voltage | Voc | Volts | 45.20 | |||
Short Circuit Current | Isc | Amps | 9.88 | |||
Solar Cell | ||||||
Cell Type and Diameter | Monocrystalline, 156mm | |||||
Number of Cells | In Series | 72(6×12) | ||||
Temperatures Coefficients | ||||||
Temp Coefficent of Isc | Tk Isc | % per deg.C | 0.031 | |||
Temp Coefficent of Voc | Tk Voc | % per deg.C | -0.39 | |||
Temp Coefficient of Pmax | Tk Pmax | % per deg.C | -0.53 | |||
Normal Op. Cell Temp (NOCT) | deg.C | 45±2 | ||||
Materials & Accessories Data (All Certified by CE and TUV) | ||||||
Junction Box | IP67 rated | |||||
Output Cable:Wire Diameter :4m | Length | mm | 900 | |||

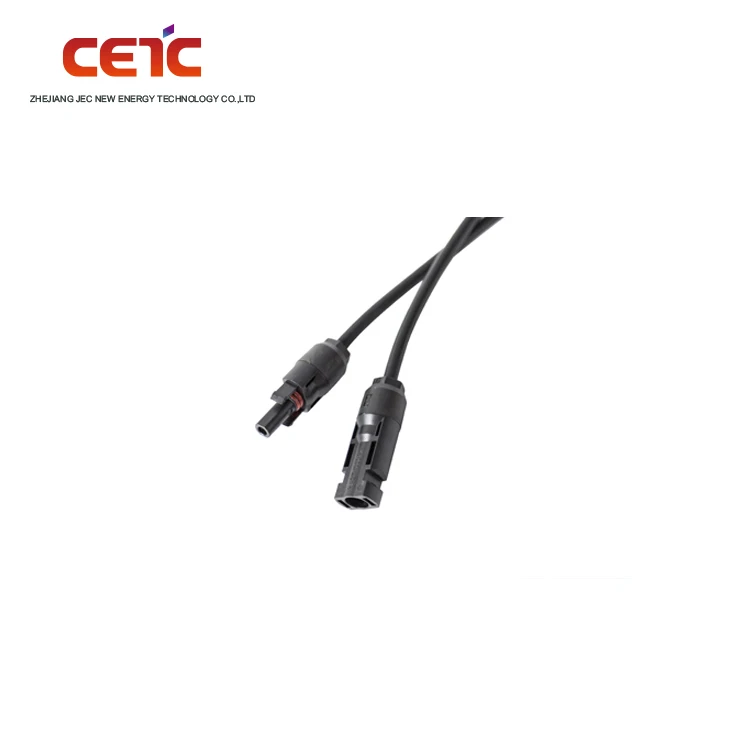

Type of Cable Connector | MC Plug Type IV | |||||
Frame:Aluminum Alloy | Anodized | |||||
Front Glass:Low Iron,High Transmisson,Tempered glass | Thickness | 3.2mm | ||||
Cell Encapsulation Material | EVA | mm | 0.5mm | |||
Backsheet Cover Material | TPT | mm | 0.3mm | |||
Quality Warranty (Output Power) | ||||||
Power Production | 90% | Years | 10 | |||
80% | Years | 25 | ||||
Manufacturing | Years | 10 | ||||
Dimensions | ||||||
Dimensions:Length×Width×Height | mm | 1956 × 992 ×40/35 | ||||
Weight | kg | 22 | ||||
