13.56mhz rfid reader rs485 interface with data upload automatically

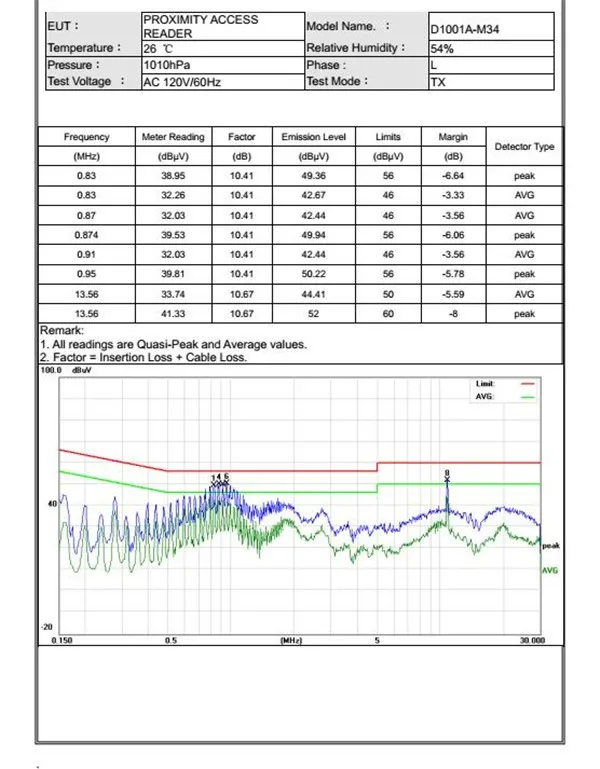

We got new FCC ID certification for rfid readers , certification number 2AKDCD1001A-M34,you can check the certification in  USA  FCC

website , if you need test report , please contact Dwell Sales!

What is the Specifications of our RFID  Reader?

• Less than 0.2 second Response Speed


• Less than 0.5 seconds Proximity Time Distance


• 2-10 cm Proximity Range


• Support 13.56mhz  MF card or keyfob


• Built-in Antenna


• Built-in LED (Double Color LED,stand by red color , read card yellow color light )


• Built-in Loud Speaker (Buzzer)


• DC 12V Working Voltage,70mA Working Current


• 100 Meters Communication Distance


• Real Time Data Transfer

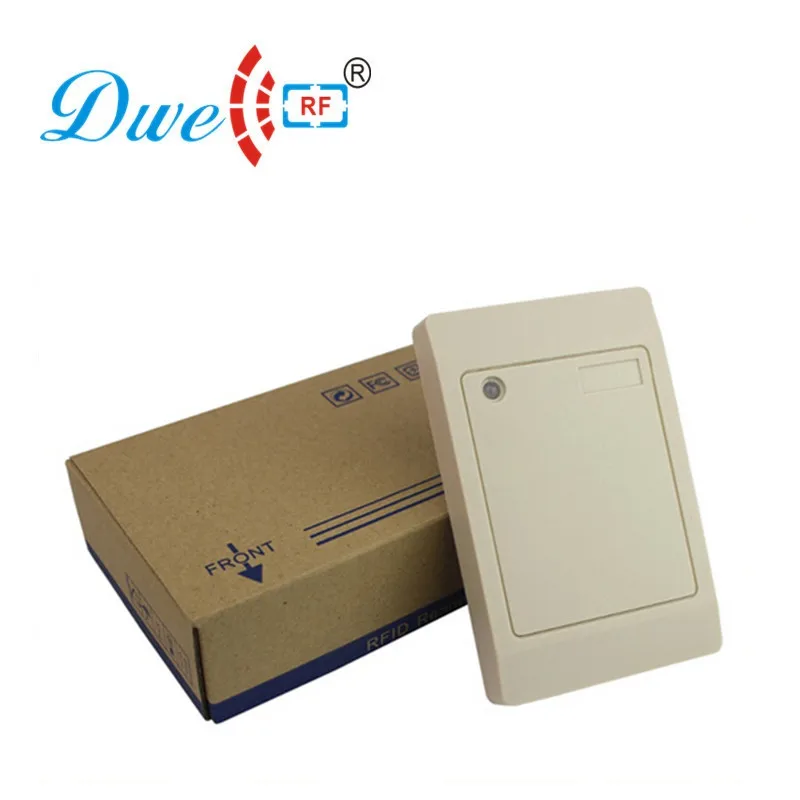

• Ivory Color

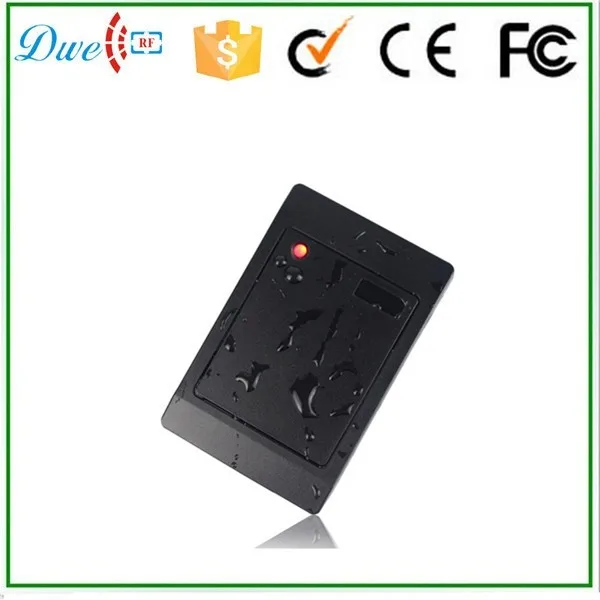

• PVC Case Material (Black Resin for Water-Proof Function)


• 102*43mm*16mm

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

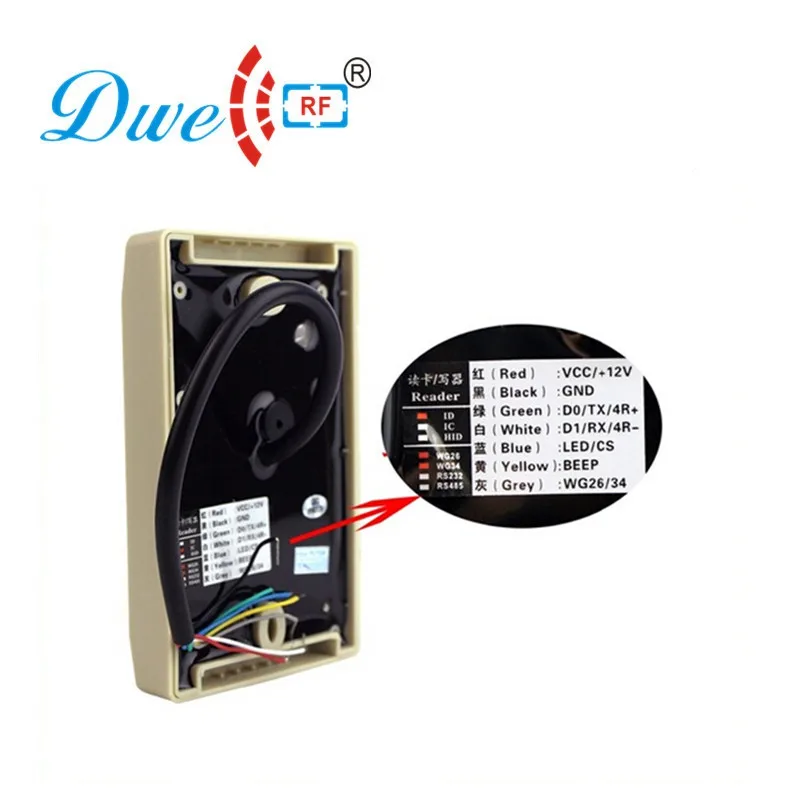

Wire Connection

Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires

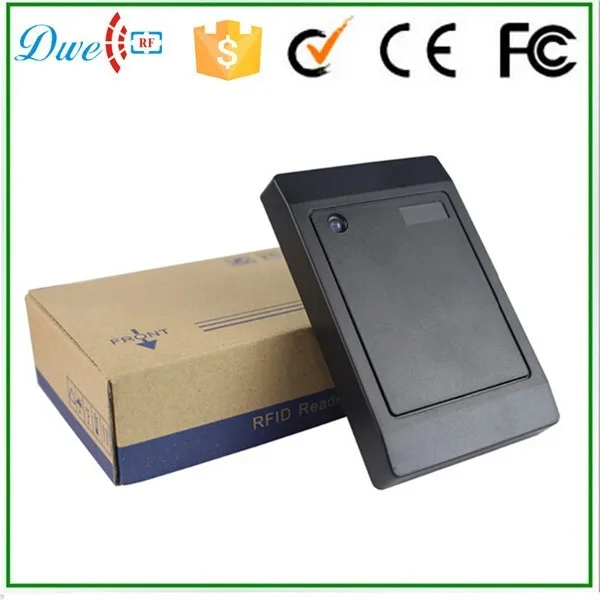

RFID Reader Packing List

1* RFID reader RS485

1* RFID Box

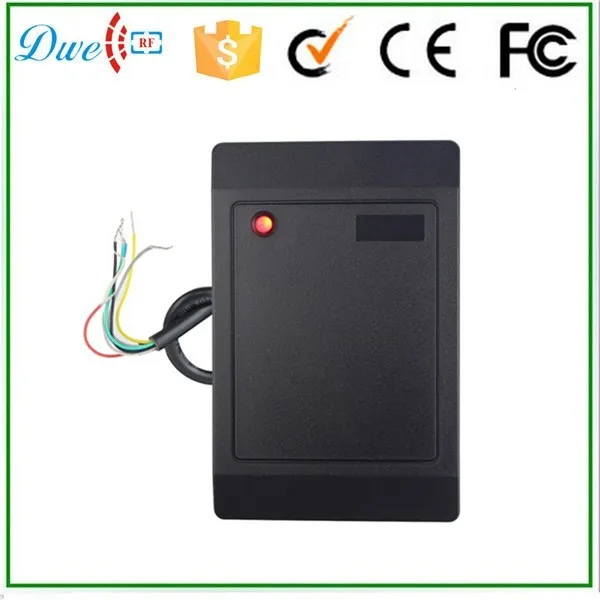

RFID Reader Photos

Dwell Electronics Co., Limited (Also named Shenzhen Dwell Electronics Co.,Limited) was established in 2000, located in Shenzhen, Guangdong, China. Our company is a high-tech enterprise specializing in developing, producing and operating access control products. Including TCP/IP and RS485 access controllers,125khz/13.56Mhz/2.4G/900M RFID readers, fingerprint time attendance and access control,video door phone,barrier gate and so on.
