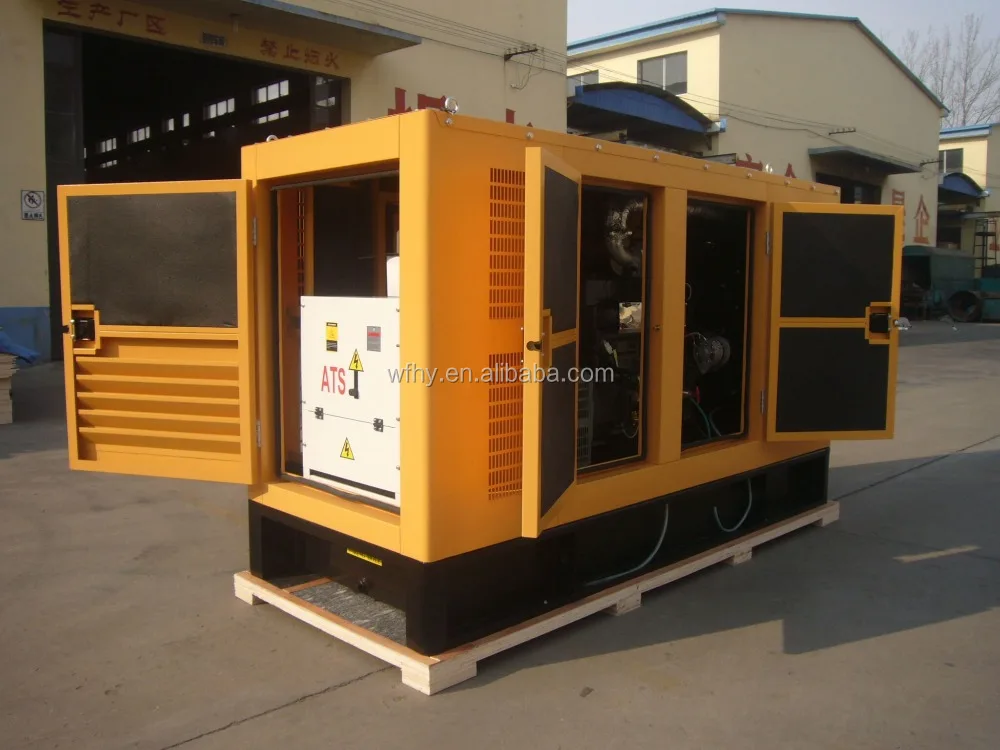

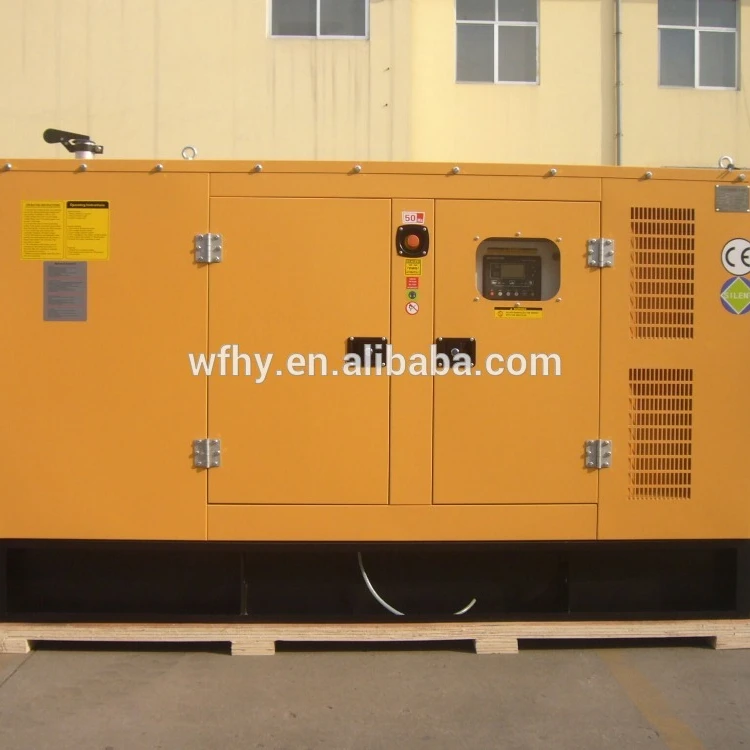

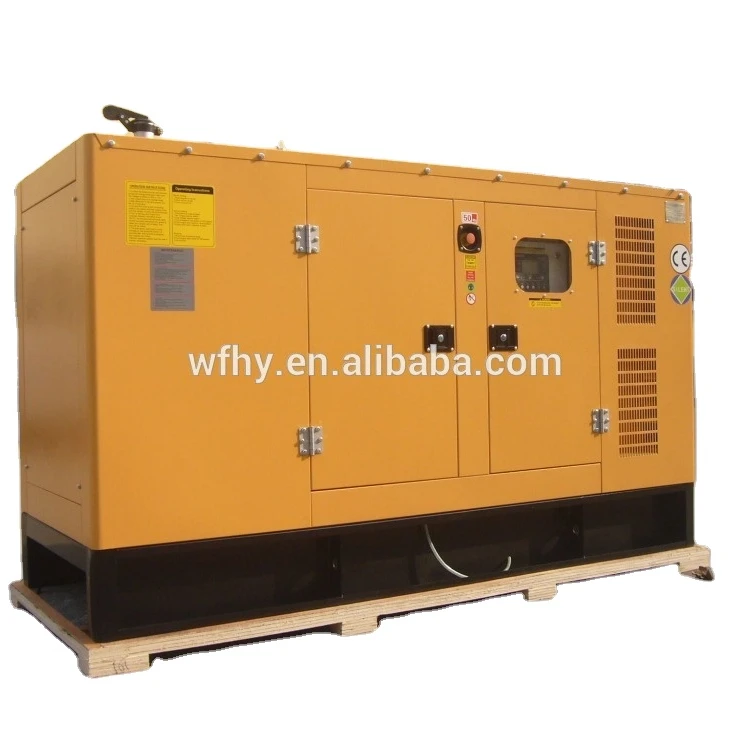

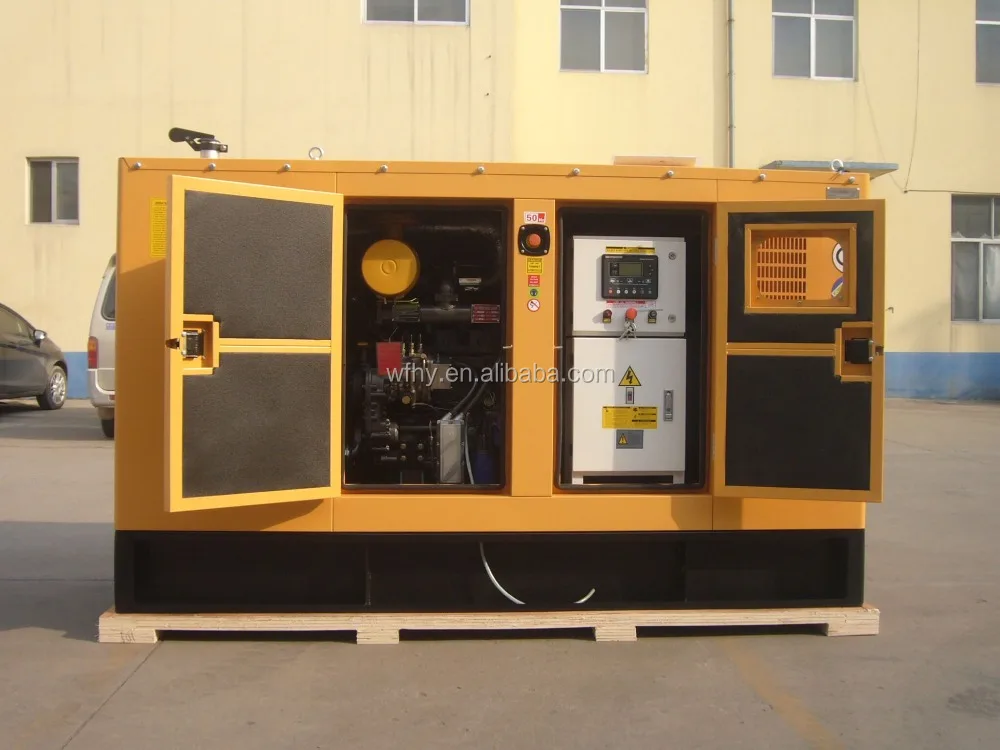

Soundproof diesel generator set 15kv

Product Overview

Description





DIESEL GENERATOR SET 15KV SPECIFICATION



*Powered by weifang engines

*Radiator 40°C max, fans are driven by belt, with safety guard

*12//24V DC start motor and storage battery

*Brushless, self-excited, IP22/23, insulation H alternator

*Absorber to reduce vibration

*Dry type air filter, fuel filter, oil filter

*Main line circuit breaker

*Control system: Key start control panel as standard, digital auto start or ATS system is optional

*8 hours operation base fuel tank

*High efficient muffler to reduce noise

*Ripple flex exhaust pipe, exhaust siphon and flange etc.

*Genset type: open type or soundproof/silent type, or trailer type

* Maintenance and operation manual, quality certificate, etc.

 *Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%

and all protection function(over speed stop, high water temperature, low oil pressure, battery

charging fail, emergency stop)

*Certificate: ISO9001:2000, CE (ESC/070119), BV



Genset model	GF12
Prime power  (KW/KVA)	12/15
Standby power  (KW/KVA)	19.2/24
Frequency & voltage	230/400V, 50HZ
No. of  Phase	3
Genset type	Silent/Sound proof
Reference Dimension & Weight (W*H, mm)/KGS	2000*800*1300,800KGS
DIESEL ENGINE
Engine brand & Model	HUAFA, HF495D
Rated output	26KW
Rated Speed	1500RPM
Engine Type	Four stork, in-line water cooled
No. of cylinder	4
Bore*stroke	95*115mm
Aspiration method	non-Trubocharged
Governor	Mechanical
Starting method	Electric starting
Cooling method	Forced water cooled
Lubrication method	Pressure & splash lubricating
Fuel consumption	258g/kw.h
ALTERNATOR
Alternator brand & model	Stamford/Leroy Somer/China reputed one
Type	Brushless & self-excited
No. of phase	3
Volatage	230/400v
Frequency	50HZ
Power Factor	0.8
Insulation Grade	H
Protection Grade	IP22/23
Altitude	≤1000m



DIESEL GENERATOR SET 15KV CONFIGRATION







DIESEL GENERATOR SET 15KV  PRODUCTION LINE

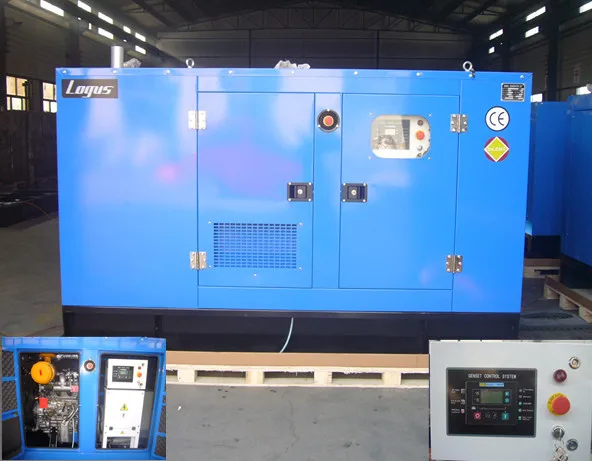

DIESEL GENERATOR SET 15KV SHOW
