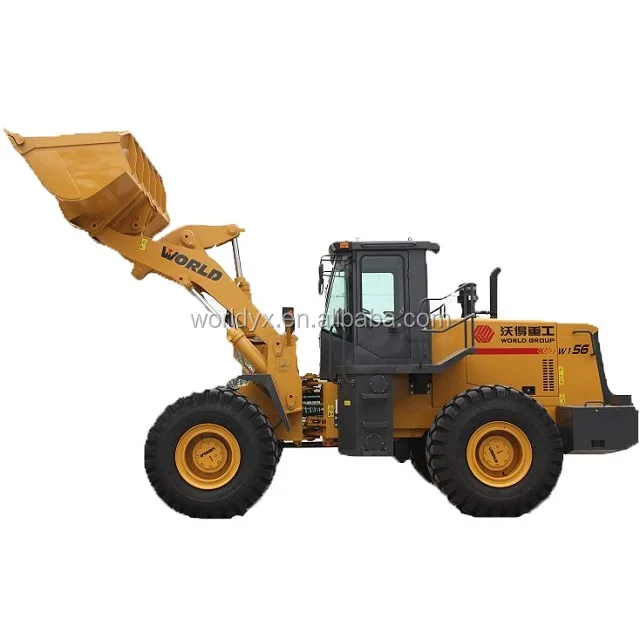

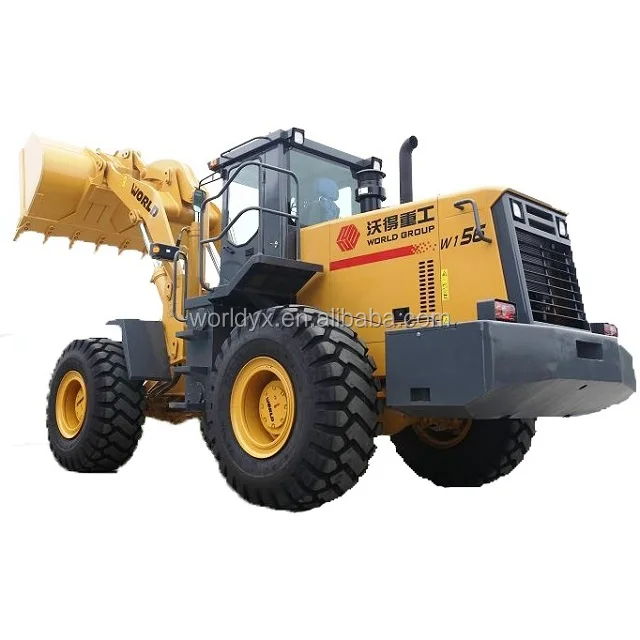

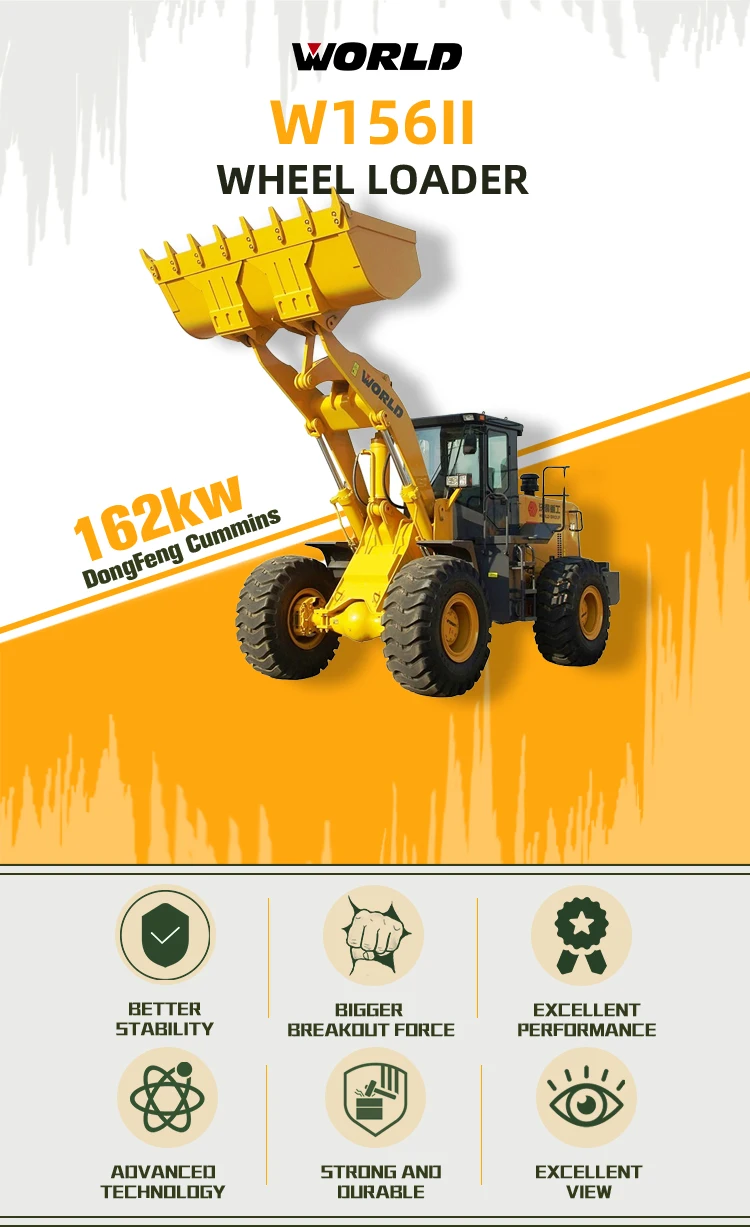

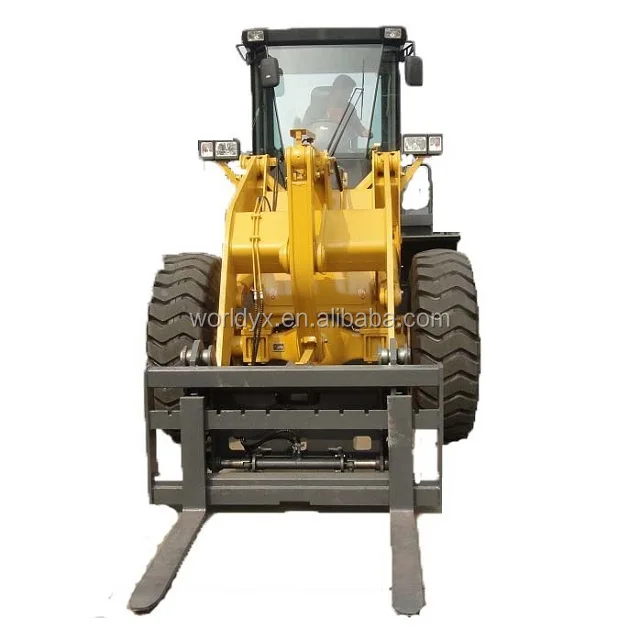

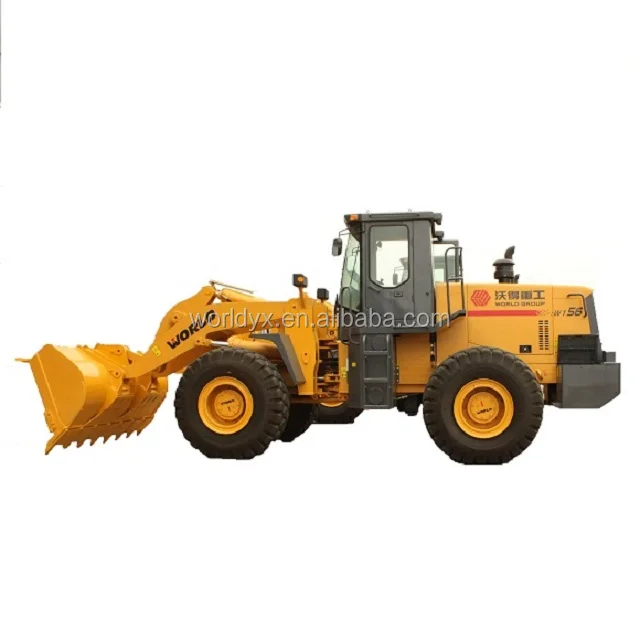

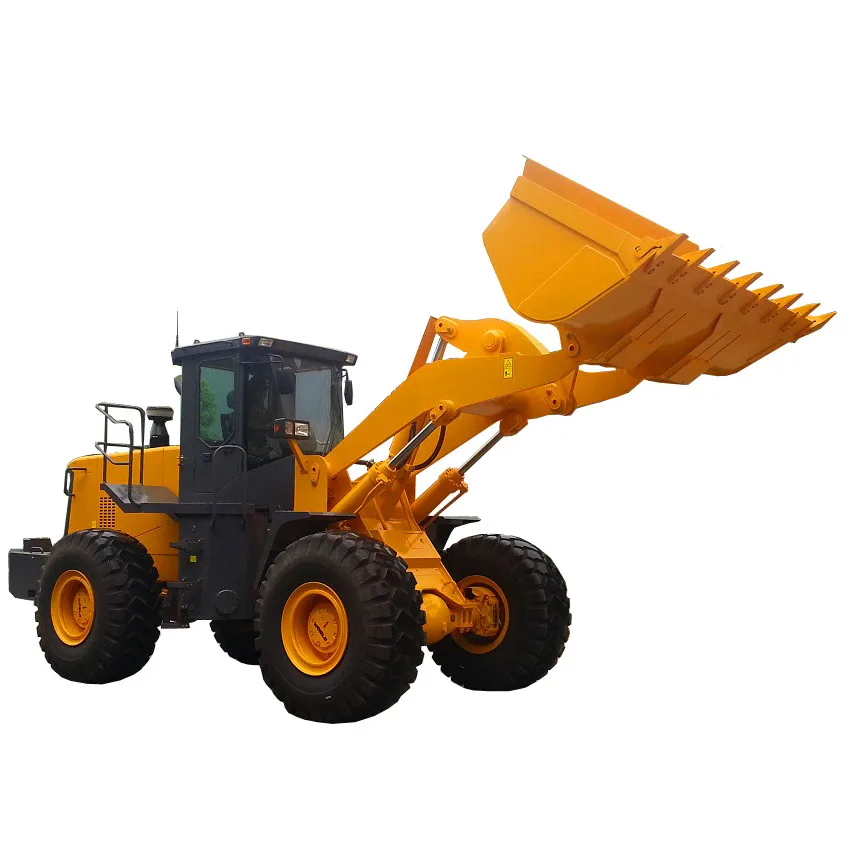

WORLD W156 front end wheel loader price list, 17000kg Operating weight
- Category: >>>
- Supplier: Shanghai Yingxin World Machinery Co. Ltd.
Share on (60602081867):
Product Overview
Description
Basic Data | ||
Bucket Capacity | 3.0m³ | |
Rated Load | 5000kg | |
Travelling Speed | ||
Forward 1st | 0-11.5km/h | |
Forward 2nd | 0-37.5km/h | |
Reverse 1st | 0-17km/h | |
Max. Traction | 165kn | |
Max. Break Out Force | 150kn | |
Wheel Base | 3427mm | |
Min. Turning Radius (Outside Tires) | 6700mm | |
Max. Dumping Height | 3100mm | |
Max. Reach | 1200mm | |
Total Hydraulic Cycle Time | ≤11.1s | |
Full Bucket Lifting Time | 6s | |

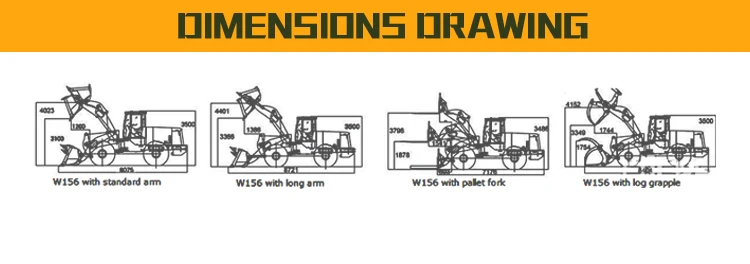

Dimensions (LxWxH) | 8075x2960x3500mm | |
Min. Clearance Over Ground | 450mm | |
Operating Weight | 16200kg | |
Diesel Engine | ||
Model | CUMMINS | |
Type | Direct injection, turbocharg, water cooling, 4 strokes, 6 cylinders | |
Rated Output | 162/162/160kW | |
Rated Speed | 2200rpm | |
Max. Torque | 855/908/860N.m | |
Transmission | ||
Hydraulic Torque Converter Model | Single stage, two phase, four components | |
Transmission Type | 2 forward and 1 reverse gears/hydraulic power shift, planet type | |
Max.Permissible Temp. | 120℃ | |
Transaxle & Tyre | ||
Drive System | 4 wheel drive | |
Type of Main Reducer | Spiral bevel gear, single stage | |
Type of Hub Reducer | Planet gear | |
Rear Axle Oscillation | Center oscillation | |
Tyre Size | 23.5-25 | |
Pressure of Tyre | 0.28-0.32MPa | |
Working Hydraulic System | ||
Working Pump Type | Gear pump | |
System Working Pressure | 17 MPa | |
Working Pump Max. Flow Rate | 328 l/min | |
Lifting Cylinder Bore x Stroke | 165x757mm | |
Tilting Cylinder Bore x Stroke | 200x540mm | |
Steering System | ||
Type | Articulation, full hydraulic power steering system with flow-amplified system | |
Steering Pump Type | Gear pump | |
Max. Flow Rate | 43L (1920r/min) | |
Max. Working Pressure | 12MPa | |
Steering Cylinder Bore x Stroke | 100x342mm | |
Max. Steering Angle | 35° | |
Brake System | ||
Type | Caliper disc brake, air over oil activate, 4 wheel brake | |
Drive Brake System Pressure | 0.71-0.784MPa | |
Parking Brake | Hand brake, drum type | |
Oil Injection Capacity | ||
Fuel Tank | 300L | |
Engine Oil | 30L | |
Transmission | 45L | |
Hydraulic Oil Tank | 200L | |
Transaxle | 30L | |
1. Self-made axles are characterized by advanced technology, strong and durable.
2. Bigger diameter tilting cylinder supplies bigger breakout force.
3. Long wheel base for better stability and better for heavy duty use.
4. High strength structure parts for heavy duty and more durable.
5. The best match of big capacity torque converter with engine makes the complete vehicle to has strong forces.
6. Dual pump confluence, steering priority, and heavy duty unloading hydraulic system improve the whole machine performance.
7. Spacious cabin designed according to ergonomic theory ensures excellent view.
8. Comfortable air conditioning system with rational and elegant design ensures excellent driving environment.
2. Bigger diameter tilting cylinder supplies bigger breakout force.
3. Long wheel base for better stability and better for heavy duty use.
4. High strength structure parts for heavy duty and more durable.
5. The best match of big capacity torque converter with engine makes the complete vehicle to has strong forces.
6. Dual pump confluence, steering priority, and heavy duty unloading hydraulic system improve the whole machine performance.
7. Spacious cabin designed according to ergonomic theory ensures excellent view.
8. Comfortable air conditioning system with rational and elegant design ensures excellent driving environment.
