Factory direct sale 18 inch double wall corrugated pipe spiral corrugated pipe plastic culvert pipe prices
- Category: >>>
- Supplier: Tianjin Dingrunda Technology Co. Ltd.
Share on (60602146997):
Product Overview
Description

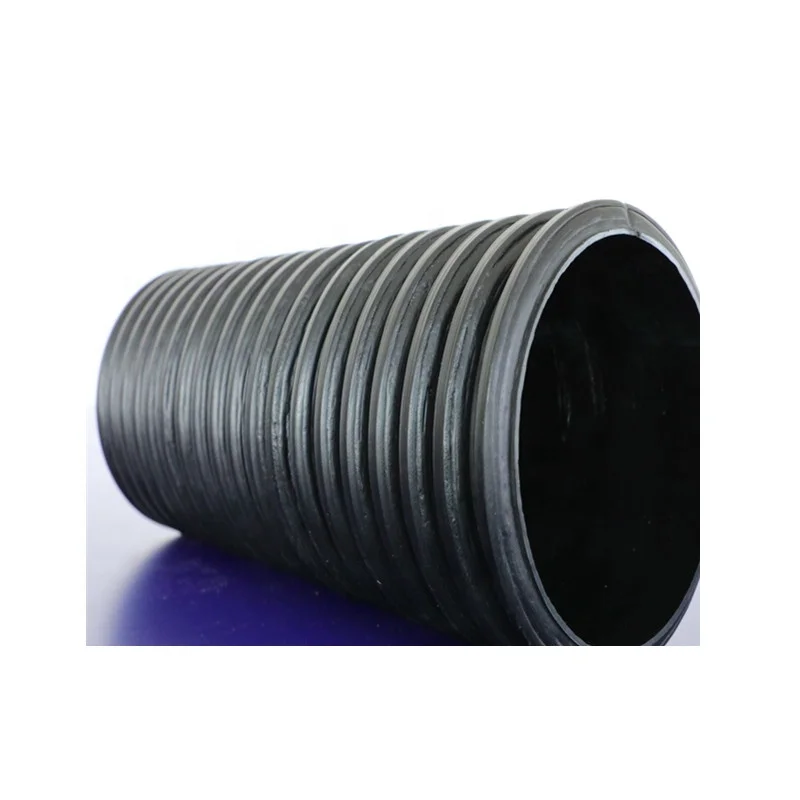

double wall corrugated pipe spiral corrugated pipe plastic culvert pipe prices
All color of hdpe double wall corrugated DWC pipes can be customized.
Both straight and roll hdpe corrugated pipes are avalable.
Size Specification:
HDPE double wall corrugated pipes specification:
| The main physical and mechanical properties | |
| Item | Index |
| Ring stiffness SN4 (kN/m2) | ≥ 4 |
| Ring stiffness SN8 (kN/m2) | ≥ 8 |
| Impact strength (%) | ≤ 10 |
| Ring suppleness | The sample is smooth without any recurvation or wall loose. |
| Oven experiment | No delamination and no crack. |
| Creep rate | ≤ 4 |
Stock and Packaging:

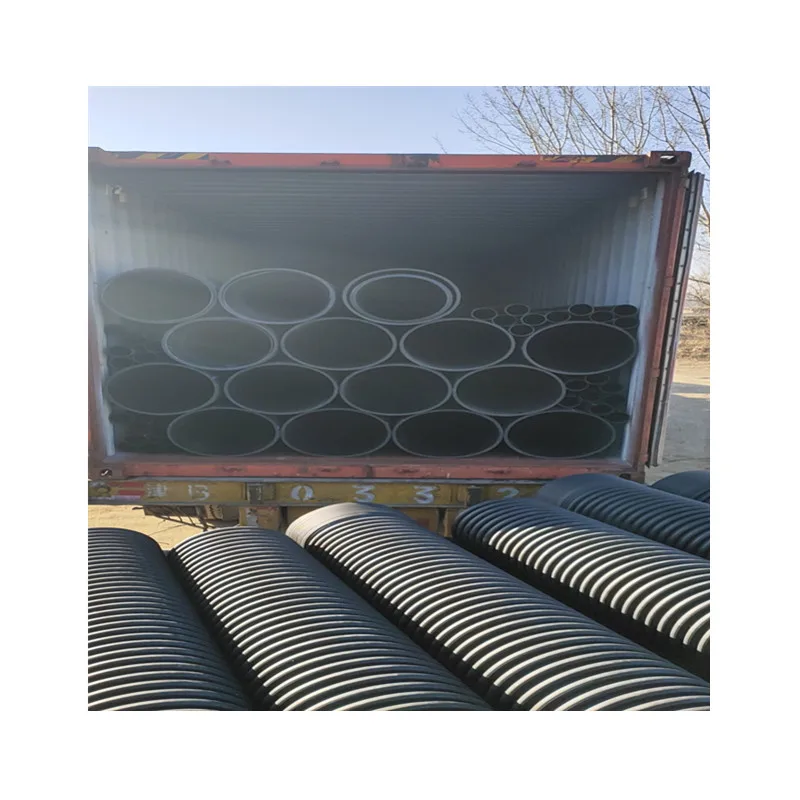

Sn4 SN8 hdpe double wall corrugated plastic culvert pipes loading photos:

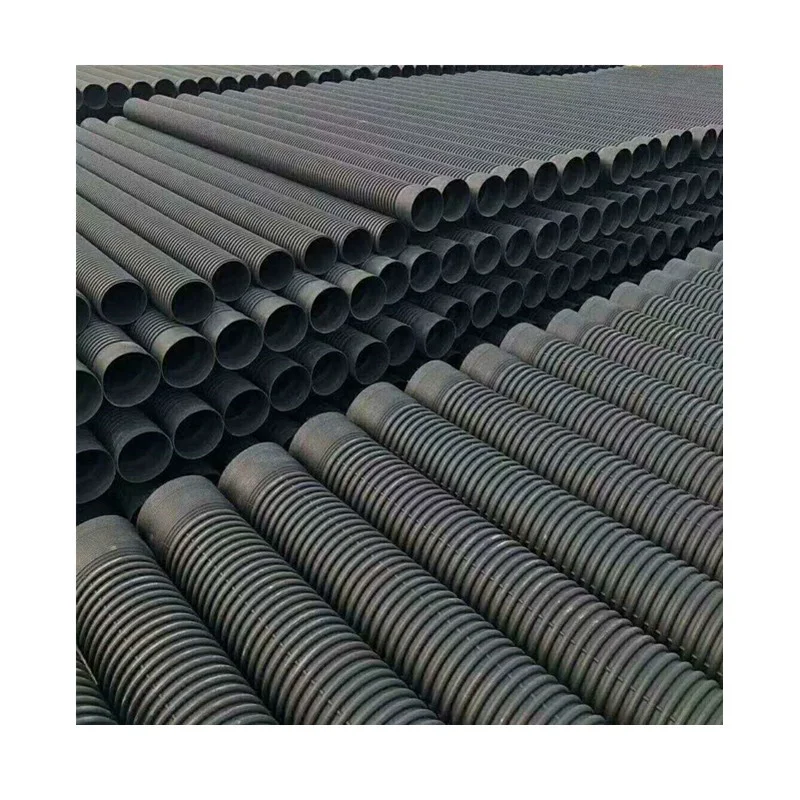

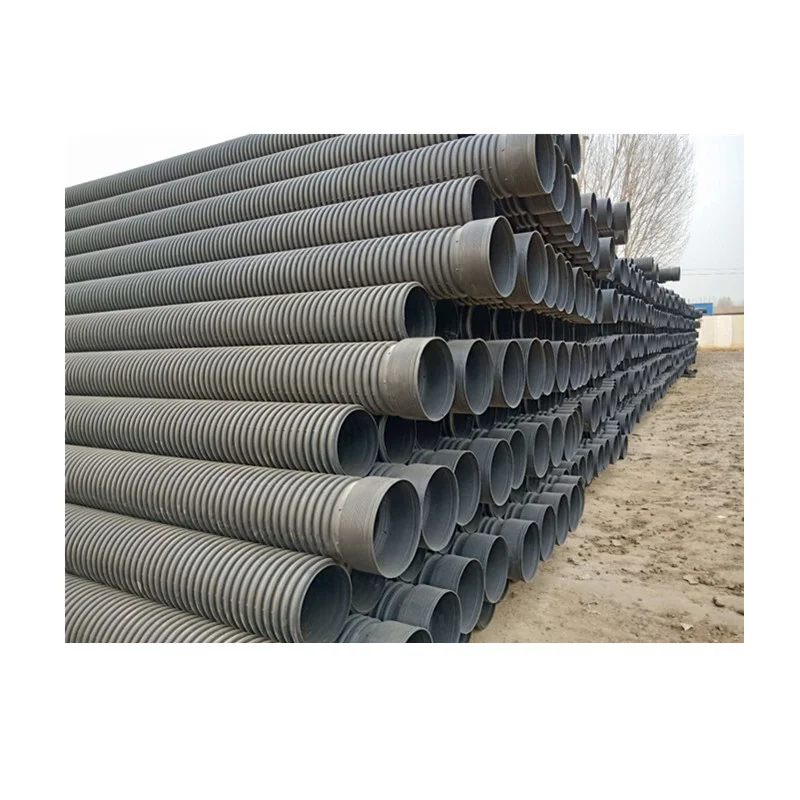

HDPE double wall corrugated pipes HDPE road culvert tubes production.
when you buy hdpe double wall corrugated pipes,rubber rings can be sent together with pipes for free.
Product Uses:
Road culverts application:
1. Municipal engineering project: can be used for drainage and sewerage pipe.
2. Construction project: Can be used for building rain water pipe, storm sewer, and underground drainage pipe, sewage pipe, ventilation pipe, etc.
3. Electrical telecom engineering project: Can be used for all kinds of power cable protection conduit.
4. Industrial project: Widely used as drainage and sewerage pipe in chemical, medicine, environmental industries.
5. Agriculture and garden projects: Can be used as irrigation pipe, sewerage and drainage pipe for farmland and, garden, tea garden, treelawn and forest
6. Road engineering project: Can be used as seepage pipe, sewerage and drainage pipe for railway and highway.
7. Mining engineering project: Can be used as ventilation pipe, air supply pipe and drain pipe.
8. HDPE perforated double-wall corrugated pipe with holes: can be used as water penetration pipe and drain pipe for saline-alkali land and the highway
9. Golf and football field engineering project: Can be used as seepage pipe and drain pipe.
10. Other projects: Can be used as sewerage and drainage pipe forlarge-scale dock, port engineering project, large airport engineering project, etc.
steel reinforced hdpe double wall corrugated pipe culvert pipe prices
Outside Diameter: 300mm – 2400mm
Ring stiffness: SN10, SN12.5, SN16
Materials: HDPE, Steel belt
Color: Black, or as client’s requirement.
Fittings offered: All
OEM/ODM: YES
Physical Characters:
Item | Typical Value |
Ring Stiffness (KN/m2)SN16 | ≥ 16 |
SN12.5 | ≥ 12.5 |
SN8 | ≥ 8 |
TIR | ≤10 |
Ring Flexibility | no rupture, no withdraw in two walls |
Creep Proportion | ≤2 |
Peel strength(20°C±5°C)/N/cm | ≥ 100 |
Drying Test Chamber | No delamination, no |
hdpe double wall corrugated pipe with steel belt specification:
hdpe krah tube Hdpe Winding Structure Wall Carat Tube
Krah pipes carat tube parameters
1.Implementation standard: German DN16961 standard
2. Production standard: CJJ143-2010
3, carat ring stiffness: up to 20KN / m2 (according to user needs, SN8; SN10; SN12.5; SN16), covering soil depth of up to 20m.
4. The internal pressure level of the carat tube is 0.3MPa, and the maximum pressure is up to 0.45Mpa.
5, carat tube flexibility: 183m can be made into a circle.
Company Information
Tianjin Dingrunda Group Co., Ltd was founded in 2004, which is engaged in manufacturing, processing, supplying andexporting an unparalleled range of pipeline and fittings of HDPE pipes,
HDPE double wall corrugated pipes, Steel belt reinforced HDPE corrugated pipes,Steel wire reinforced hdpe pipes,PVC double wall corrugated pipes, PPR pipes and the other construction building materials.
We cater basically to European countries, North America countries, Sout America countries, Oceania countries, Asian countries, Middle East, African countries and supply all over China under the able guidance of our company’s long-term planning strategy and view of honest and trustworthy value. Welcome customers to visit our factory, and go forward hand in hand with us!
