Electric motor stator coil winding final forming machine/copper wire/three phase /motor
- Category: Transformer Making Equipment >>>
- Supplier: Zhejiang Great Dragon Automation Equipment Co. Ltd.
Share on (60602151892):
Product Overview
Description

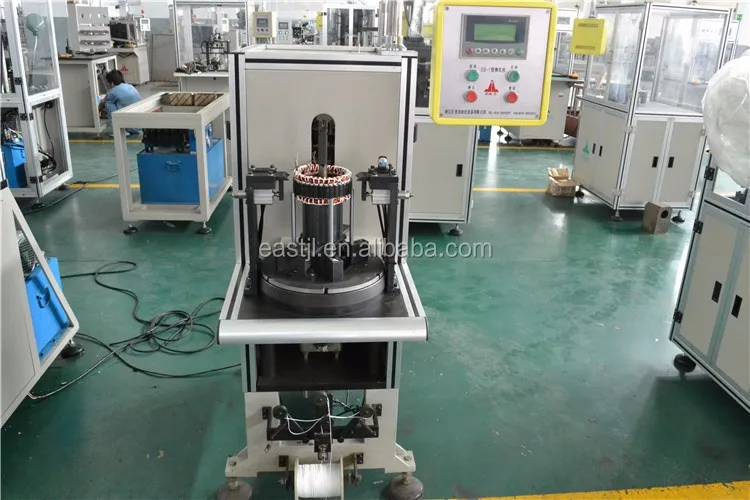

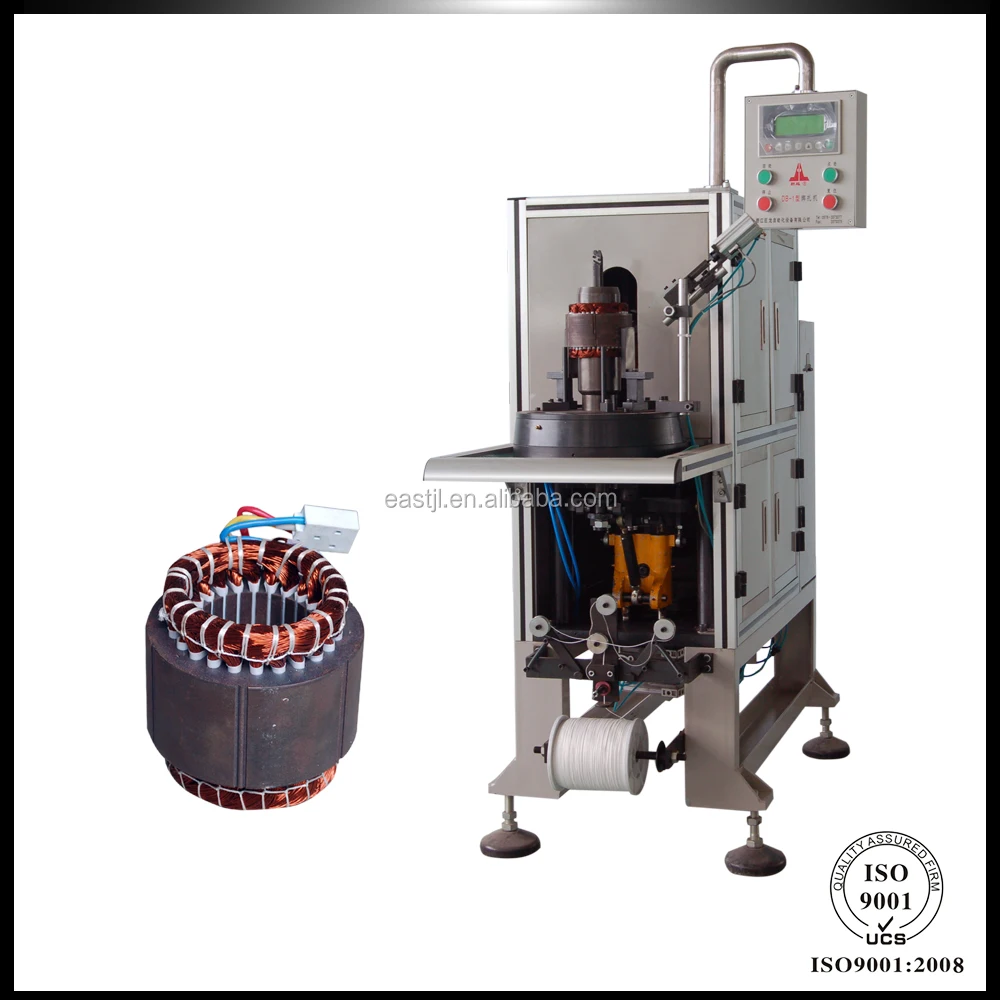

Electric motor stator coil winding final forming machine/copper wire/three-phase /motor
Product Show
Suitable for induction motor stator windings automatically embedded stator slot, and automatically embedded in the slot cover paper special equipment. Mitsubishi PLC program control, color touch screen operation and fault diagnosis, servo motor drive ball screw and push into the coil into the slot, stroke control accuracy, speed, . The use of integrated line tooling, replacement is simple and convenient, solid tooling, long life, high efficiency.
Technicai Parameters
| Supply voltage | AC380V±10% 50Hz |
Air pressure | 0.5~0.7 MPa |
Total power | 4 kw |
| Stator ID | Φ30~Φ120mm |
| Stator OD | ≤Φ210mm |
Core thickness | 20~130mm |
| Slots | 12~48 |
| Wire Range | 0.15~1.6mm |
Product Description
Usage: suitable for wave shape coil winding for auto generator stator.
Features: apply servo wire winding, step motor wire winding, automatic loading to tooling,
automatic shearing and three phases finish in one time.
Main Technical Parameters:
1. Power Supply Voltage: 220V±10% 50Hz
2. Air source Pressure: 0.5~0.7Mpa
3. Wire Winding Diameter: ≤Φ1.7 or 2×Φ1.3
