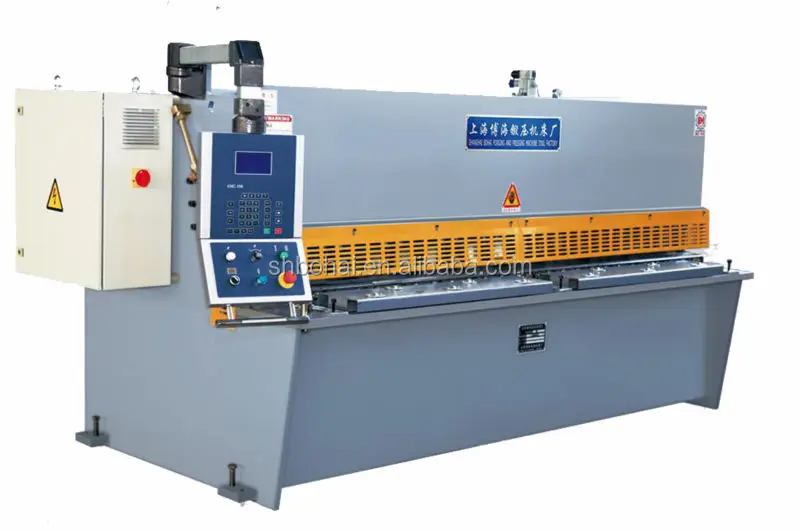

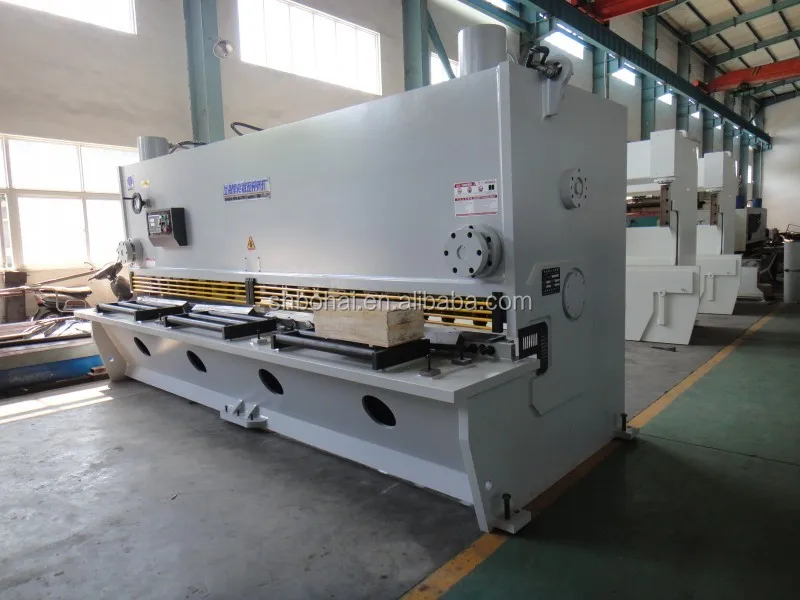

Vietnam market 6 meter cnc sheet metal cutting machine for sale/hydraulic shear

Product Overview

Description



Hydraulic motorised backgauge Shearing Machine Price with option DAC360 CNC controller

Characterastics

 1. Assisting blade pedestal on worktable is convenient for micro adjustment.

 2. Rolling material support ball is provided on worktable, convenient operation.

 3. Using stepless adjusting structure to regulate the gap of blades, adapt to different thickness and materials.

 4. The adoption of four-side edge shearing blade prolongs the service life of blade.

 5. Regulating shearing process not only increases the production efficiency but also achieve the function of segmentshearing.

 6. It is provided with counting function for shearing to decrease the numerous artifical counting.



Main components deployment list

Hydraulic system:	Omega
Sealing pieces:	Japanese NOK
Oil pump:	Shanghai Chengjie
Electrical pieces:	Schneider
NC Controller	Estun E21S
Shear Blade:	Shanghai JINSHAN
Ball Screw(Option):	TAIWAN HIWIN
Linear Guide way(Option)	TAIWAN HIWIN

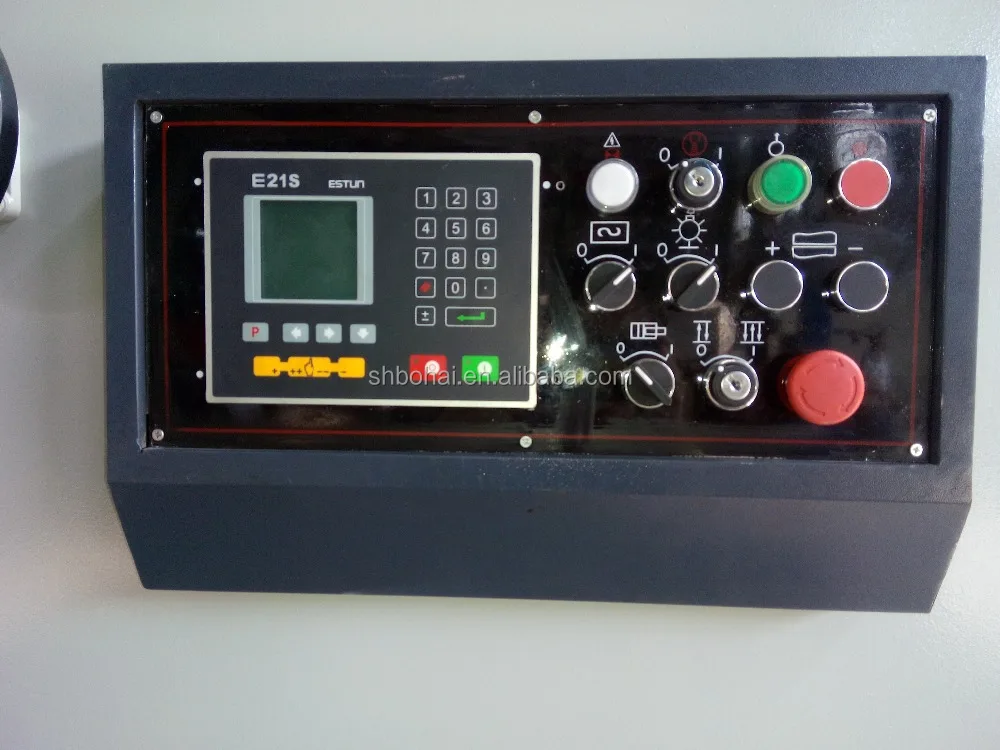

X-Axis Backague Control E21S (Standard):

    - Positioning Control of Backague

   - Intelligent positioning control

   - One side and two-side positioning which eliminated spindle clearance effectively

   -Retract function

   - Automatic reference searching

   - One-key parameter backup and restore

   - Fast position indexing

   - 40 programs storage space, each program has 25 steps

   - Power off protection

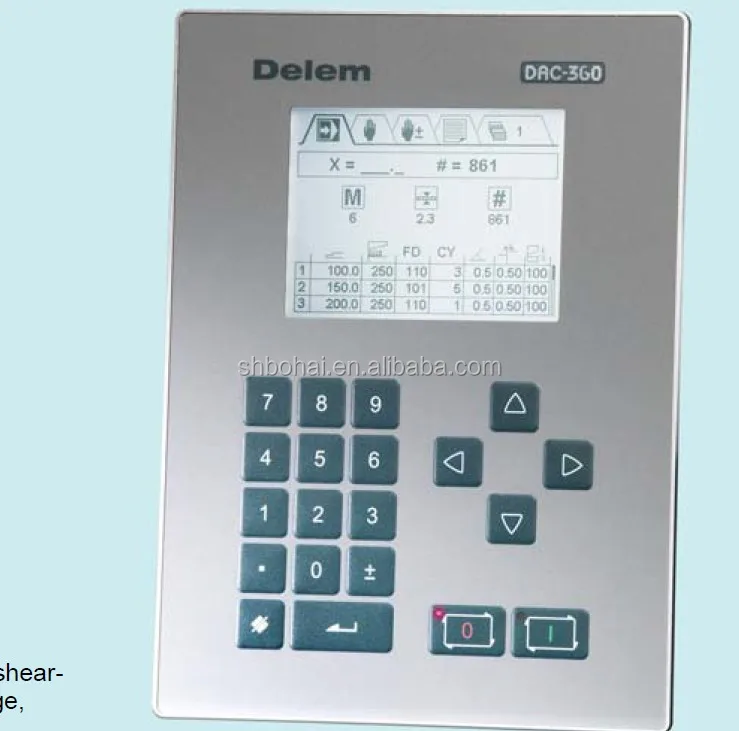

Delem DAC360 CNC Controller    (Option)

- X Axis Backgauge Accuracy ±0.1mm  Servo Motor Drive
Complete with:
- HIWIN Ball Screw - HIWIN Linear Way
The DAC-360 control provides a complete solution for shearing mac

hines. It includes the control of  backgauge, cutting angle, stroke length and gap, based on state of the art electronics.

DAC-360 Featuring:
1)      Bright LCD screen
2)      Backgauge control
3)      Retract function
4)      Cutting angle control
5)      Cutting gap control
6)      Stroke length limitation
7)      Force control
8)      Manual movement of axes









Model	Cutting Thickness	Cutting Length	Cutting Angle	Travel Time	Backgauge Stroke	Motor	Dimension (L x W x H)
	mm(450N/m2)	mm	°	Min-1	mm	kw	Mm
4 x 2500	4	2500	1°30′	16	20~500	5.5	3040 x 1550 x 1550
4 x 3200	4	3200	1°30′	13	20~500	5.5	3840 x 1550 x 1550
4 x 4000	4	4000	1°30′	10	20~600	5.5	4600 x 1700 x 1700
4 x 6000	4	6000	1°30′	5	20~800	7.5	6460 x 2100 x 2300
6 x 2500	6	2500	1°30′	15	20~500	7.5	3040 x 1710 x 1620
6 x 3200	6	3200	1°30′	12	20~500	7.5	3840 x 1710 x 1620
6 x 4000	6	4000	1°30′	9	20~600	7.5	4620 x 1850 x 1700
6 x 5000	6	5000	1°30′	8	20~600	7.5	5640 x 1900 x 2000
6 x 6000	6	6000	1°30′	5	20~800	18.5	6480 x 2100 x 2300
8 x 2500	8	2500	1°30′	11	20~500	7.5	3040 x 1700 x 1700
8 x 3200	8	3200	1°30′	8	20~500	7.5	3860 x 1700 x 1700
8 x 4000	8	4000	1°30′	8	20~600	7.5	4640 x 1700 x 1700
8 x 5000	8	5000	1°30′	8	20~500	7.5	5400 x 2400 x 200
8 x 6000	8	6000	1°30′	8	20~800	18.5	6480 x 2100 x 2350
10 x 2500	10	2500	1°30′	8	20~500	7.5	3040 x 1800 x 1700
10 x 3200	10	3200	2°	10	20~500	11	3860 x 2000 x 1700
10 x 4000	10	4000	2°	10	20~600	11	4650 x 2100 x 2000
10 x 6000	10	6000	1°30′	10	20~800	18.5	6500 x 2100 x 2300
12 x 2500	12	2500	1°40′	12	20~600	18.5	3140 x 2050 x 2000
12 x 3200	12	3200	1°40′	10	20~600	18.5	3880 x 2150 x 2000
12 x 4000	12	4000	1°40′	10	20~600	18.5	4680 x 2150 x 2000
12 x 5000	12	5000	2°	6	20~600	18.5	5800 x 2400 x 2400
12 x 6000	12	6000	2°	5	20~800	22	6900 x 2600 x 2700
16 x 2500	16	2500	2°30′	10	20~100	18.5	3140 x 2150 x 2100
16 x 3200	16	3200	2°30′	10	20~600	18.5	3880 x 2150 x 200
16 x 4000	16	4000	2°30′	10	20~800	37	4650 x 21580 x 2200
16 x 5000	16	5000	2°	6	20~100	18.5	5900 x 2600 x 2700
16 x 6000	16	6000	2°	5	20~1000	22	6900 x 2700 x 2700
20 x 2500	20	2500	2°30′	8	20~800	22	3440 x 2300 x 2500
20 x 3200	20	3200	2°30′	8	20~1000	22	4150 x 2350 x 2700
20 x 4000	20	4000	2°30′	5	20~1000	22	4850 x 2600 x 2400
20 x 6000	20	6000	2°30′	4	20~1000	37	6700 x 3000 x 3000
25 x 2500	25	2500	3°	8	20~1000	37	3200 x 2700 x 2900
25 x 3200	25	3200	3°	5	20~1000	37	4200 x 2400 x 2500
30 x 2500	30	2500	3°	4	20~1000	40	3300 x 2900 x 3000
30 x 3200	30	3200	3°30′	4	20~1000	40	4200 x 2500 x 2600
40 x 2500	40	2500	4°	3	20~1000	75	3200 x 3300 x 3200
40 x 3200	40	3200	4°	3	20~1000	90	4300 x 3300 x 3000

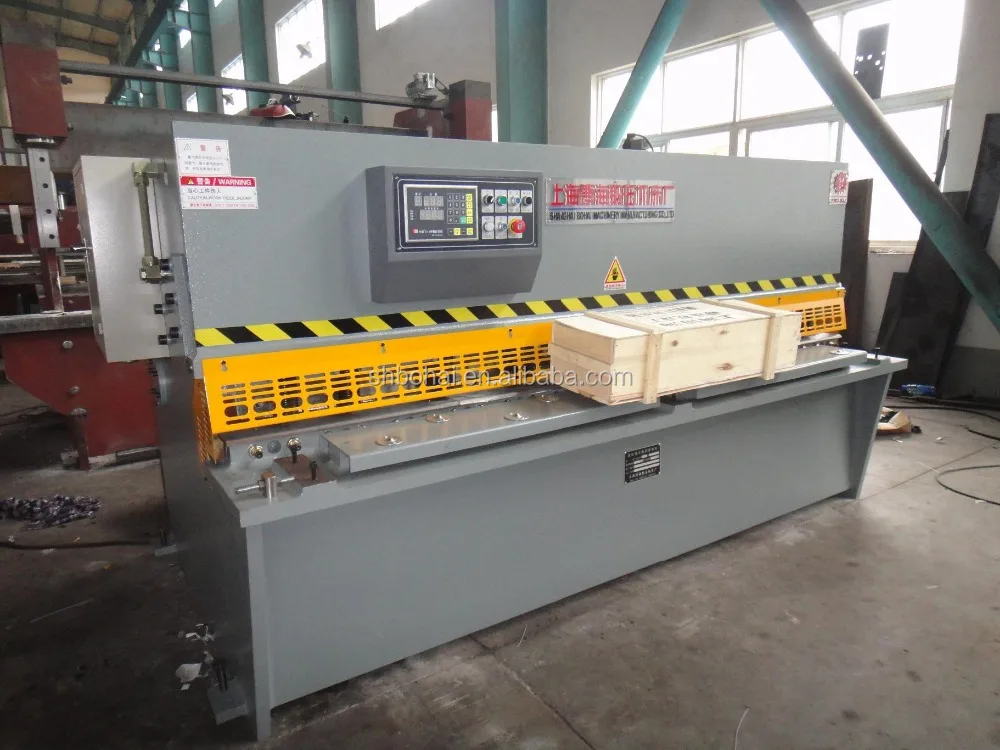

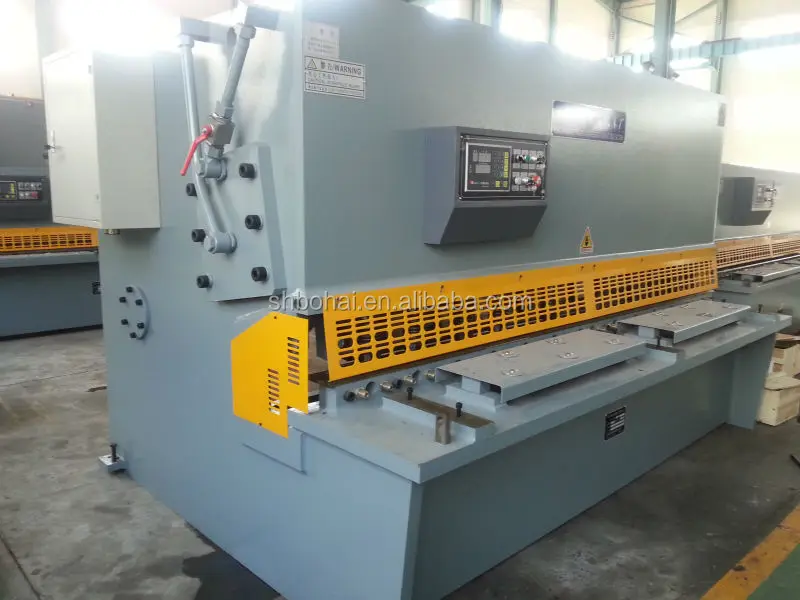

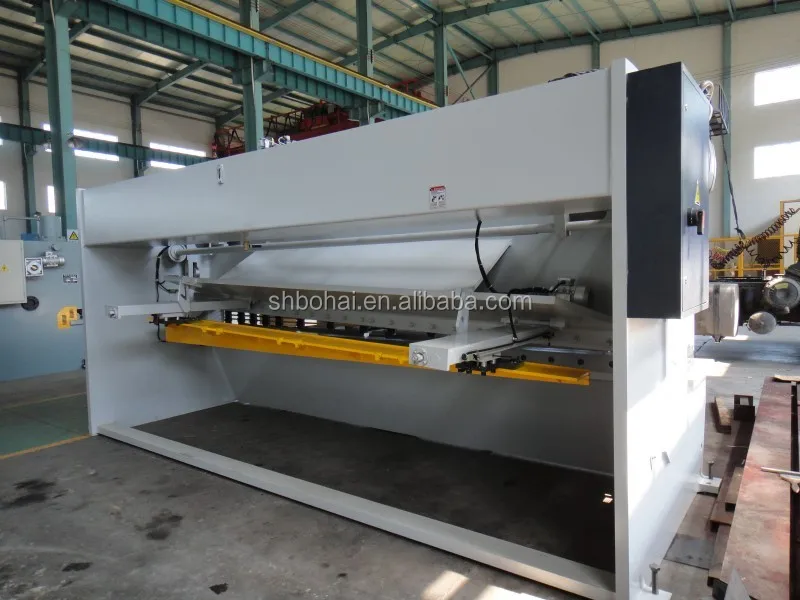

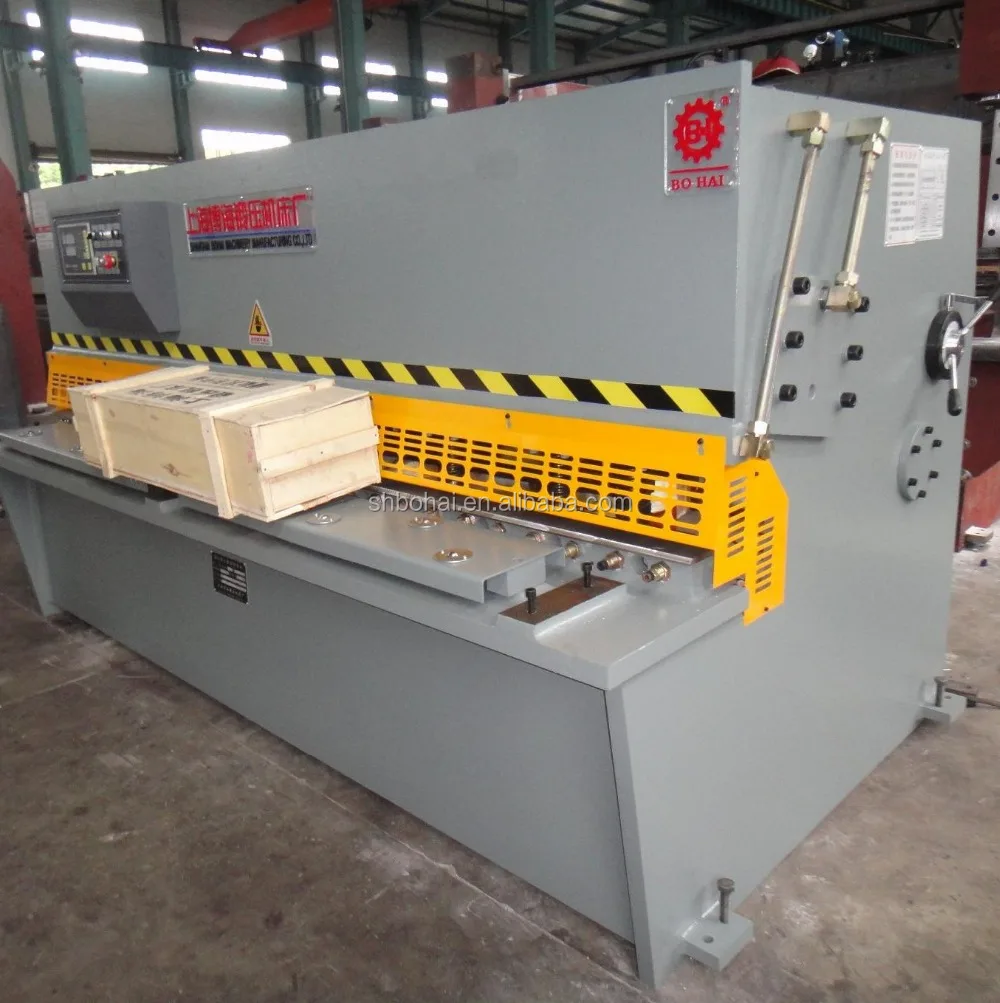

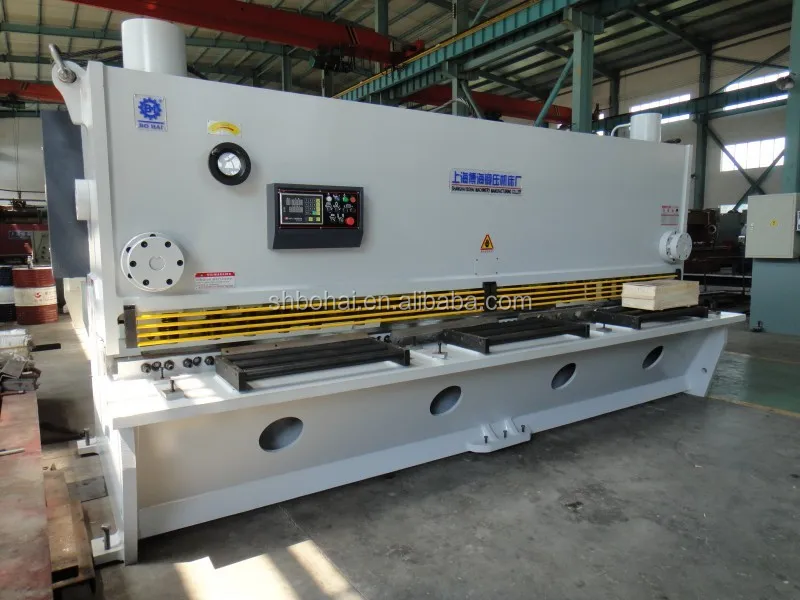

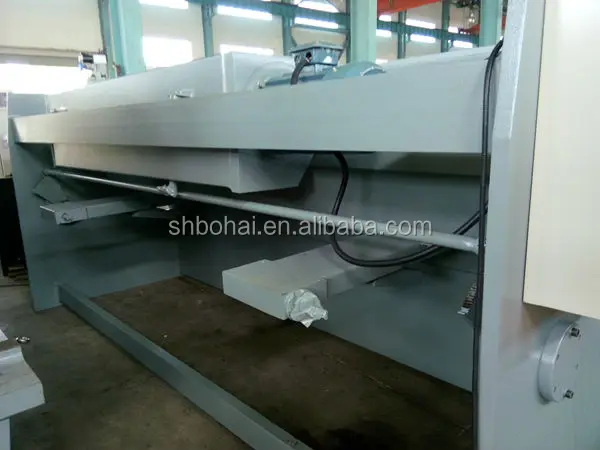

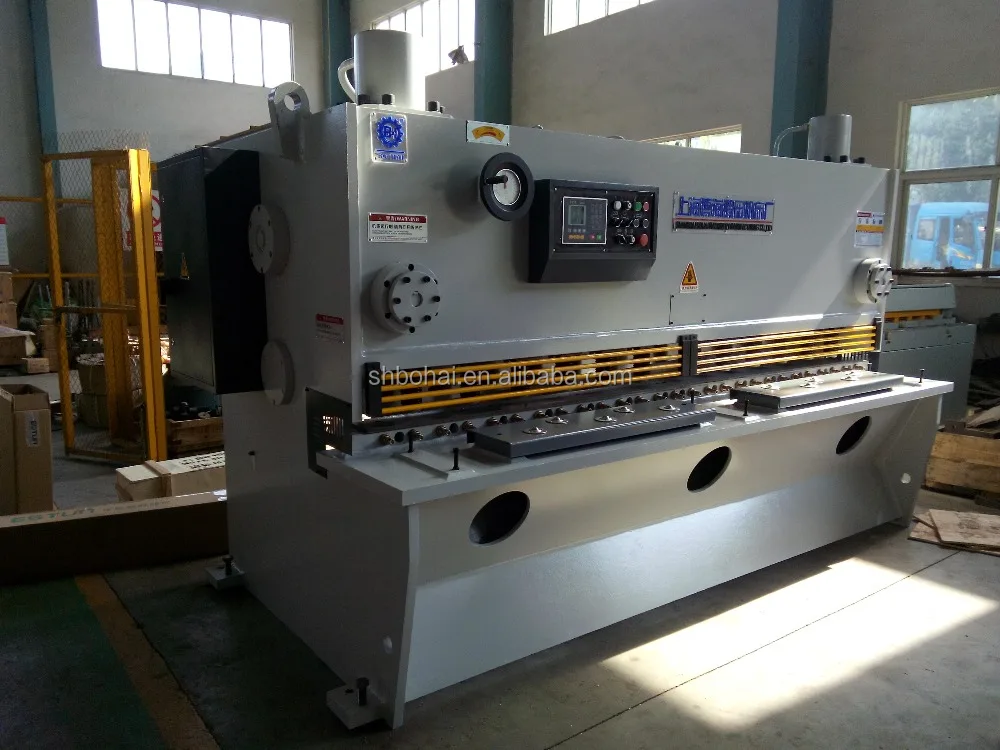

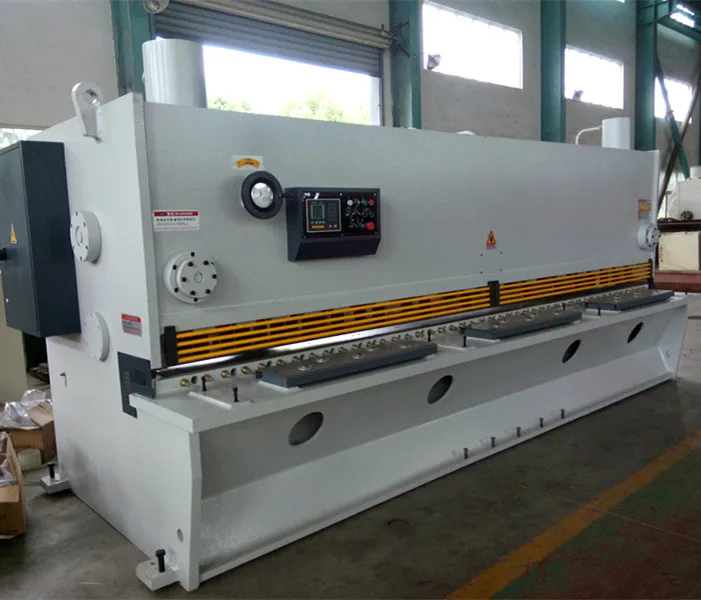

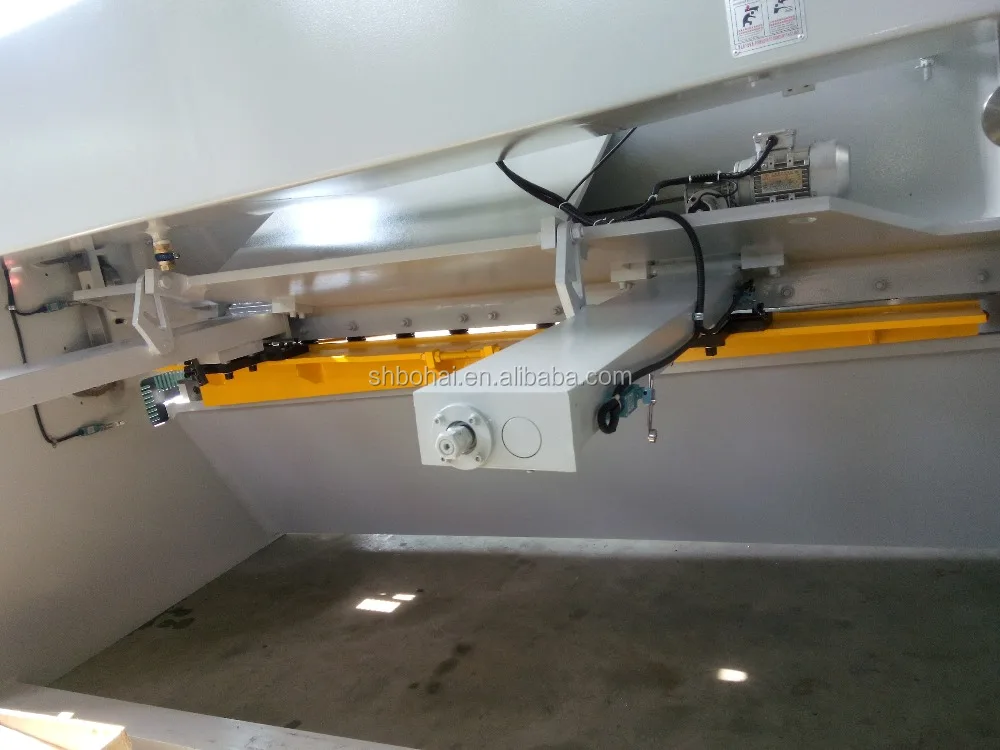

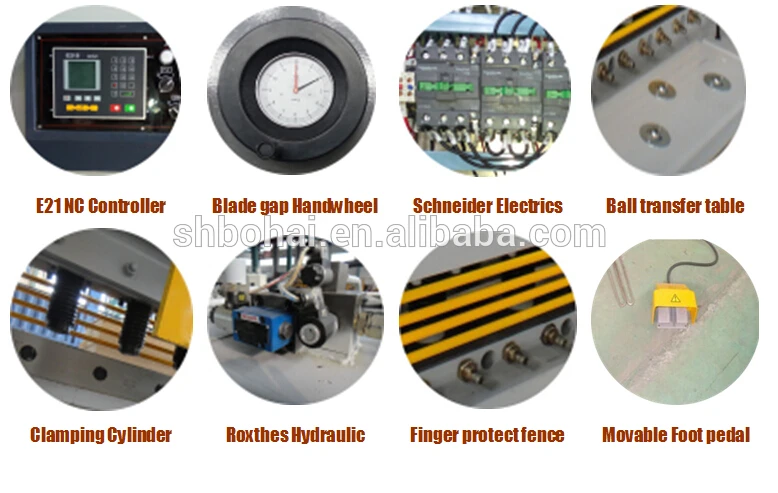

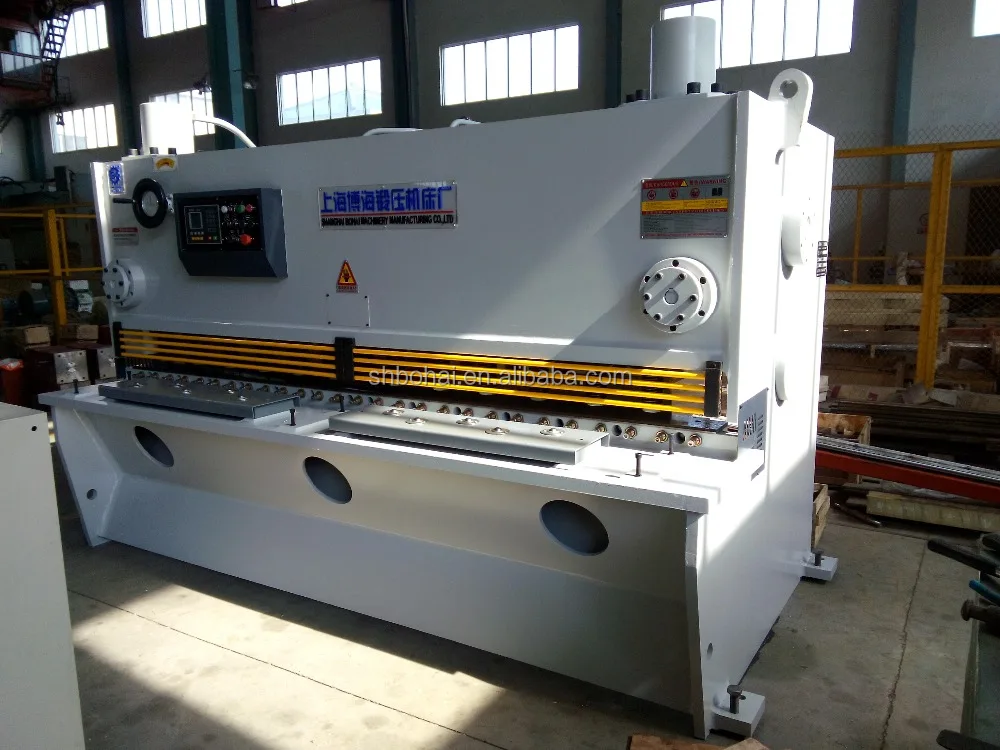

Detailed Photo of the Shear

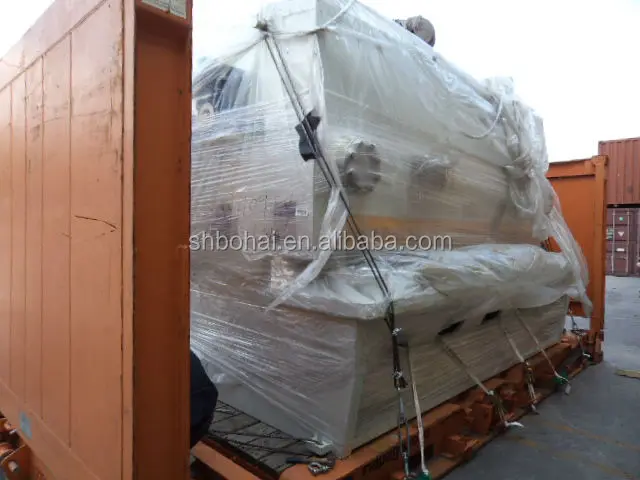

**Note: Machine standard covered by one plastic film cover. can be also packed by crate or wooden box or metal box according to customer's special needs.**

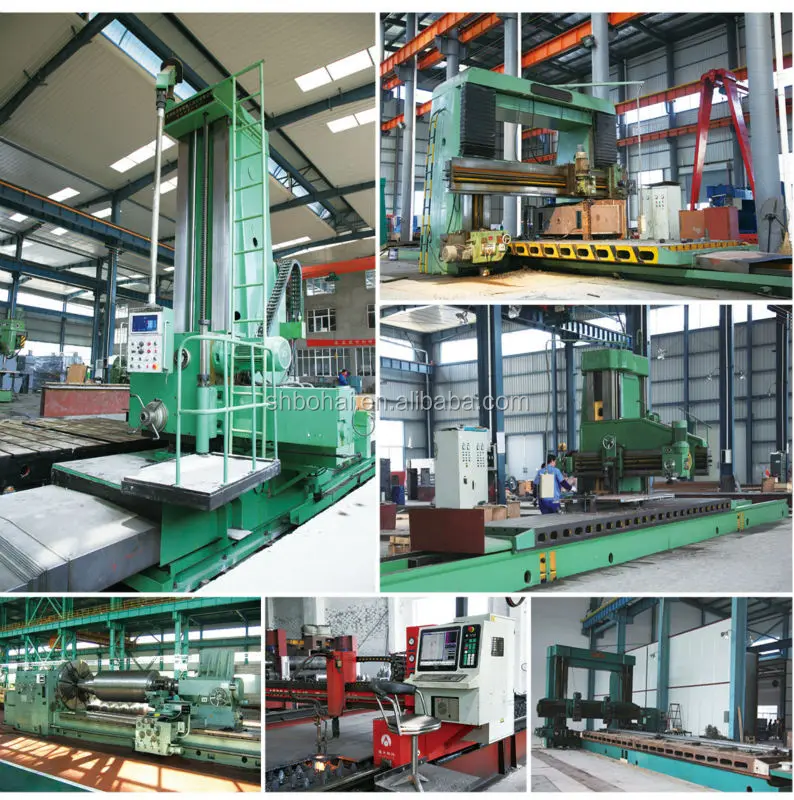

As the parernt company of Shanghai Wanjiao Machine Tools Co.,Ltd and Maanshan Huayu Machine Tools Co., ltd,BOHAI owns one of the the most contemporary production plants in the industry in China.



Established in 1989, Bohai has vast experience in building and supplying quality products. With over 3,000 machines delivered worldwide, Bohai has earned a reputation as a supplier of innovative “value oriented” solutions.

Your partner today, tomorrow, and forever.







Welcome to send your eqquiry and visit our factory !
