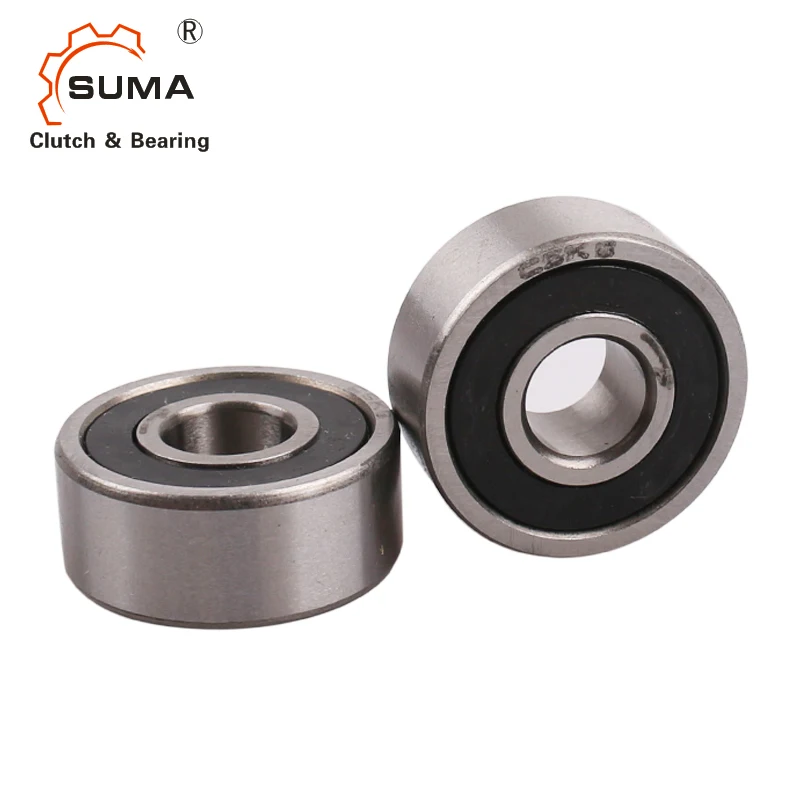

8*22*9MM CSK 8 PP CSK 8PP Sprag Type One Way Clutch Bearings with Keyway
8*22*9MM CSK 8 PP CSK 8PP Sprag Type One Way Clutch Bearings with Keyway
8*22*9MM CSK 8 PP CSK 8PP Sprag Type One Way Clutch Bearings with Keyway
8*22*9MM CSK 8 PP CSK 8PP Sprag Type One Way Clutch Bearings with Keyway
8*22*9MM CSK 8 PP CSK 8PP Sprag Type One Way Clutch Bearings with Keyway
8*22*9MM CSK 8 PP CSK 8PP Sprag Type One Way Clutch Bearings with Keyway
8*22*9MM CSK 8 PP CSK 8PP Sprag Type One Way Clutch Bearings with Keyway

8*22*9MM CSK 8 PP CSK 8PP Sprag Type One Way Clutch Bearings with Keyway

Share on (60602285673):


Price:$1.32 - $1.43

Quantity:


Product Overview

Description


                 8*22*9MM CSK 8 PP CSK 8PP Sprag Type One Way Clutch Bearings with Keyway



Product Description



Features of freewheel clutch : One way clutch bearing is a sparg type freewheel integrated into a 62series ball bearing.



Product name

CSK 8 PP One way clutch bearing

Model

CSK8PP

Material

GCr15

Inner diameter

8mm

Outer diameter

22mm

Thickness

9mm

Torque capacity

9.3Nm

Weight

0.05kg

Structure

Sprag type

Payment terms

TT. L/C, D/A,D/P,Western Union

Delivery time

2-4 days for the sample, 7 days for big order

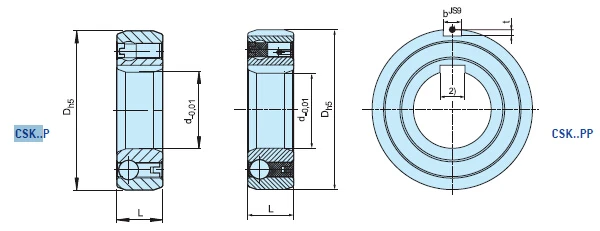

Catalogue of CSK 8 PP One way clutch bearings for your choice



csk p.jpg



TypeSizeBearing series Bearing loadsWeightDrag torque
dynamicstatic
CSK..Pd TKN1)nmaxDLbtCC0TR
[mm] [Nm][min-1][mm][mm][mm][mm][kN][kN][kg][Ncm]
1262019.3100003210  6.12.770.040.7
1562021784003511  7.43.420.060.9
1762033073504012  7.93.80.071.1
2062045060004714  9.44.460.111.3
2562058552005215  10.75.460.142
30620613842006216  11.76.450.214.4
35620717536007217  12.67.280.35.8
40–32530008022  15.5412.250.57
CSK..PP156202178400351120.67.43.420.060.9
1762033073504012217.93.80.071.1
206204506000471431.59.44.460.111.3
25620585520052156210.75.460.142
306206138420062166211.76.450.214.4
3562071753600721782.512.67.280.35.8
40–3253000802210315.5412.250.57
45_21816008519122.518.3615.350.449.3
50_23015009020122.519.5317.680.49
CSK..P-2RS12–9.3100003214  6.12.770.053
15–1784003516  7.43.420.074
17–3073504017  7.93.80.095.6
20–5060004719  9.44.460.1456
25–8552005220  10.75.460.1756
30–13842006221  11.76.450.277.5
35–17536007222  12.67.280.48.2
40–32530008027  15.5412.250.610





Detailed Images

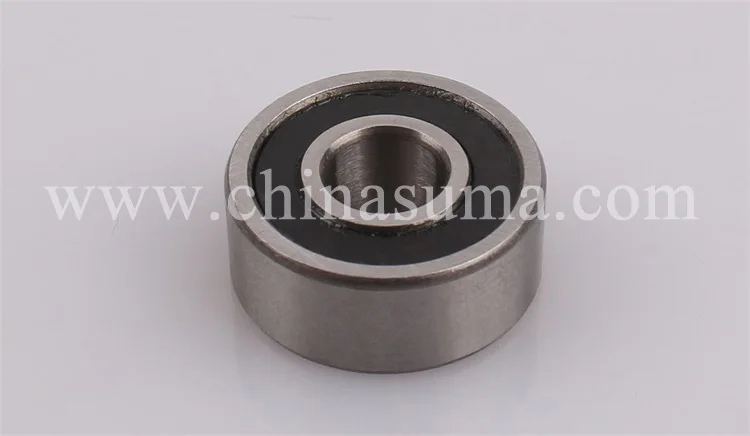

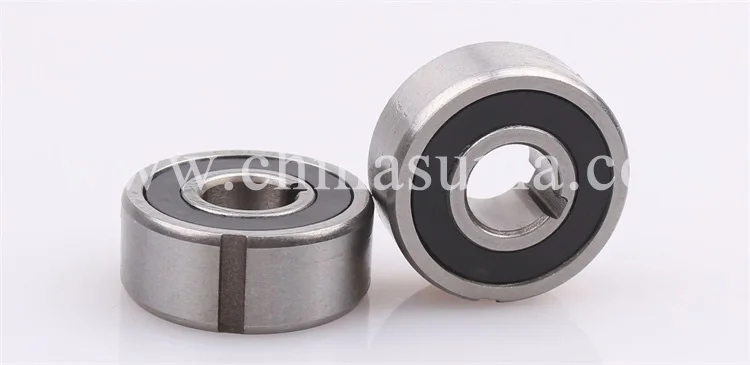

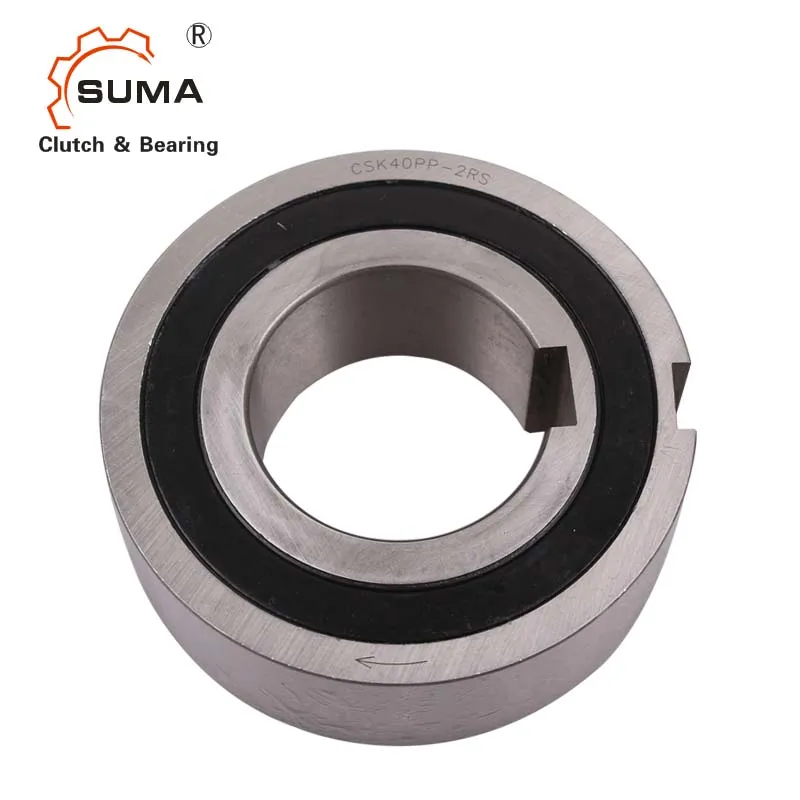

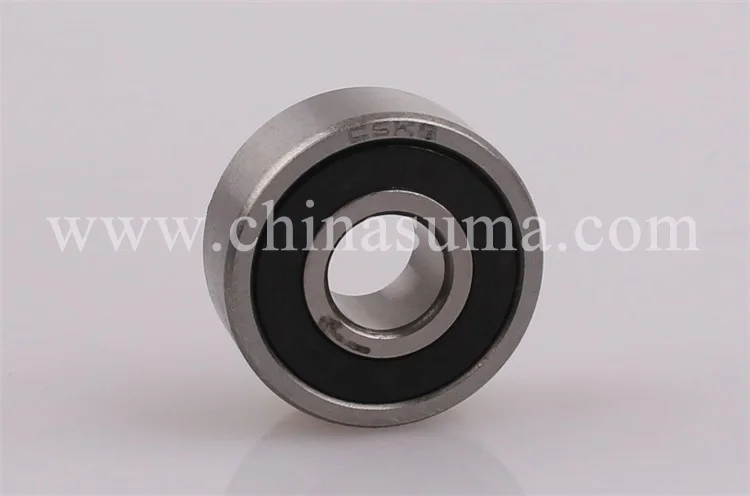

CSK8PP 1CSK-8 2CSK-8 3CSK40P 2RS

Production flow

production flow

Company Information



Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

_1



We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Clients Visit

.jpg

FAQ

Q: How do you pack the goods?

  •  Total less than 25 KG :  Each in white box + 19*18*9cm box + 29*28*19CM carton box
  •  Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A:  It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  •    Small items: In stock.
  •     Medium Items: 10-15 Days
  •     Big items: 20-25 Days
