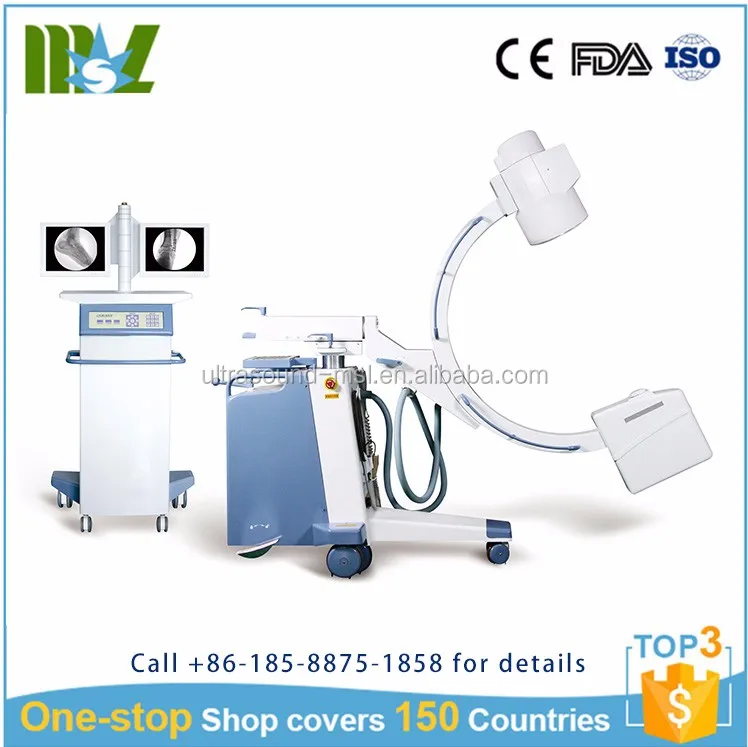

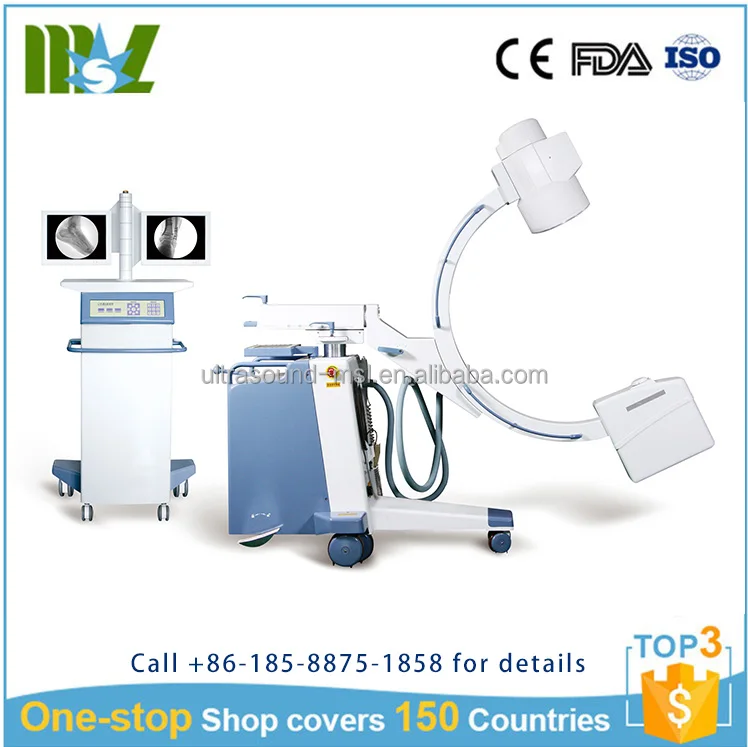

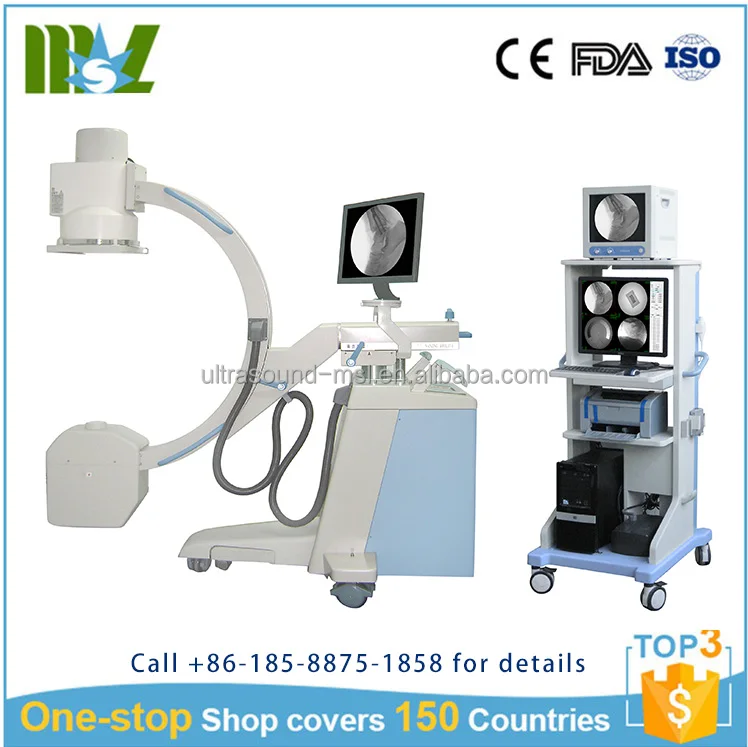

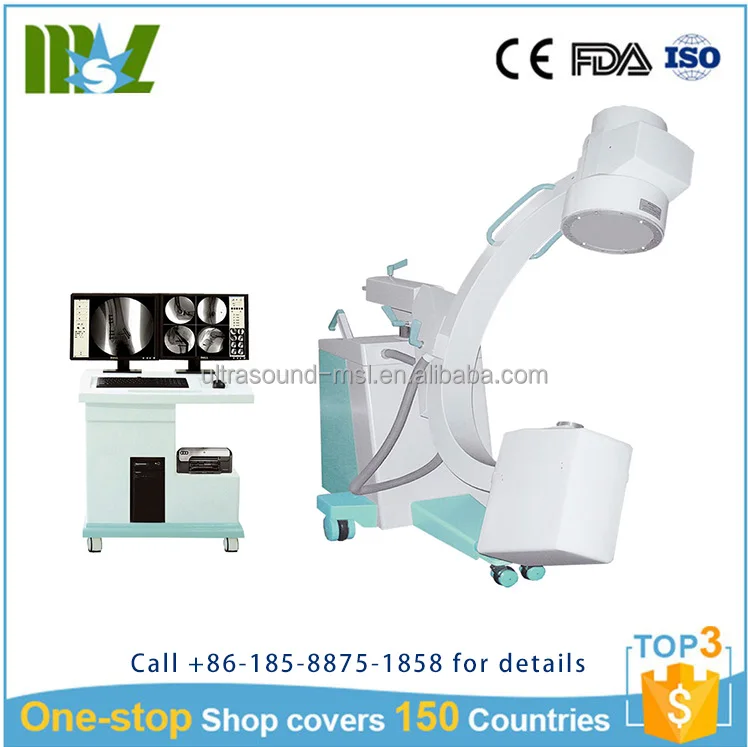

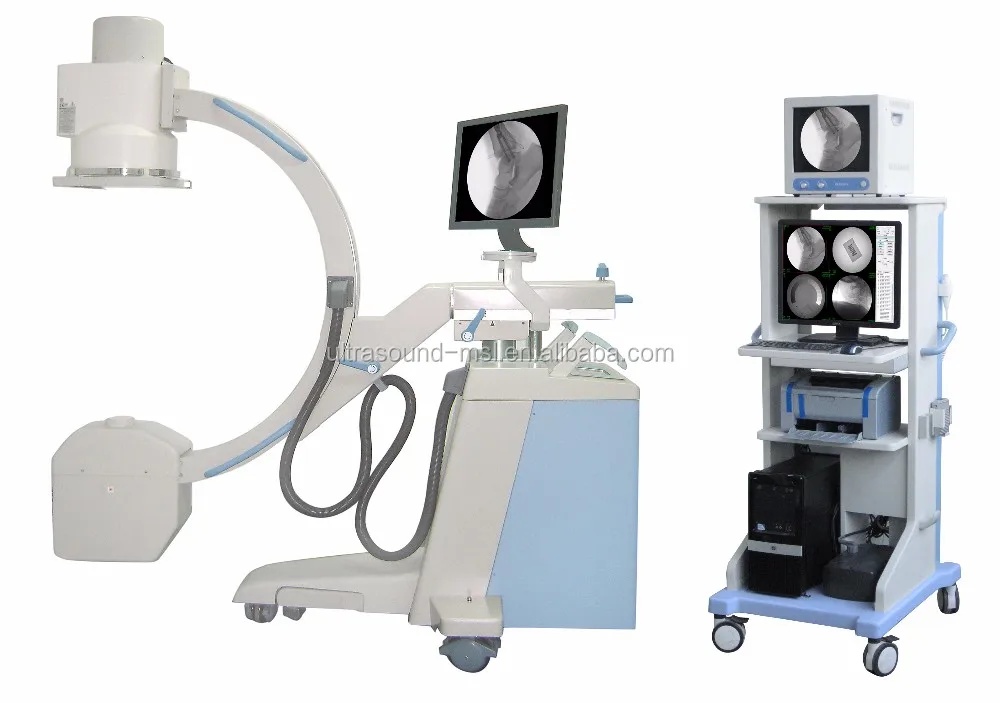

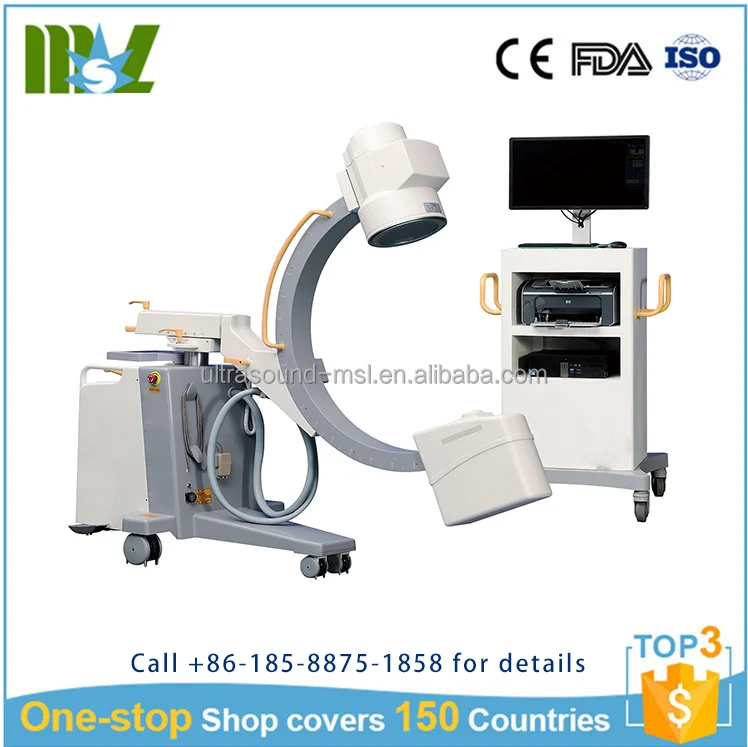

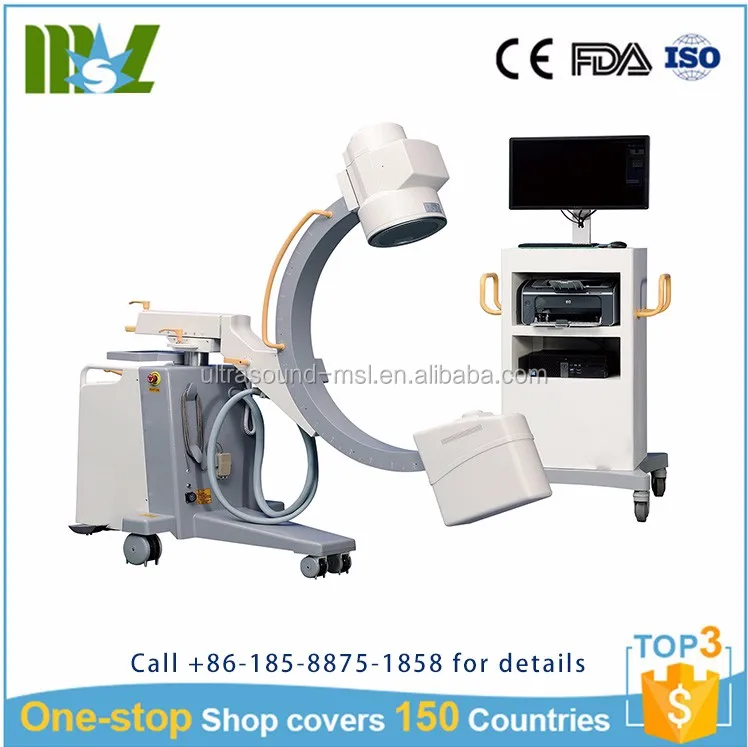

CE approved high frequency 40KHZ 5KW portable C arm x ray fluoroscopy machine
- Category: >>>
- Supplier: MEDSINGLONG CO LTD [Guangdong China]MEDSINGLONG
Share on (60602289698):
Product Overview
Description
CE approved high frequency 40KHZ 5KW portable C arm x ray fluoroscopy machine
Product Description
Specification
Category | Project | Content |
Fluoroscopic Capacity
| Photography Max rated capacity | 3.5KW |
| Fluoroscopic ax rated capacity | Tube Current 4mA, Tube Voltage 110kV |
| Automatic Fluoroscopy | Tube Voltage:40kV~110kV adjust automatically Tube Current:0.3mA~4mA adjust automatically |
| Manual Fluoroscopy | Tube Voltage:40kV~110kV Continuous Tube Current:0.3mA~4mA Continuous |
| Pulse Fluoroscopy | Tube Voltage:40kV~110kV Continuous Tube Current:0.3mA~8mA Continuous |
| Photography Tube Voltage and mA | 40 kV~120 kV 20-63mA |
| Plate holder Size | 200mm×250mm(8″×10″)or 250mm×300mm(10″×12″) |
X-ray Tube | X-ray Tube Special for High Frequency | Fixed anode Dual-focus, small focus: 0.3, Inverter Frequency: 40KHz |
Video System | Image Intensifier | Image Intensifier made by TOSHIBA (9″) |
| CCD Video camera | 1 Mega Ultra low-light CCD camera imported |
| Monitor | 14” VGA and 19” LCD monitor |
| CCU(central control) | Recursive Filter: K=8, 8 images storage, image |
Structural performance | Directive wheel | ±90°revolution,can freely change the moving direction of the unit. |
| Ascending & Descend | ≥400mm |
| C-arm | Forward and Backward Movement: 200mm C-arm opening: 760mm C-arm arc depth: 640mm Slip on orbit: 120°(+90°~ -30°) |
