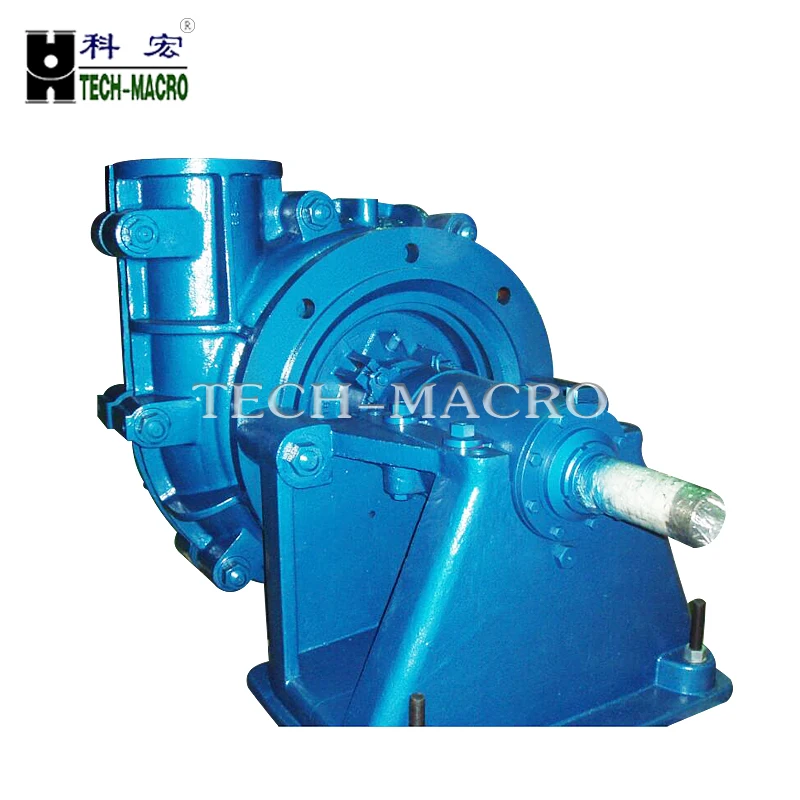

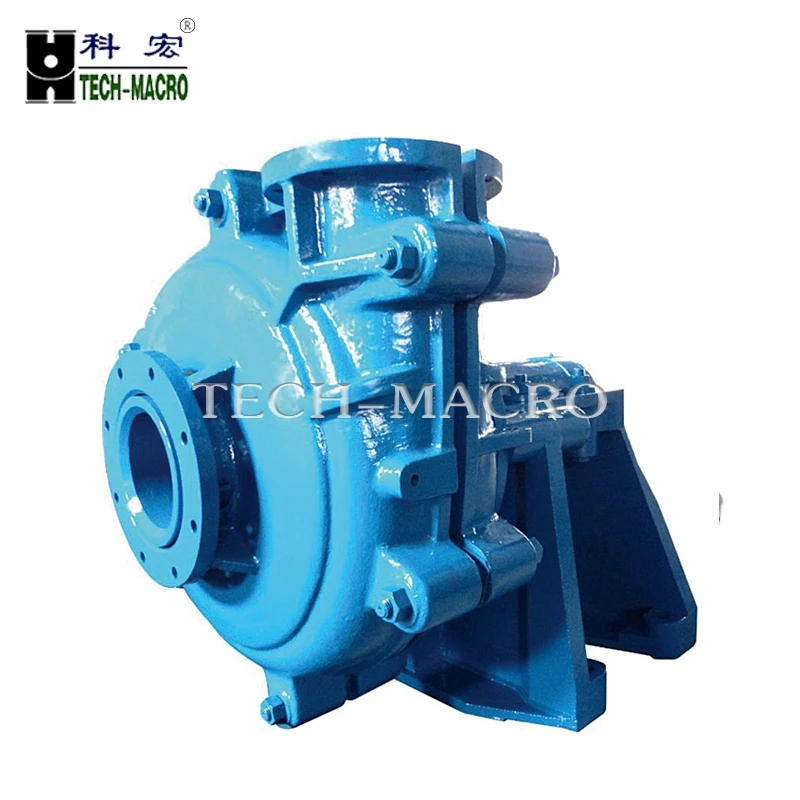

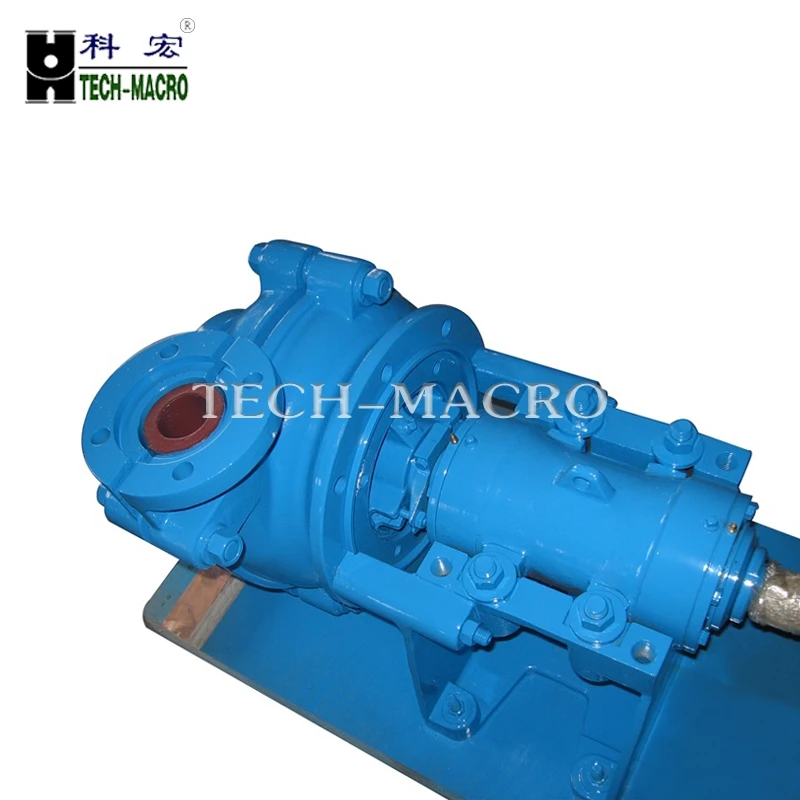

Centrifugal Slurry Pumps for mining, coal, ore processing, hydro cyclone feeding, power plant fly ash

KA(R) series centrifugal slurry pump frame plates have replaceable wear-resistant metal liners or corrosion-resisting natural rubber liner. If KA(R) series with metal liner ,the impellers&volute liners are made of wear-resistant metal(such as A05,A49,and other high chrome metal). If with rubber liners, usually the material adopt R26, R24, R55 and other natural rubber .
KA(R) series centrifugal slurry pump bearing assembly use cylindrical structure, adjusting the space between impeller& front liner easily, being removed completely when being repaired. Grease lubrication.
KA(R) series centrifugal slurry pump shaft seal could use the packing seal, expeller seal and mechanical seal. One pump also can be use packing seal with expeller seal together.

KA(R) series centrifugal slurry pump can be installed in multistage series to meet the delivery for long distance.

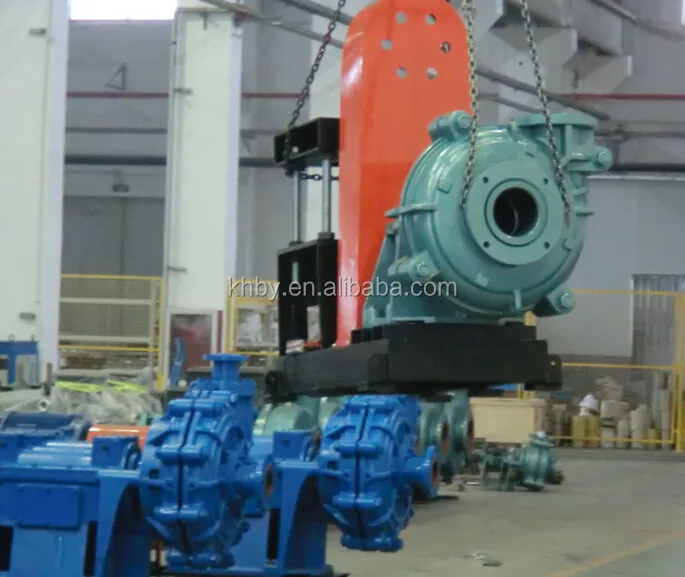

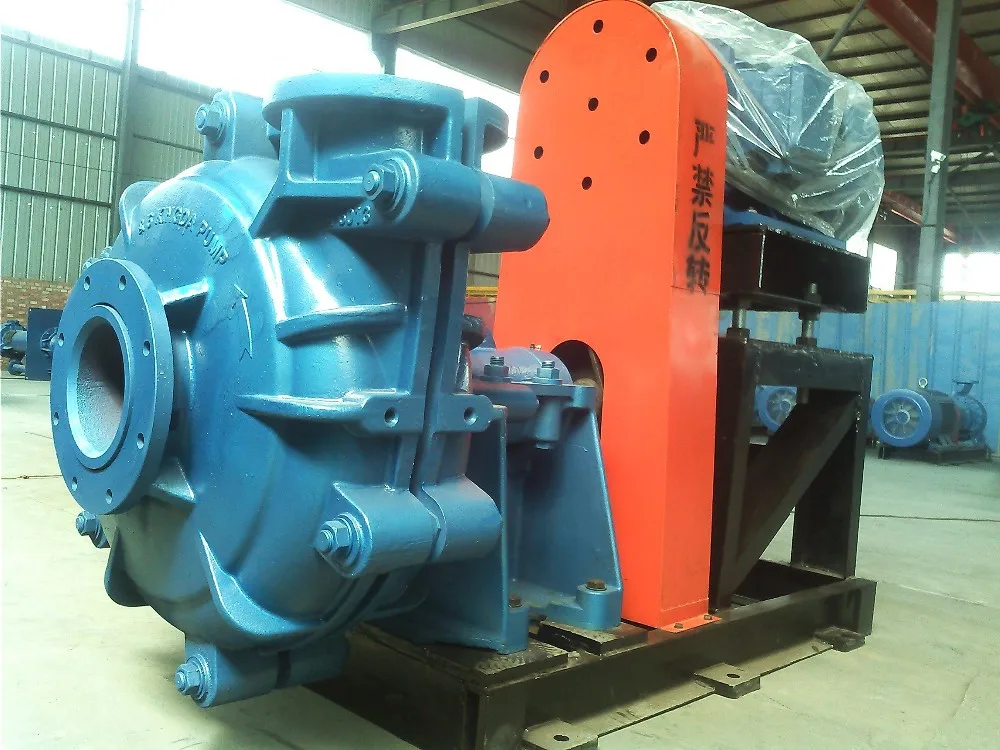

Slurry pump detail



Specification:





Size range (discharge) :    1 inch to 18 inch (25 mm to 450 mm  )

Capacity:   3.6--6480 m3/h

Heads(TDH):   4--69 m (13 to 230 feet)

Max allowable particle size: Depend on pump model

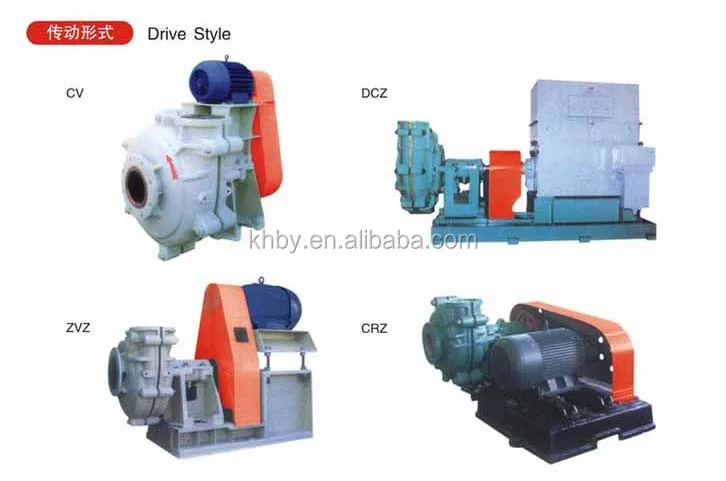

Drive types:

kAH(R) series centrifugal slurry pump drive types, such as direct coupling drive(DC), V belt drive(CR, CV, ZV), etc.

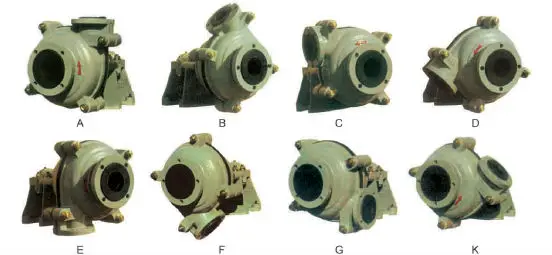

Discharge outlet

The discharge outlet can be positioned at intervals of 45 degrees by request and oriented to any 8 positions to suit installations and applications.

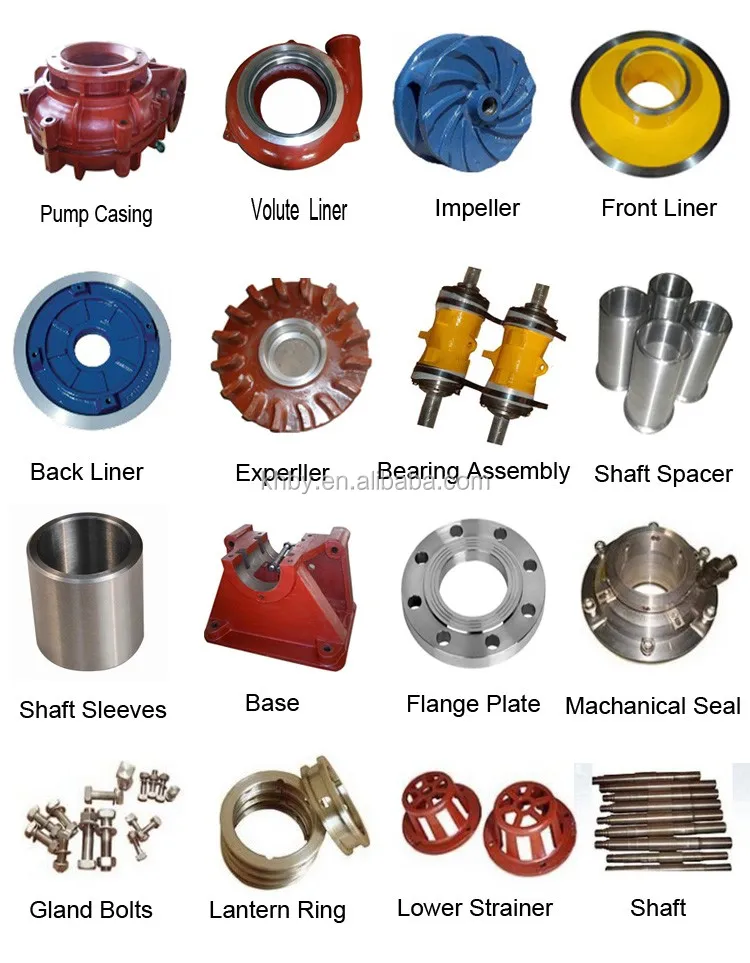

Centrifugal slurry pump spare parts

Various of material and types pump spare parts,including OEM spare parts customized manufacture.





Performance curve & selection chart:







Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
