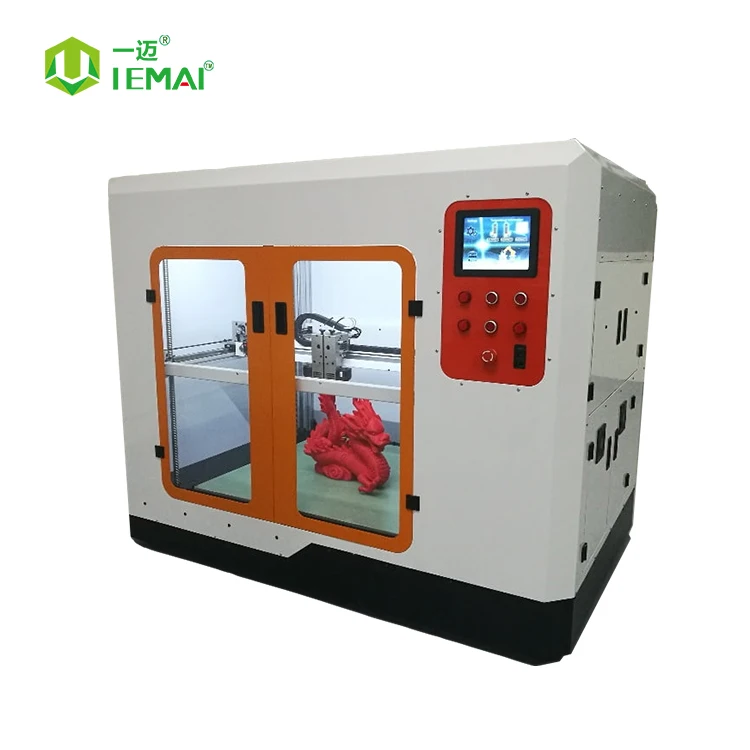

Printing Volume: 1000*1000*1000 mm. The large print area makes it the preferred model for industrial printers.

Insulated chamber: Full metal frame closed structure with an insulated chamber that can regulate temperatures up to 45~55°C. It is industrially configurated, meaning that it can print high quality prints with high precision,so it’s ideal for printing large ABS,nylon and PC parts.

Double extruder: This is a Dual print head 3D printer which makes it ideal for printing objects with soluble support material,and giving great versatility to print in two colors or different materials in the same piece,or to have different diameters of nozzle in the same printer among others.

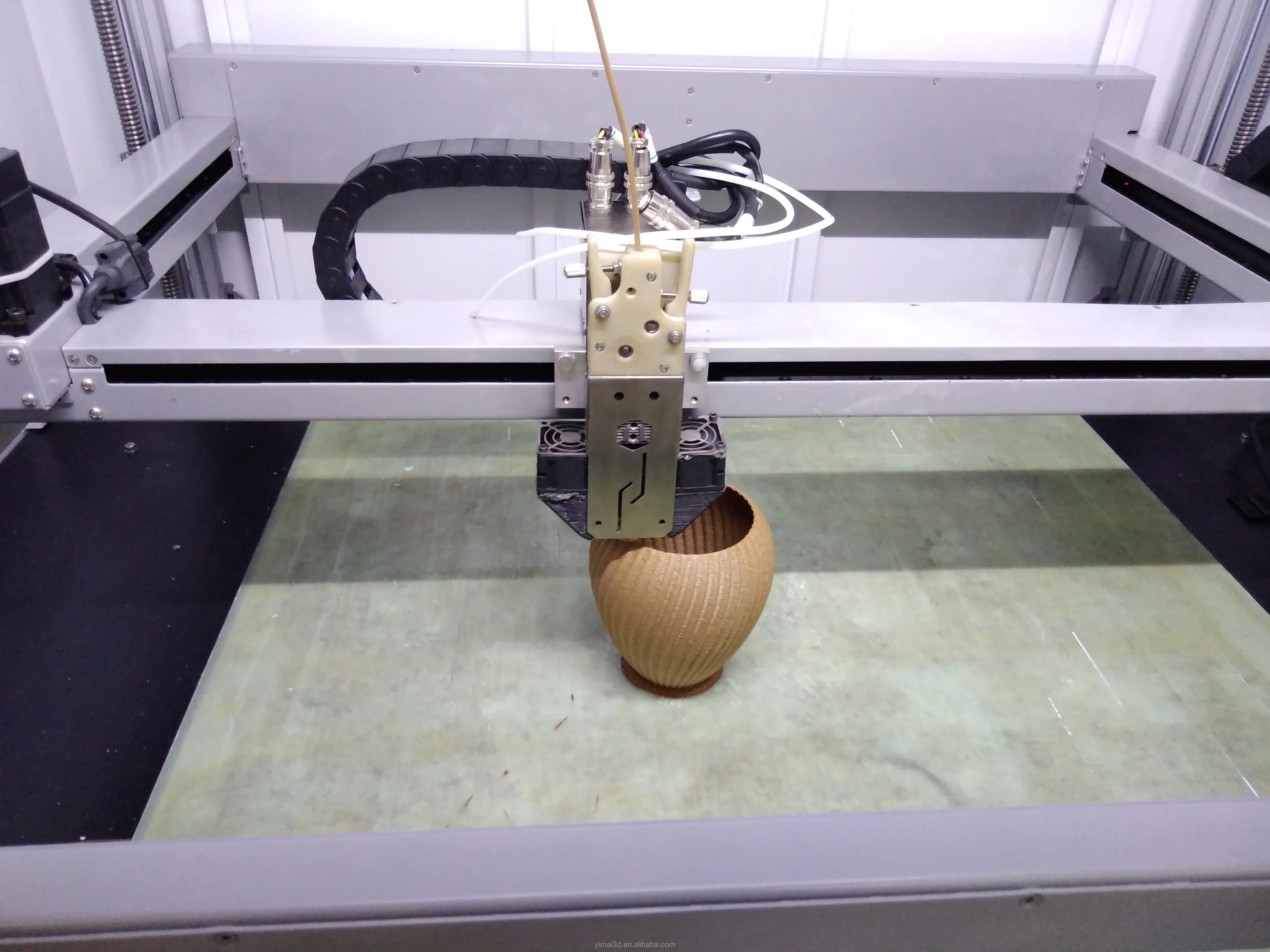

High precision transmission structure: X/Y axis adopted precision linear guides, Z axis adopted 4 ball screws + 4 optic axis. Adopt precision motor, Closed loop And Professional Driver. Near-end and remote motors Simultaneously deliver printing filament, ensuring smoother printing.

Detachable extruder: The nozzle is easy replacement and maintenance. It is equipped with 3 fans system to guarantee long service life and extrusion stability. One Independent built-in fans, keep refrigerated neck to avoid possible problems ebb and extrusion. one for cooling the nozzle,and one fan is used to cool the printing object.

Automatically shut down after printing: Once the printing is finished and the print head cool down,it will automatically shut down.

Filament sensor: The printer will alarm and pause if the filament terminated during printing,after replacing the coil,it will resume printing at the point that interrupted.

Power-off resume: Recovery of power off accident printing at the point that interrupted.

SD card reader: There’s an SD card reader at the bottom right of the front of the printer, the printer can work independently without having to connect a computer. Wi-Fi control is also available.

Reducing motors: Our extruder motors feature a built-in reducer that provides all the force needed to guide the filament as well as great control over the extruded filament.

Automatic hotbed leveling system is built-in;

big flow 2.85mm extrusion system is optional.

 Here's configuration of 2.85 mm extrusion system. it's optional.

Main feature:

4.Detachable print head

Connection mode: Detachable,aviation interface connection.





After YM-NT-750 and YM-NT-1000 are equipped with a large flow extrusion system, the

original 1.75mm extrusion system can still be used for extrusion. Customers only need to

select different flow rates and filament diameters for printing according to actual needs.



However, the high-flow extrusion system currently only supports single-nozzle printing, and

it is temporarily unable to print two-color or supporting structure printing.





2.85 mm extrusion system, big flow, high speed printing.

BIG size TPU printing

Dongguan Iemai Intelligent Technology Co.,Ltd is a high technological enterprise which specialized in producing 3D printers and 3D filaments in the Pearl River Delta of China. IEMAI 3D develops, manufactures, and sells high performance functional materials and Industrial 3D printing solutions.

IEMAI is committed to the highest manufacturing design and quality standards where all 3D printers have received ROHS and CE certifications. IEMAI is committed to the research and development of core technology, and we have software copyright and invention patents.

Today, IEMAI's 3D printing solutions cover the aerospace, automotive, oil and gas, medical, dental and electronics manufacturing industries.

Our Main products:

1. Large printing size industrial series: YM-NT-750, YM-NT-1000.

2. High performance materials high temperature 3D printing series: MAGIC-HT-M, MAGIC-HT-L, MAGIC-HT-PRO, YM-HT-750.

3. Desktop 3D printers:  MAGIC-L , YM-S400, YM-S600. MAGIC-M, MAGIC-S, MAGIC-PRO.

4. 3D Letter printing machine: YM-4020 , YM-600.

5. 3D printing consumables, including PEEK, PEI ( ULTEM ) , PPSU , PLA, ABS, PETG, PC, CARBON FIBER, TPU , TPE, PVA, HIPS, METAL , PA6, etc..

Our certification:

•  8 Patents.


• CE , Rohs certification.


• 1 software copyright


• Our trademark has been authorized by China, EU, and the United States.


• China High-tech Enterprise Certificate

When you send inquiry, please let us know :

what products you want to print? ( for what application?)

What kind of materials do you want to print?

What's the max printing size do you need?

We will give you professional advice and competitive price.

Before placing order, we also provide 3d printing service, if you want to see samples, please send us STL file, we will check and send you cost.

During printing your samples, we will make video and photos ,and send to you.

30-50% Prepayment in advance is acceptable. When machine is ready, you send us STL file for test, we will send you video and photos for checking. After finishing test, balance should be paid before shipment.

Our factory located at Dongguan city, it's near Guangzhou and Shenzhen. Now we do have partners in Spain, France, Italy , Greece, Czech Republic, Japan, India, Australia, etc.

Welcome to visit our factory.
