fermentation parmaceu bioreactor with control system

Product Overview

Description



insulin fermentation ,30000L bioreactor with controlling system



 About  fermentation :

SiDoLim 6 is a parallel Multi-fermentor suitable for the best culture condition. Possible to analyze the experiment data according to parameter by giving another different parameters under the same condition and save much time to make various experiments at the same time.



With its exchangeable stirrer and other operating system, its performance is similar to that of a small laboratory fermentor. Can get the data by applying the same time parameter to starting and finishing experiments by 6 units of fermentor at the same time. Can install 6 units of fermentor in a small laboratory.



Very economic by applying small vessels with small volume of medium for various experiments. Two-four peristaltic pumps automatically control the addition of corrective reagents. Temperature control is accomplished via heating system and cold finger which can freeze. SiDoLim 6 has individual specialty such as microbe and animal fermentation, chemical engineering designed only for user exclusive use.

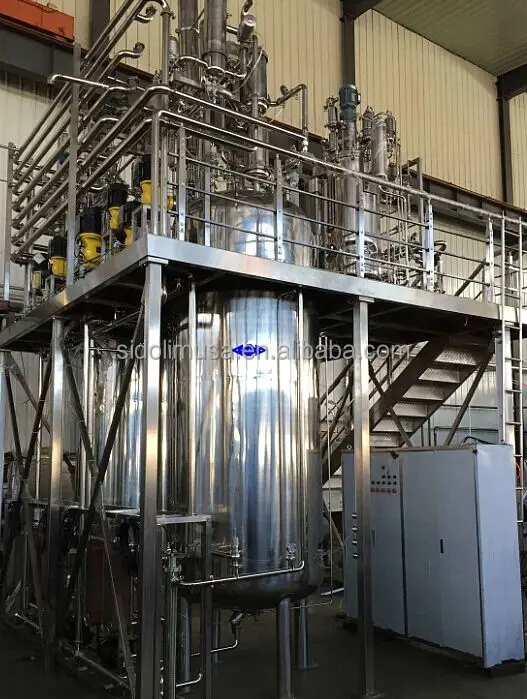

insulin fermentation ,30000L bioreactor





Specifications of brewing equipment and fermenter:



Vessel	Total Volume	3	5	7	10
	Working Vol.	2	3	5	7
	Head Plate	thermowell, aeration, sampling, spare ports pH, DO and foam probe ports 4 feeding ports and 2 general purpose ports
	Vessel	Single wall bottom heating
Aeration	Flow rate	0~5 LPM
	Sparger	Removable ring sparger
	Inlet Filter	0.2um filter interchangeable
	Air Pump	Diaphragm pump
	Condenser	Water cooled condenser
	Air flow meter	0~5LPM, vertical type
Agitation	Servo Motor	Top drive DC motor 60W(100W option) Magnetic Hall sensor, PWM control
	Impellers	2-rushton turbine impellers, 1 foam breaker
	Indication	LCD display in 10 rpm increments
Temperature Controller	Control range	3oC above ambient temperature to 80oC
	Accuracy	±0.1 oC
	Sensor	RTD(Pt-100)
	Control Algorithm	PID
	Heating	200 Watt heater
	Cooling	Air fan and fin for air cooling and Solenoid valve for water cooling
	Interface	RS232-C
	Output Signal	0 to 5V analog signal for data recorder
pH controller	Probe	Mettle-Toledo pH: 2.0~12.0
	Calibration method	(4,7), (4,7,10), (7,10) and manual adjust
	Measuring	pH 0.01 resolution
	Control	Digital PWM, pH 0.1 accuracy
	Peristaltic pump	2- Watson-Marlow 102R peristaltic pump
DO controller	Set point Range	0~200%
	Display Range	0~200%
	Control Mode	PID
	Resolution	0.1
Accessory	4 reagent bottle, Reagent bottle holder
Power	110~220Volt/50~60Hz
Dimension	D´W´H(mm)	450´250´670
Weight	Kg	100





Top Plate (pH, DO, anti-foam, Thermo well, Inoculation, Sampling 4 point feeding ports)

Ports Cap, Blade, Foam Breaker, Pyrex Glass condenser, Ring type Sparger, Removal Baffle Powerful DC Motor, Single Mechanical Seal, Pyrex Glass Vessel silicon Tube, Vessel Packing, cold Finger Heating Plate (Heater, Water in/out ports) .

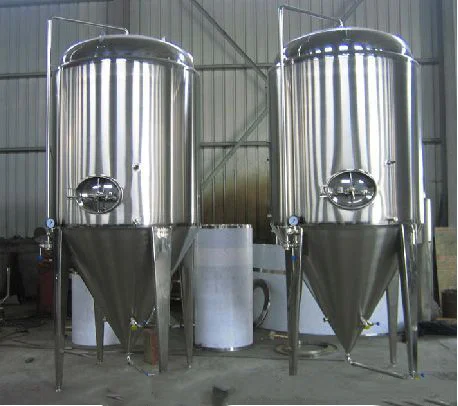

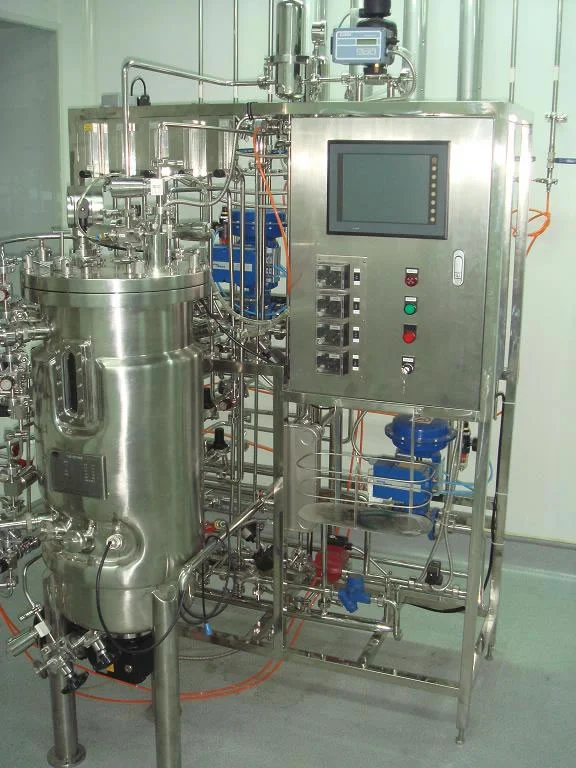

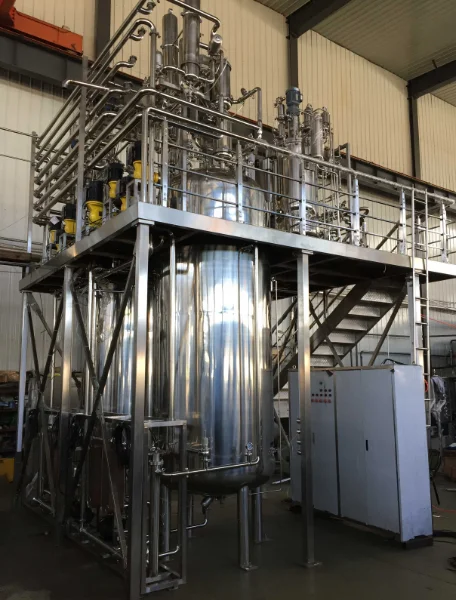

Other size bioreactors images for reference:















bioreactor / fermenter delivery:







Note:



We produce Microbial fermenter, Glass fermenter, Stainless steel fermenter, Multi-stage fermenter, Multi-couplet stainless fermenter, Airlift fermenter, Plant cell bioreactor(illumination),Animal cell bioreactor, Solid fermentor, Enzyme Bioreactor, Vaccine Bioreactor, The bottom agitation bioreactor, Advanced Fermentor (weighing), Production fermentation system, GMP standard fermentation tank, Mixing tank, Exhaust analyzer, Advanced analysis software, Cell culture, bacterial and fungal cultures, Anaerobic Fermentation Monitor (AFM),Mini Bioreactors, Photo Bioreactors, Cultivation  ,Glass Auto clavable Lab Scale Bioreactors, single-use bioreactors, PAD bioreactors, Stainless Steel Bioreactors, Pilot Systems



FAQ:



Q: What’s your MOQ?

A: 1 unit



Q: Do you accept special order?

A: Yes, we do and keep secret.



Q: Can you make a design for us?

A: Yes.



Q: Do you provide after sales service?

A: Yes.



Q: Have warranty or not?

A: Yes, 1 year international warranty.



Q: Can you guide for installation and come to installation place?

A: Yes.
