Electric annealing high temperature vacuum furnace 1200 degree
Electric annealing high temperature vacuum furnace 1200 degree
Electric annealing high temperature vacuum furnace 1200 degree
Electric annealing high temperature vacuum furnace 1200 degree
Electric annealing high temperature vacuum furnace 1200 degree
Electric annealing high temperature vacuum furnace 1200 degree
Electric annealing high temperature vacuum furnace 1200 degree

Electric annealing high temperature vacuum furnace 1200 degree

Share on (60602732069):


Price:

Quantity:


Product Overview

Description


Why Choose Us
God Made Fire, Brother Furnace Make Heat!!!

Manufacturer with 10+ years' experience

Best quality
Customized disign
Experienced workers
Big factory
Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

Free design for special furnace.

Free technical support for lifetime.

Free sample test.

Product Description

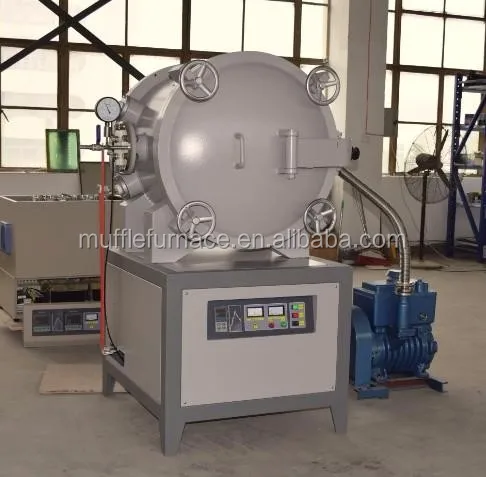

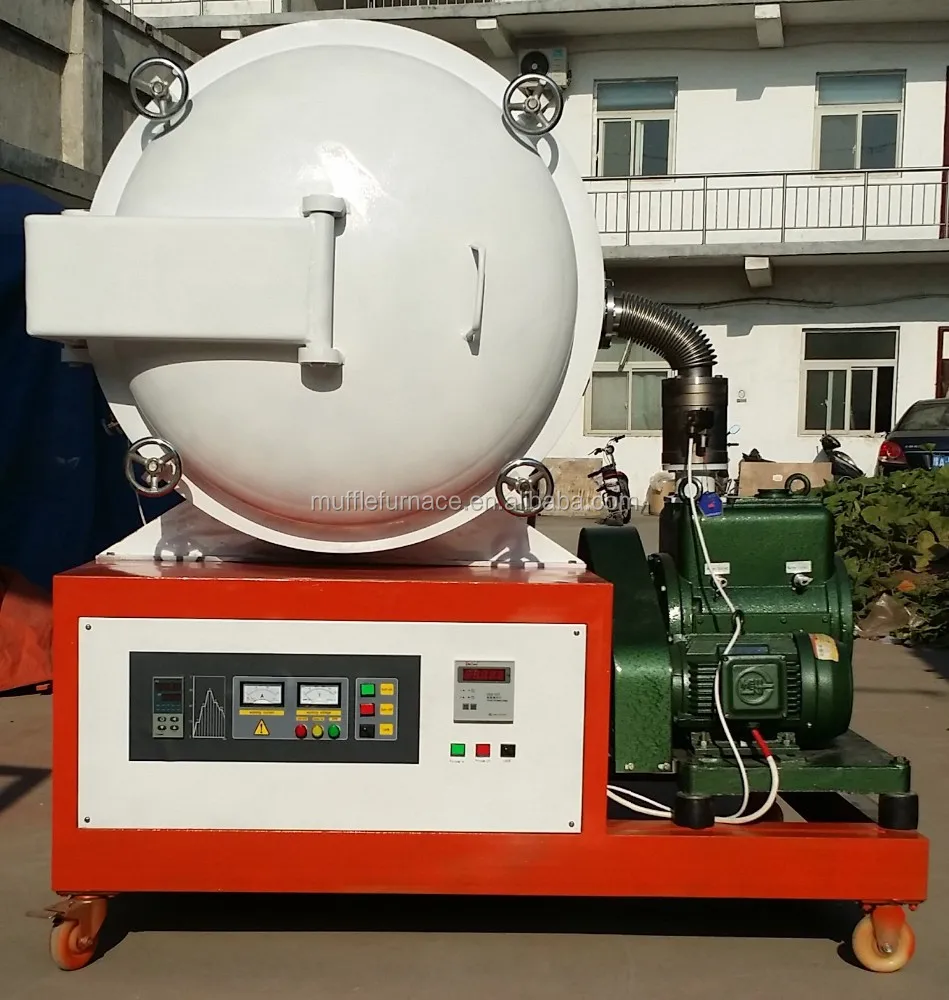

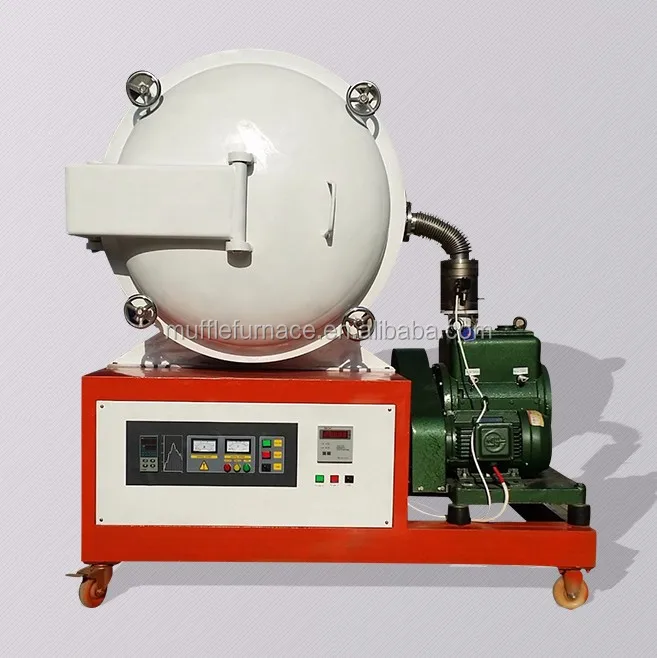

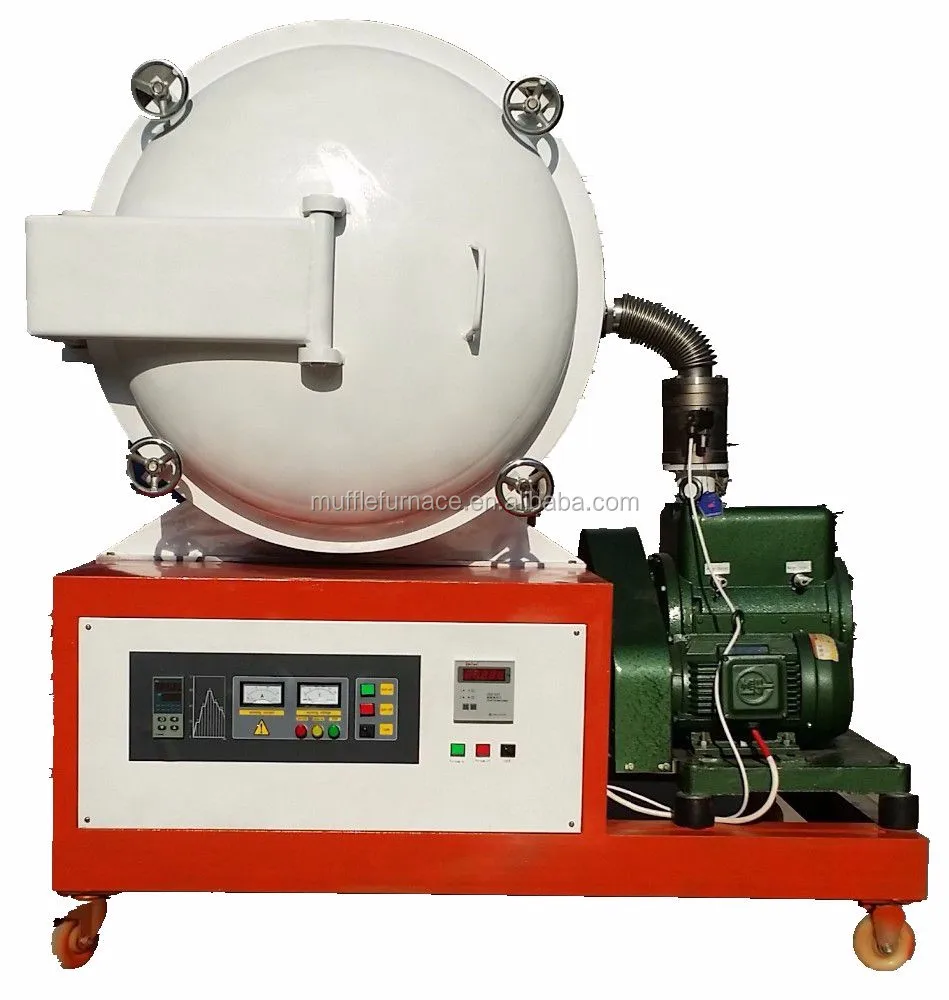

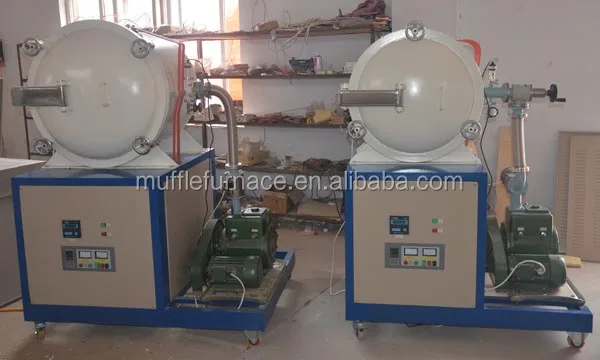

High temperature vacuum furnace

Max working temperature: 1200C
110 or 220V single phase .

Max vacuum: 10 pa (Two stage rotary pump)

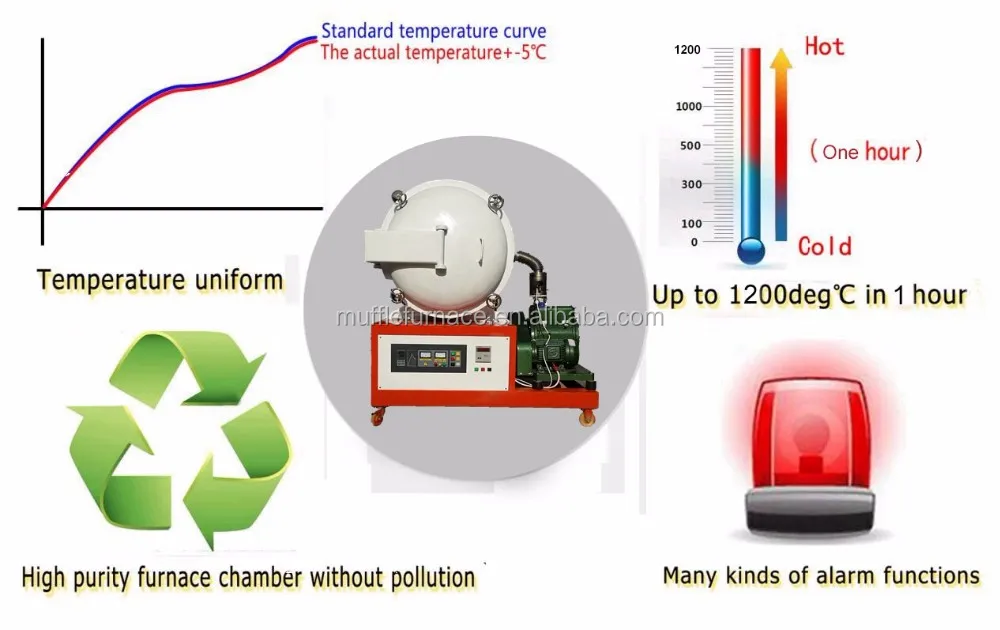

Excellent temperature uniformity.

30 Segment Easy Use PID Programmable Temperature Controller, allow to control heating rates, dwells ( time holds) and cooling rates.

One Year Limited Warranty on All Electronic Parts.


Quality heating elements ensure the longest heating element life, best heat radiation properties and minimum distortion of heating elements at high temperature.

All models use Ceramic fiber board lining to ensure energy efficiency

Safety feature includes a safety interlock system to shut off power when furnace door open

Details

For laboratory, safety, efficiency and excellent vacuum condition is the most important thing, which are exactly what we offer you.

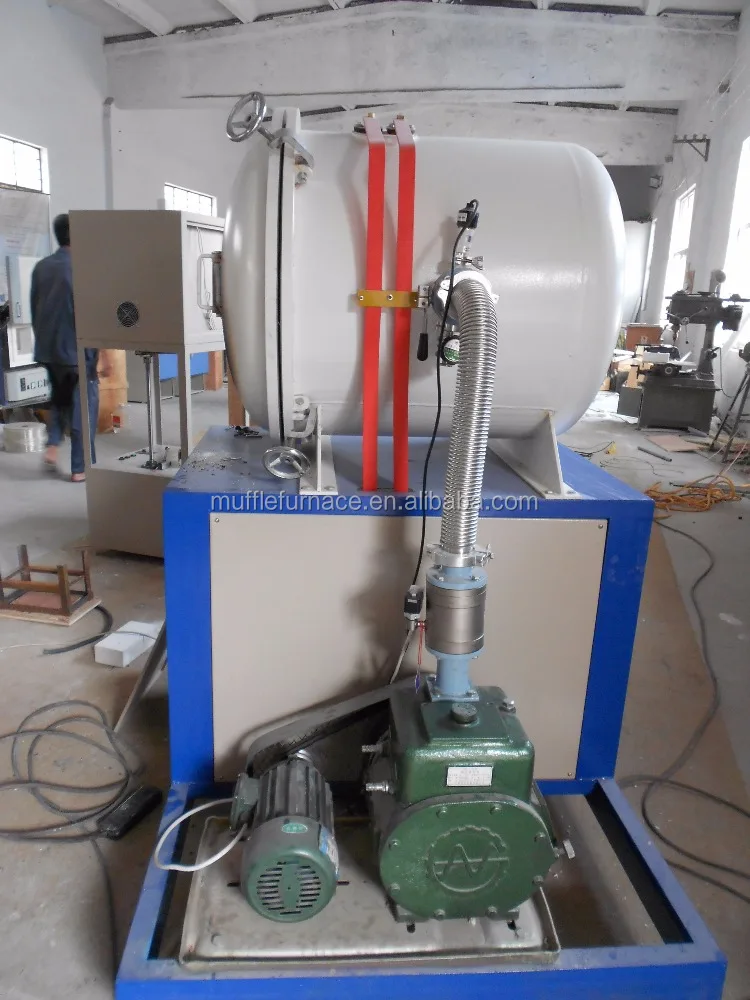

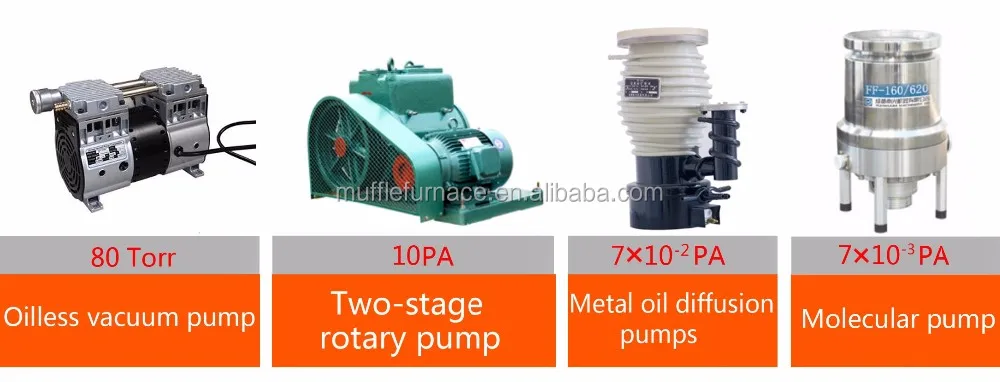

Vacuum system for Brother Furnace 1200C vacuum furnace: 0.007Pa Max

\t
Technical Specifications of  high temperature vacuum furnace
\t
Chamber size
\t
200x200x200mm (Width * Height * Depth) (8 Liter)
\t
Max. temperature
\t
1200 C (<2hour)
\t
Working temperature
\t
1100 C
\t
Temperature controlling
\t
● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
\t
● 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
\t
● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
\t
● Over temperature protection and alarm allows for operation without attendant.
\t
Temperature accuracy
\t
±1C
\t
Temperature Uniformity
\t
±5C over 120mm @ 1100C
\t
±3C over 80mm @ 1100C
\t
Heating rate
\t
0-20C /min
\t
Thermocouple
\t
K type with 99.7% purity Alumina tube
\t
Heating element
\t
Quality heating wire
\t
Vacuum
\t
10 Pa  (Two stage rotary pump)
\t

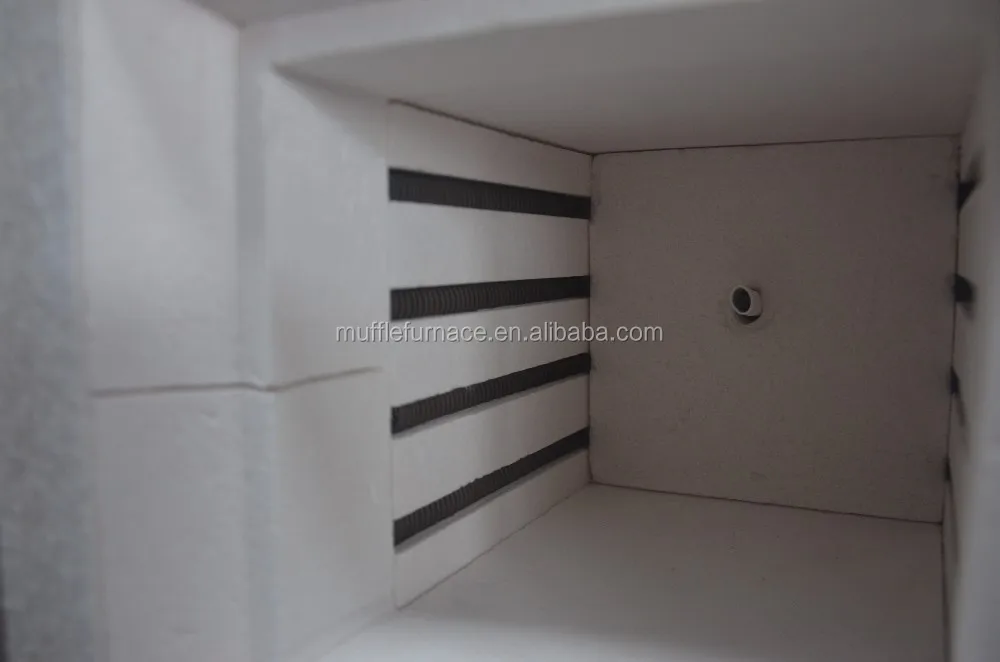

Furnace Chamber
\t
Two layers of ceramic fiber insulation materials
\t
● First layer: 1430°C ceramic fiber board.
\t
● Second layer: 1260°C ceramic fiber board.
\t
Furnace structure
\t
Double layer steel casing with dual cooling fan, surface temperature below 60C
\t
Furnace door
\t
● Front-side open
\t
● Power cutting off when furnace door open
\t
Working voltage
\t
220V, 50HZ
\t
Rated power
\t
5KW
\t
Stander chamber size (mm)
\t
100x100x100      120x120x130      150x150x150      150x150x200
200x200x200      200x200x300     250x250x300      300x300x300
300x300x400      350x350x500     400x400x400      450x450x450
500x500x500      600x600x600     800x800x800      900x900x900

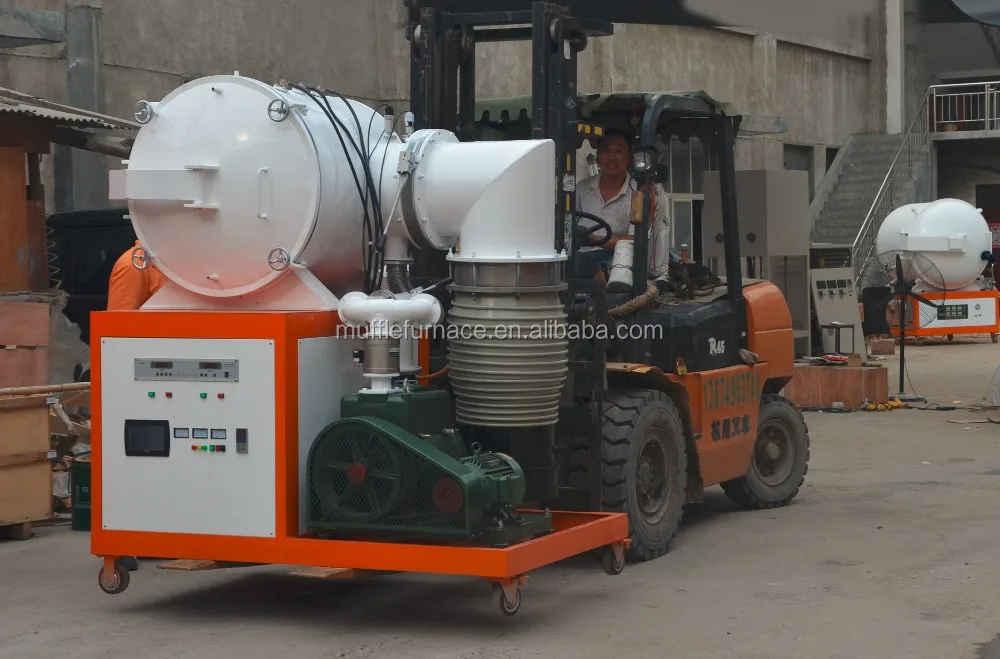

Packing & Delivery

Strong packing ensures shipment safety of high temperature vacuum furnace

Our Company

More than heat!!! Brother Furnace focuses on quality and service for more than 10 years!


Brother furnace is an international leading manufacturer of high quality furnaces. We manufacture low and high temperature laboratory and production furnaces, tube furnace, muffle furnace, dental furnace, Bottom loading furnace, Crucible furnace, Atmosphere furnace, Vacuum furnace, Drying oven and high temperature heating element (SiC heating element, MoSi2 heating element). All custom designed to meet your thermal requirements.

Learn more about Brother Furnace:

FAQ

What is your delivery time?
For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days; Other customized sizes the delivery time is from 15 days to 30 days according to different products request.

What is your advantage?
We are a manufacturer in China. So we can control the cost well.
We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
We supply good service after sale, you can be assured about that.

How many years have you been in this field?
We have been manufacturing in this fields more than 10 years.
