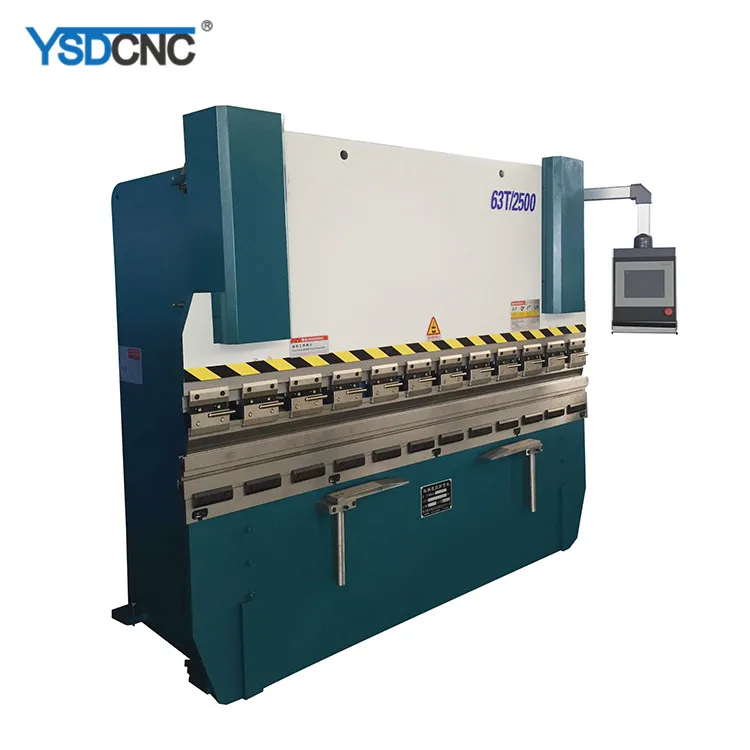

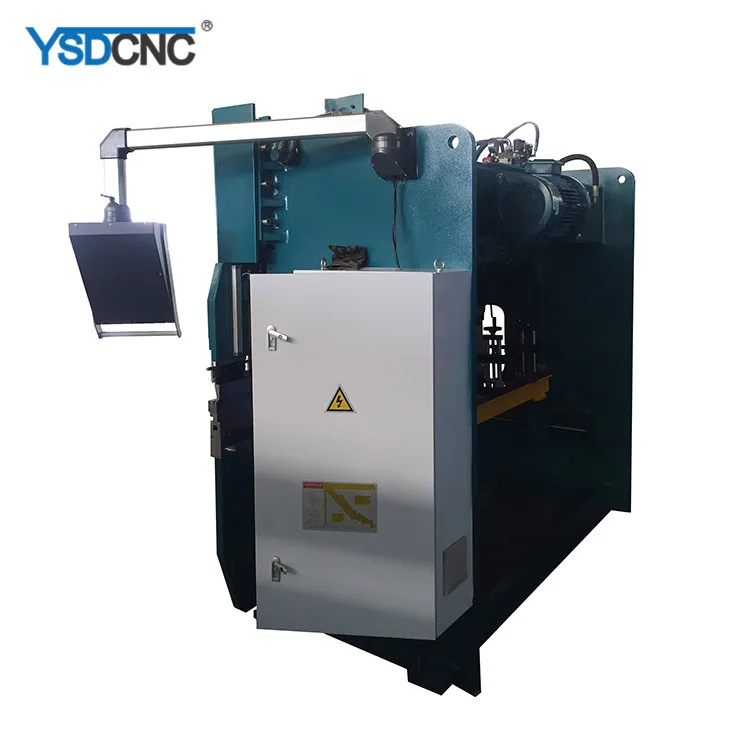

100T/3200 листогибочный пресс с ЧПУ, пресс машина, гидравлический листогибочный пресс

Item

200T/4000

Nominal Pressure

2000 kN

Worktable Length

4000 mm

Distance between holes

2700 mm

Depth of throat

400 mm

Ram travel

200mm

Table height

800mm

Pretend height

420mm

The sliding block is moving fast.

120mm/s

Return speed of slider.

95mm/s

Speed of sliding block.

10mm/s

Repeat positioning accuracy of sliding block.

0.01mm

Main power

15KW

Numerical control system

DA52S

Number of control shaft

Y1,Y2,X+V

V shaft form

Hydraulic compensation

backstage

Standard voltage  (Please let us know if you Adjustable voltage)

380V/50Hz (three-phase)

Dimension

4200*1800*2730mm

Weight

12000KG

NO

UNIT

NUMBER

MARK

1

CONTROL SYSTEM

1set

DA-52S(DELEM)

2

SEVRO MOTOR

1set

Japan yaskawa

3

HYDRAULIC SYSTEM

1set

HOERBIGER, Germany.

4

Ball screw

2sets

Taiwan HIWIN

5

Linear guide

2set

Taiwan HIWIN

6

joint

1set

German EMB

7

Sealing ring

1set

FIETZ, Japan, VALQUA, Japan.

8

Grating ruler

2set

Italian GIVI

9

 Major electrical components

1set

Import or joint venture

Serial No.

Name

Quantity

Remark

1

Main unit

1

Including one set of upper and lower die, front plate holder and foot switch

2

Grease gun

1

3

Button key

2

4

Key to door lock

2

5

Product instructions

1

6

certificate of quality

1

7

Packing list

1

8

Foundation bolt

4 sets

Including nuts and washers

9

O-type sealing ring

16
