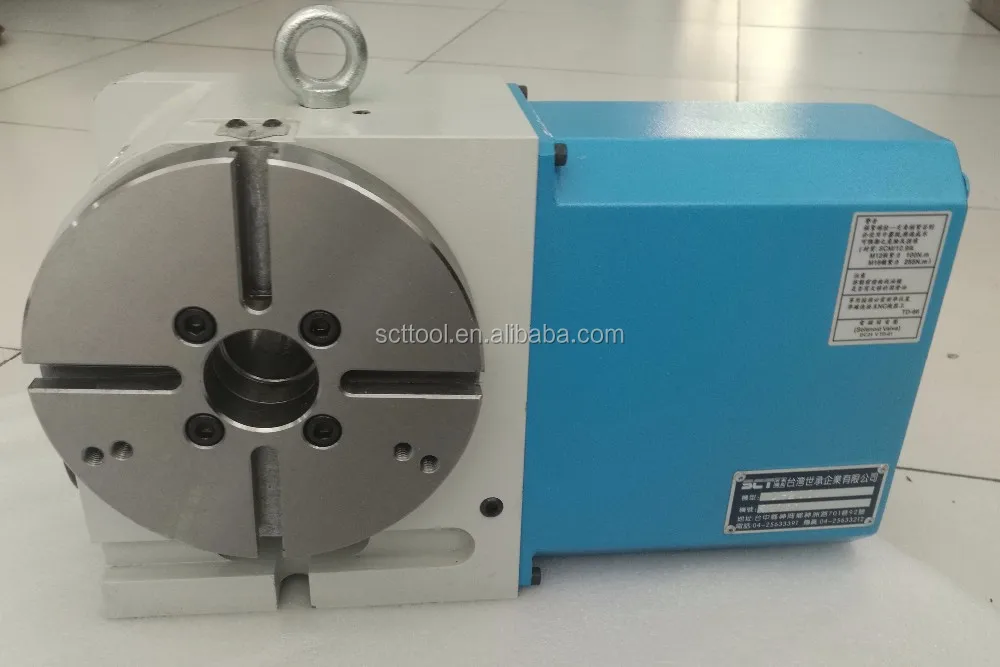

High quality 4th axis cnc index rotary table mechanical dividing rotary table for sale

Product Overview

Description

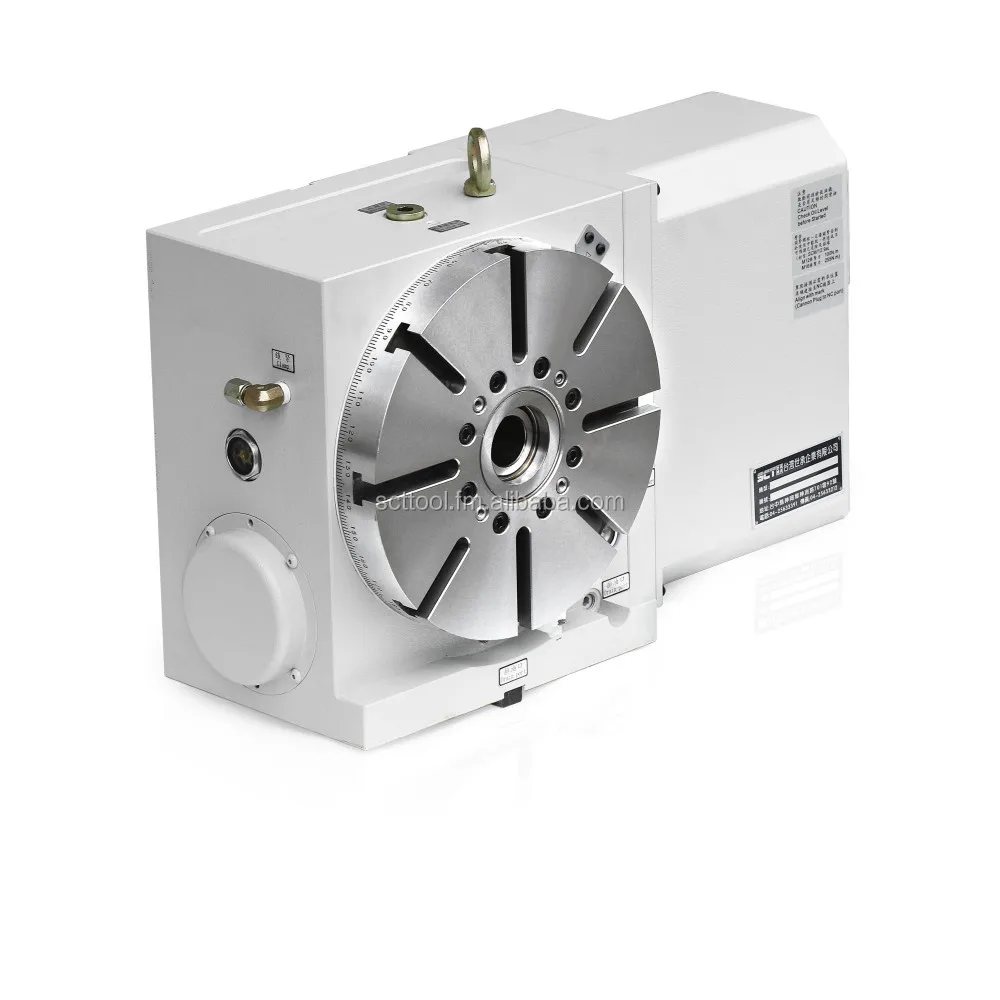

  High Quality 4 Axis  CNC Rotary Table  for Sale



Feature:

1. This 4 Axis CNC rotary table use imported  precision dual-lead worm, turbine, turbine with aluminum bronze alloy,ensure the transmission positioning  in high  precision accuracy.

2.The turbine size nearly the disc size and the steel rigidity is better 30%~50%  than similar products.



3.The bearing used cross roller bearings,improved the the rotary table’s rotation accuracy and rigidity. It can be maintained long time processing and no need  to worry make defective workpiece.



Specification:

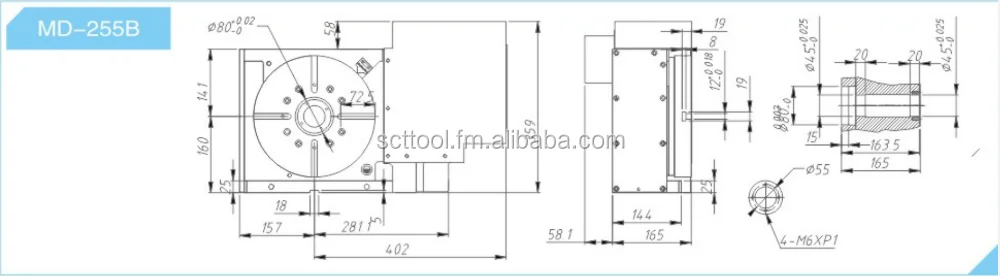

 MD-255B







The Disc diameter	255mm
The disc spindle center hole	80H7mm
The disc spindle center through hole	45mm
Level placement  height	200mm
Level placement center height	160mm
T-slot width of the rotary shaft disc	12H7
Guide block width	18H7
Working applicable environment temperature	18~40 degree
Pressure of the locking device	5(pneumatic)35(hydraulic) kg/cm2
The mini angle of equal division	0.001degree
Total gears rate	1/120
Max speed of the rotary disc	3000 RPM  X
	4000 rpm   33.3
Division precision	15”
G.W weight	120kg
