Stainless Steel Johnson Screen Panel Plate For Weater Treatment

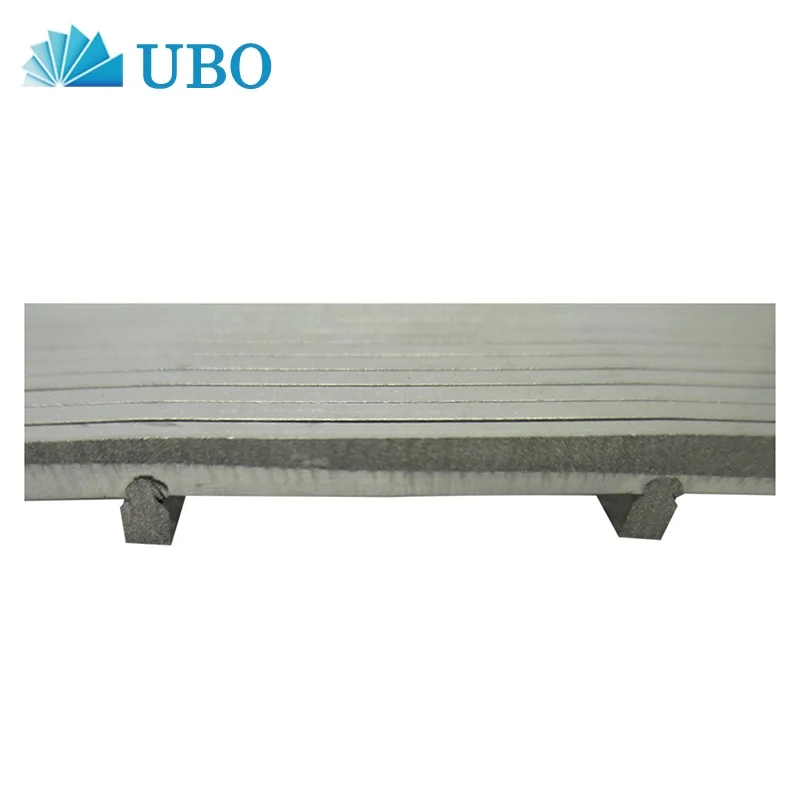

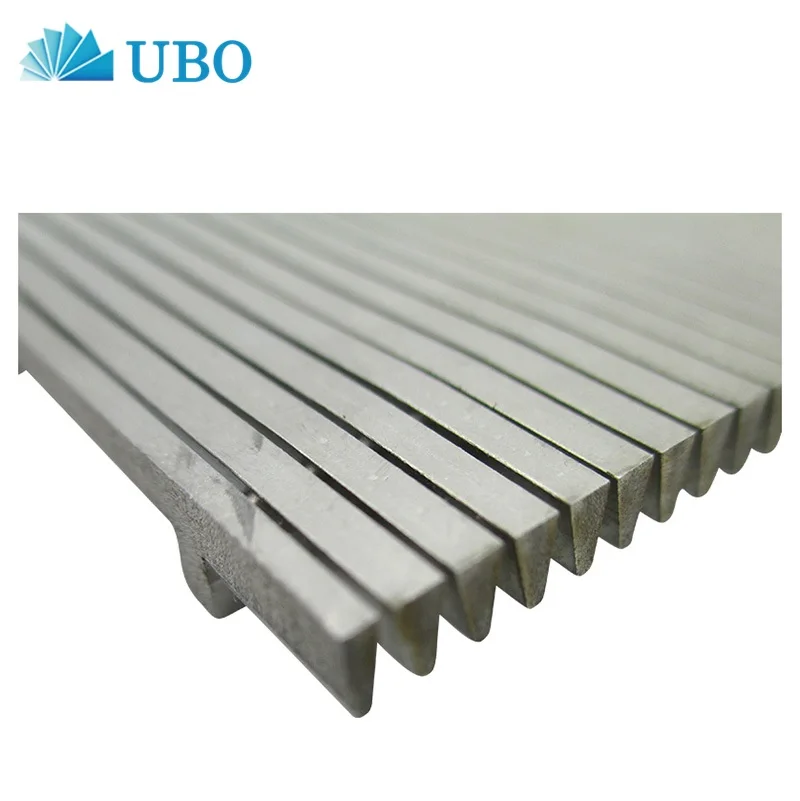

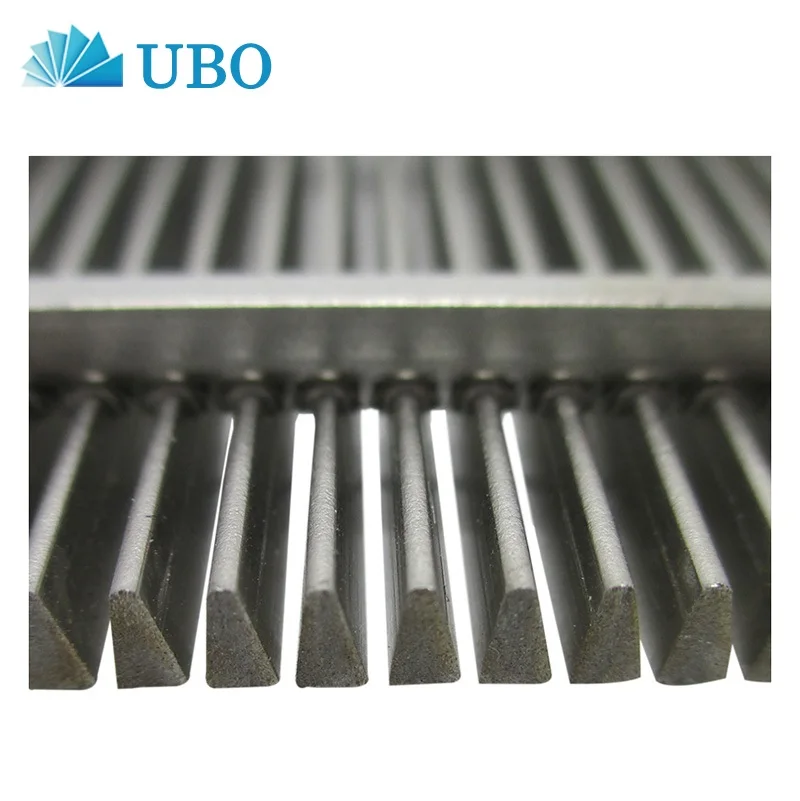

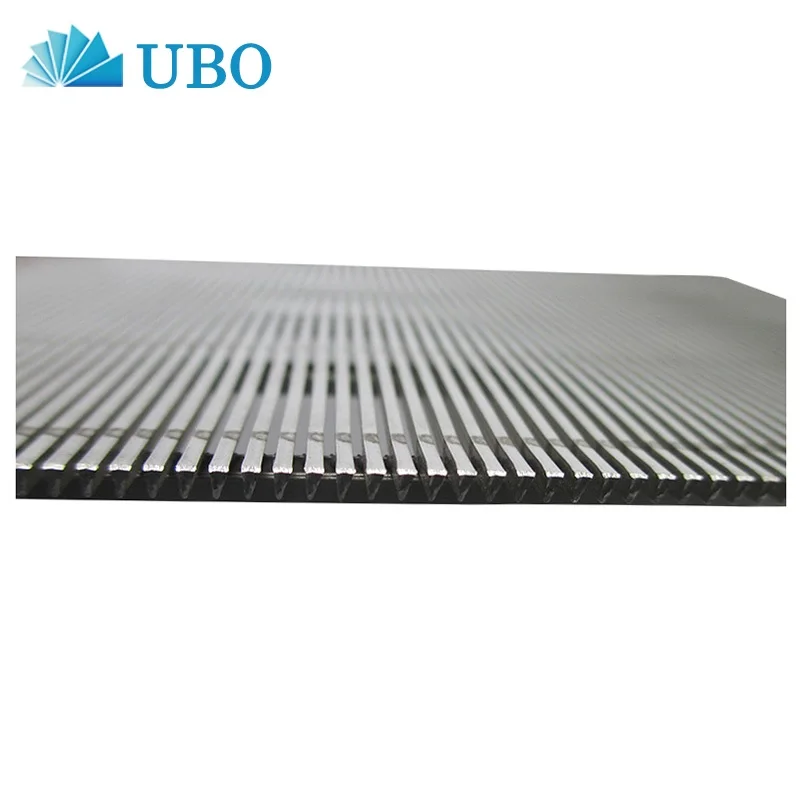

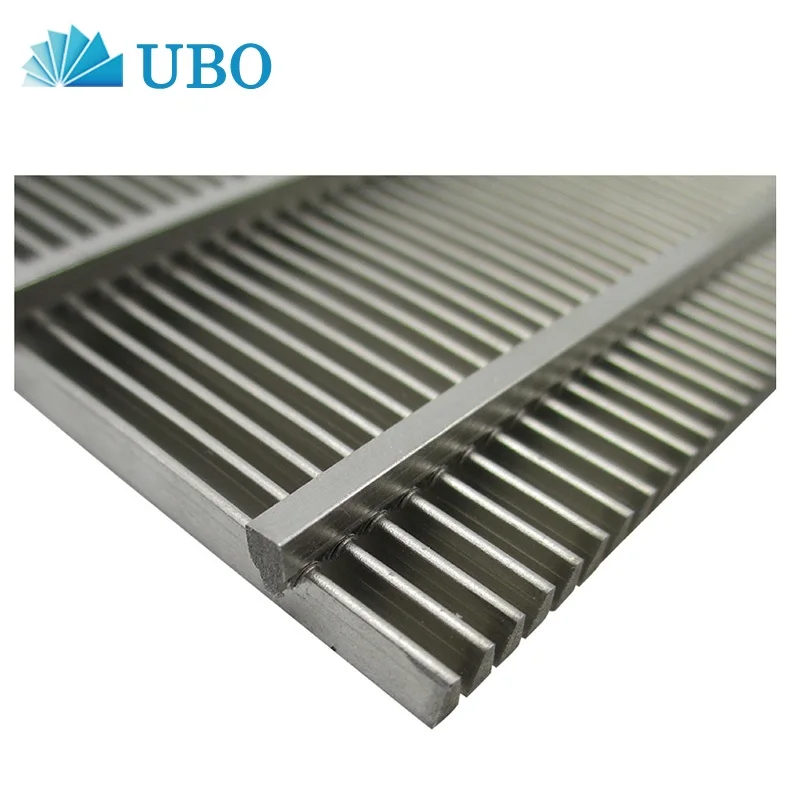

Stainless Steel Johnson Screen Panel Plate For Weater Treatment consist of V shape profile wire and the longitudinal support ro ds. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.

Material	SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
Length Range	Up to 6000mm
Width Range	Up to 6000mm
Slot Range	20 micron to 3000 micron (Tolerance:+-5 micron)
Other Shapes	Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.
Wedge Wire	0.5x1.5	0.75x1.5	1x2	1.5x2	2x3	2x4	3x5
Support Rod	1.5x2.5 2x3	1.5x2.5 2x3	1.5x2.5 2x3	1.8x2.5 2x3	2x3 2x4 3x5 3x6 3x10 4x7	2x4 3x5 3x6 3x10 4x7 5x6	3x5 3x6 3x10 4x7 5x6 5x8
End Finishing	With the frame, without any frame, according to request.
Note	Customized According To Requirement



Product Details

 • 1.IS YOUBIOU (UBO) Factory or Trading Company?

YOUBIOU (UBO )Group has our own factory. professional on wedge wire and filters production and export for more than 10 years.

 • 2.HOW ABOUT THE MOQ?

MOQ according to different product, sometimes MOQ decided by customer.

 • 3.Cou You supply the sample?

We could offer the sample for free charge but the cost of freight is extra.

 • 4. What payment term do you accept?

T/T ,L/C at sight, Western Union, and other mainstream payment term.

 • 5. How about the delivery time?

Usually within 3-15days after receiving the deposit;

 • 6.Where is your Market?

We have been exporting to more than 120 different countries and regions all over the world.

 • 7.How About your sales service?

Market promotion support and best after sales service will be offered to every customer, and help them get more new customers and orders.
