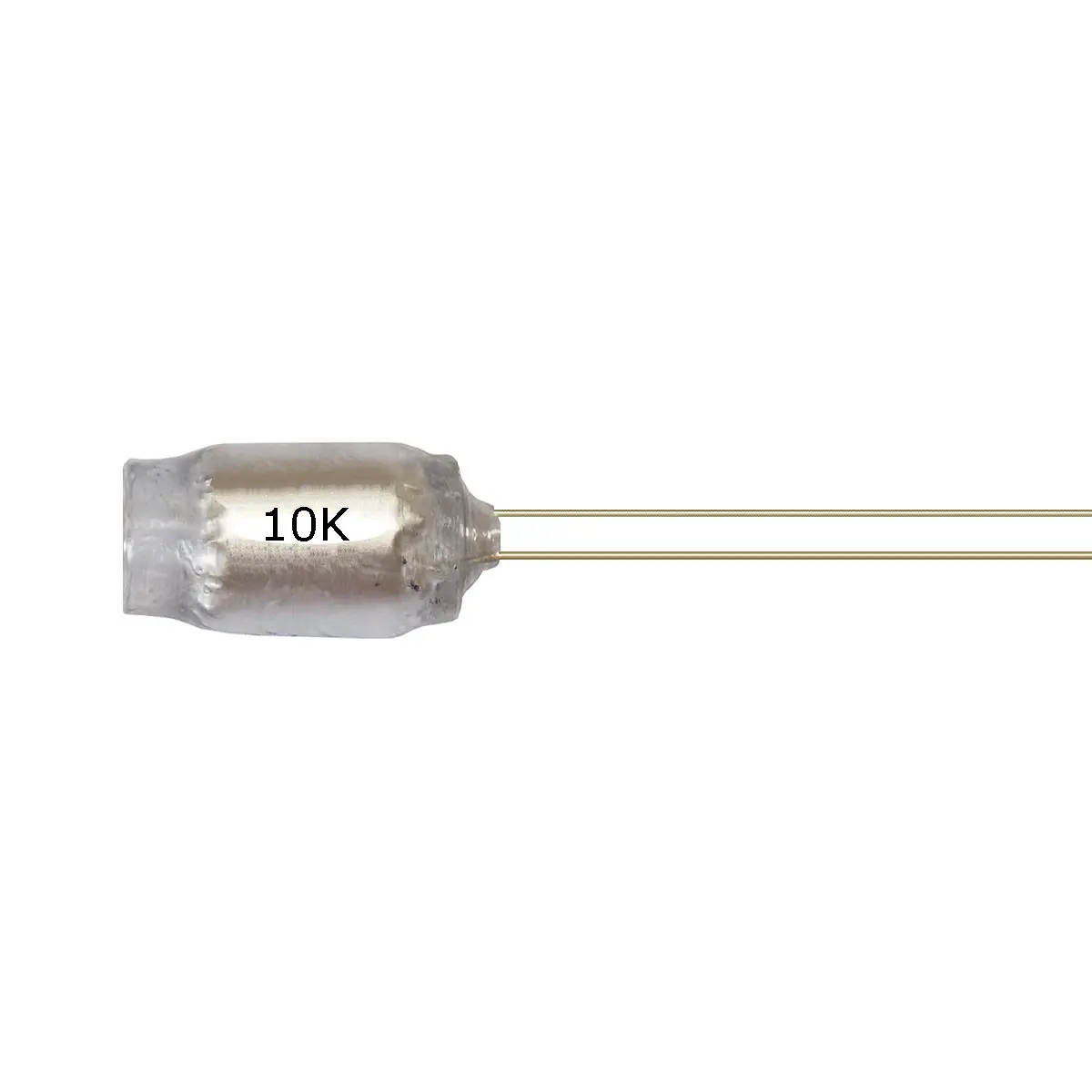

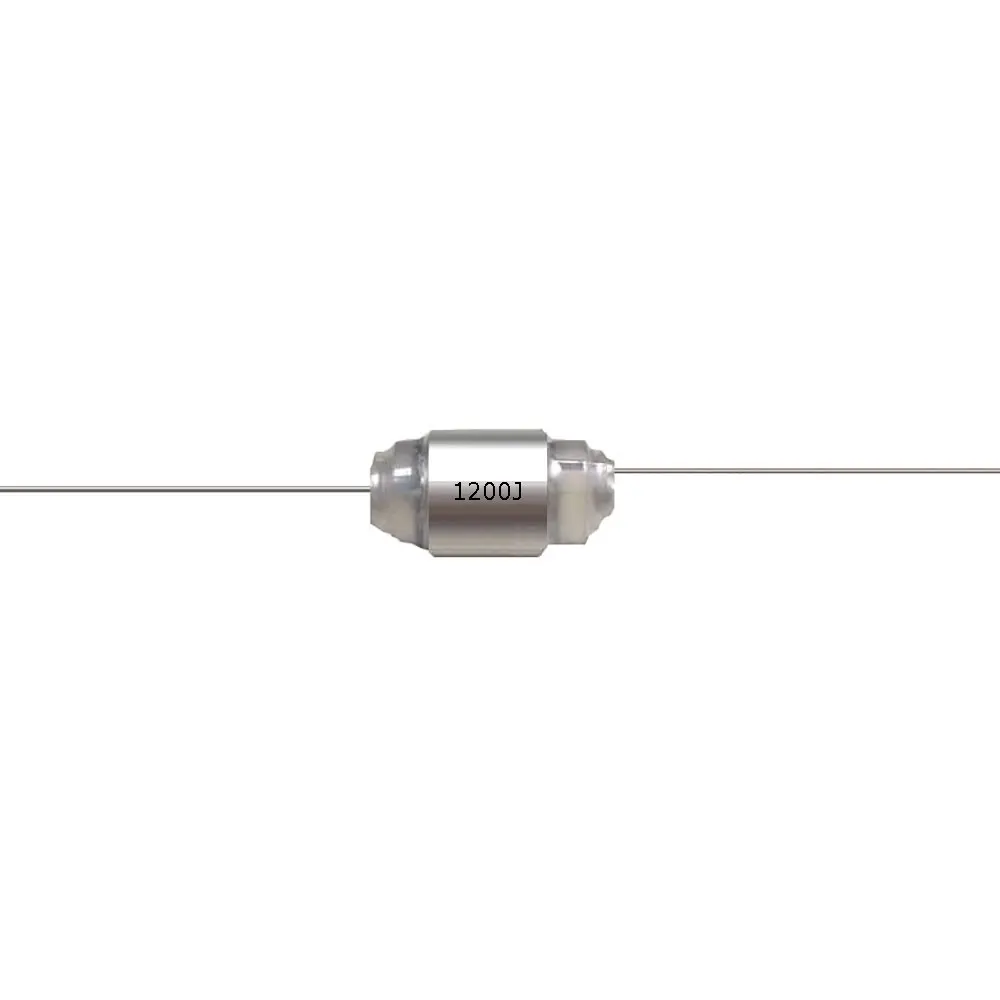

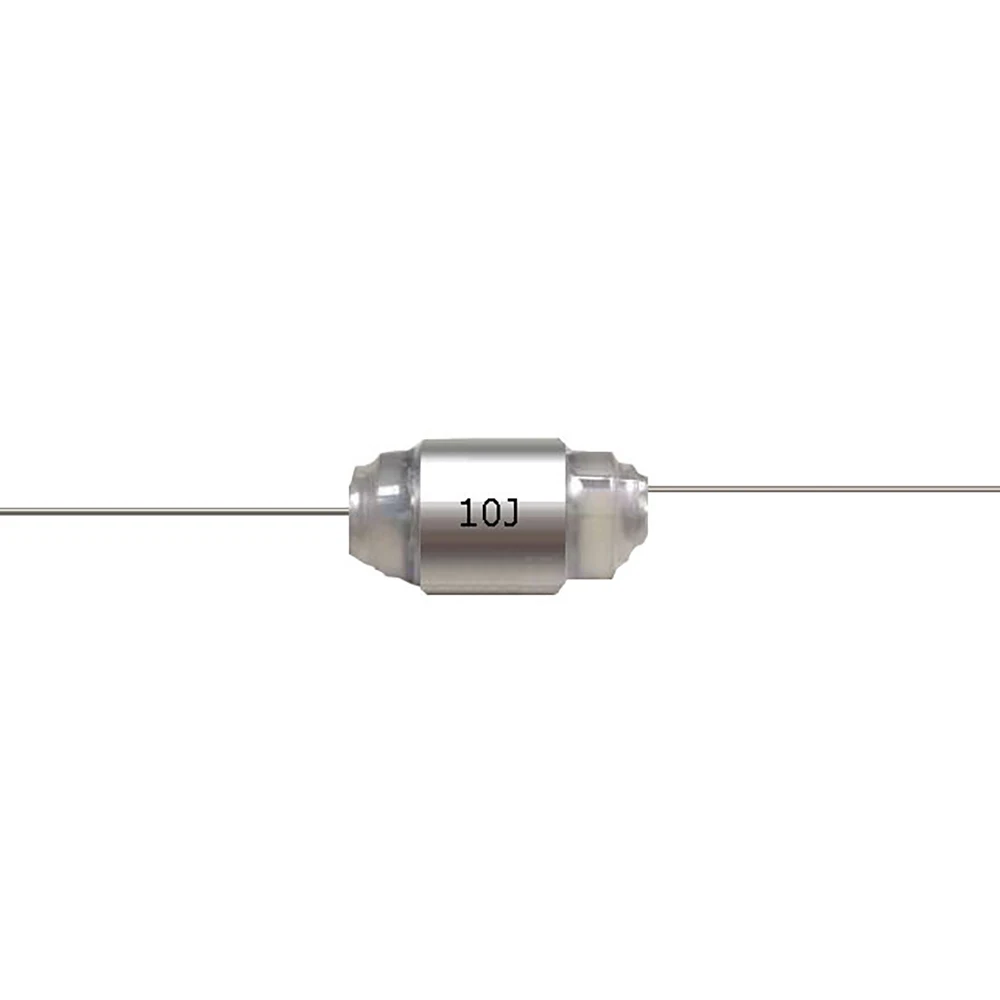

Taiwan Manufacturer Axial 100V to 630V 5% clear Styroflex polystyrene film Audio capacitors for Microphone application

Description:

PSA are constructed with polystyrene file dielectric aluminum foil electrode,

tinned copper lead in inductive type,  They are ideal for use in commercial,

industrial and measuring instruments

Features:

1. Low DF (Dissipation Factor) and high IR (Insulation Resistance).

2. Low Temperature Coefficient

3. Small Dissipation Factor

4. High stability of capacitance and DF versus temperature and

   frequency

5. Electrode and lead are spot welded series resistance is minimized

6. High precision of capacitance is available

7. Excellent environmental performance

8. Ideal for commercial, industrial, and measuring instruments

applications in high frequency circuits

Specificatin:

1. Operating temperature: -40°C~+70 °C

2. Capacitance range: 10PF~10000PF

3. Capacitance tolerance:  ±5%(J)

4. Rated voltage: 50VDC, 63VDC, 160VDC, 630VDC

5. Dssipation factor: 0.1% MAX. AT 1KHz, 25°C

6. Ulation resistance: ≥100000MΩ

7. Testing voltage: WVDCx250% For 1~5sec

8. Solderability: 230 °C ±5 °C 3sec frequency

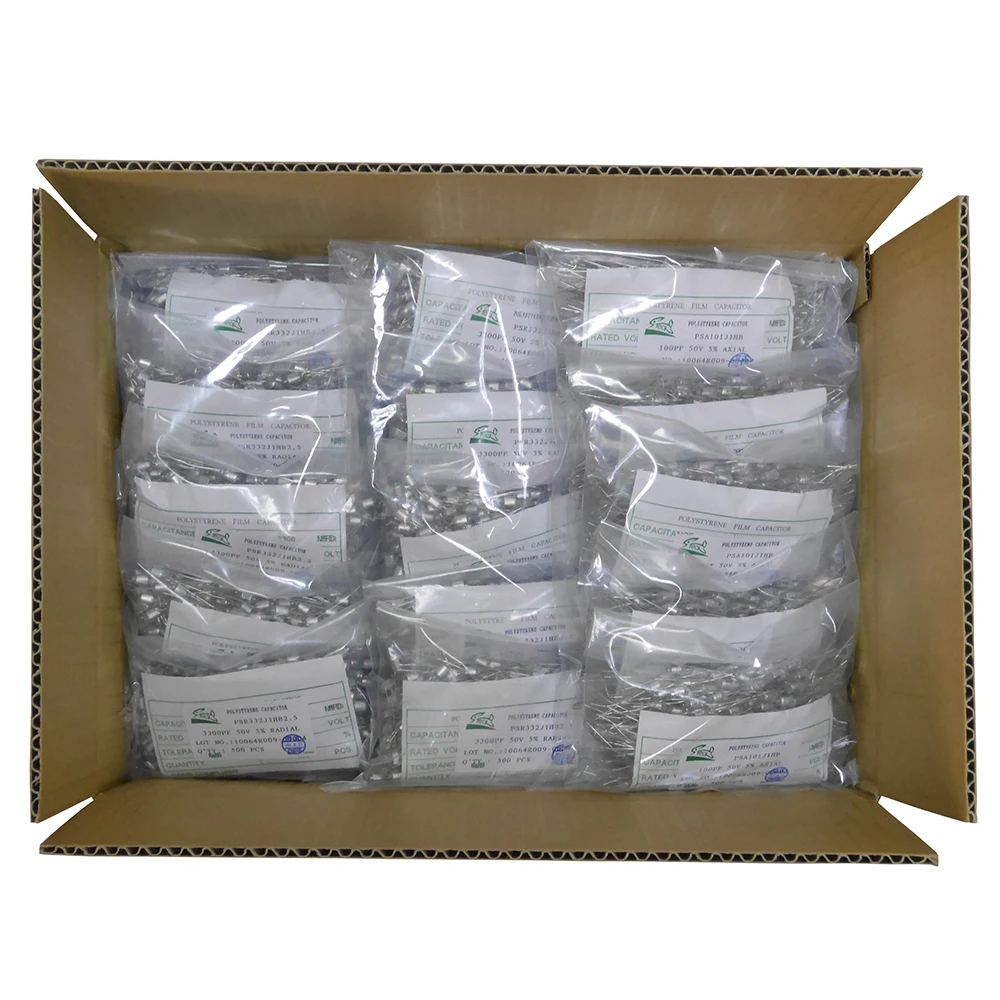

1000pcs per Bag, and 10 Bagger per INNER BOX, 2 Inner box per CARTON, 1.56 CUBIC FEET.

DELIVERY WITHIN 3-5 WEEKS AFTER RECIEPT OF CONFIRM ORDER AND DOWNPAY.

Shipment could be by Sea, Air, Couriers...which depend on customers request.

Our factory has more than 27 years of experience in power capacitors,
film capacitors and snubber capacitors...etc., and so far our products
have obtained UL, VDE, ENEC, CQC, KC safety approval and certified
by ISO-9001 quality assured firm.

We supply high quality and the best service. Our products include
metallized film capacitors, metallized polyester film capacitor,
plastic film capacitor, metal film resistor and poly film capacitors…etc.
Should you have any inquiry, please do not hesitate to contact us.
More detailed catalogue and information will be provided per your request.
