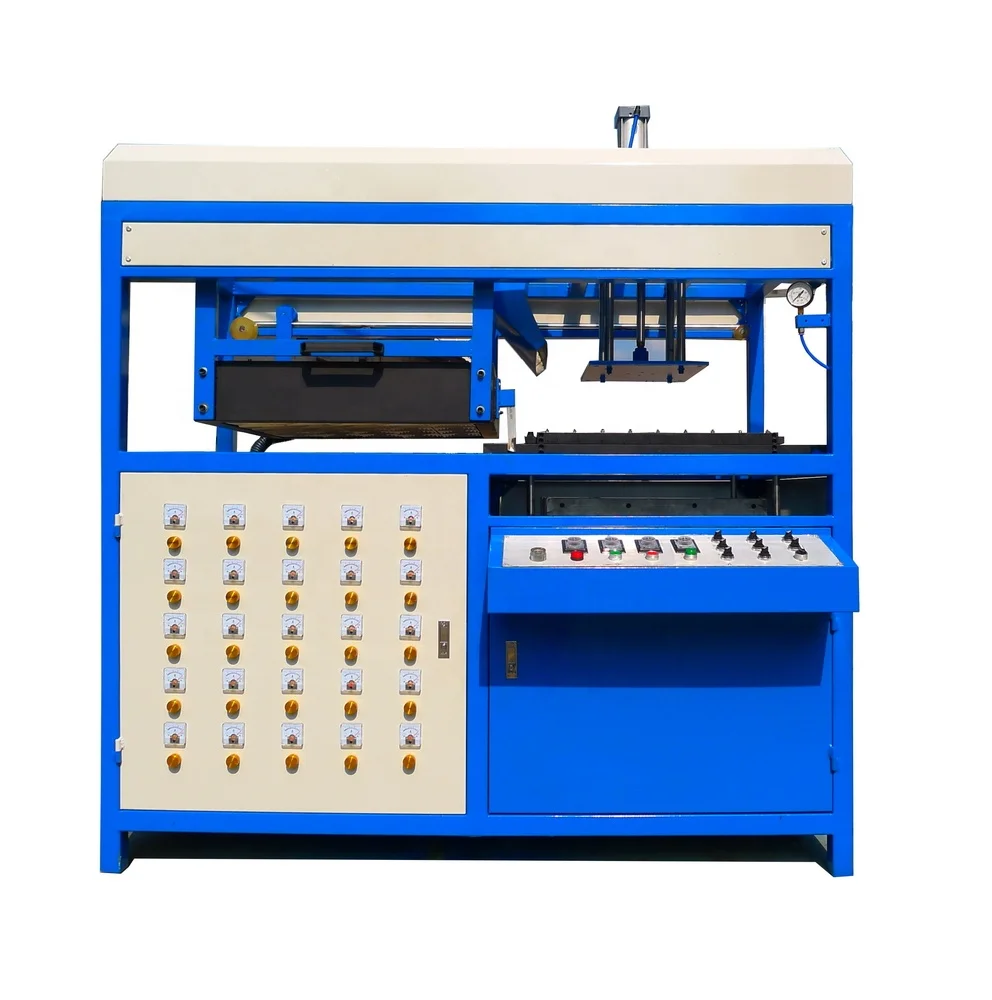

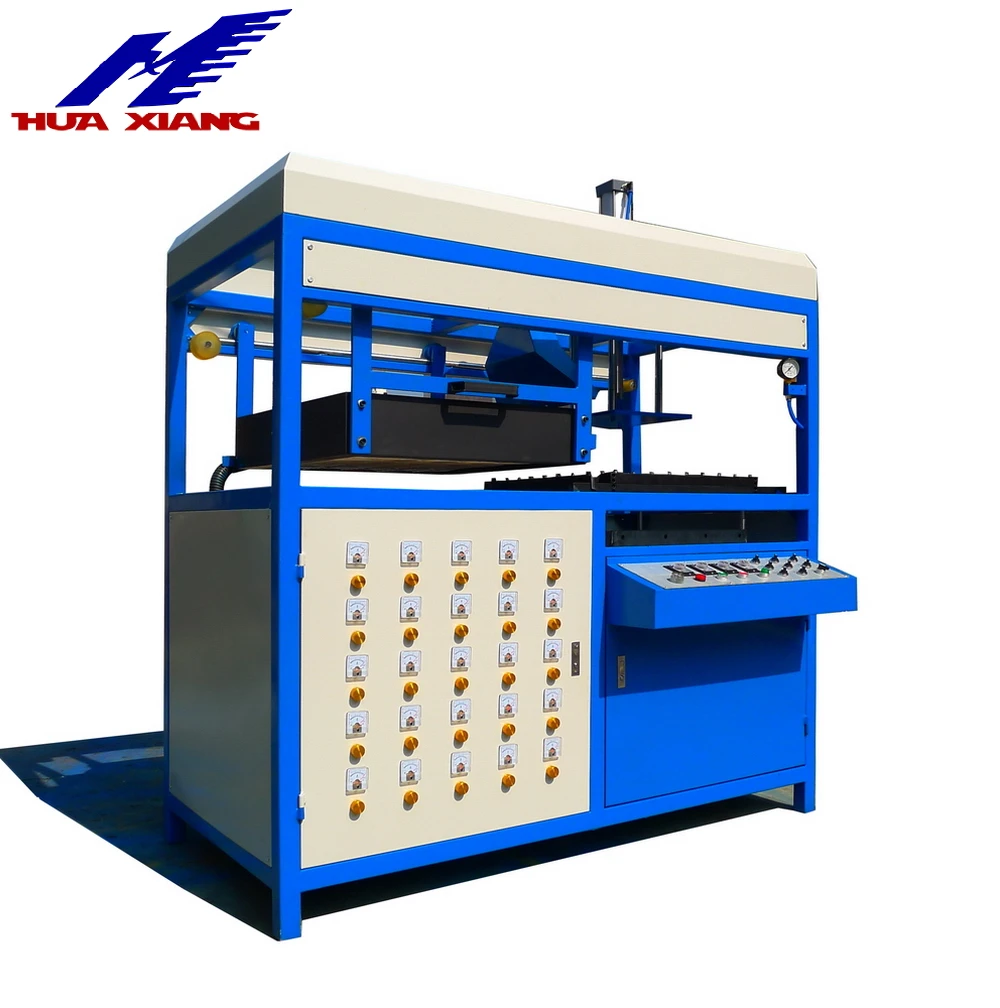

HX-2224 Series Semi-automatic Vacuum Forming/Thermoforming Machine

PLC touch screen control, HX-2224A a user friendly machine with the power and capability to form demanding shapes and materials.Rapid, energy efficient ceramic heaters with variable standby ,pneumatic table and clamping provides effortless operation, whilst the vacuum tank system fitted as standard facilitates ultra-fast response for demanding applications and fast cycle times.


Application
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.

Types of thermoforming molds
Wood Patterns ;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;





Model
HX-2224C
HX-2224B
HX-2224A
Forming Length (mm)
610
610
610
Forming Width (mm)
560
560
350-560 adjustable
Roll Material width
610
610
400-610 adjustable
Heater(pcs)
25*600w
25*650w
25*650w
Heating Power (Kw)
15
16.25
16.25
Vacuum Pump(M³)
20
40
40
Cooling Fan
1
1
1
Upper Mold
●
●
●
PLC Control
N/A
N/A
●
Mold table with cooling
N/A
N/A
●
Width adjustable
N/A
N/A
●
Safety Cover
N/A
●
●
Spray Gun(pcs)
N/A
●
●
Digital temperature Setting Control
N/A
●
●
Heating oven with move automatic
manually
●
●
Material
PET,PVC,PP,PS,ACRYLIC,ABS
Material type
Sheet / roll, thickness:0.1-2.0mm
Machine Size (mm)
L1800×W1480×H1800
Machine Weight(Kg)
350
400
450


Function:

Ceramic Heaters with Full Temperature Vacuum Receiver Tank
25 Independently Controllable Heating Zones Vacuum Flow Regulator
Pneumatically Powered Clamping Frame Mold Vacuum and Pressure Gauges
20m³/40m³ Vacuum Pump Digital Timer

Powerful Cooling Fan


Extra function for HX-2224A/B
Oven move automatic 2 spray gun
Digital temperature control Safety cover

Extra Function for HX-2224A
PLC Control Electronic mold table with Width adjust
Mold table with cooling

Features:
1) 25pcs ceramic infrared heating boards which can be controlled separately, suitable for different size or different thickness
material.
2) 25pcs Solid state voltage regulators, control heating boards simple and visualized.
3) Large-scale cooling fan which can cool the products quickly.
4) Cooling system which suitable for thick material. (optional)
5) Manual and Semi-auto style.





Forming Part

Semi-Automatic Vacuum Forming Machine. HX-2224 series max. forming area 610 x 560 mm.
1.HX-2224A and 2224B setting pneumatically powered heating oven, HX-2224C move by human hand.
2.HX-2224A and 2224B with digital temperature control,HX-2224C micro temperature control



Adjustable mold table
1.HX-2224A forming width can be adjust from 350mm to 560mm;
2.HX-2224B and HX-2224C forming width invariable;




Industrial cooling fan
Name: cooling fan
Brand: HUAXIANG
Original: CHINA
Compared with other types of engine's cooling fan-driving system, our cooling system is more reasonable;


Electricity box
Brand: CHNT,OMRON
Original: Chinese,Japanese
The switch, electricity meter of the meter box are set in separate area;
The floor box provides a plurality of facilities, such as vacuum and electricity;
Japanese and Germany accessories


Adjustable mold table
Brand: HUAXIANG
Special design for various size
save material
suitable for various size of mold
special for HX-2224A、HX-2224B


Ceramic heater/oven
Name: Heating system
Original: Germany or Chinese(Optional)
25 pcs Ceramic Heaters;
Power:16kw or 19Kw (every 0.65kw);
Heater size:12cm*12cm;
Save 10% power compare with competitors;


Temperature control
Name: Digital temperature or micro controller
Brand: AOYI
Original: Chinese
Digital temperature controller convenient, high precision ;25 Independently Controllable Heating Zone

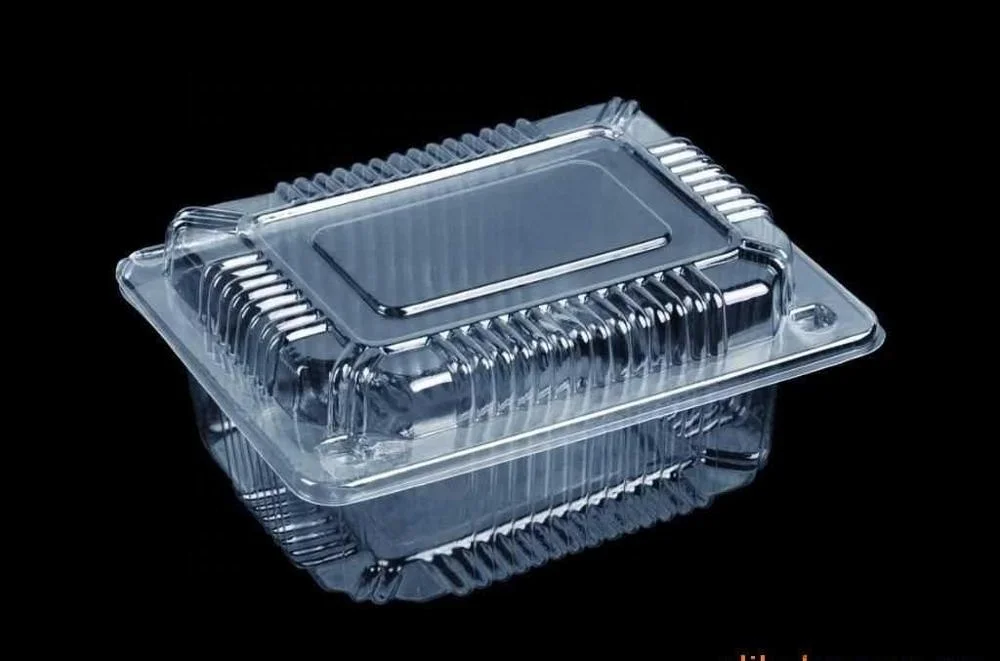

Sample








Packing and Delivery


SIZE
1) The machine overs an area of 2.664m²;
2) Requires 20m² of space to place ;
3) In the open air environment;
4) Weight: 400kg




Packing
1. Wooden box or wooden frame, box: 30 USD/CBM, wooden frame: 15 USD/CBM;
2. Woodwork will be fumigated in many country;
3. If container too tightly, we only use PE- film for packing or pack it according to customers special request.
4. Machines will be Split to facilitate placement.




Our Factory




HUAXIANG is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the professional enterprise that specializ in the production of Vacuum Forming/Thermoforming Machine. Our machine are used a lot in plastic forming,plastic packaging field;


In order to help you choose the most suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material?
Q2: The size of your sample; length, width and thickness?


Auxiliary equipment


Because plastic thermoforming machine is used for forming blister, you will need a cutting machine for cutting process.
What's more, you will need a chiller for cooling. Air compressor is also requisite.
