shandong magnesium glass sheet automatic production line
Product Description
Production process
All the required componments of the main board processing line are supplied by Chinese manufactures.In addition they provide all the ancillary equipment such as mixers .
Raw Material Delivery
Raw materials arrive at the plant via truck and rail transport in a variety of forms and packaging .mgo power is delivered via pneumatic trailer and piped into outside 150-ton mobile silos called a pig or guppy trailer .mgcl2 is delivered in liquid tanker truck and piped into outside 32,000-gallon vertical tank farm wood chips,the largest commodity is delivered in modular containers and stockpiled outside the plant.the comparably smaller balance of raw materials ,are deliver in bulk or standard bag format and stored inside the plant on pallets ,all the materials are sampled as they arrive and sent to the lab to maintain quality control.

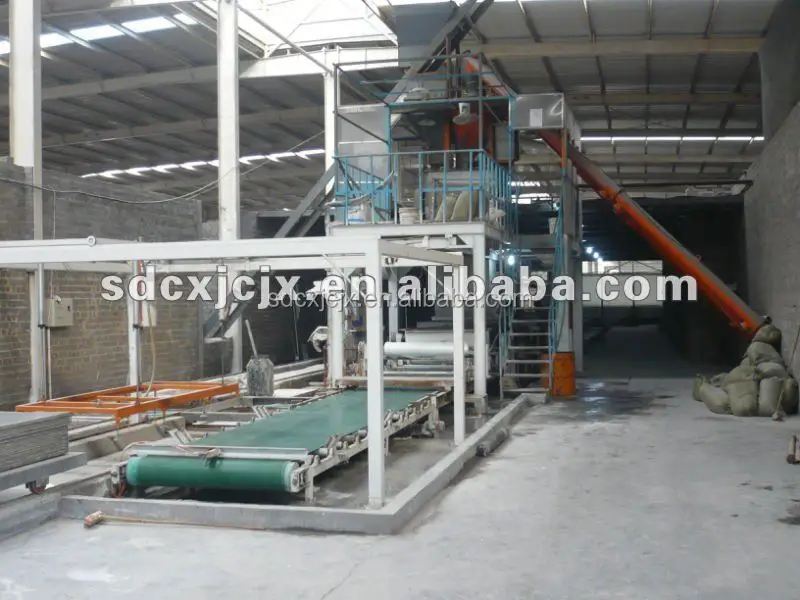

Mixing and batching platform
A steel superstructure of several 1000 sq. Ft.sits above the beginning of the board processing line .this elevated platform or second level is where all the recipe ingredients for the board is collected ,batched and mixed. Ingredients arrived at the platform via fluid piping ,pneumatic or screw conveyor into batch containers such as 5-ton silos and tanks,any baggede material for the recipe is opened on the ground floor in a bag-breaking machine and conveyed up the intermadiate storage on the platform.
Ingredients are weighted and measured in batches and mixed in alternating mixers.the recipe is then dumped into an elongated funnel opening on the platform floor that gravity feeds the mixture onto PVC sheets moving forword on the board processing line below .lagre quantities of the mixture cannot be made or stored even for short period of times due to the chemical reations that start to take place immediately ,at the start of the board processing line PVC panels are robotically removed from a stack and placed on the board processing line .

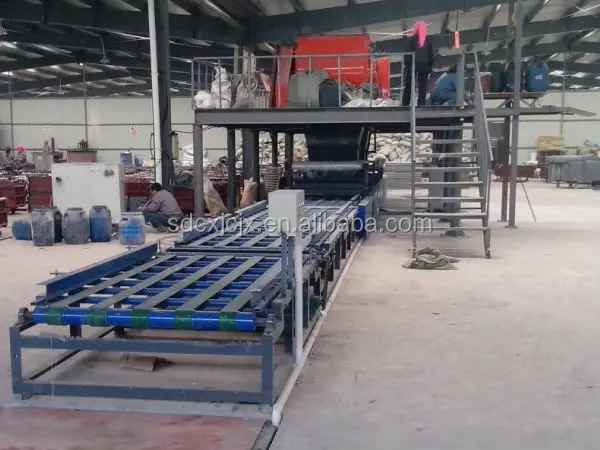

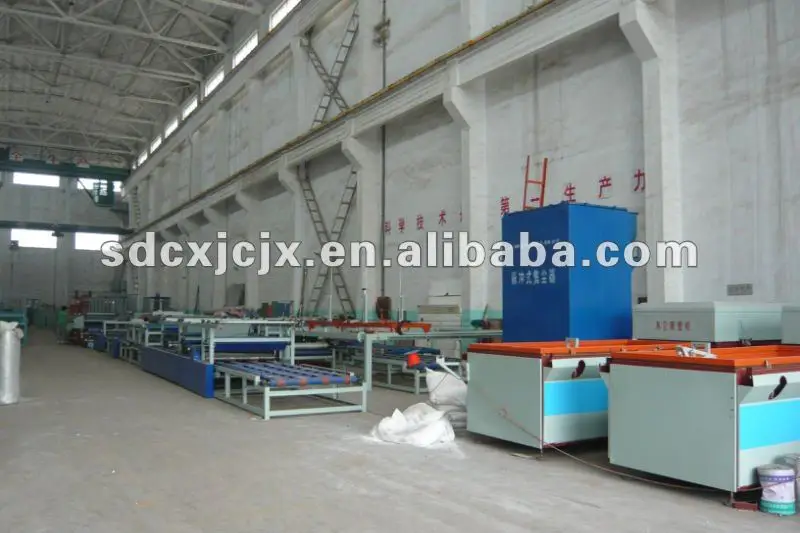

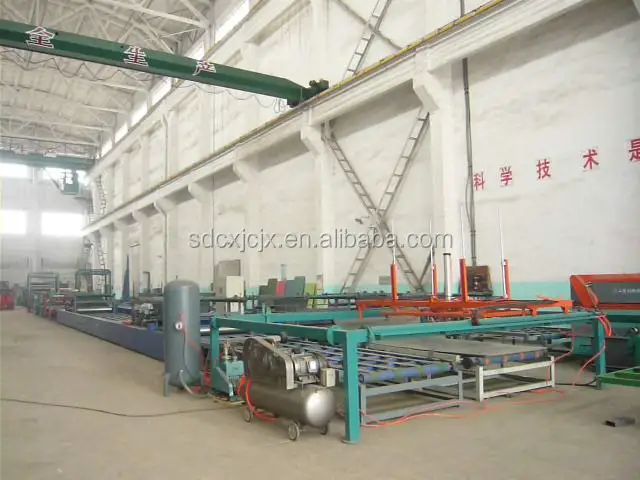

Board processing line
The board machine system is overall 160 ft long with all components .
Forming
After receiving the board mixture on the PVC sheets the mixture is squeezed through pinch rollers that determine the board thickness,these rollers can be adjusted to a variety of spacing providing the boards final thickness.
Fabric sheet
Spindles above the board processing line hold spools of meshed fiberglass or basalt fiber material that are rolled out into the board mixture ,this adds strength to the board and multiple layers of mesh material can even make the board bullet proof.
Cutting

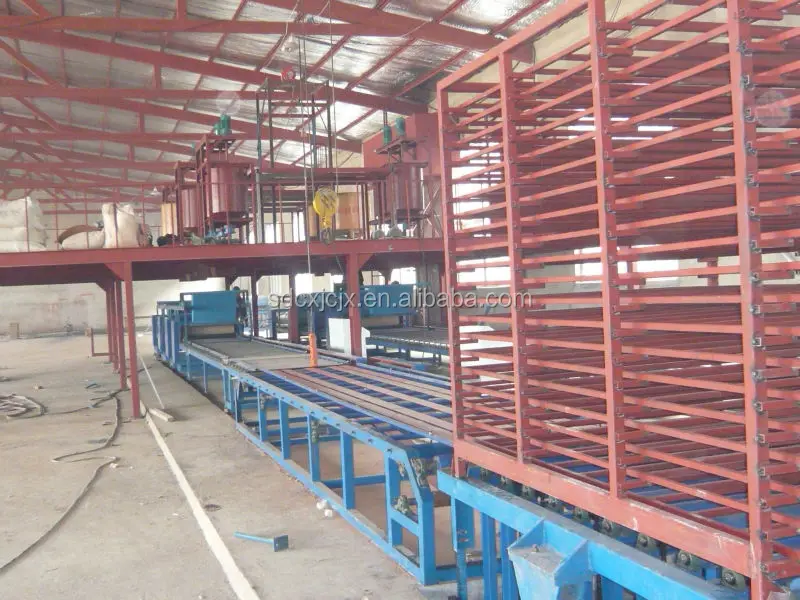

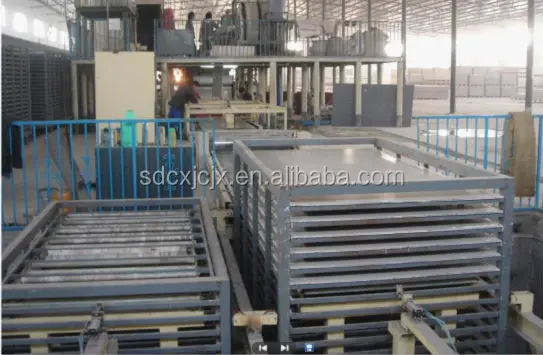

The boards progress down the line and are cut into specified lengths matching the underlying PVC panel. The cut board lengths are then ejected into a drying tray rack that typical holds 18PVC trays and performed boards
Packaging
The finished board are then palletized in a palletizing machine and stretch hood wrapped in bundles of mgo board per pallet .for overall product management and quality control board packages are labeled(lot number) per the quality control standards and moved to either indoor warehousing or outside storage area.
Company Information
Our Factory
Shandong Chuangxin Building Materials Machinery Co., Ltd., as a new and high
technology enterprise registered at provincial industrial and commercial department
and a modern group enterprise integrated with scientific research, processing and
trade mainly focus on research, development and popularization of decorating
technique, building materials technology and machinery. Its many patent products
were sold throughout China and some were exported to Russia, Southeast Asia,
Hong Kong and Taiwan. We have had rich assets and intellectual property rights
after many years, and in July 2004, our products were awarded as many laurels
such as State Key New Product by State Ministry of Science and Technology, Ministry
of Commerce, General Administration of Quality Supervision, Inspection and Quarantine
and State Environmental Protection Administration. With this company got much economic
benefit and social benefit, so it enjoys high popularity and good credit in the society.
Functions
The product manufactured by this equipment has following features:fireproof ,waterproof,environment protection and no toxicity .at the same time it is resistant against acid,alkali and aging. This product can be nailed,planed ,sawed and sticked.in the view of that its fireproofing grade is A .so our product will not be combustible when the fire is 800-1000C.at the same time when our product is fell to the water for a week ,there are not the following phenomenon such as chalking,deformation and warp.in light of there is not glue in the raw materials.so there is not formaldhyde and benzenz for our boards
Our Services
1)Fully life-cycle value services
Our company provides mgo board production line design ,cost accounting,installation and operation,equipment maintenance and the whole life cycle techincal support
2)all-around thechnical service
We provide technical formula for clients,to help clients to occupy the leading position in the market.
3)complete data specification
Provide production line equipment technical data and instructions,and provide the mgo board production line formula.
4)quality commitment
The company regards product quality as the lives of enterprise,the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology,so that the equipment endurable and wear resisting ,wearing parts warranty for one year.
