Ultrasonic Semi Auto Full Line Cup Respirators Mask Making Machine With Big Capacity And Good Price

Product Overview

Description

Ultrasonic Semi-Auto Full Line Cup Respirators Mask Making Machine With Big Capacity And Good Price



For Cup shape Mask Making Machines, we professionally design 5 machines to finish cup masks producing whole line with big capacity and cheap price.



with our rich experience selling so many types on cup mask making machines, and get many gread comments from our customers. here are our practical suggestions as below.



if you require 10000 cup masks capacity per day, here are our cup masks making machines quantities suggestions.



1 mask cup forming machine+2 sealing machine+3 side cutting machine+ 3 nose bridge bar welding machine+ 4 earloop weldering machines. in total 13 sets machines, day capacity is about 10000 pc cup masks. need about 15 people working.

usually delivery time is about 10 days if orders confirmed.



and if you want to add your daily capacity, you can ask more machines and we will give you best ratio suggestions on that.



also if you want to do cup mask with valves and code like N95 etc, we also can sell the relative machines like valves hole-punching machine, coding machine etc.



cause our machines are Ultrasonics, and we do ultrasonic for more than 20 years. so we can gurantee our products very good quality and we offer full after service.



if you want to produce cup type masks, and buy machines from us, we can also offer you the solutions about how to do professional mask producing.

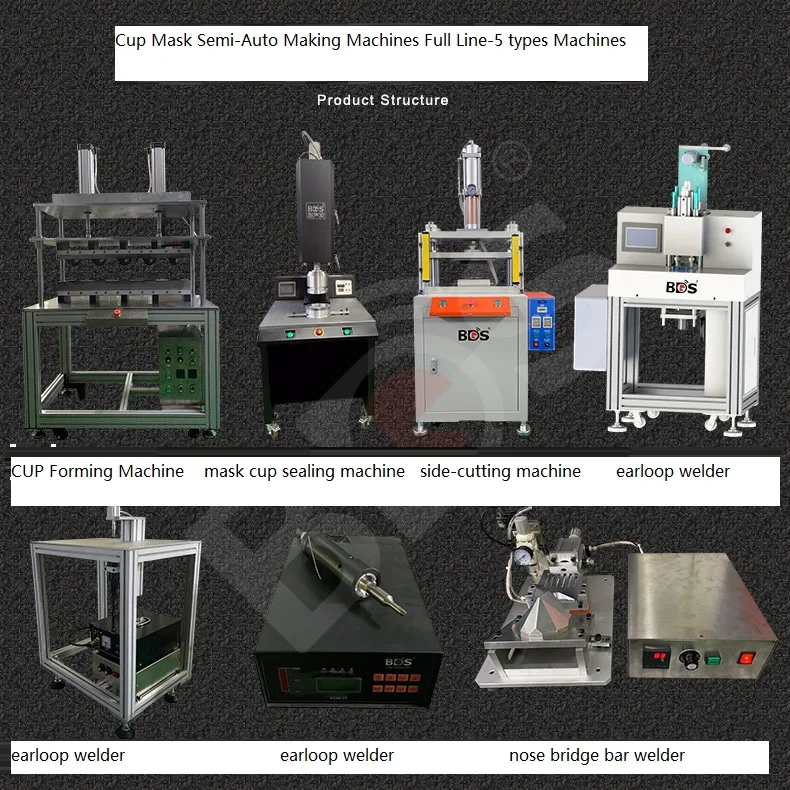

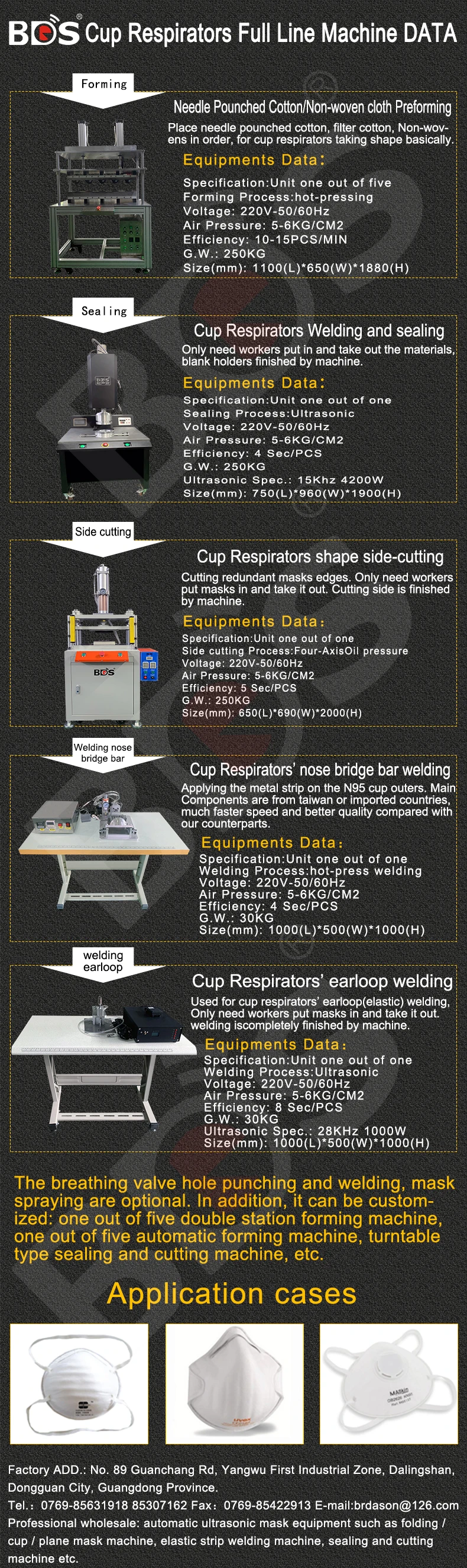

BDS Cup Respirators Semi-auto Full Line Machines Data
machine Name	Specifications	Processing

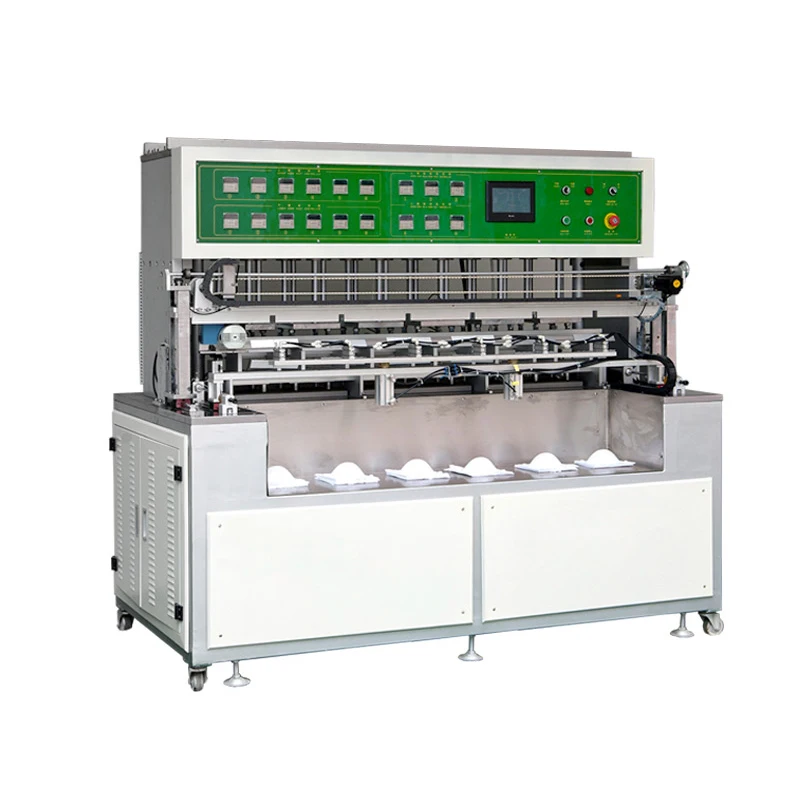

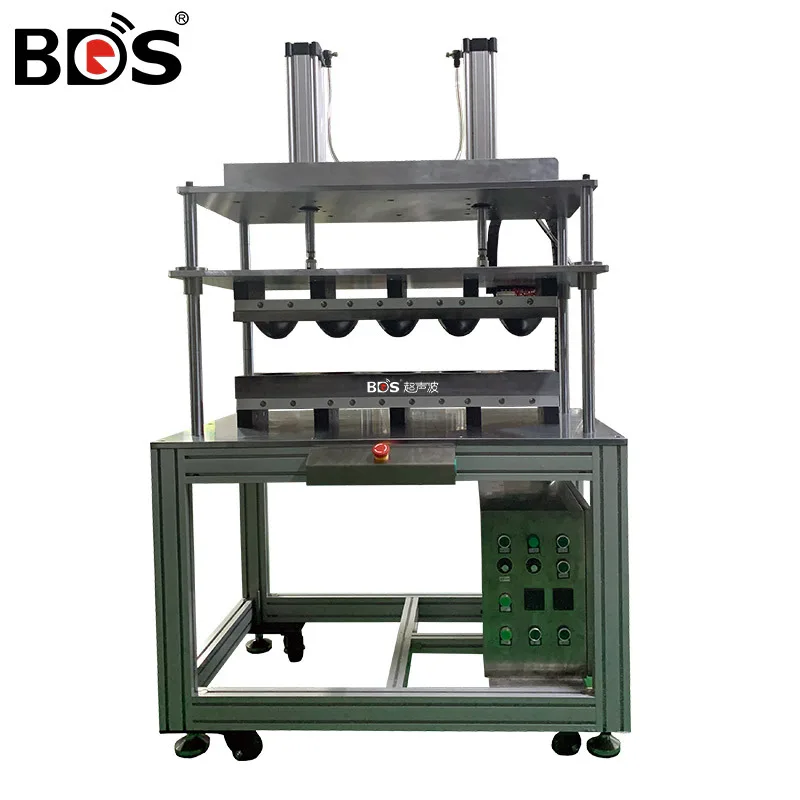

mask cup forming machine	pecification:Unit one out of five Forming Process:hot-pressing Voltage: 220V-50/60Hz Air Pressure: 5-6KG/CM2 Efficiency: 10-15PCS/MIN G.W.: 250KG Size(mm): 1100(L)*650(W)*1880(H)	Needle Pounched Cotton/Non-woven cloth Preforming Place needle pounched cotton, filter cotton, Non-wovens in order, for cup respirators taking shape basically.

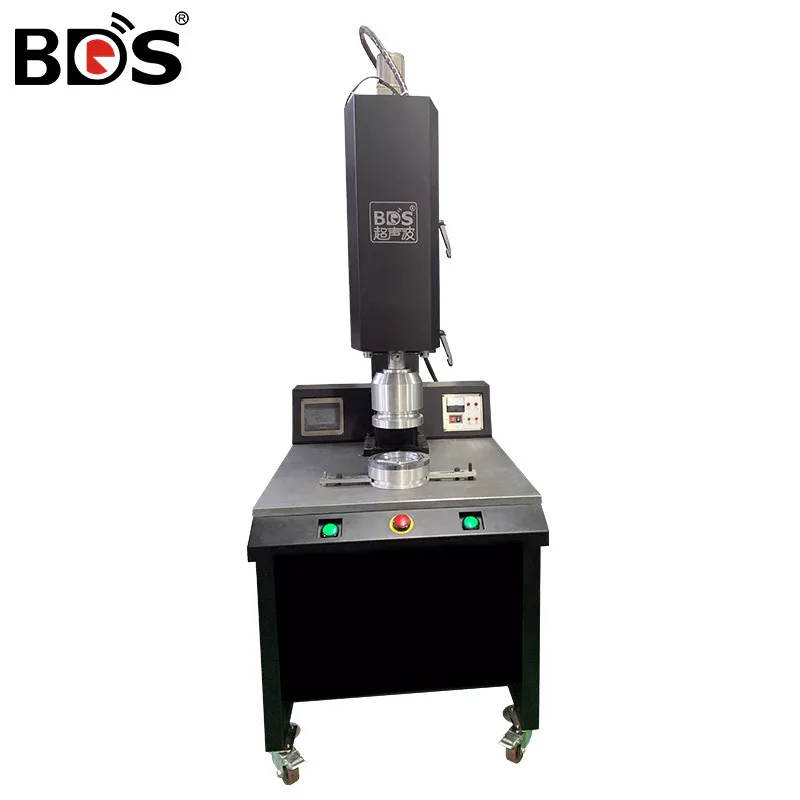

mask cup sealing machine	Specification:Unit one out of one Sealing Process:Ultrasonic Voltage: 220V-50/60Hz Air Pressure: 5-6KG/CM2 Efficiency: 4 Sec/PC G.W.: 250KG Ultrasonic Spec.: 15Khz 4200W Size(mm): 750(L)*960(W)*1900(H)	Cup Respirators Welding and sealing Only need workers put in and take out the materials, blank holders finished by machine.

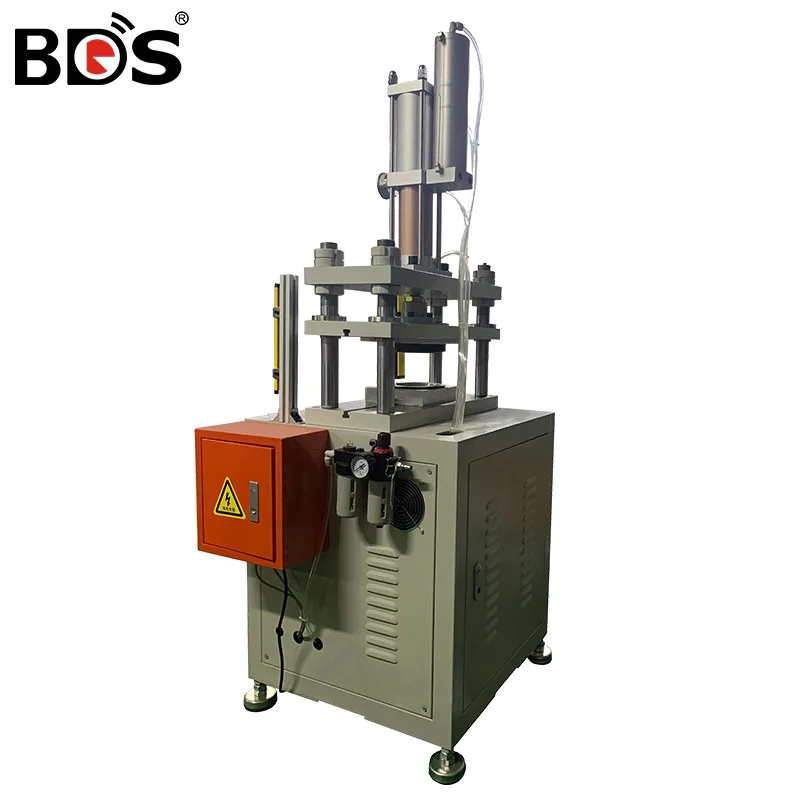

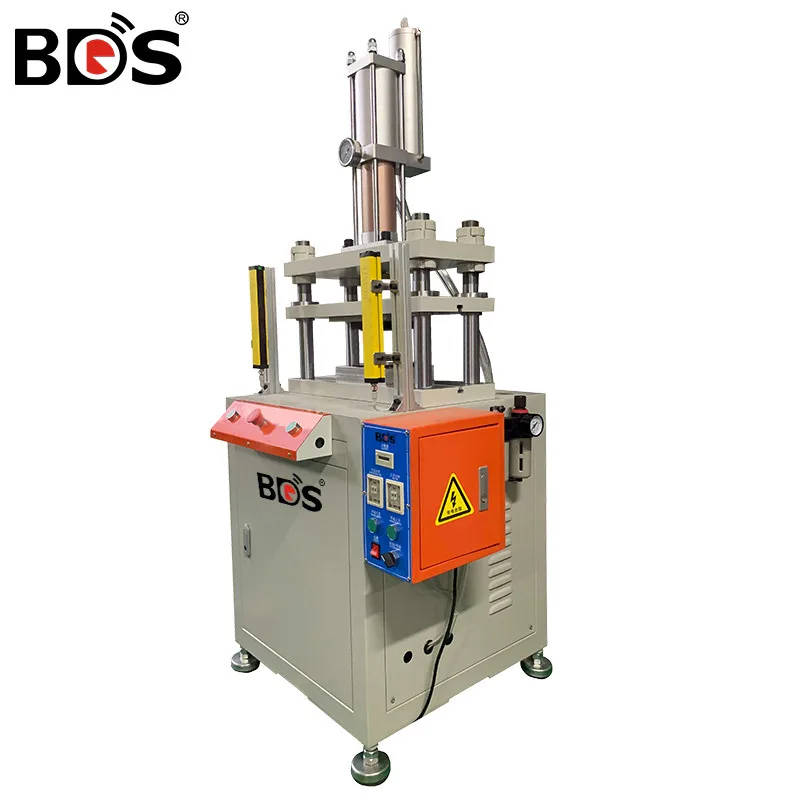

mask cup side cutting machine	Specification:Unit one out of one Side cutting Process:Four-AxisOil pressure   Voltage: 220V-50/60Hz Air Pressure: 5-6KG/CM2 Efficiency: 5 Sec/PC G.W.: 250KG Size(mm): 650(L)*690(W)*2000(H)	Cutting redundant masks edges. Only need workers put masks in and take it out. Cutting side is finished by machine.

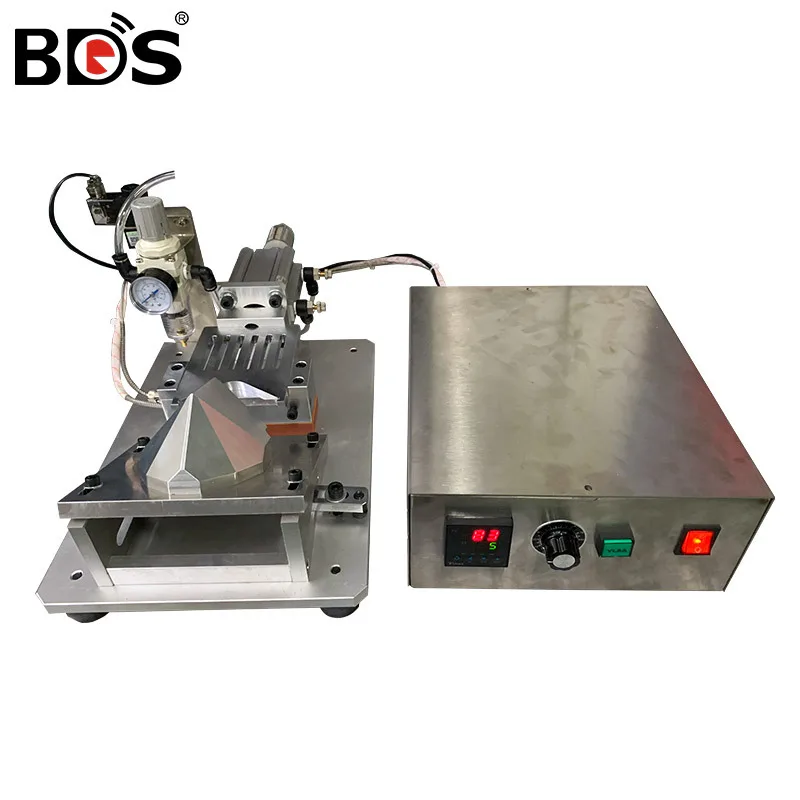

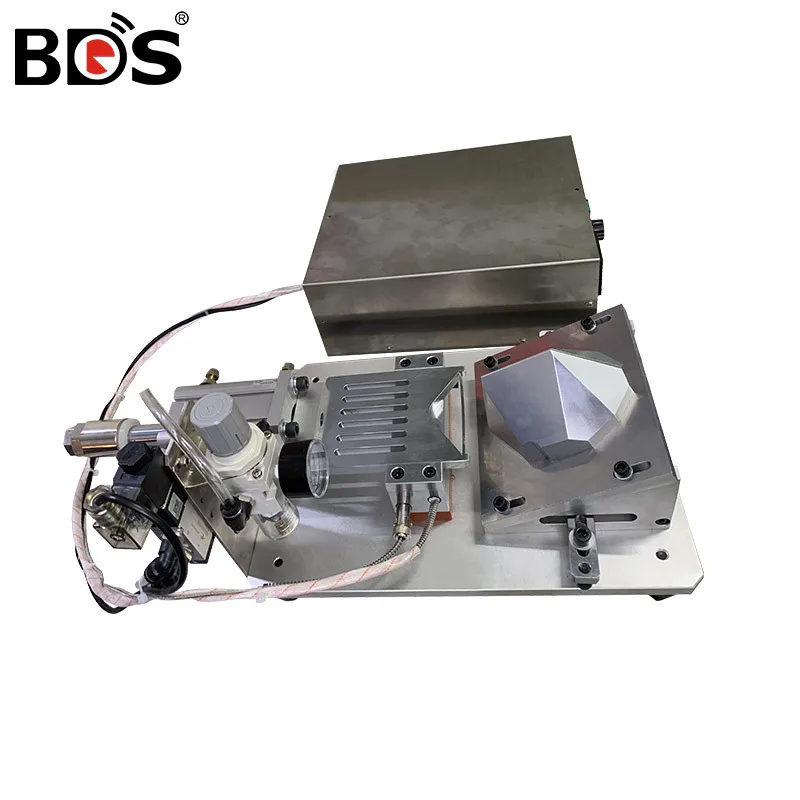

mask cup nose bridge bar welding machine	Specification:Unit one out of one Welding Process:hot-press welding Voltage: 220V-50/60Hz Air Pressure: 5-6KG/CM2 Efficiency: 4 Sec/PC G.W.: 30KG Size(mm): 1000(L)*500(W)*1000(H)	Applying the metal strip on the N95 cup outers. Main Components are from taiwan or imported countries, much faster speed and better quality compared with our counterparts.

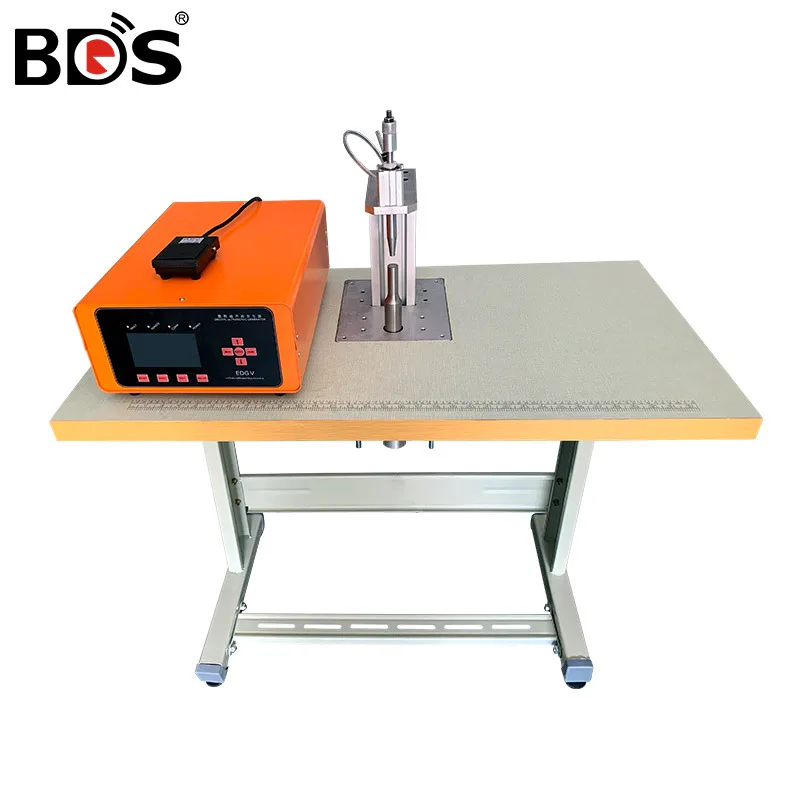

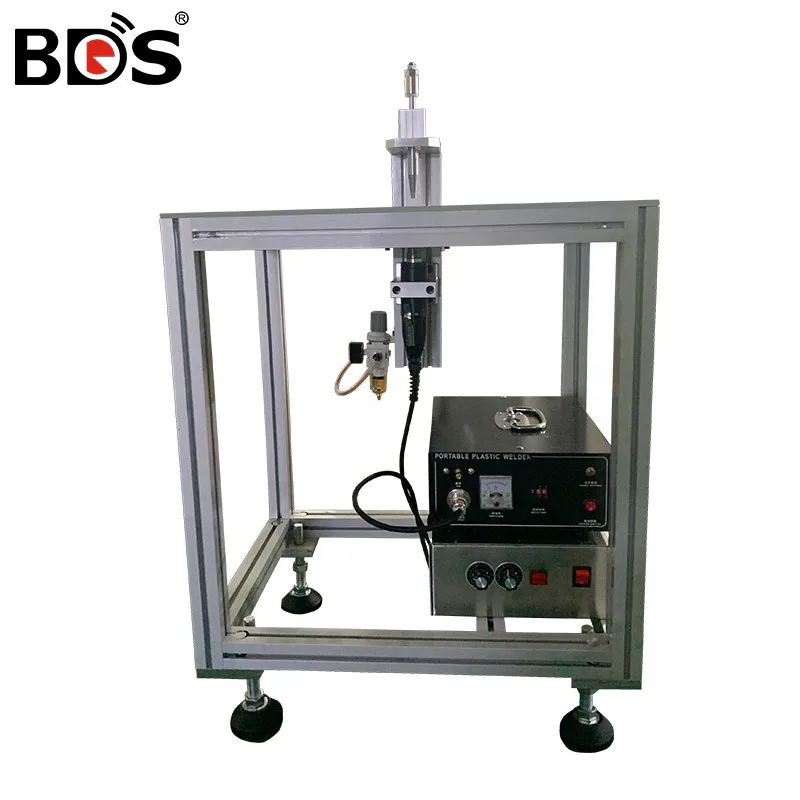

mask cup earloop welding machine	Specification:Unit one out of one Welding Process:Ultrasonic Voltage: 220V-50/60Hz Air Pressure: 5-6KG/CM2 Efficiency: 8 Sec/PC G.W.: 30KG Ultrasonic Spec.: 28KHz 1000W Size(mm): 1000(L)*500(W)*1000(H)	Used for cup respirators’ earloop(elastic) welding, Only need workers put masks in and take it out. welding iscompletely finished by machine.

BDS  is The most full mask machines of domestic large-scale production facilities in Dongguan manufacturing enterprises, professional manufacture of N95 cup-shaped masks machines, plane mask machines, C-type masks machines, 3M fish masks machines complete automated production equipment. Peripheral equipment, masks shaping machine, body machine, mask edge punching machine, outside the inner ear a little welding, bridge of the nose of welding machines, plastic machines and other set of three-dimensional masks masks masks plane equipment and production technology, complete equipment and technology in the industry-leading status, quality assurance, providing production technology pass by. Confident that it could provide you with the most authoritative quality programming and equipment to address the technology needs, to enjoy worry-free investment in pleasure, welcome to our factory to visit and look forward to your support.



Dongguan BRDASON Ultrasonic Equipment Co.,Ltd has been dovoted in the design, manufacturing and sales of mask making machines, ultrasonic equipments, plastic welding machines, ultrosonic welding machines and non-standard machine for more than 20 years.Provided with high quality and competitive price. Our products are popular both in domestic and overseas market for its excellent performance.



Adopt  core components to Taiwan, Japan, Germany and other accessories mainly original, excellent quality, stable performance, safe, durable, easy operation, in full accordance with the design of industrial safety standards, a well-known manufacturers of fine domestic and foreign suppliers: Foxconn , Jing Cheng Technology Group (GBM), molex, Vtech , Samsung Electronics, the East together, the double star celebrity, United Group, Soutec,Mabuchi, Japan Muratec , Foshan, Xiang Wang Optical Group (VANGUARD), etc.



Plastic machine and welding mould made according to your specific requirements.   welcome to contact with us, we will provide customerized solutions for you



The manufacturer has the right to modify the design and parameter without prior notice





 Related Products



semi-auto Cup Mask Forming Machine       N95 CUP Mask Sealing Machine   N95 Cup mask Cutting Machine



Mask Nose Bar Welder                                  Earloop Welder                  Auto Cup masks Forming Machine

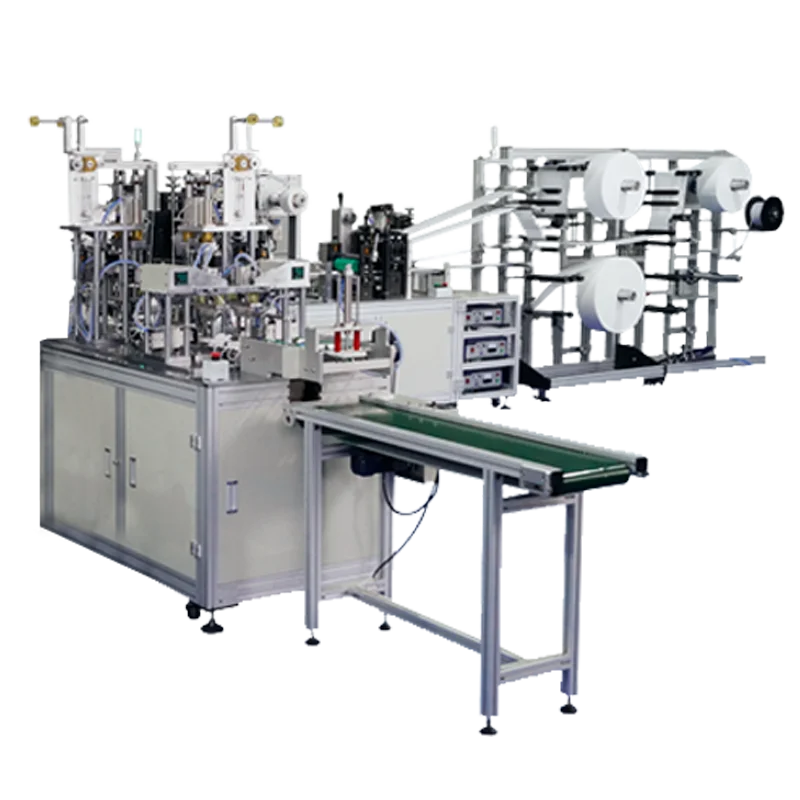

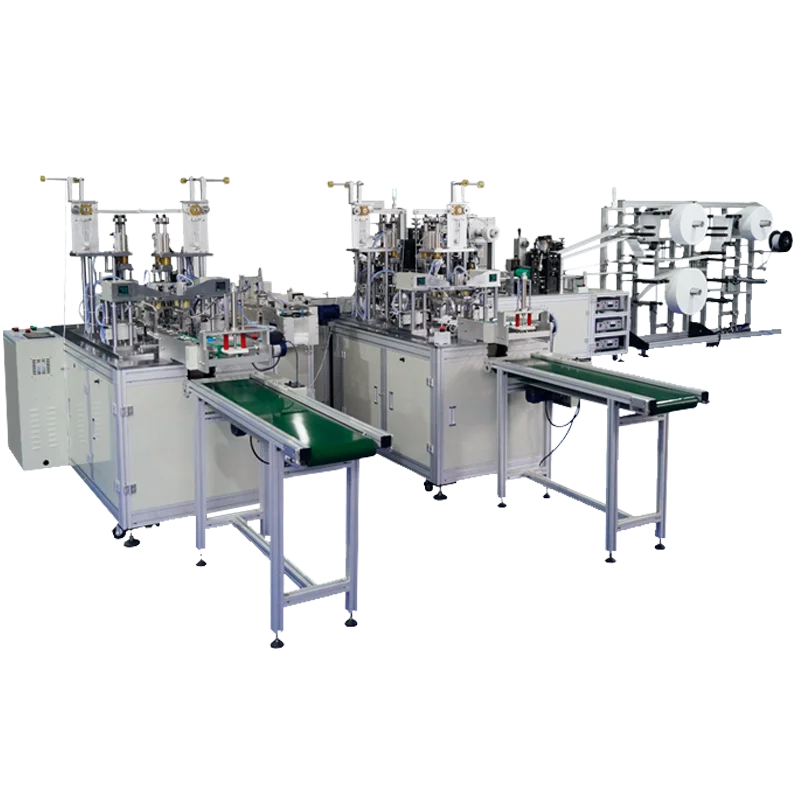

Fold Mask machine                             One time Mask Machine-2 line           One time mask-1 line
