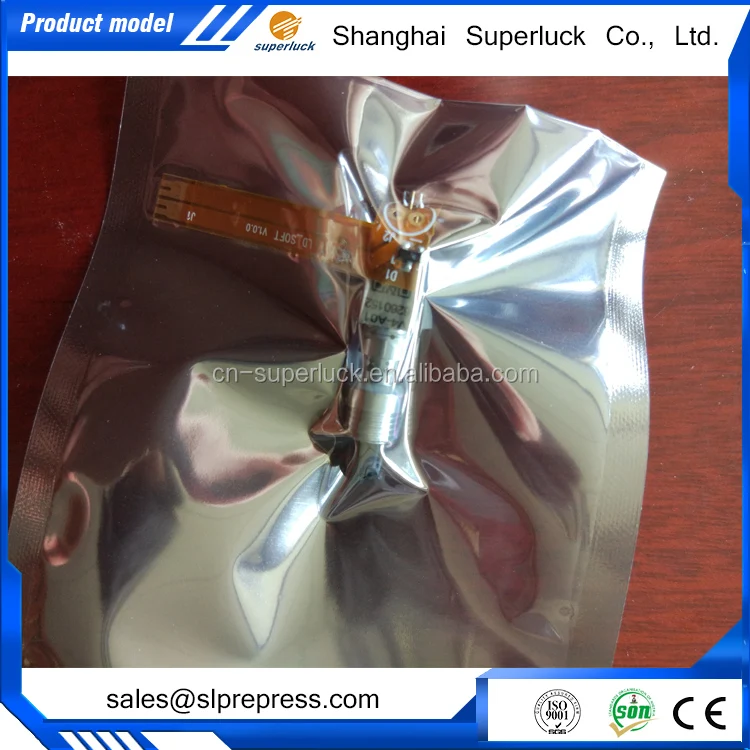

Best quality!!Hot Sale Competitive Price laser diode for ctp optional kodak ctp plate maker (60603293466)

Share on:


Price:RUB 15,586.66 - RUB 389,666.50
Price in USD:Details

Quantity:


Product Overview

Description

Product Description



Technical Advantages:

1. Dynamic Autofocus

With the third generation of dynamic autofocus technology, the accurate position measuring system of Amsky equipments can directly detect such minute distance change as 0.1 microns. Driven by voice coil motor, they can also trace any change in focal length at an incredible acceleration of 30G in order to ensure the continuous accuracy of focal length. The combination of these unique features not only guarantees the deviation of density between any two spots is less than 0.3% in a full page of tint, but also avoids blue marks and blurs caused by tiny dusts on the drum surface.

2. Fast Balance &Auto Switch of Laser Beam

During the plate loading and unloading period, our laser beam balancing system can accomplish the detection and adjustments of all laser energy within few seconds. Laser power can be calibrated automatically before exposing plate every time without any influence in the speed of outputting plates, to ensure each laser burning one the plate with same power, all lines and screen spots are full and identical on every plate.

When any laser channel breaks down, laser beam auto switch system can continue outputting through the rest longest consecutive channel in order to ensure non-stop production and offer users stable and superior practical experience.

3. Auto Constant Thermostatic Control of Laser Chassis

The temperature control system in laser thermostatic shielding chassis can automatically make two-way adjustment to the inside temperature with a minimum accuracy of positive or negative 0.1 degrees. Under optimum temperature conditions, output of laser is more stable and the life of laser is greatly lengthened,

4. Technology of DDS Frequency Multiplication and Drum Auto Balance

The technology of DDS frequency multiplication ensures phase position to jitter within 0.03125 pixels and exposed lines to be both vertical and horizontal.

Auto balance system of drum takes no more than 5 seconds to adjust the drum balance block to a new position, instantaneously switching plates with different size.

5. Accurate Graphic Size Calibration

CTP with external drum has many advantages. However, multichannel scanning may cause the parallelograms distortion in the graphics. Amsky’s unique technology of graphic calibration enables graphics to present perfect rectangles and eliminates dimensional deviation caused by different thickness of plates.The registering precision of one Amsky CTP is 5 microns. Between two, it can be within 15 microns after being calibrated.



Technical Specification:

Mode

U832

U848

U864

T832

T848

T864

Exposing Method

External Drum

Imaging System

32-channel

48-channel

64-channel

32-channel

48-channel

64-channel

Discrete 400-410nm laser

Discrete 830nm laser

Output Speed

16 plates/hour

22 plates/hour

28 plates/hour

16 plates/hour

22 plates/hour

28 plates/hour

1,030×800mm 2,400dpi

Plate Size

Max.1,130×920mm,Min. 400×300mm

Exposing Size

Max.1,130×904mm

Media Type

UV plate, high-sensitive PS plate

Thermal plate

Plate Thickness

0.15mm~0.3mm

Resolutions

2,400dpi

Repeatablity

±5μm(Continuous exposure over four times on the same plate with a temperature of 23°C and 60% RH )

Interface

USB2.0/USB3.0(Recommended option is USB2.0)

Plate Loading

First manual, then autoload

Net Weight

900KG

Device Size

2,530×1,050×950mm(W×D×H)

Power supply

Single phase:200V-240V; Max power(Peak value):4KW

Environment

Recommended temperature: 21-25°C Allowable temperature: 18-26°C Humidity: <70%
