Product Overview
Description
Product Description

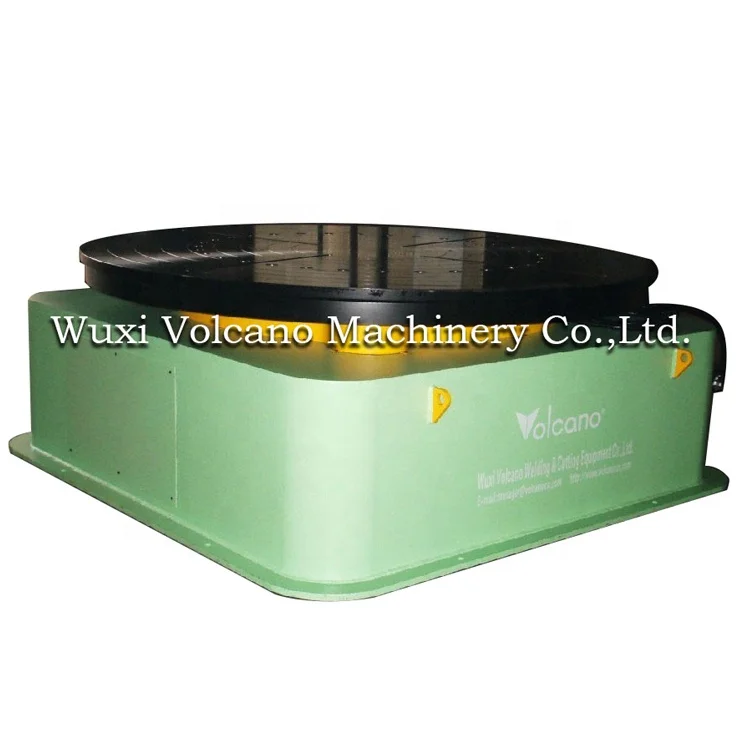

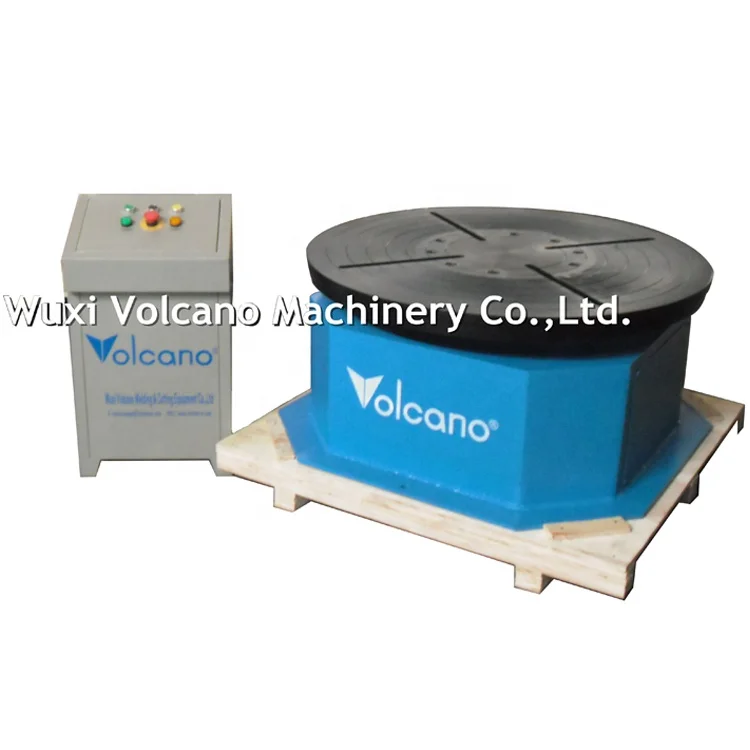

Welding Turntable
Turntable is single motion positioners that provide rotation in the horizontal plane. They can be used for
a variety of work tasks including flame cutting, assembly, X-ray inspection, positioning work for machining as
well as for positioning weldments. They can be fitted with extension arms to enlarge their support base.
Main technical parameter
Model | HZT-1 | HZT-3 | HZT-6 | HZT-10 | HZT-30 | HZT-50 | HZT-100 | HZT-150 | HZT-200 |
Rated Loading(kg) | 100 | 300 | 600 | 1000 | 3000 | 5000 | 10000 | 15000 | 20000 |
Rotaion Speed(rpm) | 0.3-3 | 0.15-1.5 | 0.1-1 | 0.05-0.5 | 0.05-0.5 | 0.04-0.4 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 |
Worktable Diameter(mm) | Φ400 | Φ600 | Φ1000 | Φ1200 | Φ1400 | Φ1500 | Φ2000 | Φ2000 | Φ2200 |
Max Eccentricity Distance(mm) | 100 | 100 | 150 | 150 | 200 | 200 | 200 | 200 | 200 |
Rotation Motor Power(KW) | 0.09 | 0.18 | 0.37 | 0.75 | 1.5 | 2.2 | 3 | 3 | 4 |
Speed Control | VFD control for Rotaion speed | ||||||||
Optional | Foot switch,Standard chuck,Specially-made chuck&etc | ||||||||
Product Show
HB300 Welding Turntable
Welding Turntable
1T Welding Turntable
15ton Welding Table
Product Details
Electric Control Box:Frequency converter have High accuracy ,range wide speed. Multiple
protection of electrical parts ,it can ensure the safety of the user and the reliable operation of the equipment .
Convenient installation and removal
You May Like
Certifications
Packaging
Factory View
Our Factory
Processing Equipment
Company Information
Our company has been established since 2004,and steady development by introduction and training of talents.
standardization of the management and construction of enterprise culture.Now our companypossesses the asset
of ten million more and covers anarea of 8,000 square meters.Our main products include Automatic Welding
Equipment,Surfacing Welding Equipment,CNC Cutting and Beveling Equipment,Arc welding Robots,Piet/Wind
Tower Product line and so on.
Why choose Volcano Brand welding equipment?
1. We are welding equipment MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
2. We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.
3. Our factory has been approved BUREAU VERITAS certificate.
4. Our main products (Includes Welding Manipulator, Welding Rotator, Welding Positioner, Longitudinal Seam Welding Machine) have been approved CE certificate.
5. We have successfully exported to Europe, USA, Middle East, Southeast Asia and so on foreign countries. We all get good feedback.
6. We provide a FREE ONE YEAR WARRANTY for all our items.
7. OEM brand.
