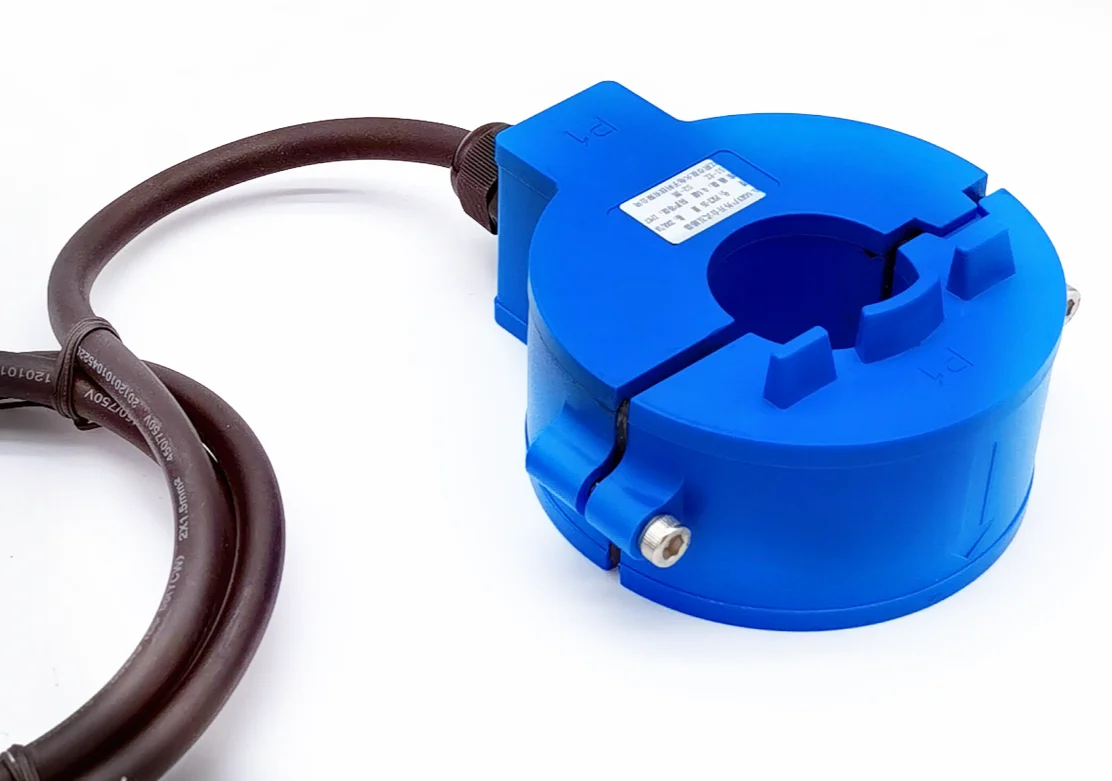

IP67 Outdoor Waterproof Split Core CT Clamp On Current Transformer
- Category: Transformers >>>
- Supplier: Jiangyin Spark Electronic Technology Co. Ltd.
Share on (60603339729):
Product Overview
Description

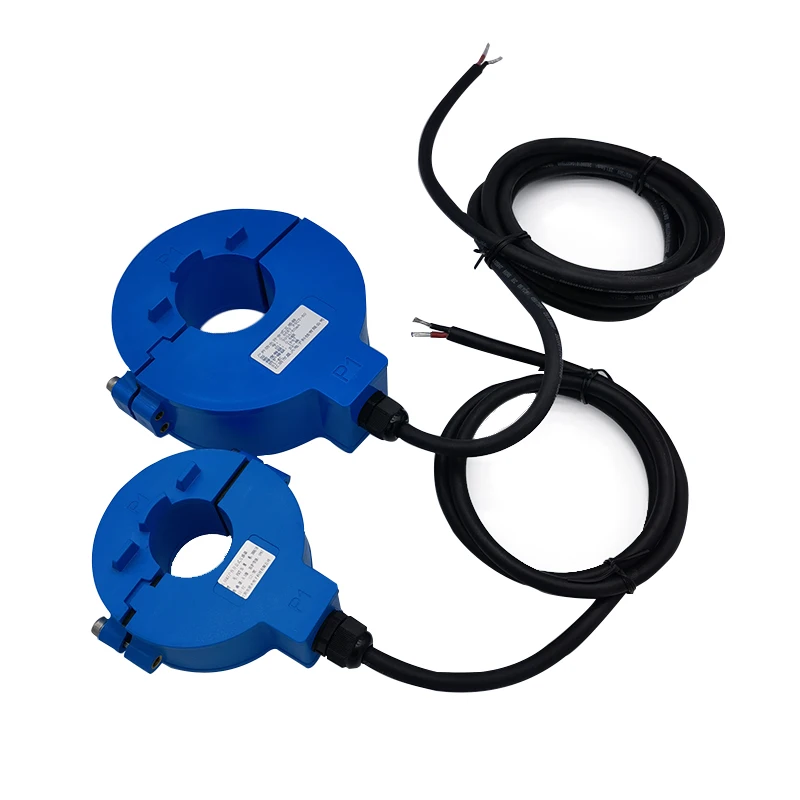

Waterproof Split core outdoor current transformer
Product specification

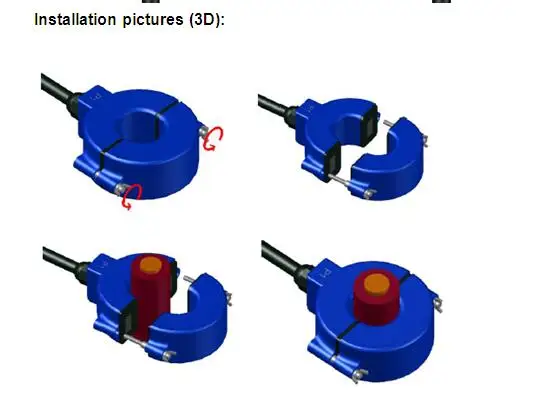

This waterproof current transformer is built with silicone steel core and is potted for outdoor use. In addition, It is designed for easy installation on ground potential conductors.
The unit is Class 1.0 and has a phase shift less than 1 degree. It has a rated insulation level of 1000 Vac
Application

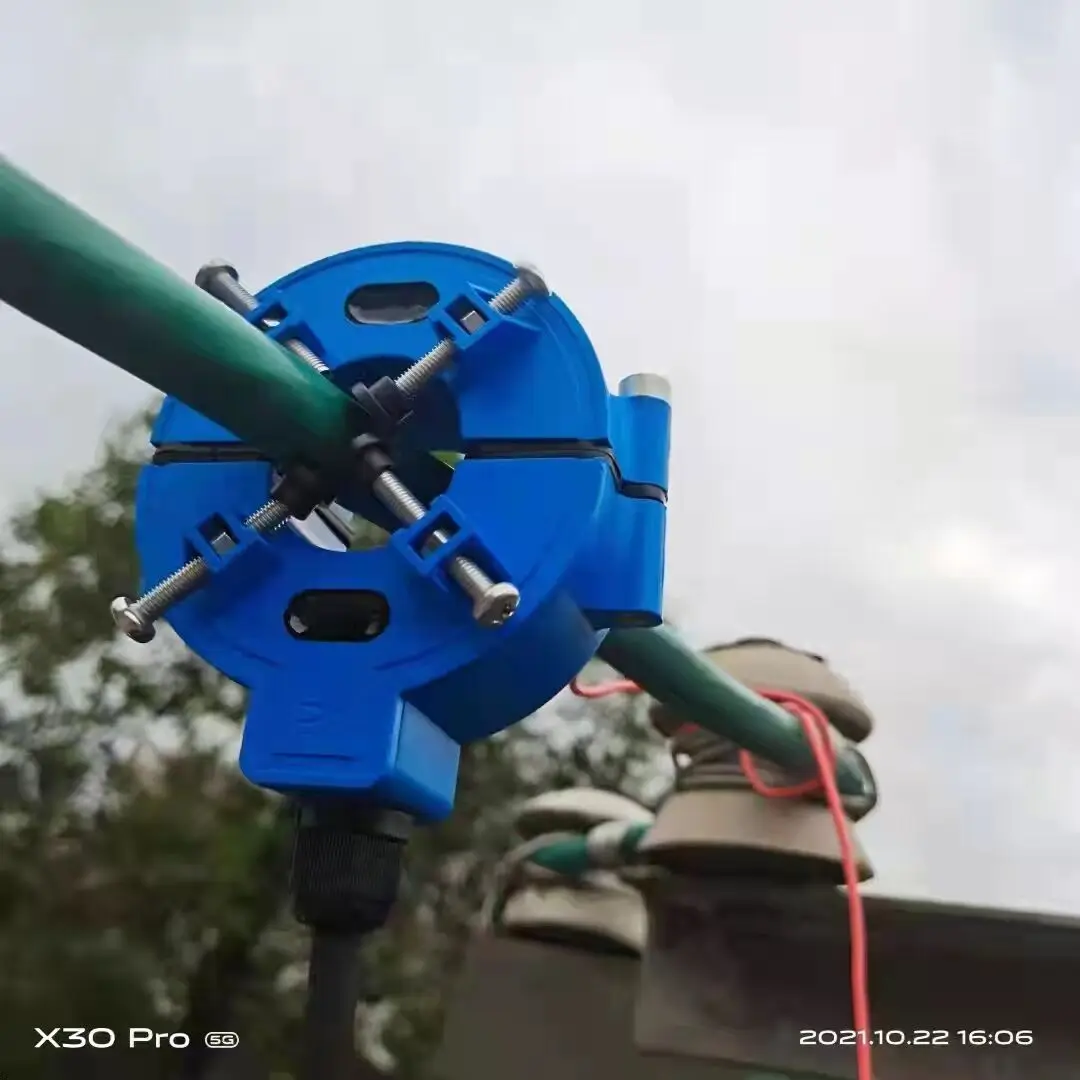

Utilities pole probe monitoring, measurement
Power distribution line monitoring
Building, factory energy management system
Measurement, moniting of low current in outdoor application
Current balancing monitoring
Smart grid application, energy efficiency
For cable line measuring below 800A
Primary Current: 100~800A
Accurately Class: 0.5%, 1%
Inner Diameter:36mm
Model | WSCT-36 |
Standards | GB 20840 (IEC 61869), GB4208 |
Equipment maximum voltage | 1v |
IP rating | IP67 |
Rated current | 100-600 Arms |
Max current | 600 Arms |
Turns | 100-3000T |
Accuracy class | 0.5, 1.0 |
Rated output | 5A |
Wire lead | 2.5mm2 wire |
Insulation strength | 3KVVAC/min |
Insulation impedance | DC500V/100MΩ |
Rated frequency | 50-400HZ |
Working temperature | —25℃~50℃ |
Storage temperature | —30℃~90℃ |
Drawing size
Other current transformers
Contact us for much info

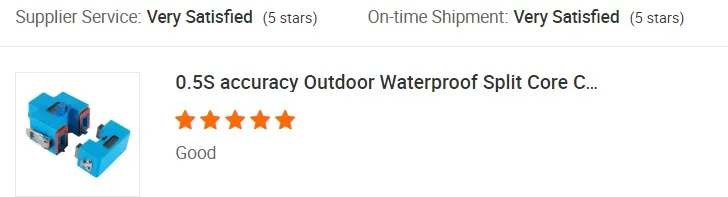

Customers comments
