6 cylinder Marine diesel engine inboard made in China

Product Overview

Description

General Introduction

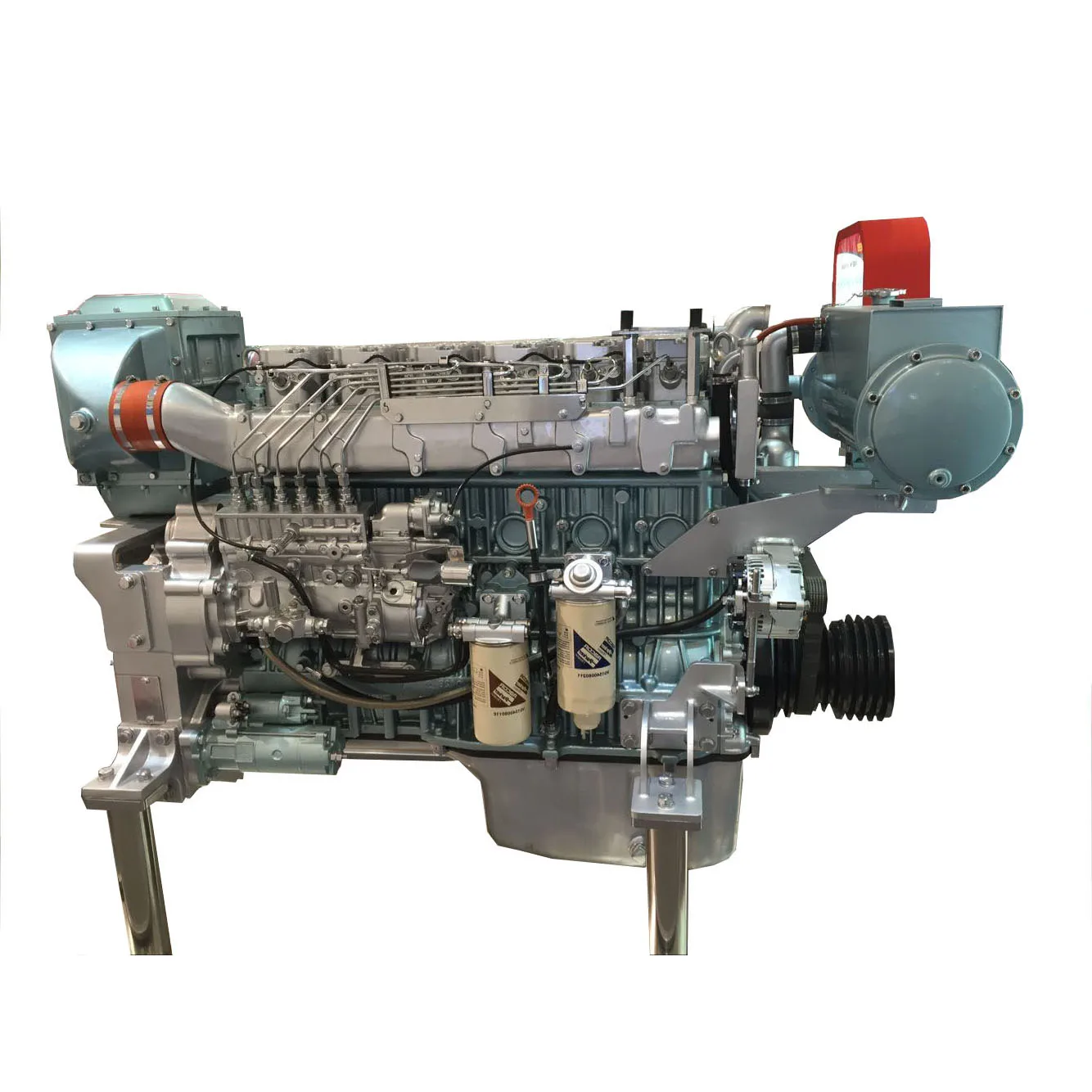

6 cylinder Marine diesel engine inboard made in China

Sinotruk marine engine devided into for series, that is WD615, WD415, WD615.57, and D12 series for main power engines and auxiliaries.  Main power engines are devided into two categories, basic use and fishing boat use with speed 1500r/min,1800r/min,2100r/min(or 2000r/min). The basic includes turbocharged intercooled engine model and turbocharged model, and the turbocharged intercooled models are the same as truck engines, but adding marine special spares, such as marine intercooler, sea-fresh water heat-exchanger, monitor, PS8500 fuel injection pump(with parking electromagnet),sea water pump, SAE1# flywheel case, 14'flywheel, and flywheel connecting flange, supporter, the installment size is 740*1089.2(and for WD415 series is 740*789.2), the distance from  crankshaft center height is 135. The fishing boat used engines based on the basic used have been changed into 4 slots fishing pulley, connecting flange(M14*1.5), diesle filter installed in the air-intake pipe and also add diesle pre-filter installed in the air-intake pipe, the installing size is 694*1145.5*140cm( for WD415series is 694*805.5*140cm). Main power engines can choose 6135 flywheel case, when replace with SAE1 flywheel case, please change the flywheel case and connecting flange.

Parameters

Model	WD615.61C	WD615.64C	WD615.67C	WD615.68C	WD615.46C	WD615.57C
Type	6-cylinder in line, 4-stroke, water-cooled, direct injection
Intake mode	turbocharged		turbocharged,air-to-air intercooled
Ignition sequence	1-5-3-6-2-4
Valve/Cyl	2
Distance between cylinder core(mm)	150
Bore & Stroke(mm)	126×130
Displacement(L)	9.726
Compression ratio	17 to 1
Rated powerkW	110~140	147~158	164~180	180~205	202~240	220~257
Rated speed(r/min)	1500~1800	1500~1800	1500~2000	1500~2100	1500~2100	1500~2000
Max. torque(N.m)		1100	1160	1350	1500	1650
Speed at Max. Torque(r/min)	1100~1600
Idling speed(r/min)	host 600±50,supplement 700±50
Specific fuel consumption(g/kW.h)	≤210		≤205
1m NoisedB(A)	≤110
Net weight (kg)	900		950
Bare mass weight (kg)	850		900

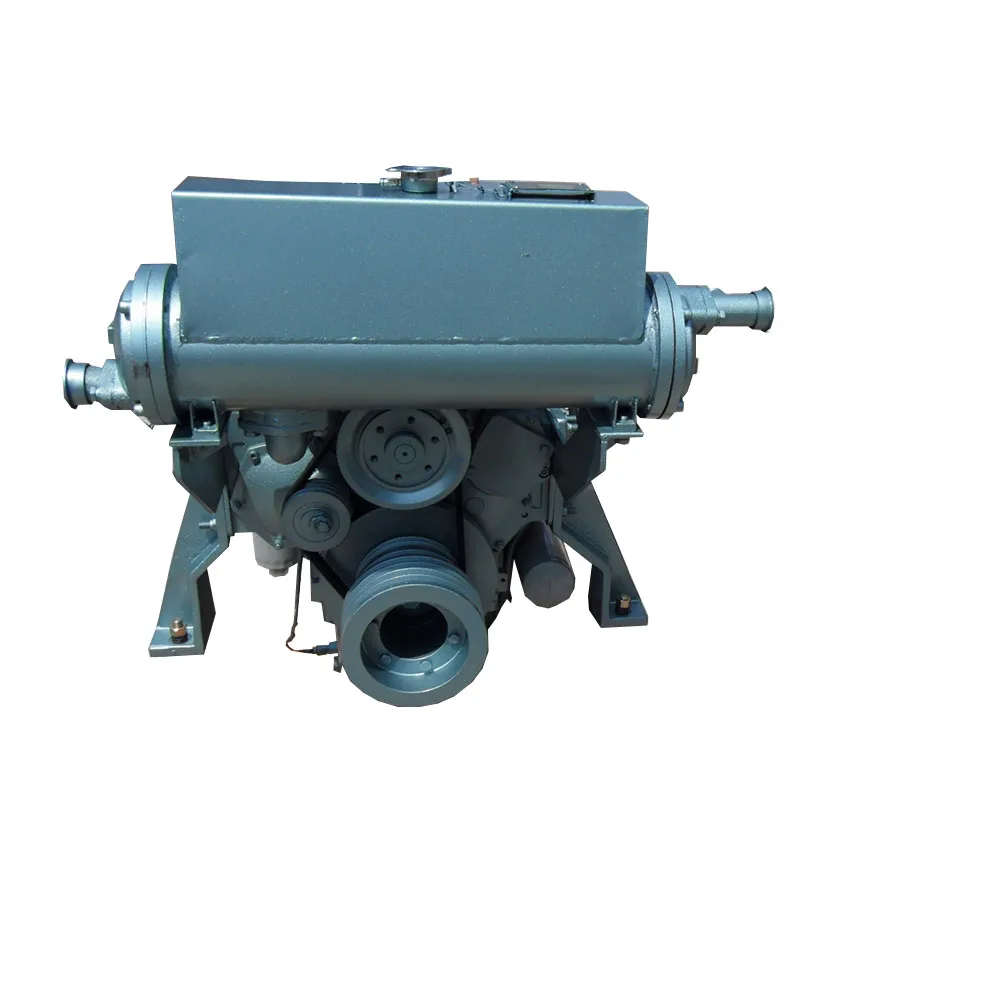

See from four sides

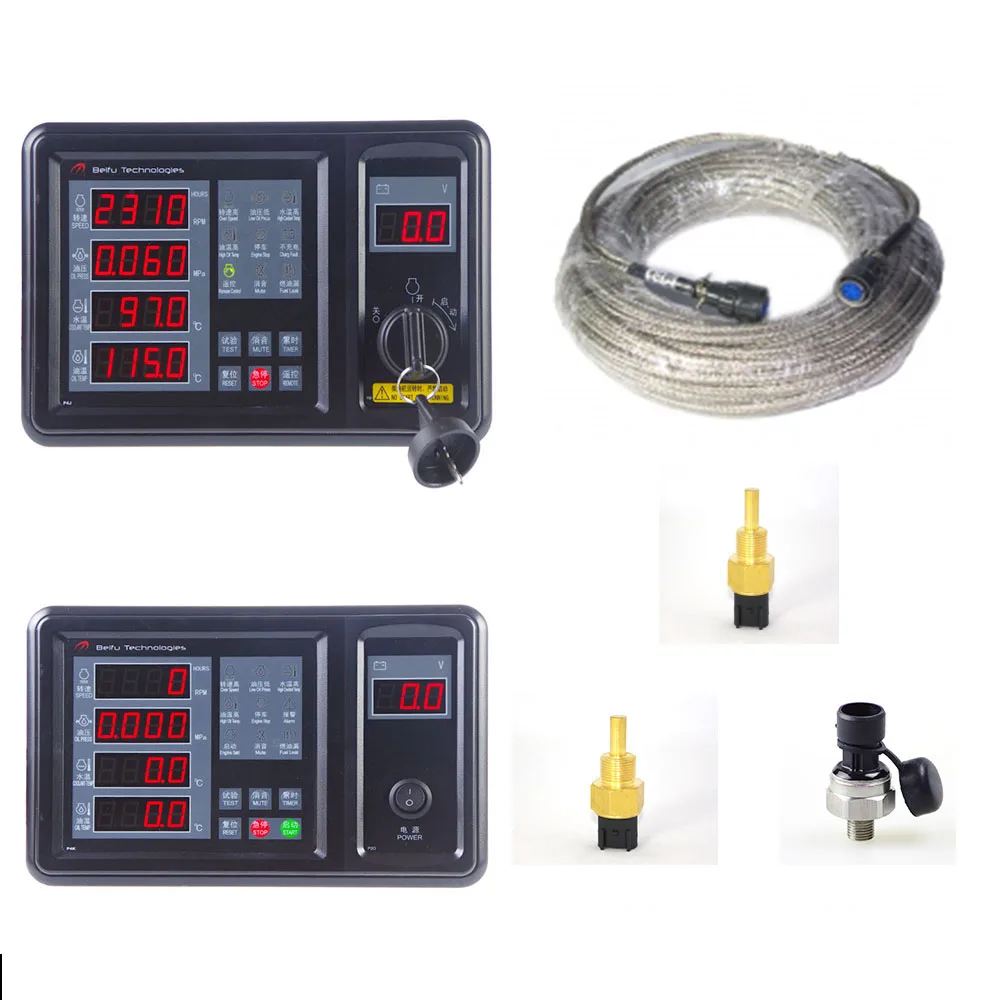

Instrument controller

Sinotruk engine meter/monitor controller, temperature, pressure, speed,alarm panel, includes color

LCD CAN cable meters, can connect all kinds of sensors with 16 ways input, provide alarm

security module, display meter supports digital cable transfer pointer.

No need power supply, just insert it can work

Only insert press sensor, test can work

The temperature sensor, press, speed sensor can do the same.

Parts introduction

Cylinder block

All the EuroII engines adopted EuroIII cylinder block

Advantage--the EuroIII cylinder block rigidity is higher, improve engine operation reliability and longer the engine using life.

Fuel injection pump

PS8500 injection pump, only 415 series is PS 7100

Advantage--PS8500 is the first line product in engine field of China market, fuel consumption, torque and displacement better than others.

The injector is by U.K DELPHL tech. better pulverization and sufficient burning.

Connecting rod

By EuroIII standard

Advantage-- Adopts the standard EuroIII of RICHARDO, U.K., strengthening and upgrading the current connecting rod.

Starter

Adopts deceleration type starter

Advantage-- volume and weight reduce 1/3 than others. Big torque ensured when starting at lower temperature and no tooth breaking, adopts advanced tech of slow engagement sealing system, IP56 military vehicle structure, extends using life.

Customers feedback

MAN series engines no maintain within 15000 hours, we try to up to 50000hours.

Parts advantage

Short delivery time, usually dispatch can be within15-20 days, the parts price is lower 1/4-1/3 than others.
