4 channel UHF RFID Reader Module Antenna RS232 cable ISo18000 6C EPC Class 1 Gen 2
- Category: >>>
- Supplier: Shenzhen Rodinbell Technology Co. Ltd.
Share on (60603436142):
Product Overview
Description

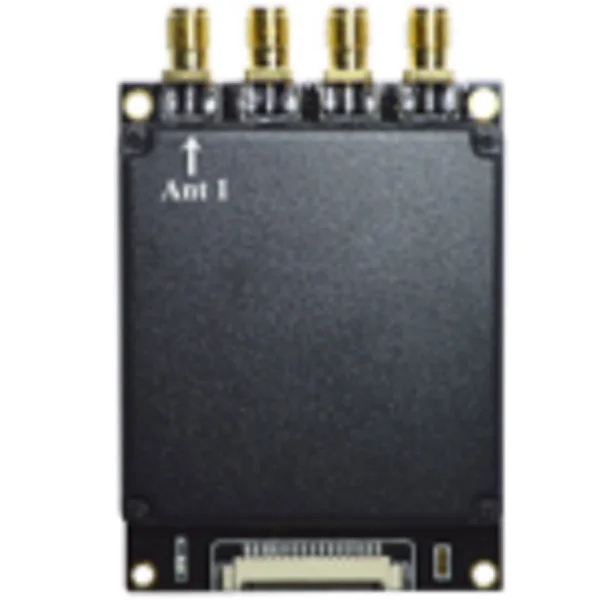

4-channel UHF RFID Reader Module + Antenna + RS232 cable ISo18000-6C EPC Class 1 Gen 2
Specification of products
| Operating Voltage | 3.7V – 5 V |
| Standby Mode Current | <50mA (EN high level) |
| Sleep Mode Current | <100uA (EN low level) |
| Operating Current | 1.2A +/-10% |
| Operating Temperature | - 20 °C - + 55 °C |
| Storage Temperature | - 20 °C - + 85 °C |
| Humidity | < 95% ( + 25 °C) |
| RF Channel | Single channel |
| RF Connector | SMA |
| Interface Connector | Molex 53261-1571 |
| RF Connector Material | Gold-plated brass |
| PCB Material | Pogers FR4 gold-plated |
| Shield Material | Aluminum |
| Air Interface Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ISO 18000-6B |
| Spectrum Range | 860Mhz – 960Mhz |
| Supported Regions | US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China, Japan, Korea, Malaysia |
| Supported Regions | 0 – 33dBm |
| Output Power Precision | +/- 1dB |
| Output Power Flatness | +/- 0.2dB |
| Receive Sensitivity | < -85 dBm |
| Peak Inventory Speed | > 700 tags/sec |
| Tag Buffer Size | 1000 tags @ 96 bits EPC |
| Tag RSSI | Supported |
| Antenna Detector | Supported |
| Ambient Temp Monitor | Supported |
| Working Mode | Single/DRM |
| Host Communication | TTL Uart port |
| GPIO | 2 inputs optical coupling 2 outputs optical coupling |
| Max Baud Rate | 115200 bps |
| Heat Dissipation | External cooling fin |

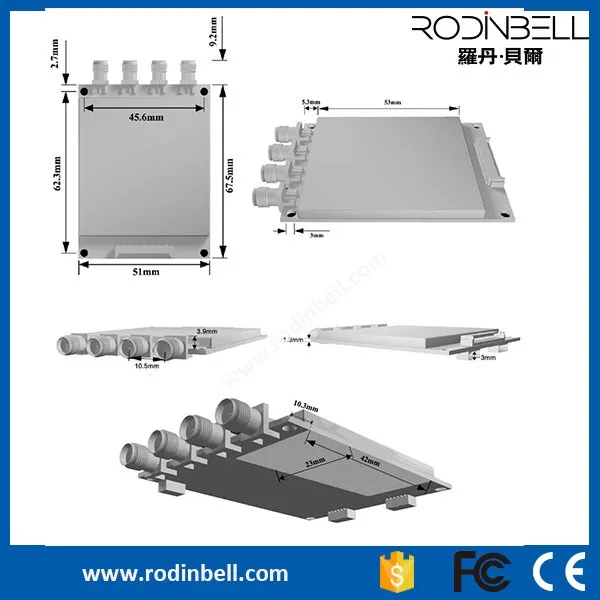

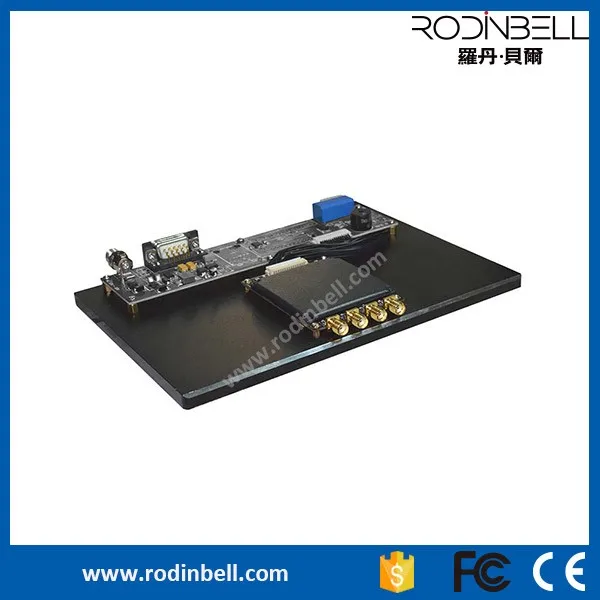

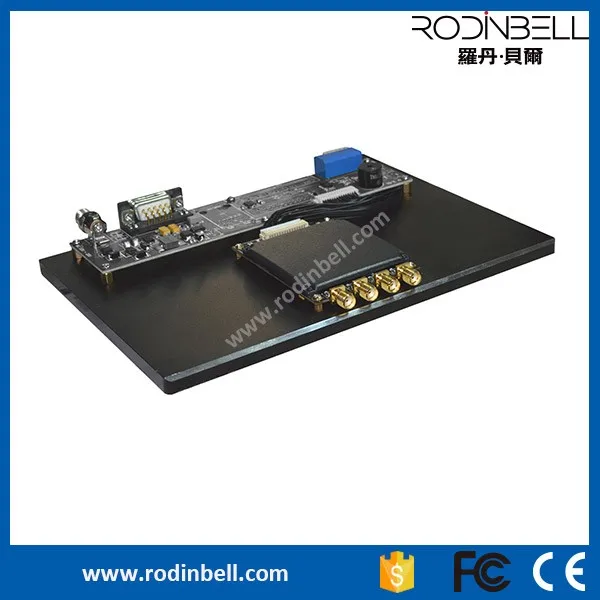

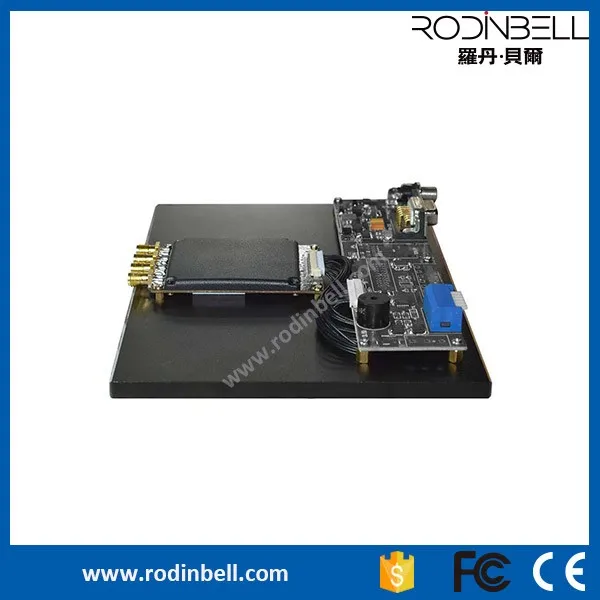

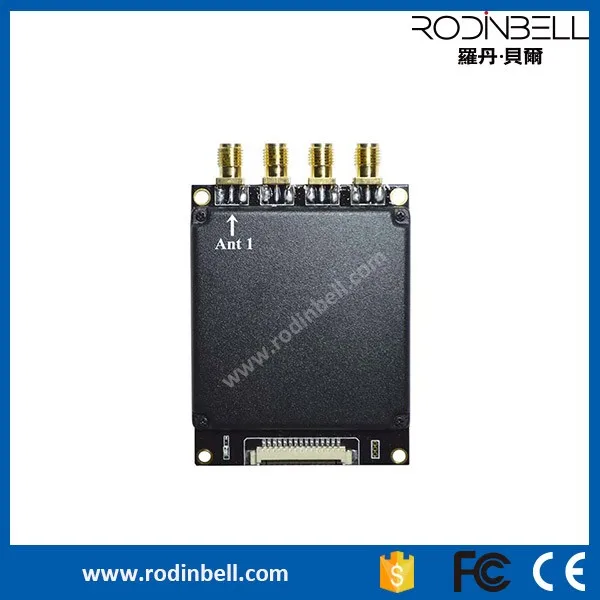

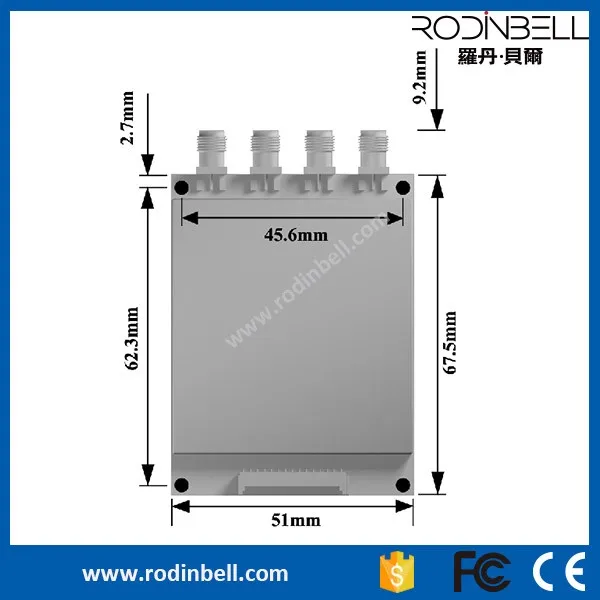

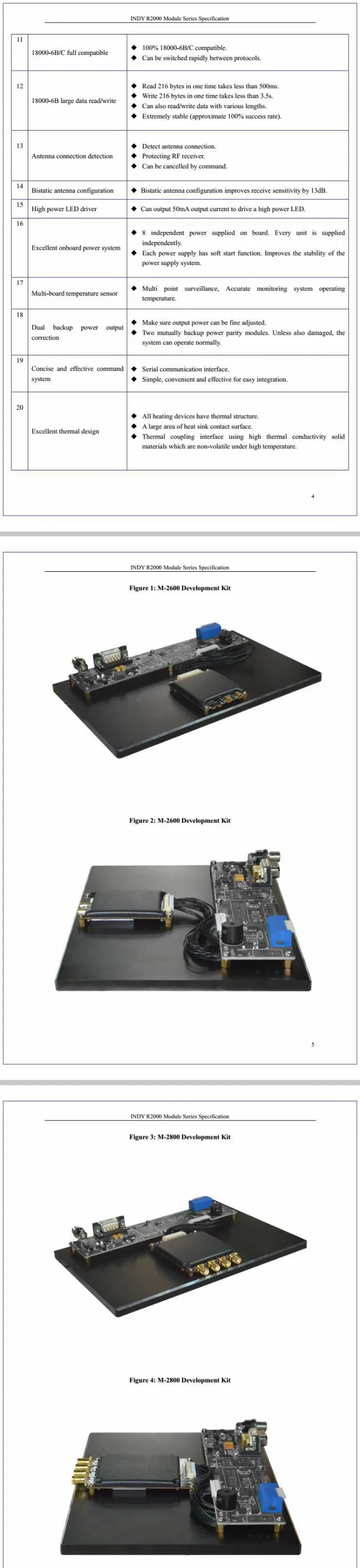

Detail pictures of products

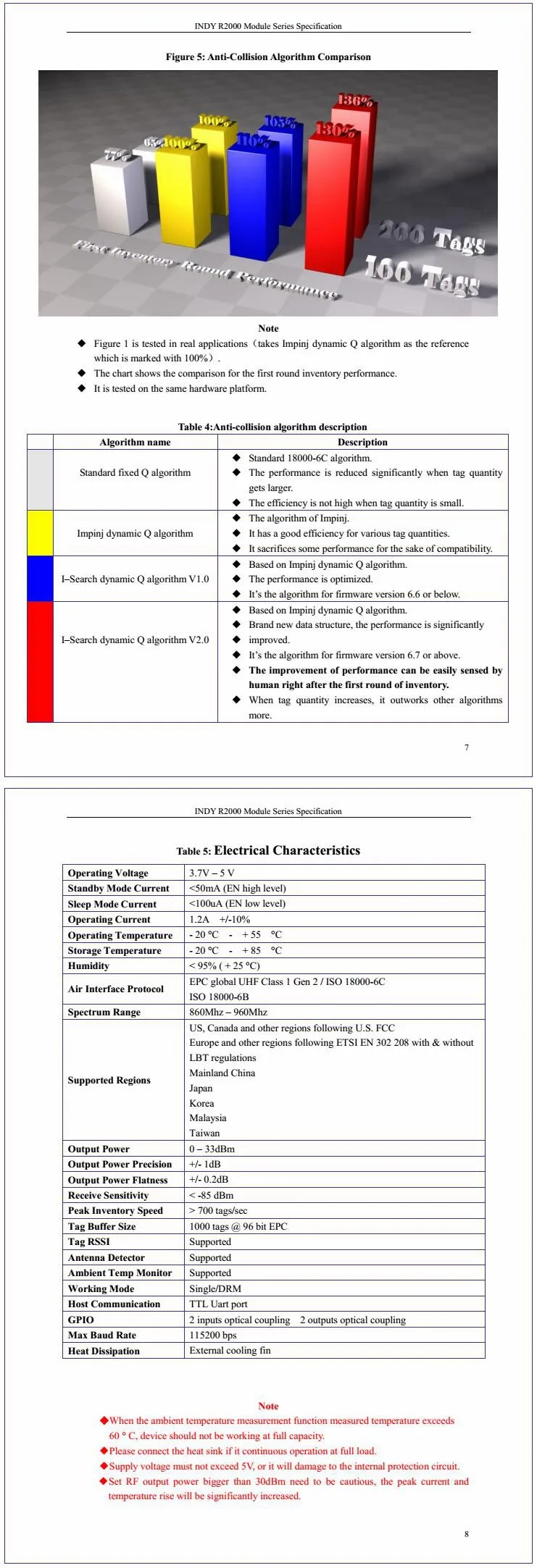

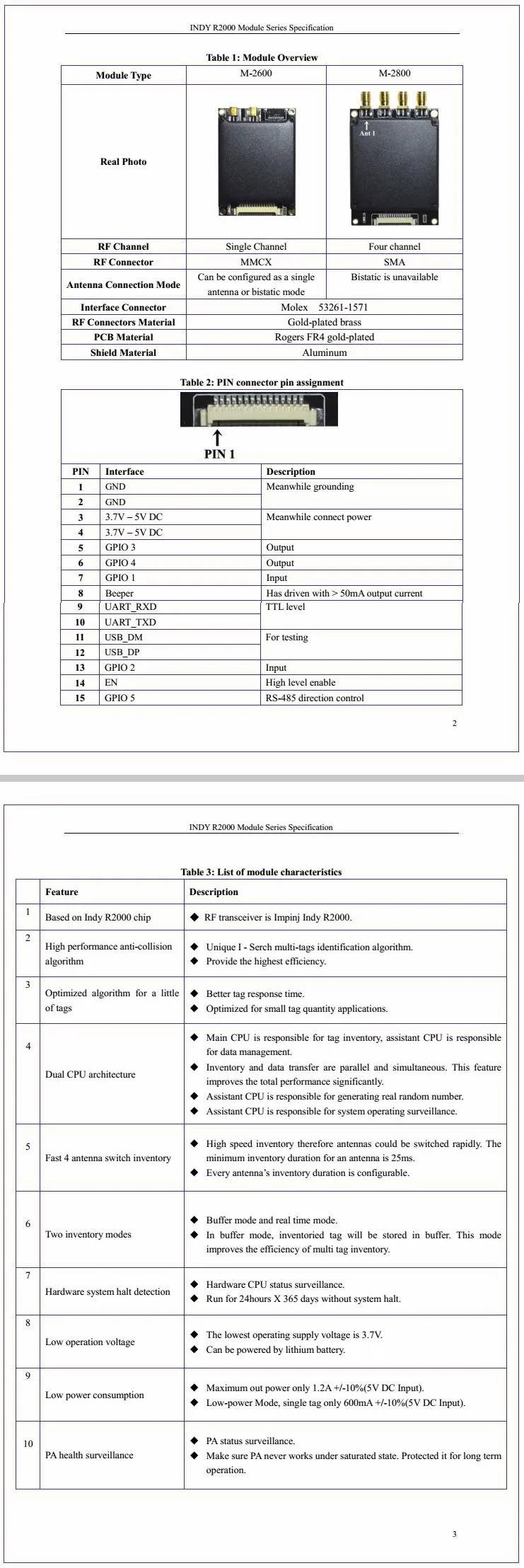

Specifications of UHF Modules
Packing & Shipping
Packed with PP bag and Paper box
Shipped with DHL, FEDEX, UPS, TNT and other methods
Company Information
Founded in 2010, Shenzhen RodinBell Technology Co., Ltd. is one of the leading companies that offers products and solutions confining industrial and commercial intelligent equipment.
With the importance we attached to the integrity of research, development and innovation, and to the respect for independent intellectual property rights, RodinBell R&D team is made up of engineers and designers including those who had worked in microwave communications, embedded operating systems, application development and industrial design for more than 20 years.
Our service:
ADK/API file willed be provided for you with the products
