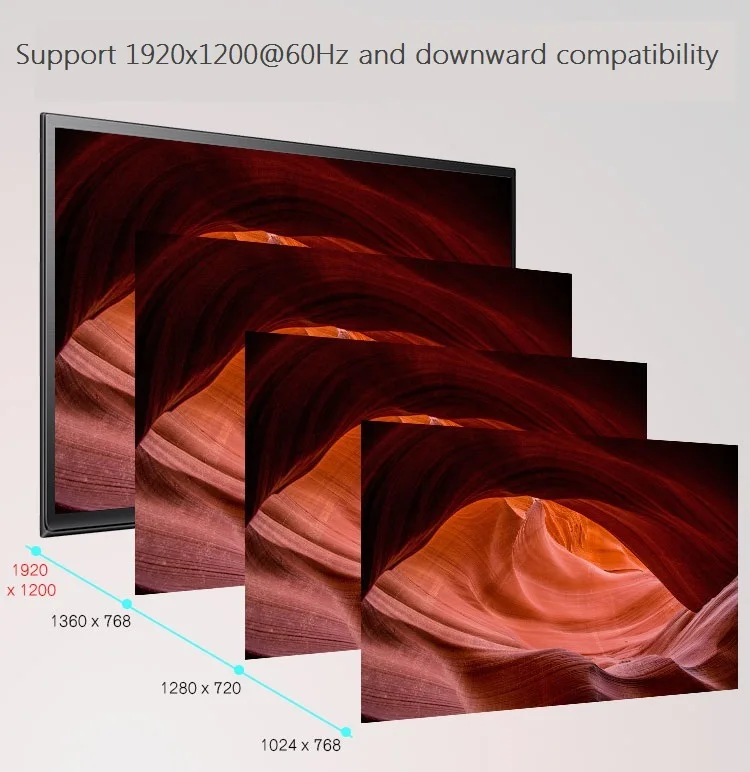

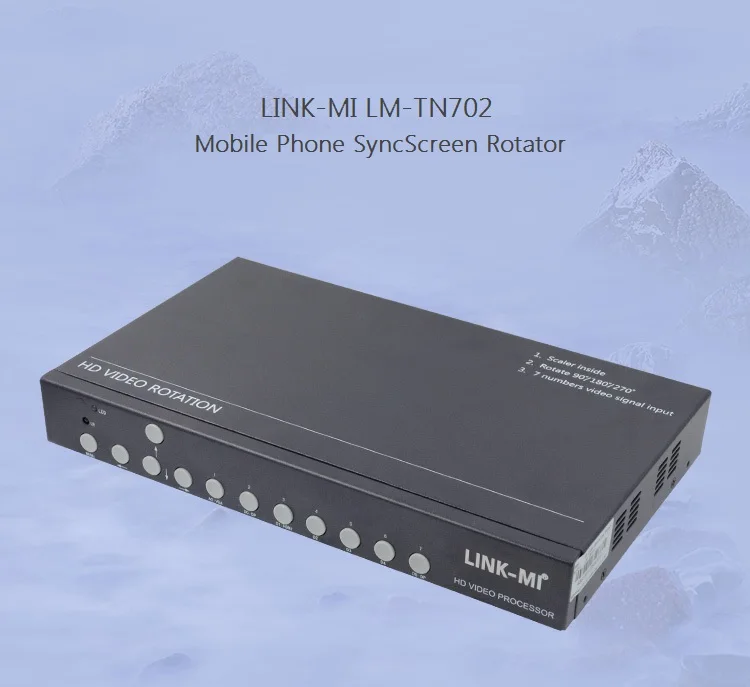

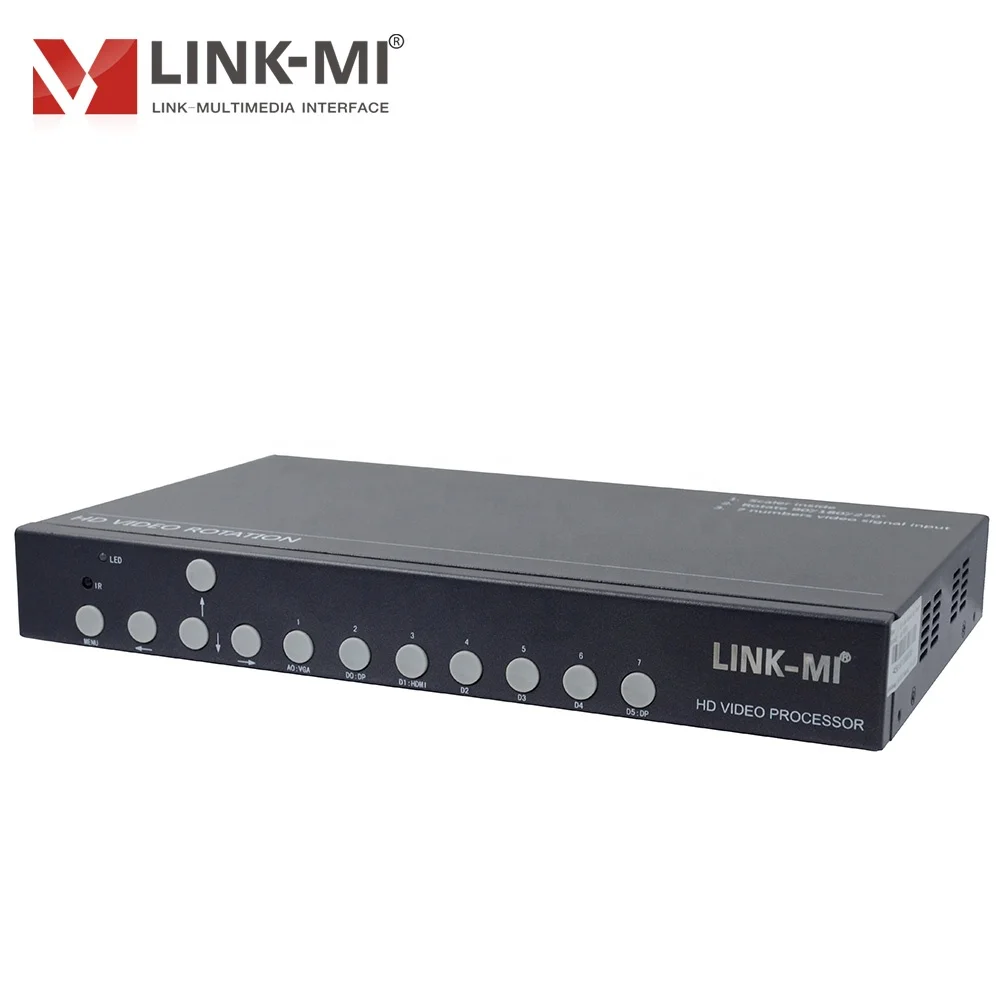

Mobile Phone SyncScreen Rotator VGA DP HDMI Smart Phone Signal input 1920x1200@60Hz 90/180/270 degree Rotation IR remote control

1^st Introduction

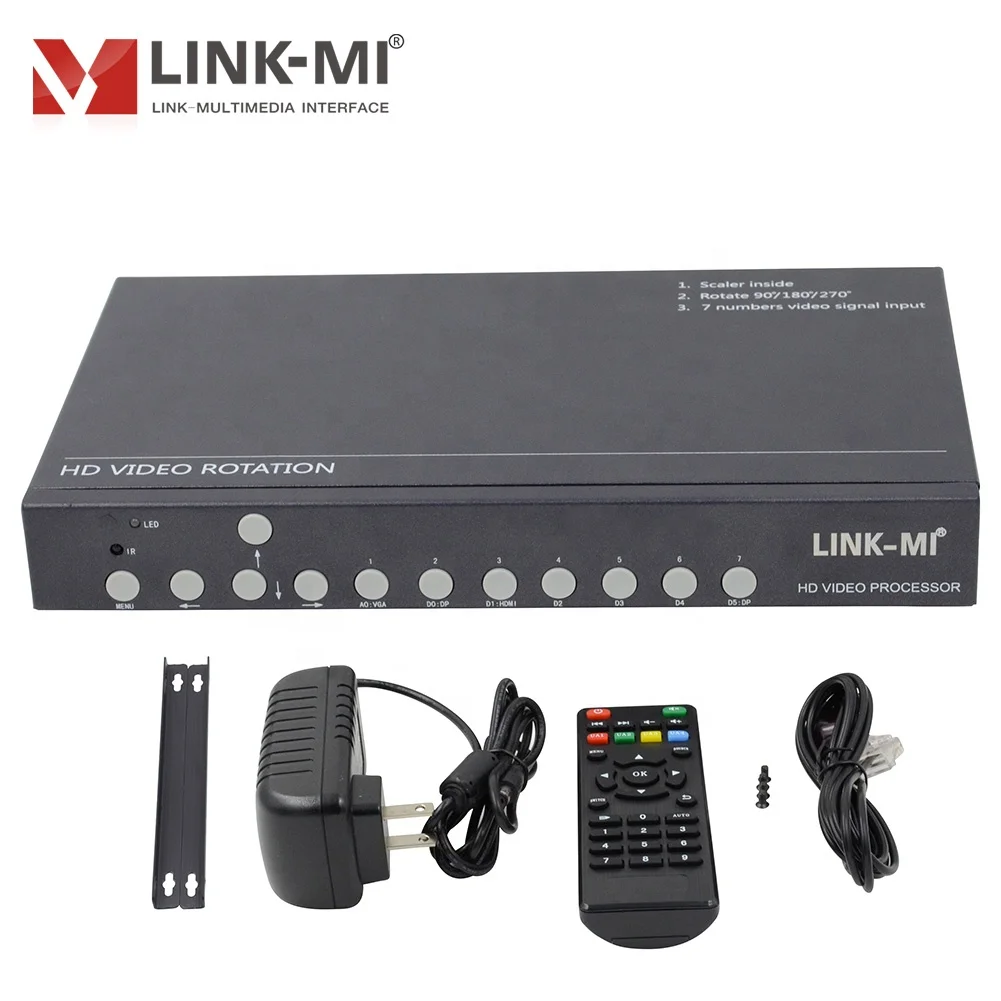

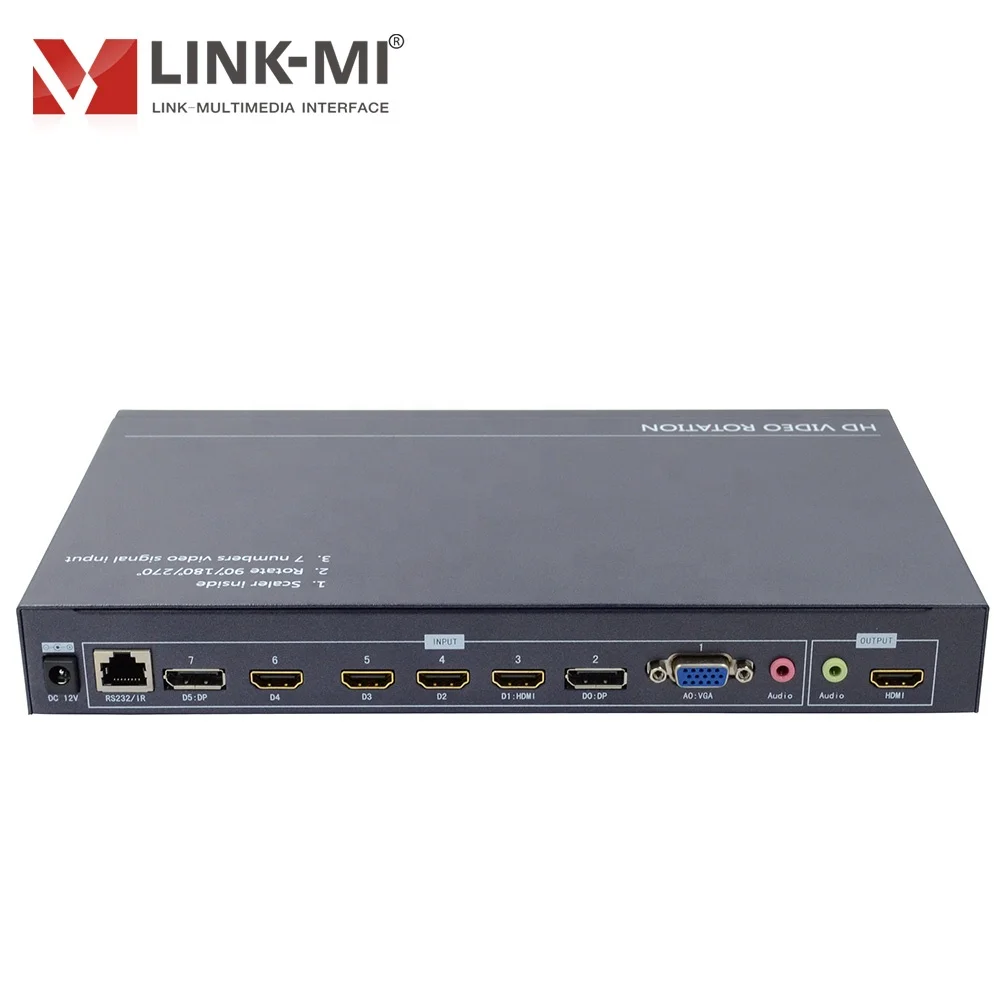

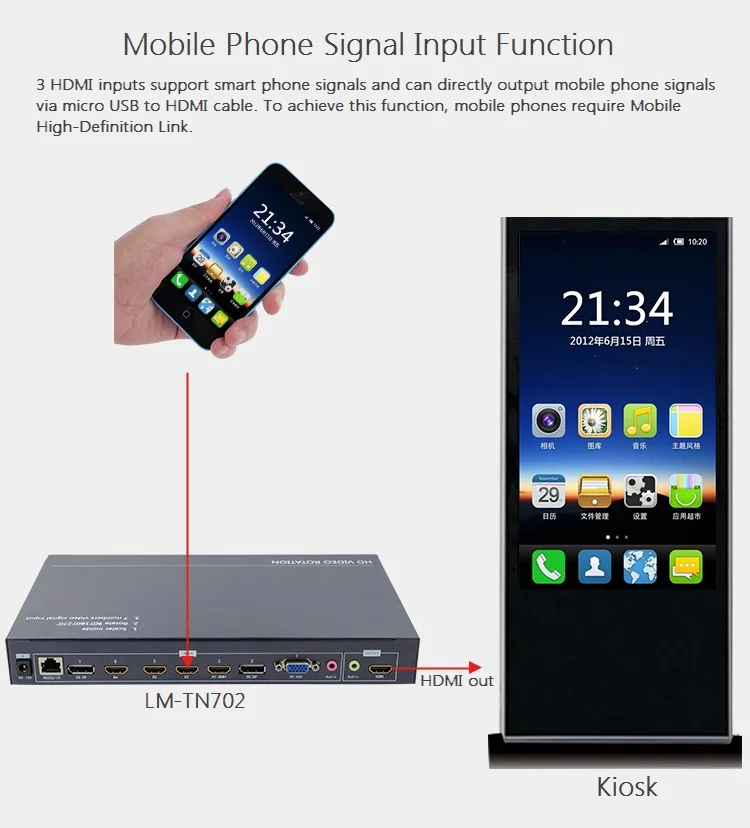

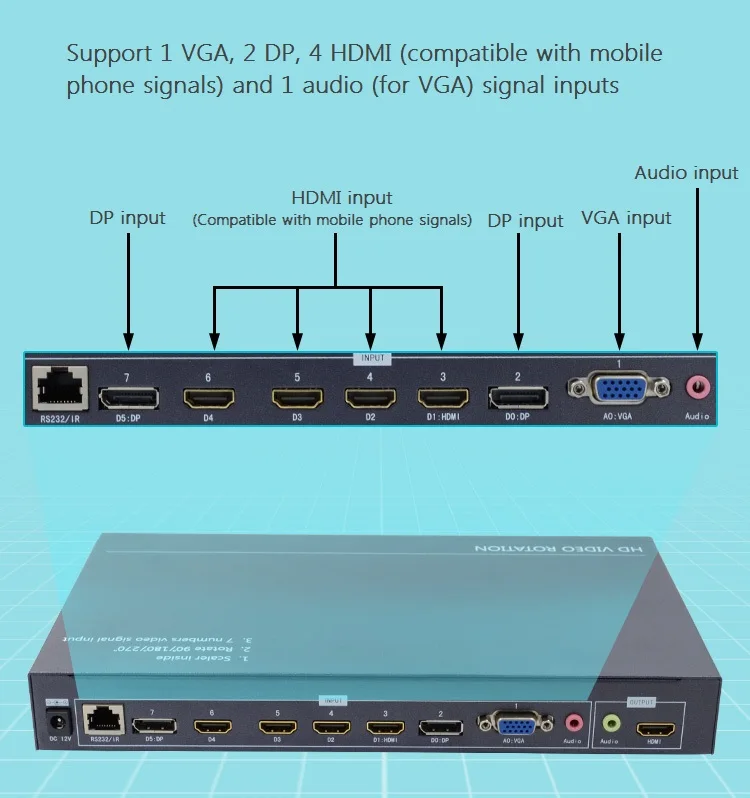

LM–TN70x series fold line rotator is a high-performance switcher, the internal contain high-speed image processing chip. Its main function is to input 1 VGA, 2-way DP, 4-way HDMI signals, including 3-way HDMI signal compatible MOBILE PHONE PORT signal. Free to switch any signal to fold line into fixed resolution and refresh rate to the HDMI output.

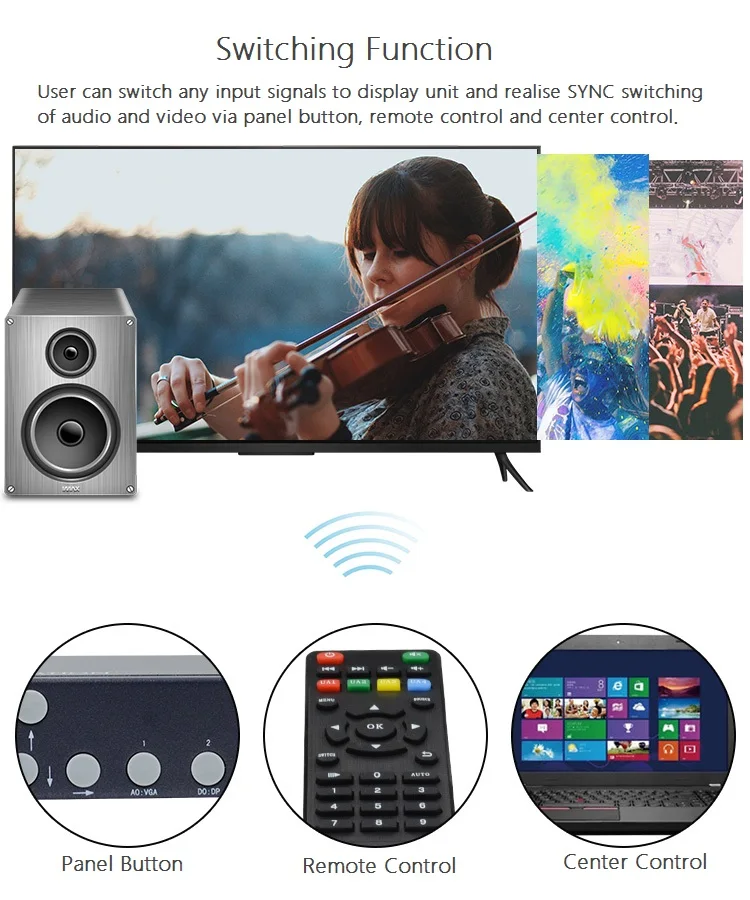

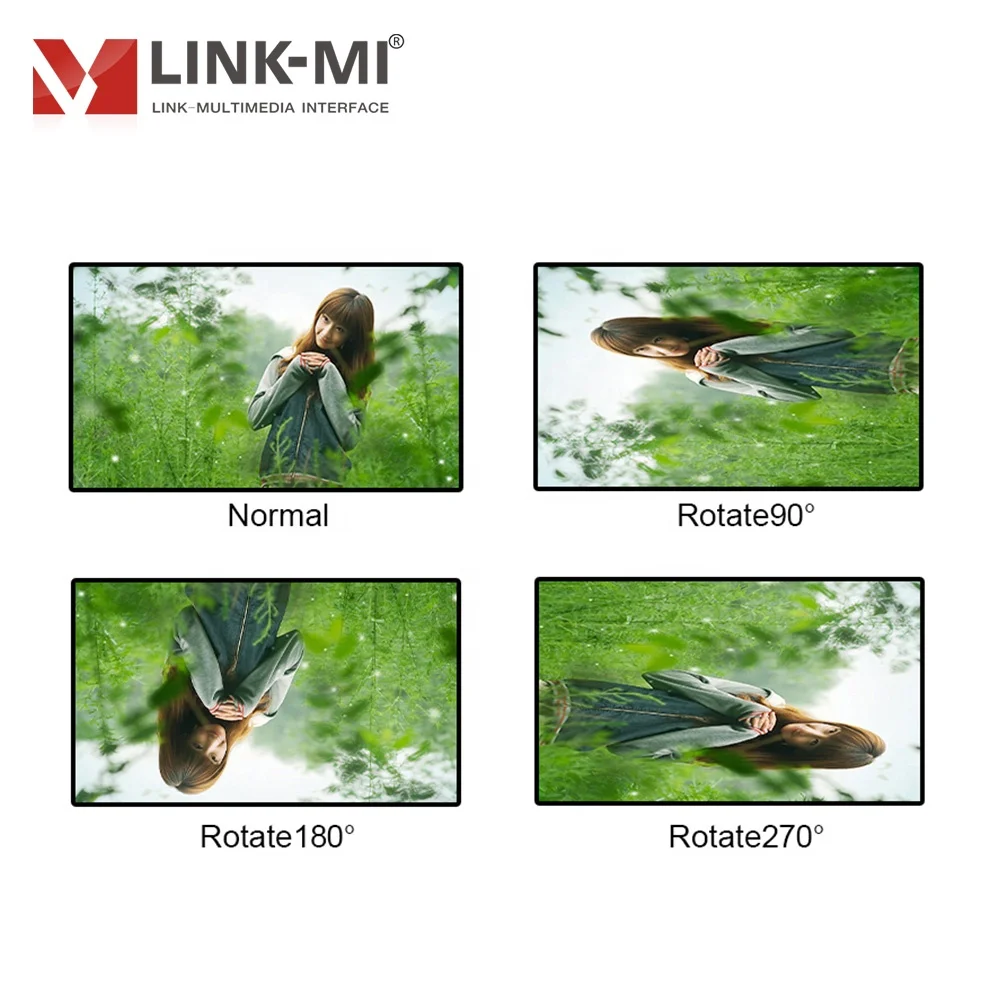

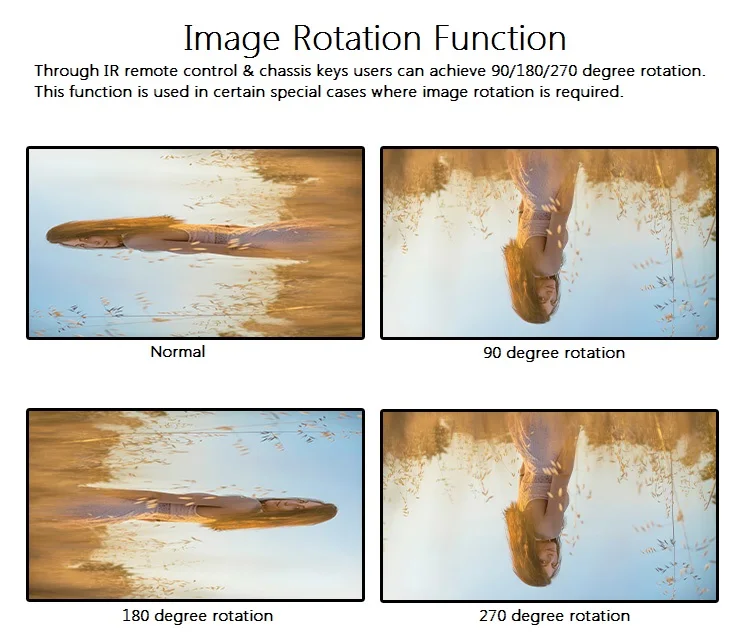

Products can achieve sound and video signals synchronously switch in different formats, and achieve image the degree of 90, 180, 270 rotation by setting. Product Design infrared remote control, users are more simple and intuitive in operation, the control can also control by RS-232. Users one-click shortcut control and full-function by remote, the operation is more humane, more simple.

2^nd Features

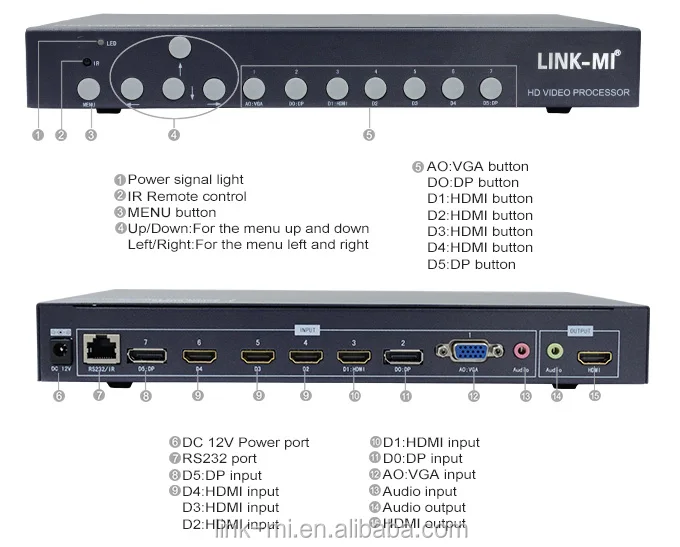

3^rd Panel Description

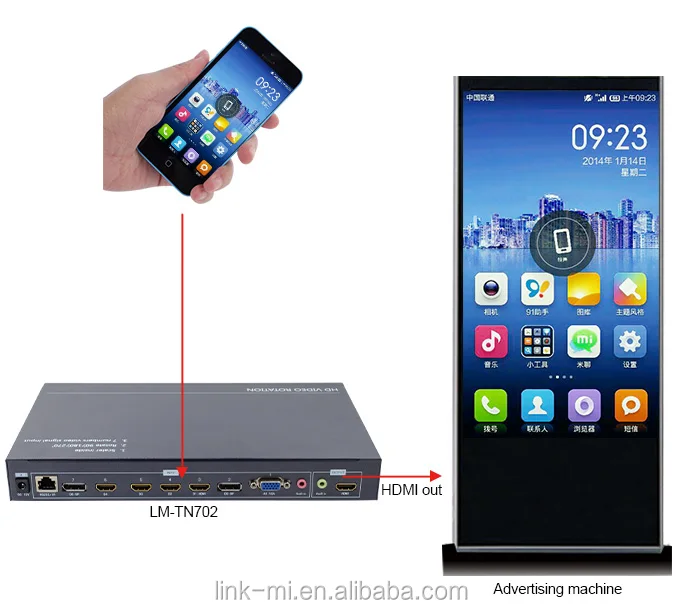

4^th Connection Diagram

 5^th Specification
