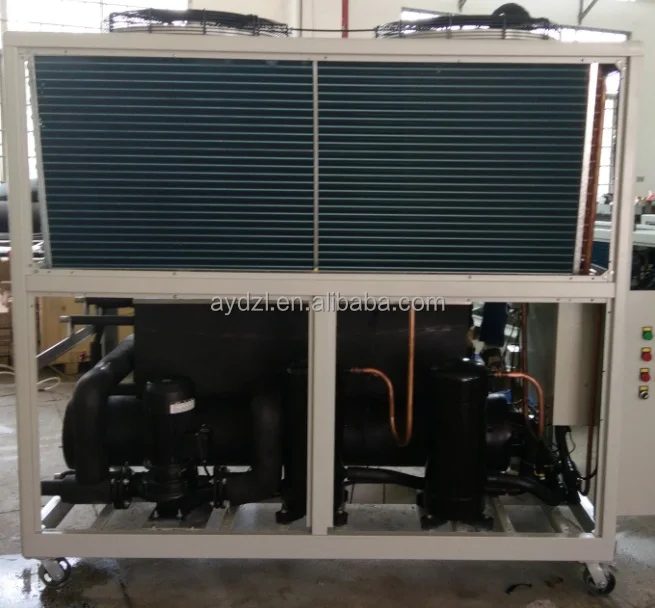

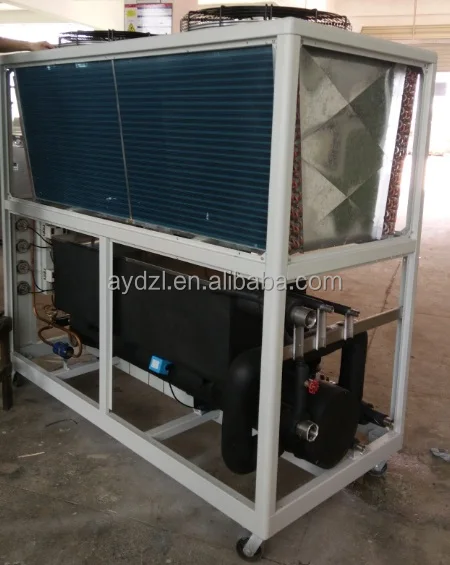

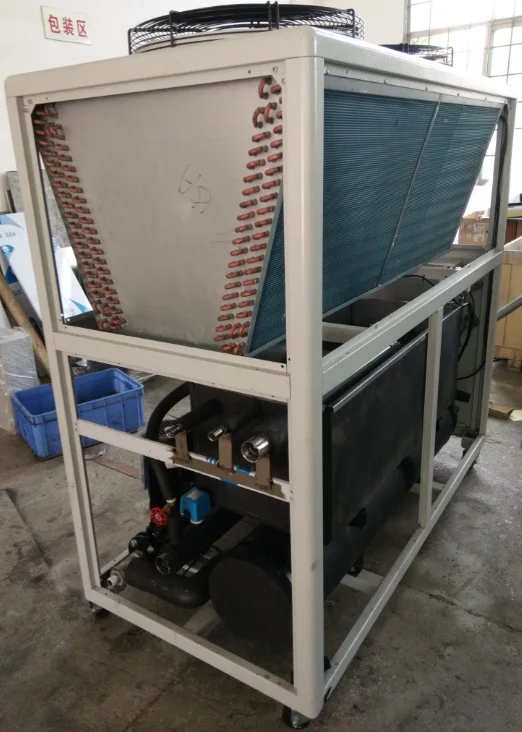

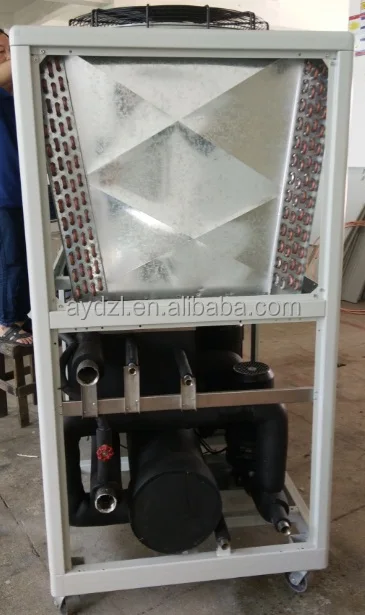

20 Tr Water Tank Chiller Water Chilling Unit

20 Tr Water Tank Chiller Water Chilling Unit

Main Features

Water shortage protection, high/low voltage protection, anti-freezing protection, overload protection, overheat protection and oil level protection ensure high reliability and stability.

Machine Parts

Name: Compressor
Brand: Sanyo/ Copeland
Name: Condenser,Evaporator

Brand: Anyda

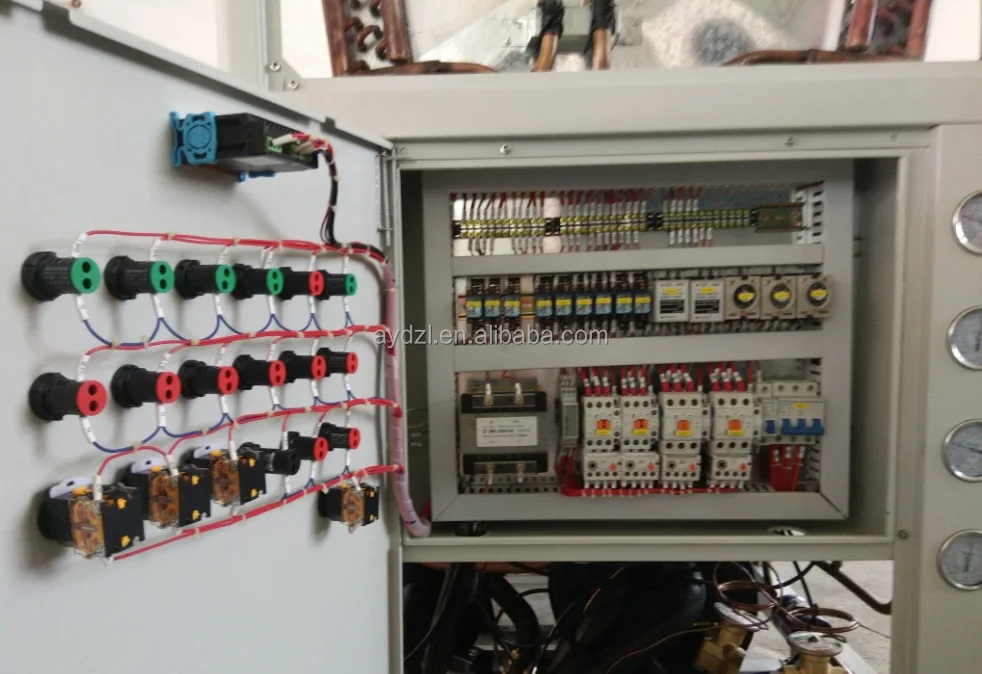

Name:Control Panel

Brand:Punp

Other Parts

Name: Electrical Parts
Brand: LG/Schneider
Name: Pump

Brand: Mini/CNP

1.How does a chiller system work?

   Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.

2.How to calculate cooling capacity for chillers

   Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86

   Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

3.Types of chiller system?

   Air Cooled Chiller and Water Cooled Chiller.Water cooled chiller needs a separated cooling tower and has a higher efficiency,but less easier than air cooled.

4.Cooling capacity unit conversion?

1 kcal／h ＝ 1.163W,1 W ＝ 0.8598 kcal／h；

1 Btu／h ＝ 0.2931W,1 W ＝ 3.412 Btu／h；

1 USRT ＝ 3.517 kW,1 kW ＝ 0.28434 USRT；

1 kcal／h ＝ 3.968 Btu／h,1 Btu／h ＝ 0.252 kcal／h；

1 USRT ＝ 3024 kcal／h,10000 kcal／h ＝ 3.3069 USRT；

5.The chiller can heat?

    Yes,by the electrical heating wire.Please kindly inform us the hot water temp or heating capacity.

6.Chiller maintenance?

Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
