Sunflower seed batch microwave vaccum drying machine HWZ 10B

Product Overview

Description

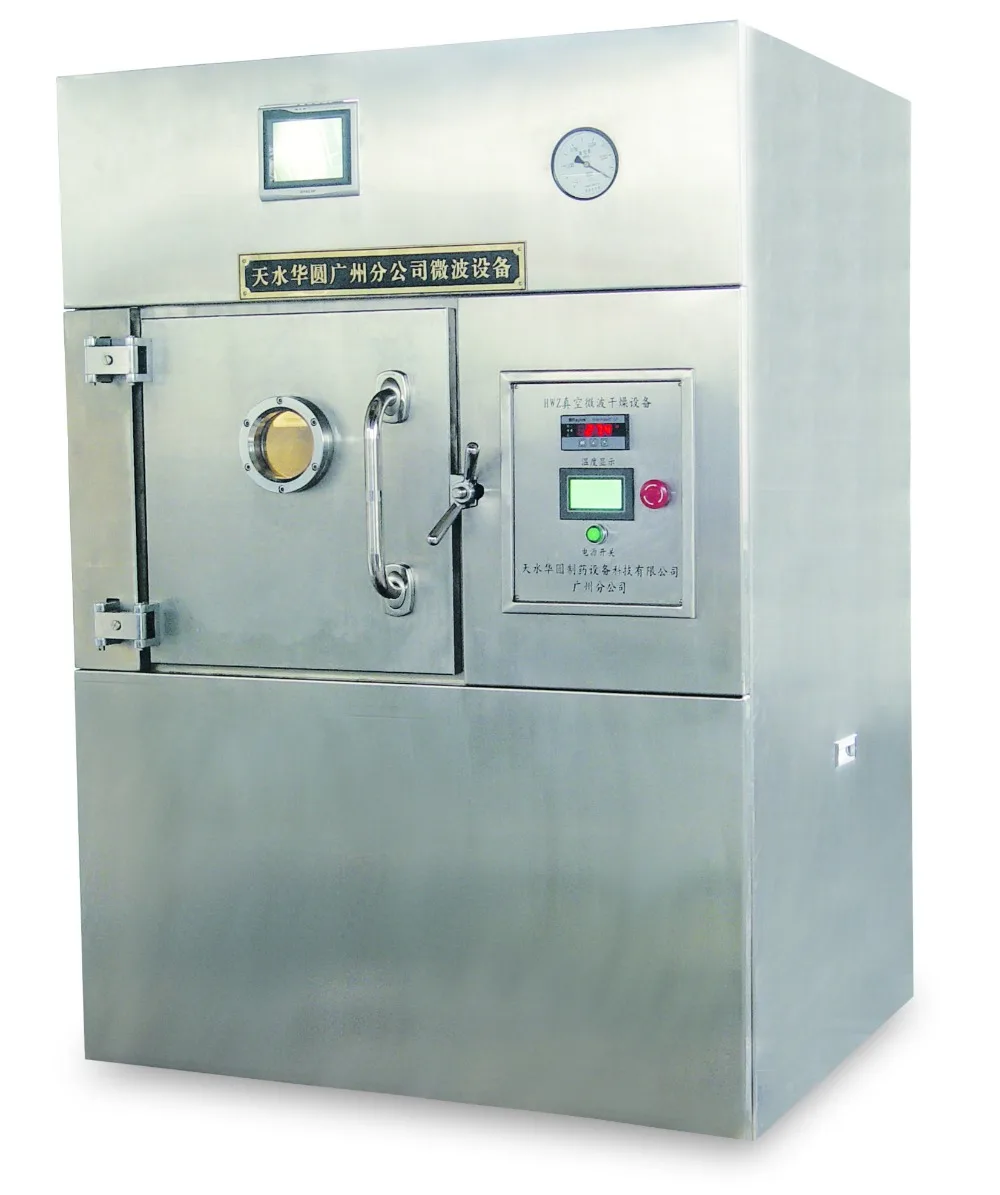

      Microwave vacuum sunflower seads drying machine  HWZ-10B



Main Application:



 This product can be applied for drying solid heat sensitive herbal medicine (liquid, semi liqud, solid) at low temperature. Materials can also be sterilized during this  process.



Technical Features:



Heat-sensitive medicine can be dehydrated and hereby dryed and concentrated quickly. The drying temperature can be controlled lower than 40°C.



Infrated mesurment of temperature, digital timing, adjustable output power



Inteligent control, simple operation and equal heating. More than 50% of electricity can be saved comparing with conventional equipment without microwave and vacuum functions.



1KW working power is able to dehydrate about 0.6kg water in one hour.



Technical parameter:



Frequency: 2450±50MHz



Input power: ≤60KVA



Microwave output power: 6-30kW(adjustable)



Temperature for Microwave drying and sterilizing: 20-60°C





Mian Technical parameters:



Item Unit	HWZ-5B	HWZ-10B	HWZ-15B	HWZ-20B	HWZ-25B/30B
Microwave Power	5	10	15	20	25-30
Microwave Frequency	2450	2450	2450	2450	2450
Supply Voltage	380±10%	380±10%	380±10%	380±10%	380±10%
Area ofspreading materials	0.75	0.75	2.25	2.25	3.4
Sterilization Capability	10 — 20
Dehydration Speed kg/ kw .h	0.8—1.0
Dehydration Temperature °C	30—100
External dimension (L*W*H)	1290*1190*1880	1580*1190*1880	1780*2000*2140	1780*2000*2140	1880*2400*2420



Application cases
