LMS Steel Square Tube/Frame Structure Pipe Making Machine Forming Machine

Product Overview

Description

LMS Steel Square Tube/Frame Structure Pipe Making Machine Forming Machine

• Pipe Making Machine Forming Machine



• Frame Structure Pipe Making Machine Forming Machine



• LMS Steel Square Tube/Frame Structure Pipe Making Machine Forming Machine

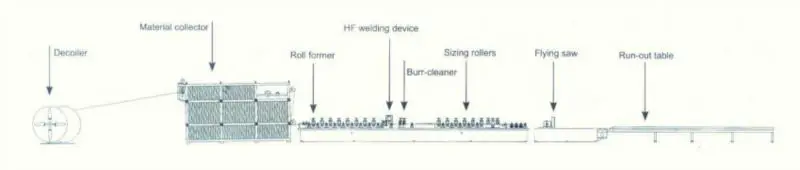

Work Flow of erw pipe mill line:

Technical Parameter of erw pipe mill line:



		HG16	HG32	HG50	HG76	HG 100	HG114	HG165	HG325
Diameter(mm):		ø7-16	ø13-38	ø16-50	ø30-76	ø40-101	ø60-114	ø76-165	ø140-325
Pipe Thickness(mm):		0.4-1.0	0.6-1.5	0.8-3.0	1.5-4.0	1.5-4.0	2.0-5.0	2.0-6.0	4.5-10
Milling Speed(m/min):		30-90	30-70	30-70	20-50	20-50	20-50	20-40	10-25
Material:		Low-carbon steel/Low alloy steel  δs ≤ 345Mpa,δb ≤ 610Mpa

Components of erw pipe mill line:



S. No.	Name of Equipment	Quantity	Remark
1	double Decoiler	1
2	Cage Accumulator	1
3	Feeding & Flattening	1
4	Roll Forming Machine	1
5	HF Machine	1
6	Burr-Cleaning Device	1
7	Water-Cooling System	1
8	Sizing Device	1
9	Straightening Device	1
10	Main Drive System	1
11	CNC Flying Saw	1
12	Run-out Table	1



Work Flow Detail of erw pipe mill line:

 Decoiler of erw pipe mill line:







Cage Accumulator of erw pipe mill line:

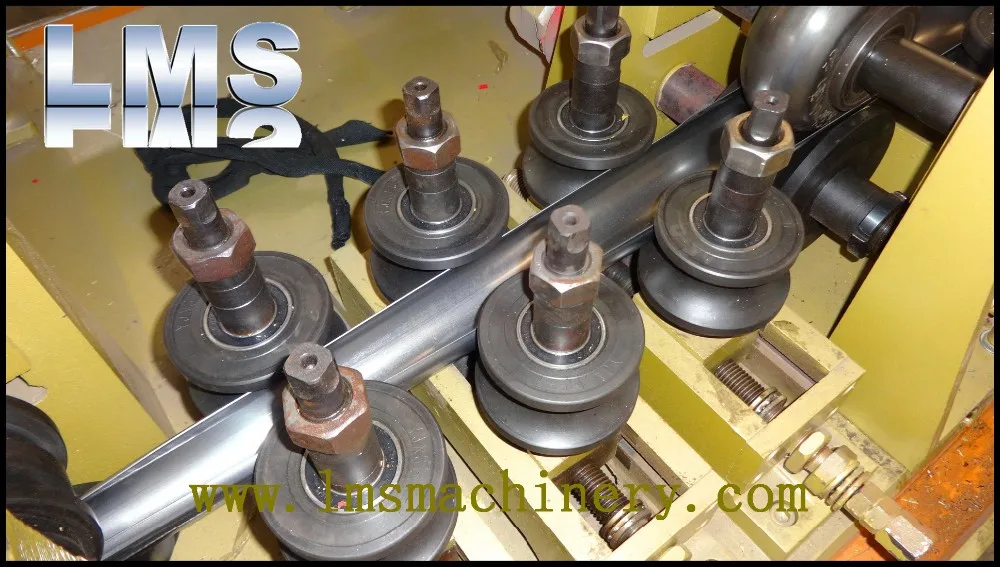

Roll Forming of erw pipe mill line:



HF Welding of erw pipe mill line:



Burr-Cleaning Device,Water-Cooling System and Sizing Rollers of

erw pipe mill line:



Flying Saw and Run-out Table of

erw pipe mill line:

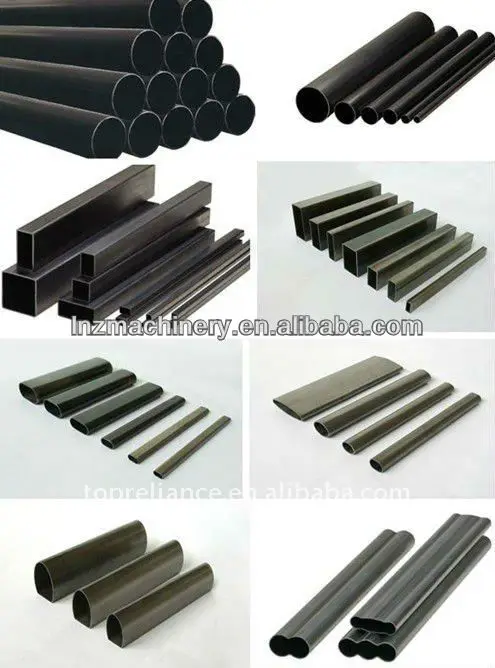

Profiles of erw pipe mill line:
