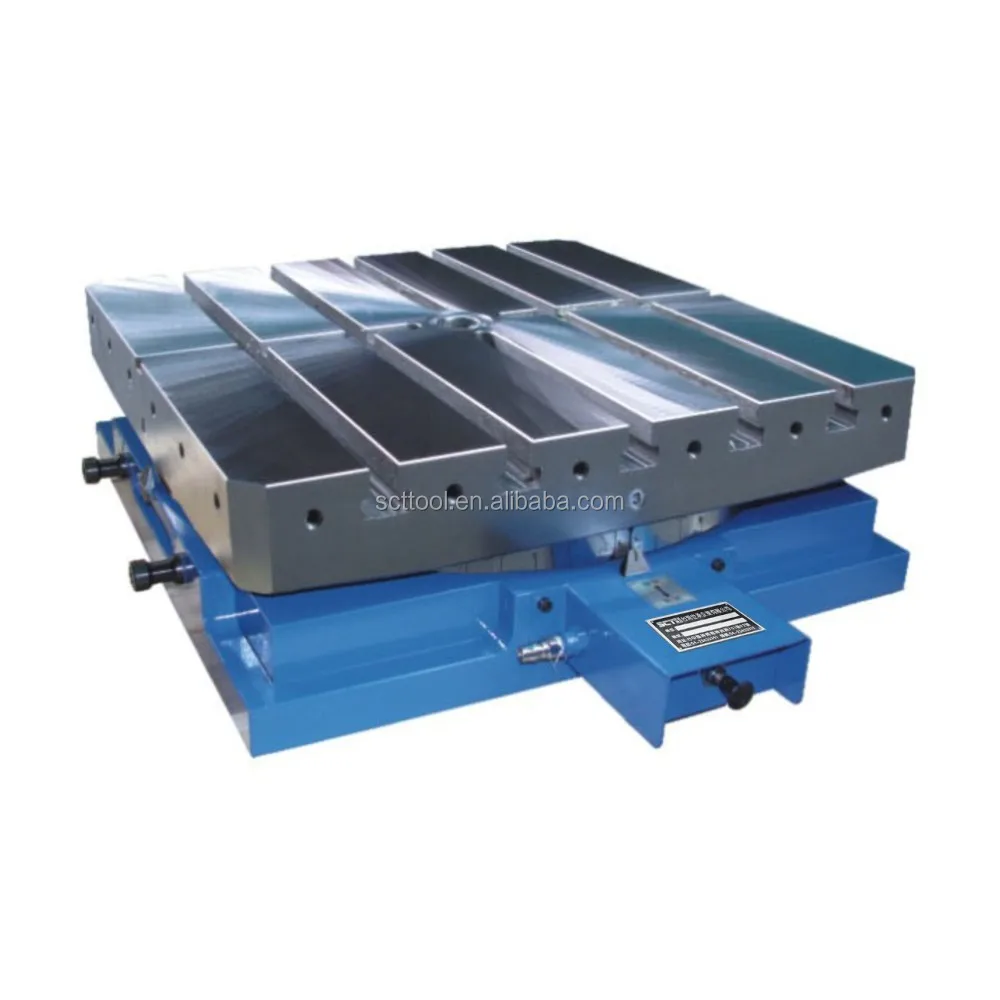

Precision Manual 450x450mm Indexing Table Boring Machine Use Work Table Air Brake Square Milling Machine Sliding Working Table

Product Overview

Description

Precision Manual 450x450mm Indexing Table  Boring Machine Use Work Table Air Brake Square Milling Machine Sliding Working Table



Feature:

1.This type indexing table use 2 pieces  clutch tooth position and locking device .

2.There are two types division:5 degree and 1 degree (72D or360D)

3.Manul type to release the back disc .

4. There is a  bracket inside for support the rotate spindle steady.



5.Horizontal use .



Specification:



MBT-450





Table size	450*450
The disc spindle center hole	30H7mm
The table total weight	170mm
Disc T-slot width	18 H7mm
The rotate disc drive mode	manual
Working applicable environment temperature	18~40 degree
Equal division number	72    360
Mini angle of equal division	5 degree    1 degree
Locking clamp capacity	2200kgf-m       21560 N-m
Total weight	200 kg
Division precision	±2”
Load weight	1000kg
