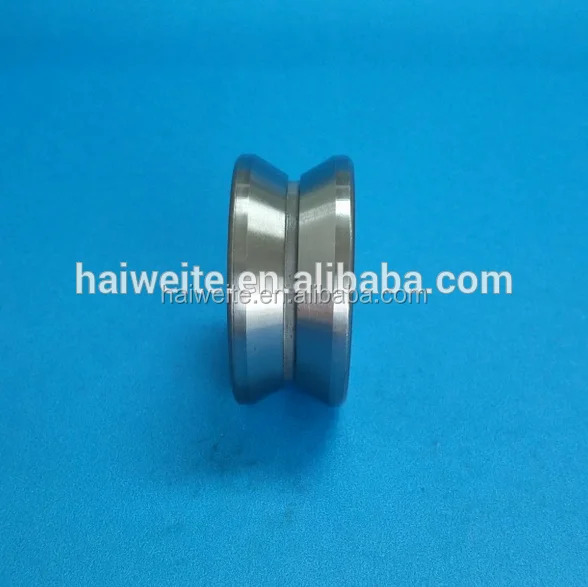

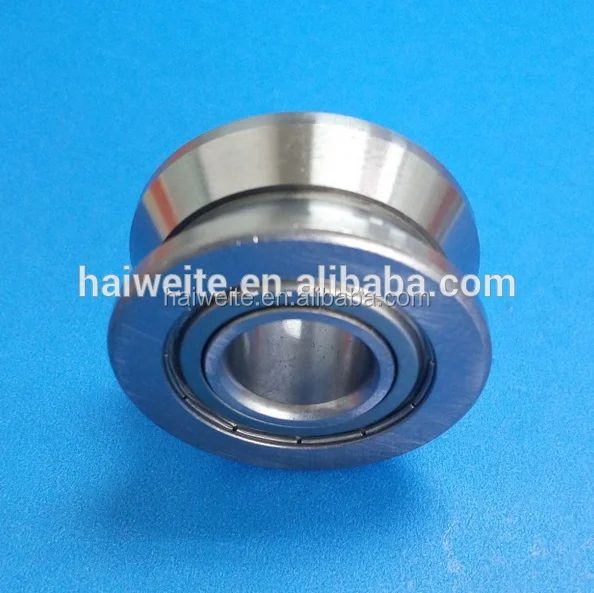

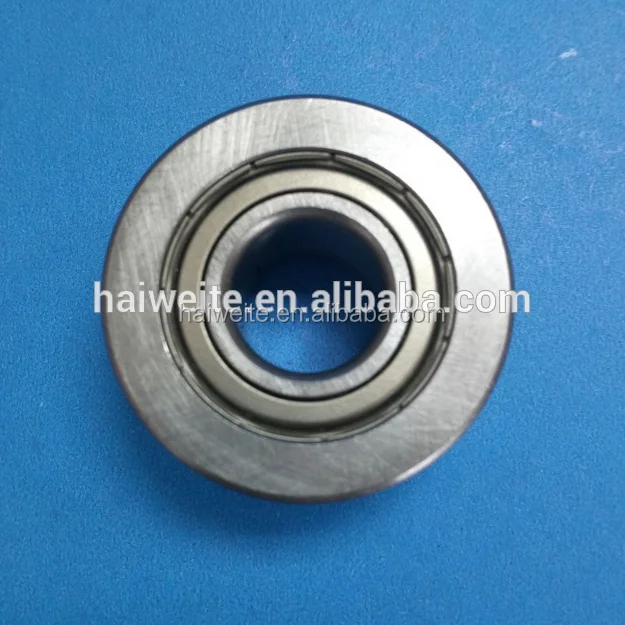

V groove TRAKROL track roller bearing VCF 7 1/2 Bearing hwt bearing supplier
- Category: >>>
- Supplier: Wuxi Haiweite Bearing Transmission Technology Co. Ltd.
Share on (60603679774):
Product Overview
Description
V groove TRAKROL track roller bearing VCF 7 1/2 Bearing hwt bearing supplier
Description
V groove guide wheel bearing RM2zz consist of both an external and internal 90 degree Vee angle. The v groove bearing is made with a double row angular contact bearing for excellent load capability and long life.
V groove bearings are available in steel or stainless steel from stock. Other options include seals and shields to meet specific application needs.Special V groove bearings are available for clean room,
vacuum,low temperature and high temperature applications.Customer specific lubricants can also be used upon request.
| Product name | V groove TRAKROL track roller bearing VCF 7 1/2 Bearing | ||
| Brand | OEM | ||
| Dimension | 9.525x30.73x11.1mm | ||
| Precision | ABEC-1 | ||
| Weight | 38 g | ||
| Lubrication | Grease | ||
| Material | Chrome Steel | ||
| Package | 9pcs / Plastic Bag and Box | ||
Application
V groove TRAKROL track roller bearing VCF 7 1/2 Bearing are the most widely-use and economy product among the linear motion track rollers, and they can suit to the cylindrical track. They are widely used in CNC machine,Plasma machine etc.
Other Model
GB NO. | Weight | ||||
| Bore | O.D. | Width | |||
| mm | mm | mm | |||
| D1 | D | B | Kg | ||
| W1 | 4.763 | 19.56 | 7.87 | 11 | |
| W1X | 4.763 | 19.56 | 7.87 | 11 | |
| W2 | 9.525 | 30.73 | 11.1 | 38 | |
| W2X | 9.525 | 30.73 | 11.1 | 38 | |
| W3 | 12 | 45.72 | 15.88 | 130 | |
| W3X | 12 | 45.72 | 15.88 | 130 | |
| W4 | 15 | 59.94 | 19.05 | 280 | |
| W4X | 15 | 59.94 | 19.05 | 280 | |
| RM1ZZ | 4.763 | 19.56 | 7.87 | 11 | |
| RM1 2RS | 4.763 | 19.56 | 7.87 | 11 | |
| RM2ZZ | 9.525 | 30.73 | 11.1 | 38 | |
| RM2 2RS | 9.525 | 30.73 | 11.1 | 38 | |
| RM3ZZ | 12 | 45.72 | 15.88 | 130 | |
| RM3 2RS | 12 | 45.72 | 15.88 | 130 | |
| RM4ZZ | 15 | 59.94 | 19.05 | 280 | |
| RM4 2RS | 15 | 59.94 | 19.05 | 280 | |
Products show
Shipping and Payment
FAQ
1.Q:Are you a factory or trading company?
A:Anhui Kaifu Bearing Co.,Ltd is specialized in manufacturing and exporting Bearings.
We have own factory and Warehouse located in Wuxi and Yantai city.
2.Q:Can I get some samples and do you offer the sample free?
A:Yes, sure, we are honored to offer you samples. If we have stock, we can send you
free sample. And you just need to pay freight. If there have no stock, you need to pay
sample fee and freight.
3.:Does the sample fee can be return back?
A: If you place an order, we can return part of sample fee even all of fee to you.It also
depends on the Quantity of order and the type of sample.
4.Q:What is the MOQ for bearing?
A: Our MOQ is 1 pc.
