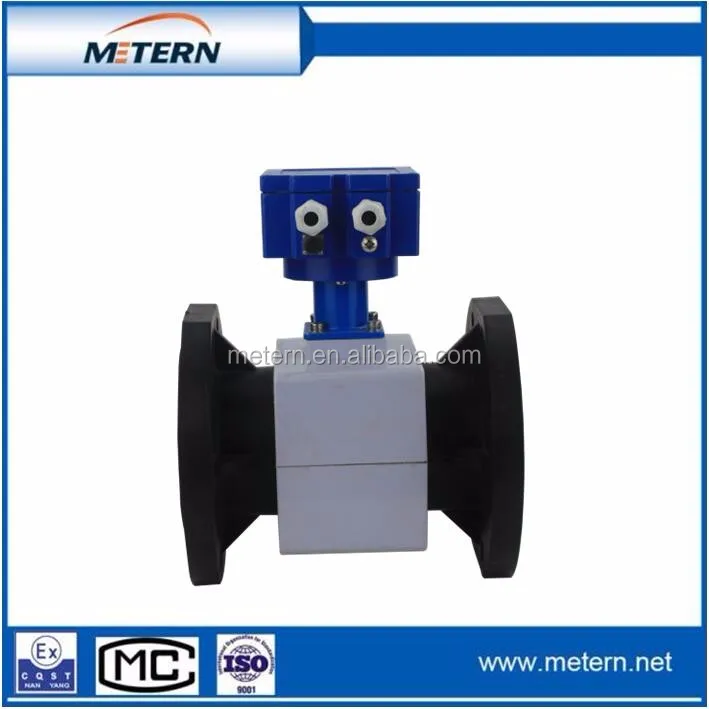

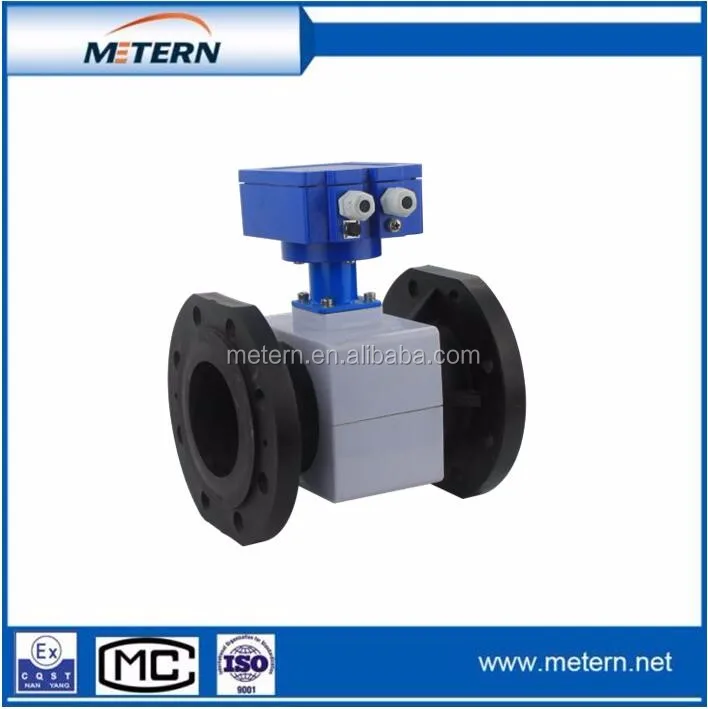

PVC magnetic flow meter/flowmeter/analog output RS485
- Category: >>>
- Supplier: Dalian Metern Measurement And Control System Co. Ltd.
Share on (60603713198):
Product Overview
Description
Specifications
PVC magnetic flow meter/flowmeter/analog output RS485
1.High accuracy:0.5%
2.Medium:conductive liquid
3.CE/TUV/BQC/ISO9001 approved
PVC magnetic flow meter/flowmeter/analog output RS485
Product Details
Features
Specifications
| Power Supply | 110-240Vac (Optional: 24 Vdc) |
| Power Consumption | 10W |
| Accuracy | ± 0.5% accuracy of rate from 0.3-10 m/s ± 1.0% accuracy of rate from 0.1-0.3 m/s |
| Repeatability | 0.2% |
| Minimum Fluid Conductivity | 5.0 micromhos/cm |
| Flow Direction | Unidirectional or bidirectional, 2 separate totalizers (programmable) |
| Analog Output | 4-20mA, 750ohms Max Load |
| Output Frequency | Scaled Pulse output, (open collector) Max 5Khz |
| Noise Damping | Programmable |
| Pulse Width | Programmable up to 500ms |
| Zero-point Stability | Automatic correction |
| Ambient Temperature | -4 to 140° F (-20 to 60° C) |
| Electrode Materials | SS316L; Optional: Titanium; Hastelloy Alloy C; Tantalum |
| Liner Material | PTFE, FEP, Hard Rubber |
| Fluid Temperature | PTFE: 120°C Standard (Customized: 180°C) Rubber: 60°C |
| Pressure Limits | 1.0 Mpa; Optional 1.6; 2.5; 4.0 Mpa |
| Coil Power | Pulsed DC |
| Pipe Spool Material | SS316 |
| Meter Housing Material | Carbon Steel welded or SS304 (Sanitary Connection) |
| Flange | Carbon Steel - Standard (ISO 7005-1) ANSI, DIN and JIS Flange Connections Optional Stainless Steel Grounding Rings |
Magnetic flow meter production line
