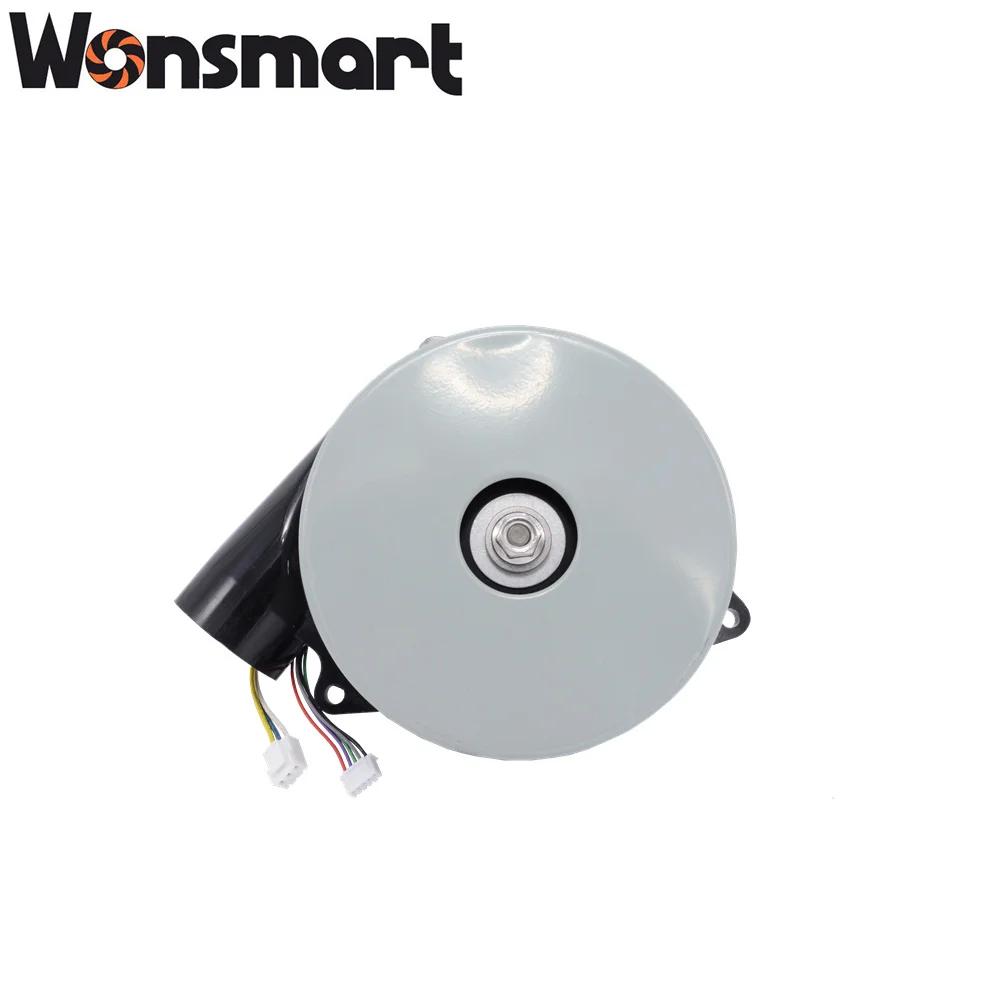

WONSMART 48Vdc 14.5 kPa 30CFM 2 inch air cooling fan brushless centrifugal compact size cooling blower
- Category: >>>
- Supplier: Ningbo Wonsmart Motor Fan Co. Ltd.
Share on (60603850603):
Product Overview
Description
Product Description
WONSMART 48Vdc 14.5 kPa 30CFM 2 inch air cooling fan brushless centrifugal compact size cooling blower
Suitable for air cushion machine/fuel cell/medical equipment and inflatables.
Suitable for air cushion machine/fuel cell/medical equipment and inflatables.
Specification
Part Name | brushless centrifugal compact size cooling blower |
Part No | WS140120S-48-130-X300 |
Rated votlage | 48VDC |
Max power consumption | 380W |
Life time(MTTF) | >20,000 hours |
Unit weight | 1.32 KGS |
Bearing | NMB Ball bearing |
Insulation class | Class F |
Driver board | External |
Speed control | PWM or 0~5V |

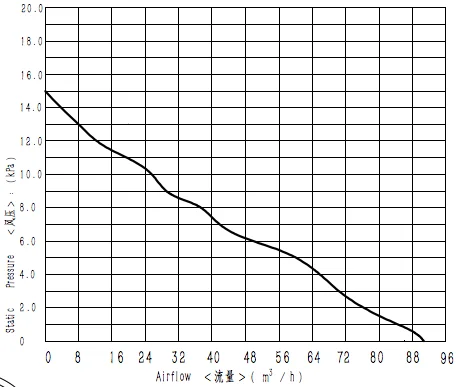

WS140120S-48-130-X300 blower fan airflow against air pressure performance curve as left chart
We can supply standard drivers for this blower. If you want to design your own driver, you can refer to the wiring diagram on the left picture.
Size Information

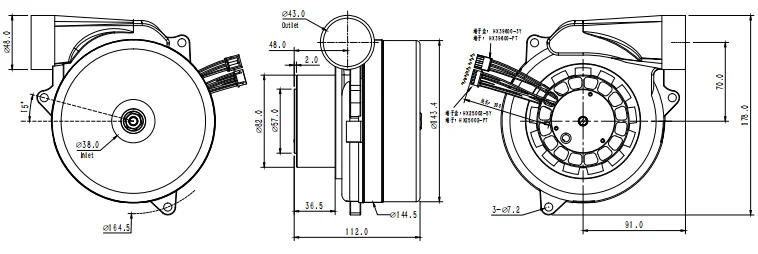

Product drawing as below:
Packing & Delivery
Qty per Ctn: 4pc Ctn size:435*435*170mm
G.W.: 6.3KGS N.W.:5.3KGS
G.W.: 6.3KGS N.W.:5.3KGS
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Company Introduction
of 30 kpa. With our high quality parts and precise manufacturing process, WONSMART motors and blowers can
serve more than 20,000 hours.
Founded in 2009, Wonsmart has had a rapid growth rate of 30 % yearly and our products are widely used in Air cushion machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Wonsmart is certificated by I S O 9 0 0 1 and I S O 1 3 4 8 5,we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan and Korea. Customers from these countries are very satisfied with Wonsmart’s stable quality, fast delivery and reasonable price.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Wonsmart is certificated by I S O 9 0 0 1 and I S O 1 3 4 8 5,we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan and Korea. Customers from these countries are very satisfied with Wonsmart’s stable quality, fast delivery and reasonable price.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
Our Services & Strength
We also accept ODM and OEM projects and customized specification.We also accept ODM and OEM projects
We also accept ODM and OEM projects and customized specification.We also accept ODM and OEM projects
and customized specification.
FAQ
Are you factory or trading company?
We are factory with 4,000 square meters and we have been focus on high pressure
We are factory with 4,000 square meters and we have been focus on high pressure
BLDC blowers for more than 10 years.
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
This blower fan is with BLDC motor inside and it needs a controller board to run.
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.
Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.
Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with
a potentiometer to change speed conveniently.
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us
to choose proper item for this special working condition.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.
What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.
What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
