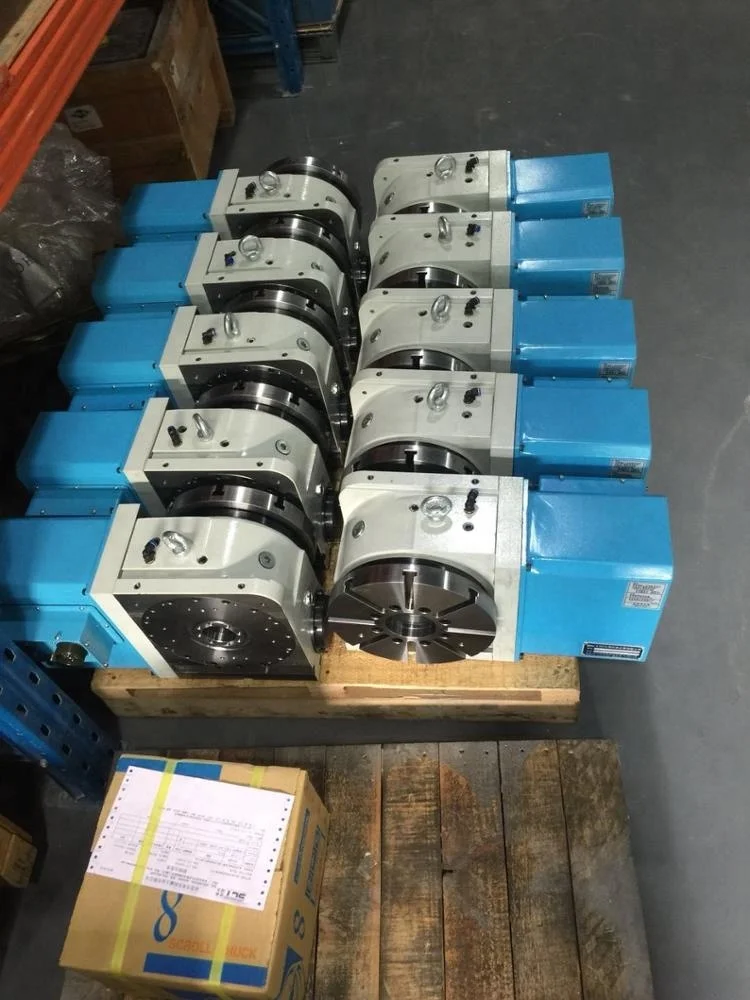

Прямая продажа с завода, вращающийся стол с ЧПУ 4 й Осью для станка с ЧПУ mazak dmg
- Category: Table >>>
- Supplier: Dongguan Mihong Mechanical Hardware Co. Ltd.
Share on (60603884449):
Product Overview
Description
Product Description

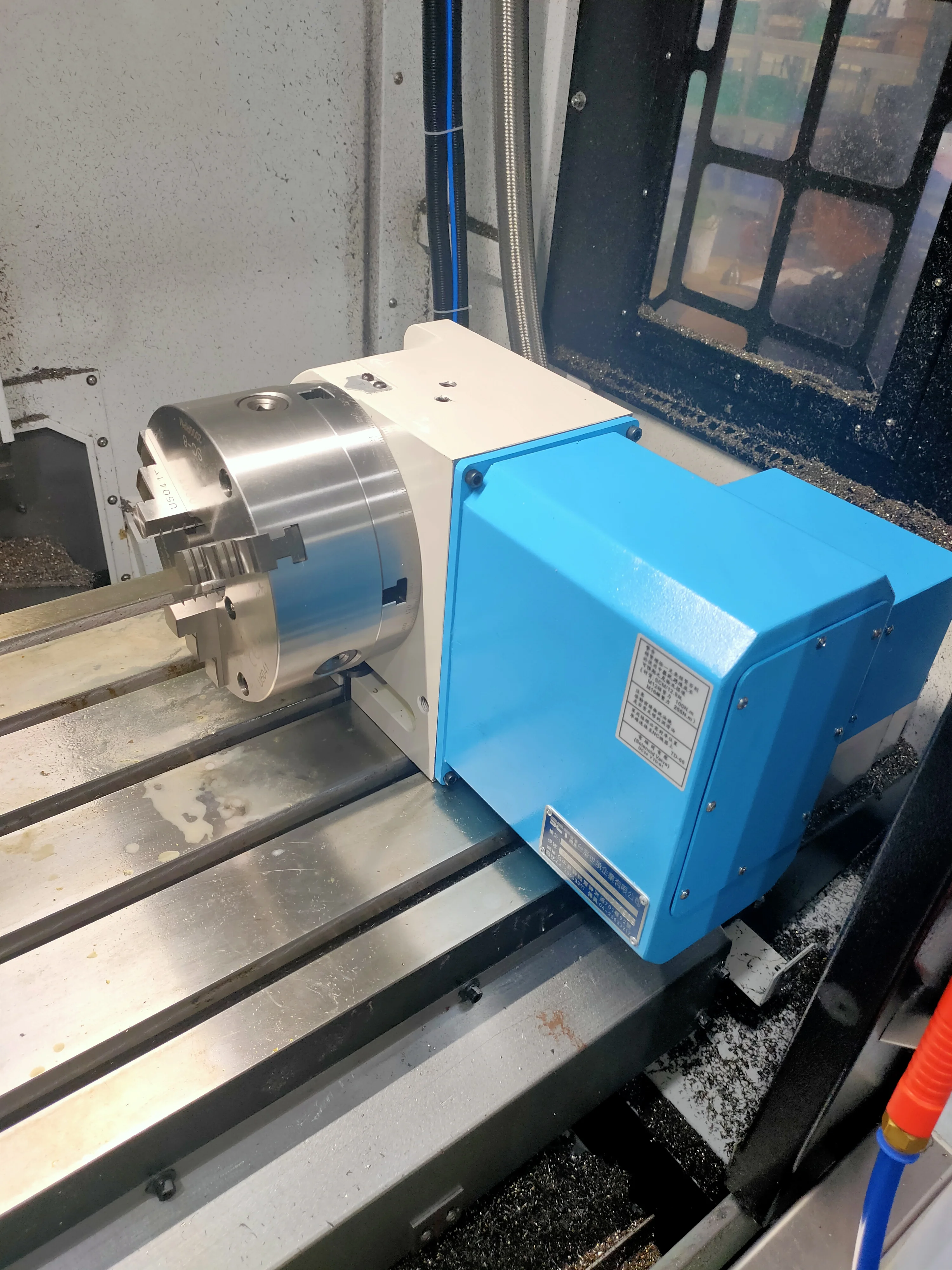

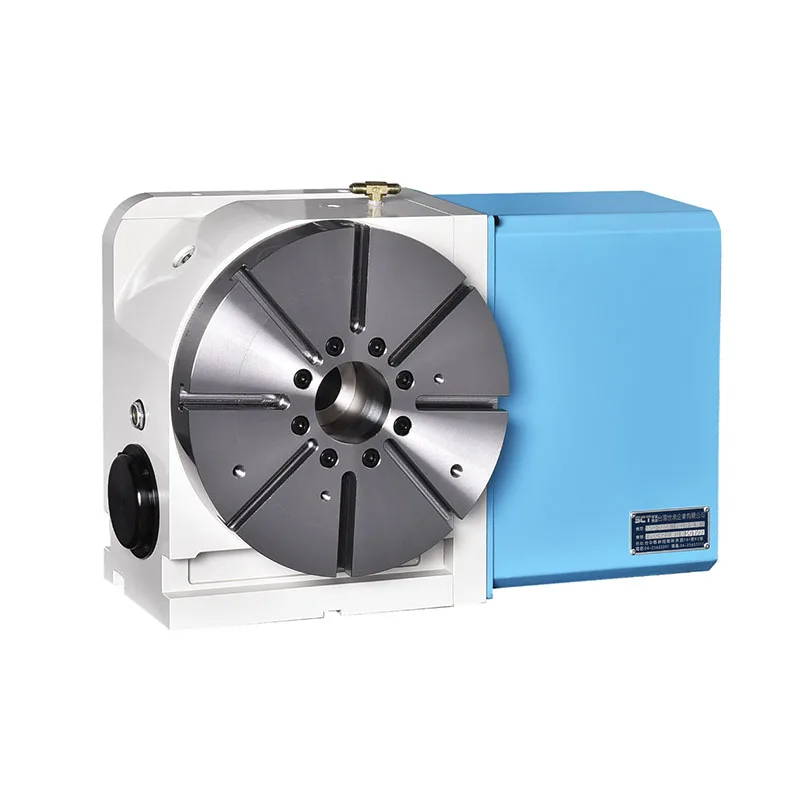

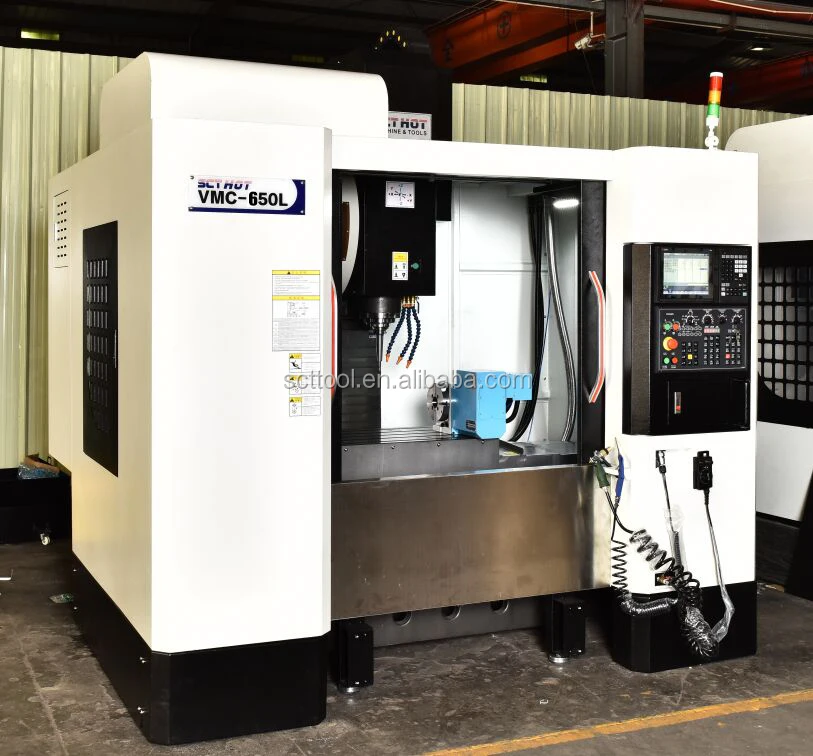

Factory direct sale 4th axis cnc rotary table for mazak dmg cnc machine center
Feature:
1. This 4 Axis CNC rotary table use imported precision dual-lead worm, turbine,
turbine with aluminum bronze alloy,ensure the transmission positioning in high
precision accuracy.
2.The turbine size nearly the disc size and the steel rigidity is better 30%~50%
than similar products.
3.The bearing used cross roller bearings,improved the the rotary table’s rotation
accuracy and rigidity. It can be maintained long time processing and no need to
worry make defective workpiece.
MD-320 specification:
The Disc diameter | 320mm |
The disc spindle center hole | 75H7mm |
The disc spindle center through hole | 50mm |
Level placement height | 370mm |
Level placement center height | 210mm |
T-slot width of the rotary shaft disc | 14H7 |
Guide block width | 18H7 |
Working applicable environment temperature | 18~40 degree |
Pressure of the locking device | 35(hydraulic) kg/cm2 |
The mini angle of equal division | 0.001degree |
Total gears rate | 1/144 |
Max speed of the rotary disc | 3000 RPM X |
4000 rpm 44.4 | |
Division precision | 15” |
G.W weight | 154kg |

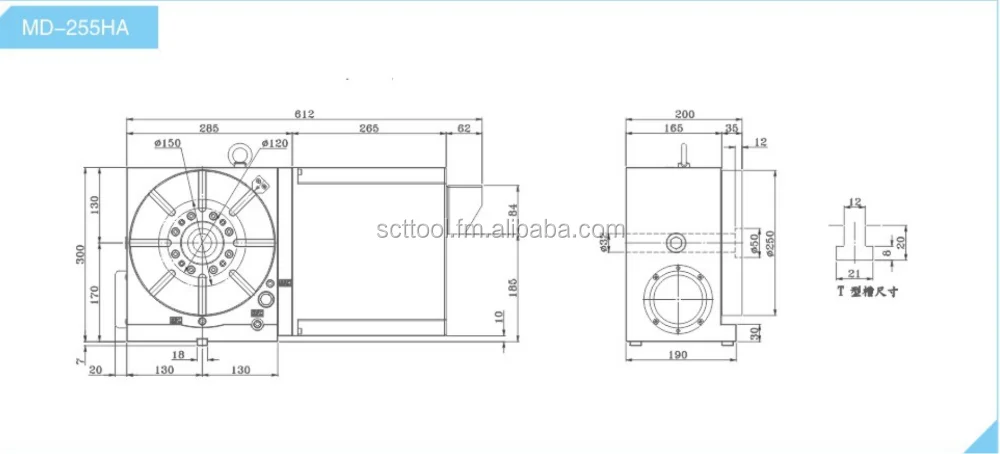

nc rotary table drawing
Exhibition
Our Services
1. Our company is a manufacture of NC rotary table ,tool holder ,cnc machines ,we can
supply technical support for these products without charge .
All tool holder and nc rotary precesion parts were made in taiwan factory,no need to
worry about the quality.
2. About the nc rotary table :
<1>. Before place an order of the nc rotary table ,please let us know your machine
center work table size,brand,system,wire case position,so we can supply the right
cnc rotary table with serve motor ,drive and cable etc .
<2>. About the tool holder ,we can supply tool holder specification before customers place order .
Warranty
1.Warranty: Non-human damage, one year guaranteed period.
2.Shipment: goods by send by sea or by express based on
customers request.
