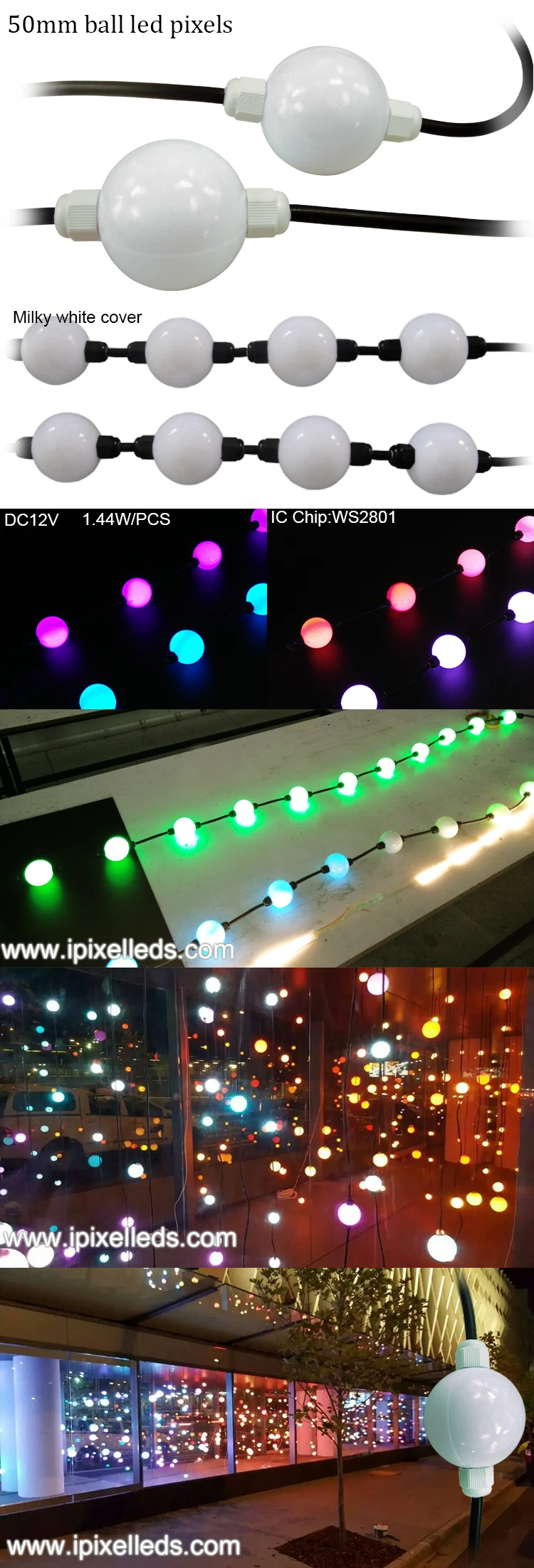

| Product Name | 50mm ball led pixels |
| Product No. | P50V12-360 |
| LED Chip | Epistar SMD 5050 RGB LED chip |
| IC Chip | WS2801 |
| Input Voltage | DC12V |
| Watts | 1.44W/PCS |
| Cover Color | Milky white cover |
| Connectors | 4PIN waterproof female and male connectors |
| Beam angle | 360degree, 3D effect |
| Certification | CE, RoHS |
| LED Qty | Double-sided, 3LEDs/side, 6LEDs/pcs |
| Cable Length | 20cm usually, also can be customized |
1. Individually control, 1PCS LED ball pixel & 1IC (ws2801)
2. 50mm diameter balls with white opaque diffuser giving 360 degree viewing, pitch customized.
3. You must use a 12V DC power supply to power this pixel, do not use higher than 13V
or you can destroy the entire pixel.

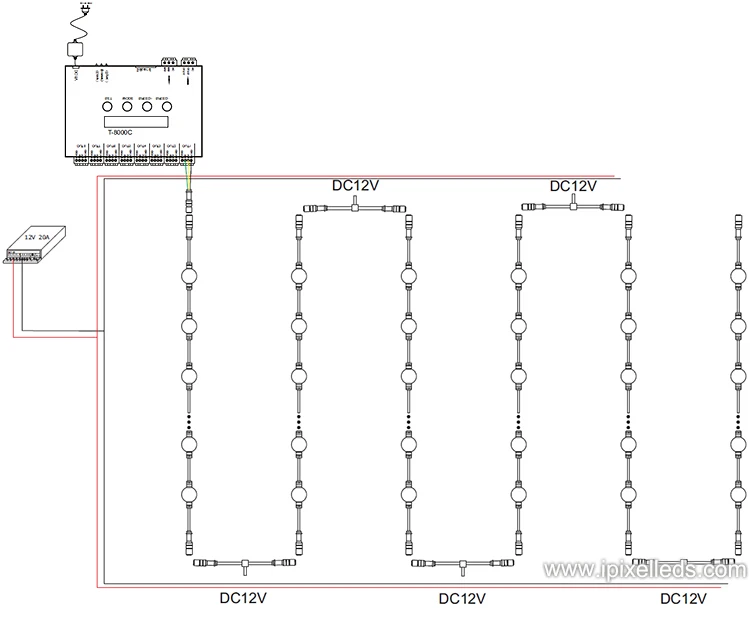

4. SPI signal is in parallel connection, avoiding all lights influenced by the failure of one light in serial connection

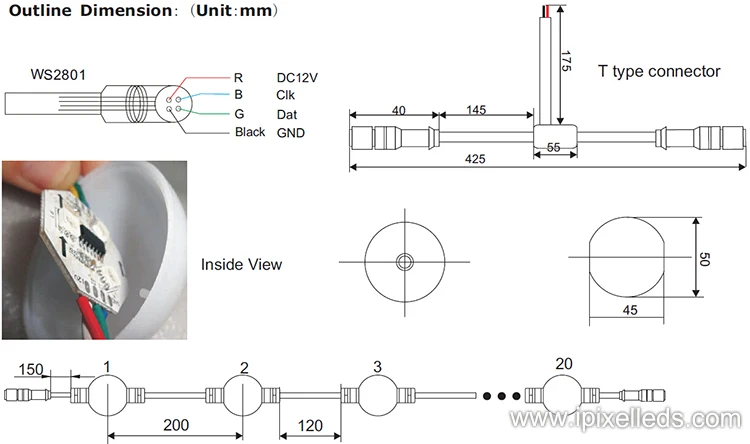

5. Connetors: 4PIN waterproof female and male connectors, DAT, CLK, DC12V+, GND-
6. addressable lights you can set to any color, or animate
7. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.
8. Brand: iPixel LED
