24V nema 17 high speed DC brushless motor
- Category: >>>
- Supplier: Changzhou Dewo Motor Co. Ltd.
Share on (60604050099):
Product Overview
Description
Product Description
42mm Brushless dc Motor
Our Advantage:
1. Long working life
2.Low noise
3.High efficiency
4.Customized and OEM are acceptable
5.18 months warranty
General specification:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.025mm |
| Radial play | 0.06mm/50g |
| End play | 0.05mm/50g |
| Max radial force | 28N/20mm from the flange |
| Max axial force | 15N |
| Insulation class | Class B |
| IP class | IP40 |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩmin 500VDC |
Electrical Specification:
| Model | Rated Voltage(VDC) | Rated Current(A) | Rated Power(W) | Rated Torque(N.m) | Peak Torque(N.m) | Rated Speed(rpm) | Length(mm) | Mass(kg) |
| 42BL50-230 | 24 | 1.8 | 31 | 0.1 | 0.3 | 3000 | 50 | 0.35 |
| 42BL70-230 | 24 | 3.4 | 62 | 0.2 | 0.6 | 3000 | 70 | 0.55 |
| 42BL90-230 | 24 | 5.2 | 94 | 0.3 | 0.9 | 3000 | 90 | 0.65 |

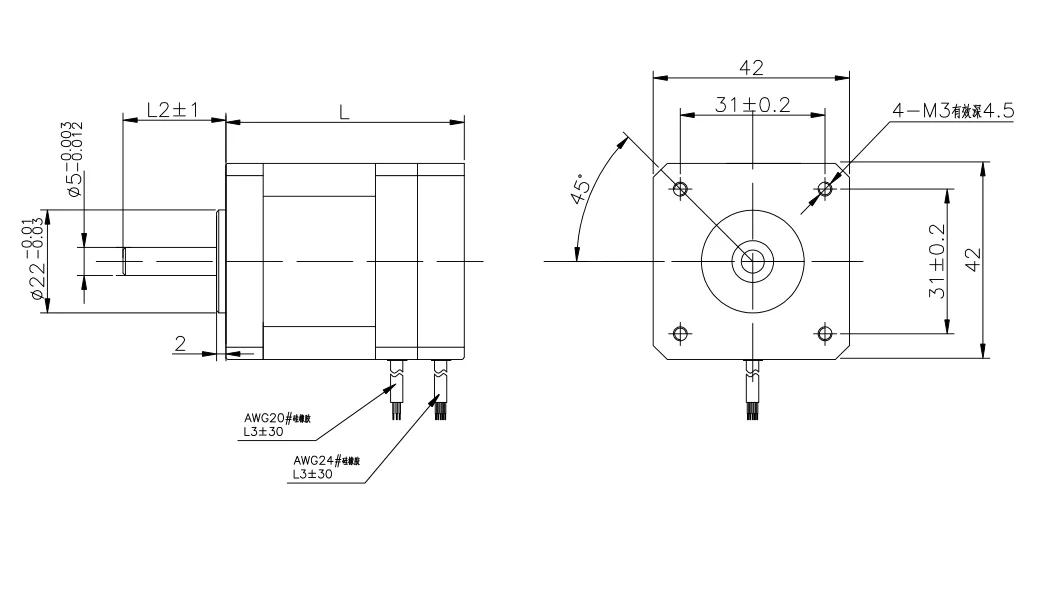

Dimensions(mm):
Electrical Connection:
| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |
| 4 | Green | HALL B | SIGNAL OF HALL B | |
| 5 | Blue | UL3266/26AWG | HALL C | SIGNAL OF HALL C |
| 1 | Yellow | PHASE U | MOTOR PHASE U | |
| 2 | Green | PHASE V | MOTOR PHASE V | |
| 3 | Blue | PHASE W | MOTOR PHASE W |
