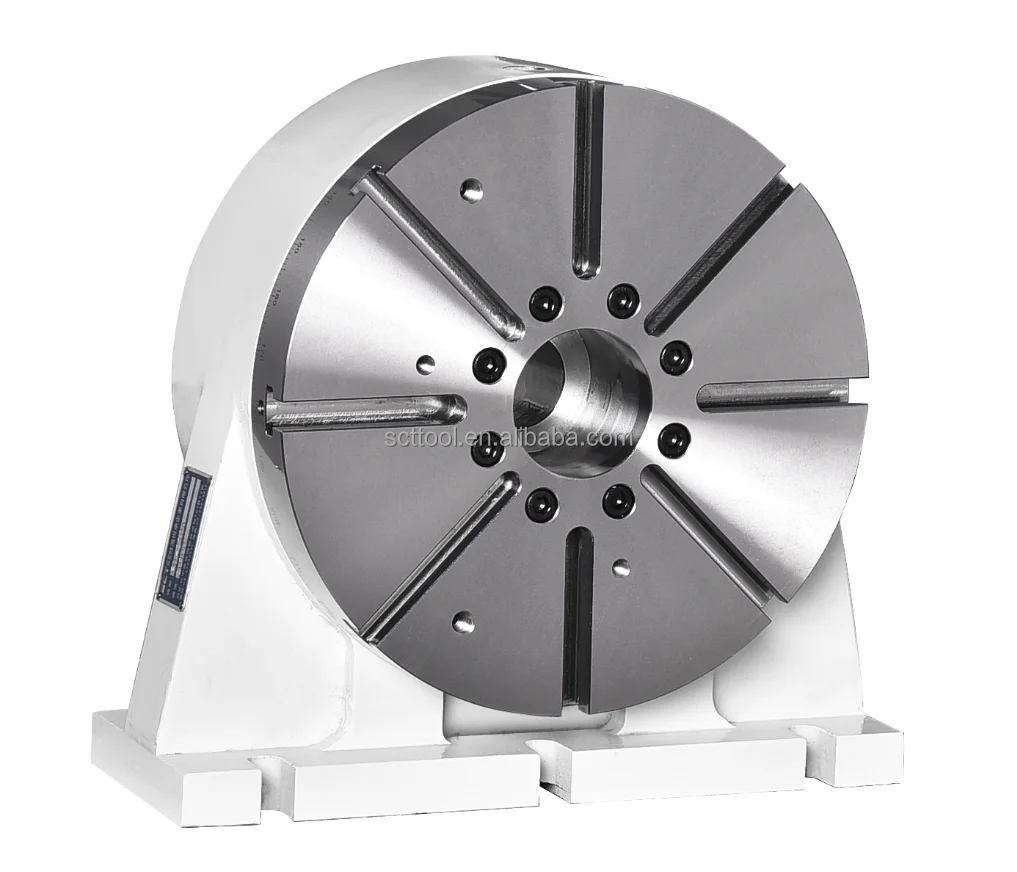

  Accuracy Aluminum Bronze Alloy Worm Gear Type Cnc Indexing Head Machining Center Use 4th Axis Servo Electric Rotary Table




Feature:











1. This 4 Axis CNC rotary table use imported  precision dual-lead worm, turbine,





turbine with aluminum bronze alloy,ensure the transmission positioning  in high





 precision accuracy.








2. Three-piece clutch gear for precise positioning accuracy,ensure the work





table’s stability.








3.The vertical and horizontal can interchangeable.











Specification:










































































The Disc diameter



320mm



The disc spindle center hole



75H7mm



The disc spindle center through hole



50mm



Level placement  height



370mm



Center height



210mm



T-slot width of the rotary shaft disc



14H7



Guide block width



18H7



Working applicable environment temperature



18~40 degree



Pressure of the locking device



35(hydraulic) kg/cm2



The mini angle of equal division



0.001degree



Total gears rate



1/120



Max speed of the rotary disc



3000 RPM  16.6



4000 rpm    X



Division precision



±4”



G.W weight



180kg









 MD-200


320
