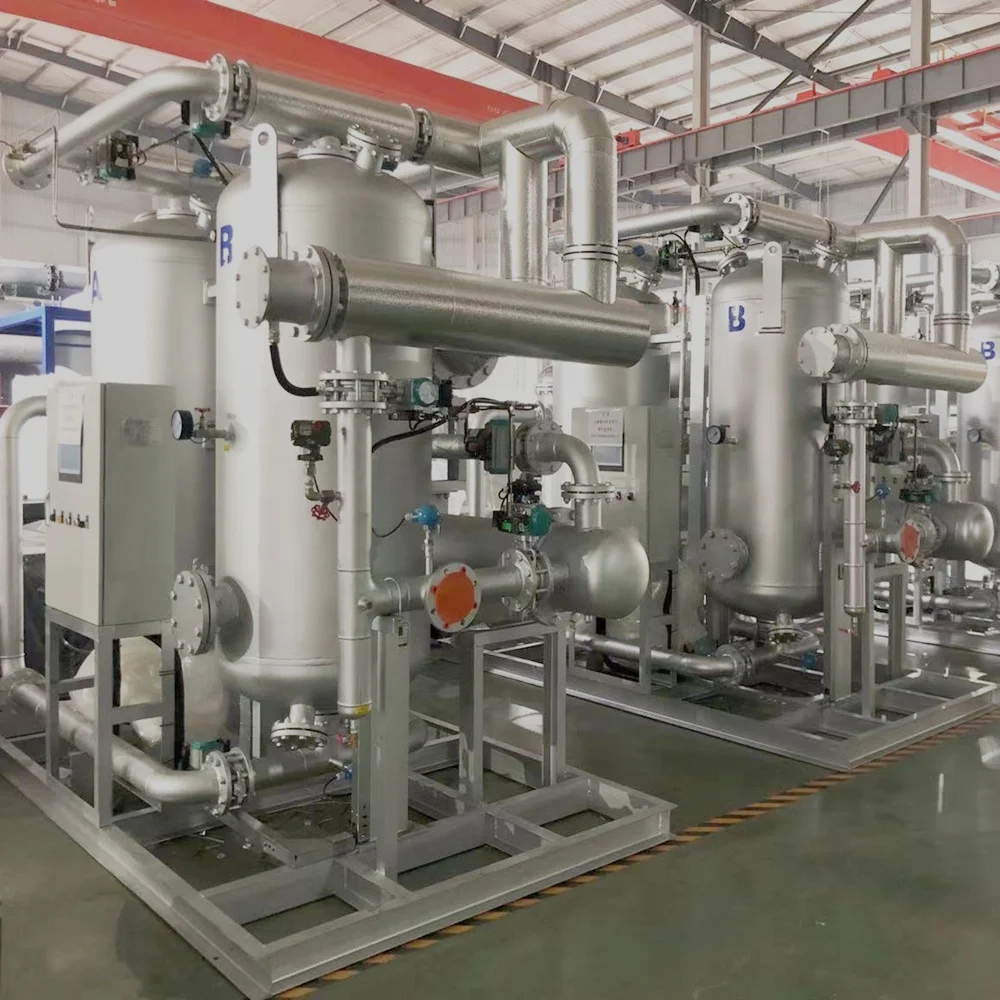

Heated Blower Absorption Air Dryer For Increasing Efficiency

Type: Blower Purge Regenerative Desiccant Air Dryer

Rated Inlet Temperature:≤40°C

Inlet oil content:≤0.01ppm

Outlet Pressure Dew Point: -40°C(-70°C is optional)

Rated Working Pressure:0.7MPa-1.0Mpa

Desiccant :Activated Aluminum or Molecular sieve

Pressure Drop:≤0.02MPa

Control Model :PLC

Regeneration Way:Heated regenerative

Regeneration Air Loss:≤2%

Cycle Period :8hours

Power Supply: 380V/1PH/50HZ(Other power can be customized)

Product  Characteristic :

1.Using the ambient air to heat the regenerative desiccant

2.No air loss while heating

3.If the blower occur some problem then automatically change into heated type,the dryer continue to work.

4.The dew point is stable,the pressure dew point is low and the air loss is low

5.Adopt the high efficiency desiccant

6.High guad IP44 degree

7.Automatic pressurize function can prolong the desiccant working life

8.Efficient and reliable spare parts

Specifications as follows:

 If can't find the one you need ,special specification welcome to contact us .

1. Are you a Manufacturer or Trade company ?

    We are a professional manufacturer of compressed air dryer ,found in 1999.

2. Could I use my own logo or design on goods?

     Yes,customized logo and design on mass production are available.

3. What's the delivery time?

    Within 15-30 working days after receiving deposit.
