High Quality Assembly K Type Thermocouple temperature sensor

Tag: PT100 sensor, RTD sensor, PT100

Ref No.

WZ

Thermal element materials

Pt100

Accuracy Class

A

B

Ways of Mounting & Fixing

1: Without fixing device

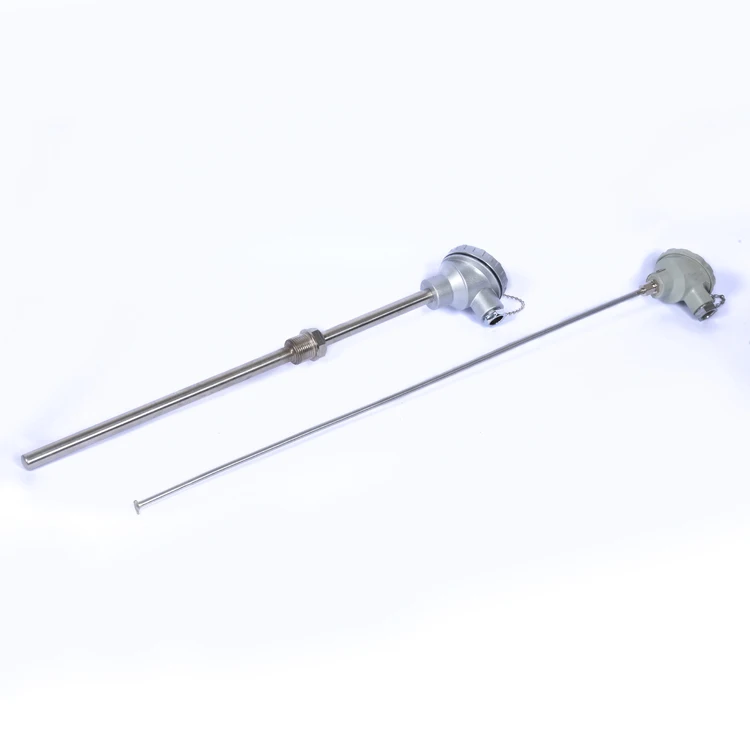

2: Fixed compression thread

3: Movable compression thread

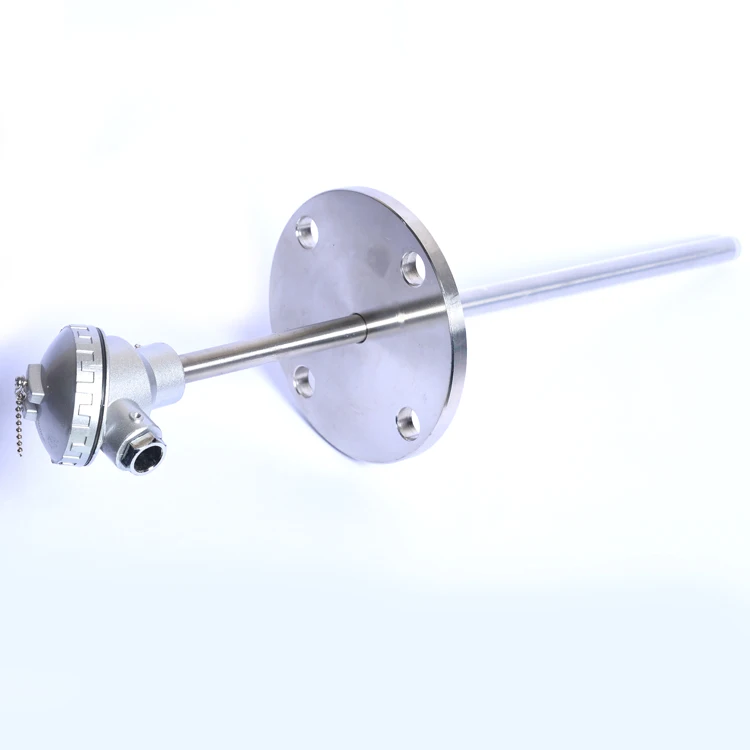

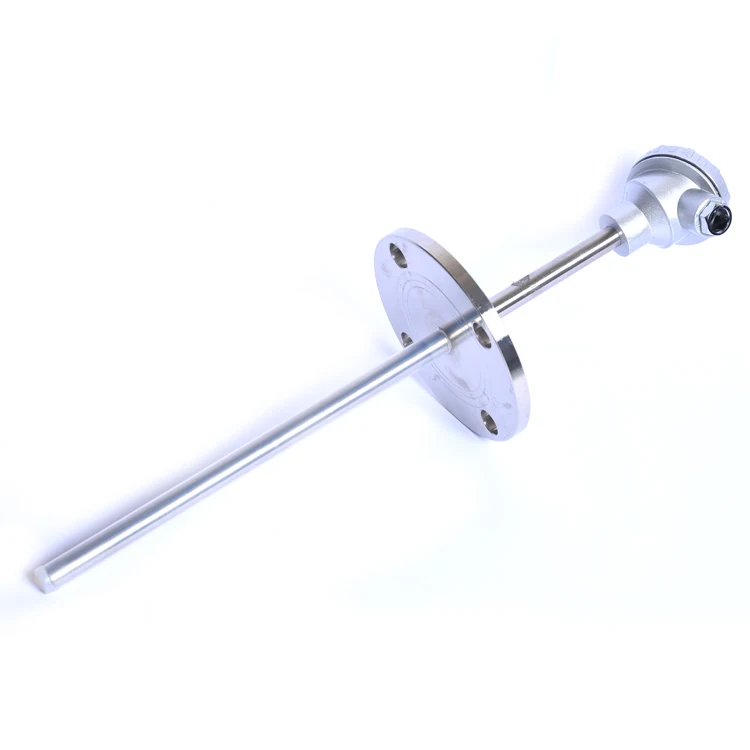

4: Fixed compression flange

5: Movable compression flange

6: Shock-resistant & Anti-leakage compression thread

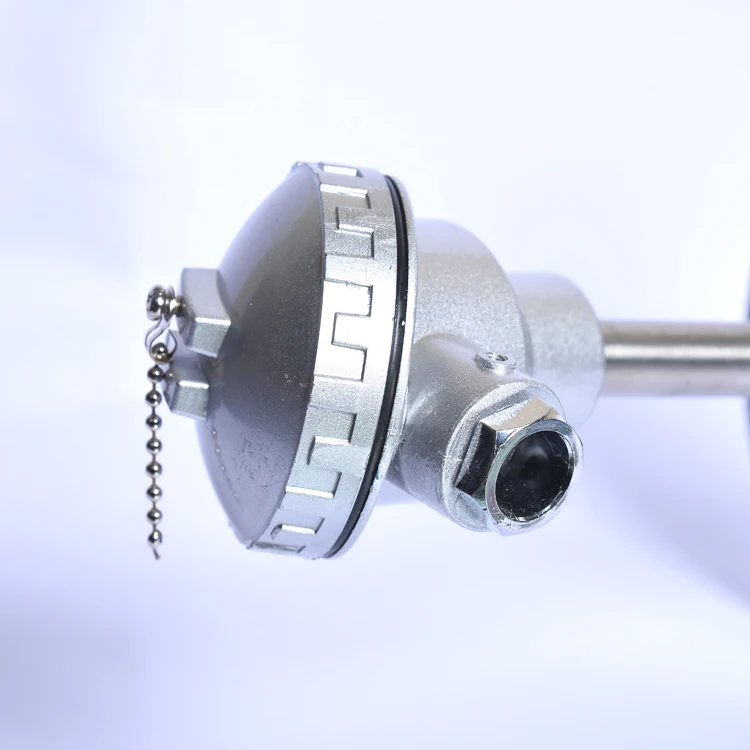

Types of connections box

0: Connection seat type

2: Anti-spray (Protection class: IP65)

3: Water-proof (Protection class: IP55)

6: Round plug type

7: Flag plug type

8: Small Connection type

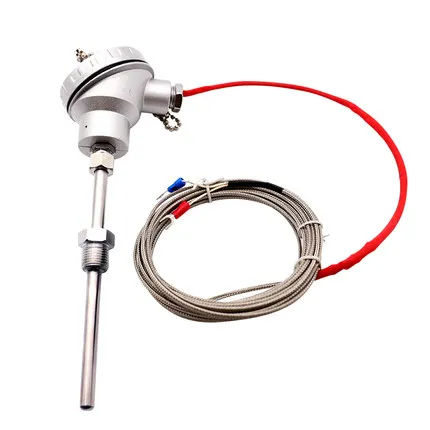

9: Compensation wire type

Types of sensor end

1. insulation type

Diameter of thermowell

0: Ø16

1: Ø12

3: Ø3

4: Ø4

5: Ø5

6: Ø6

8: Ø8

Measuring range

-200~+450 degree Celsius

Shipping

By air, sea, express

Sample time

2~7 days

Manufacture time

7~30 days depending on order quantity

Special character of thermal resistance:

1. short thermal response time;

2. high quality film resistor with stable performance.

Work principle of thermal resistance:

When temperature of object changes, the resistance will change accordingly, to measure temperature.

When the resistance value changes, the working meter will display relevant temperature.
