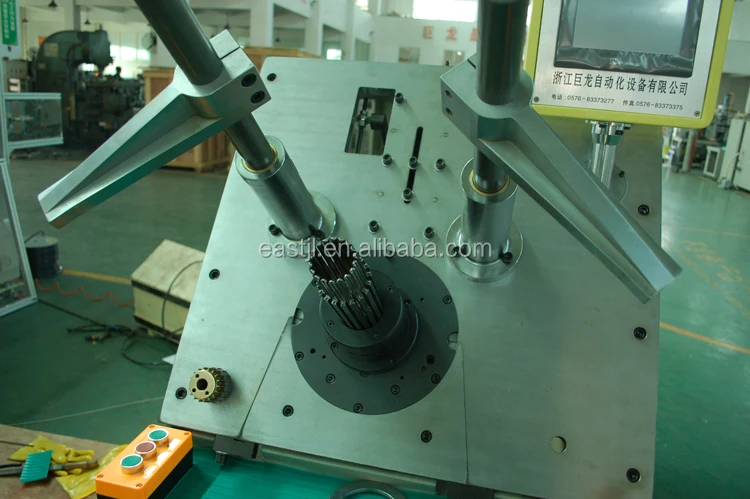

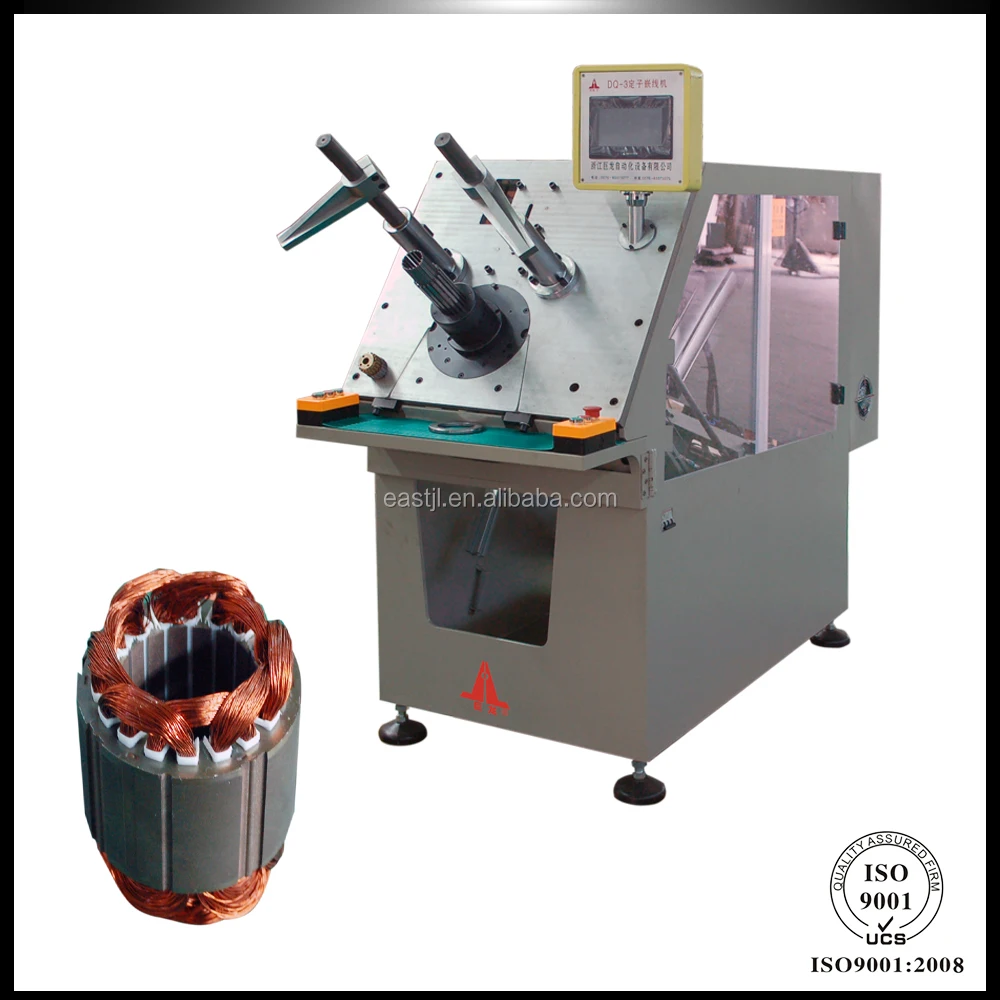

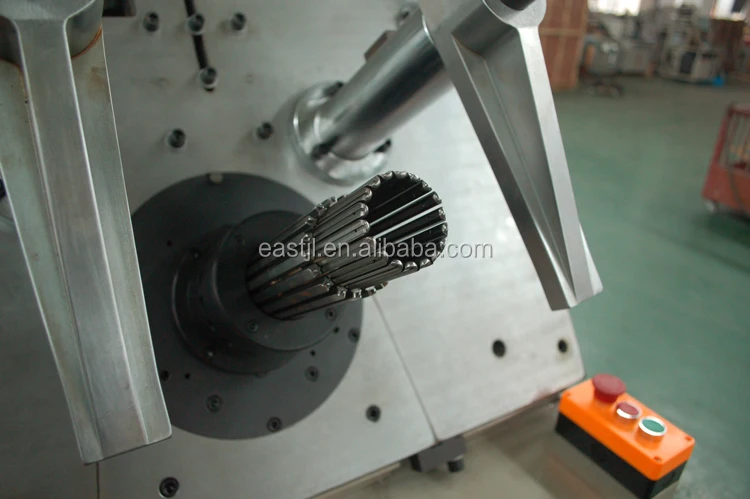

Coil insertion Machine for Electric Motor Stator Winding

Features:

1. More suitable for winding the stator coil embedded in a longer line, after a good embedded

coil windings arranged in neat rows.
2. Coil winding wire is not easy to injury, the machine uses a needle to thread embedded insulating paper

and disposable embedded in the stator coil, high-speed embedded line efficiency.
3. The machine has a manual, single-step, automatic three kinds of work, to facilitate the operator debugging

and automatic operation.
4. The machine uses a touch screen display, elegant, easy to operate.
5. Control: Mitsubishi FX1S series PLC.
6. This unit has a fault self-test function, common faults can be displayed on the monitor.

Main Technical Parameters:

1. Power Supply Voltage: 220V±10%  50Hz

2. Air source Pressure: 0.5~0.7Mpa

3. Speed range: 0~300T/min

4. Motor Power:1.1kw
