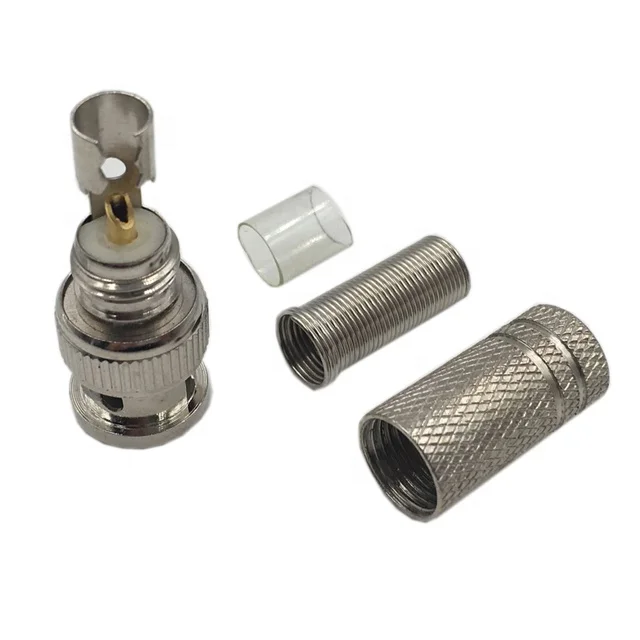

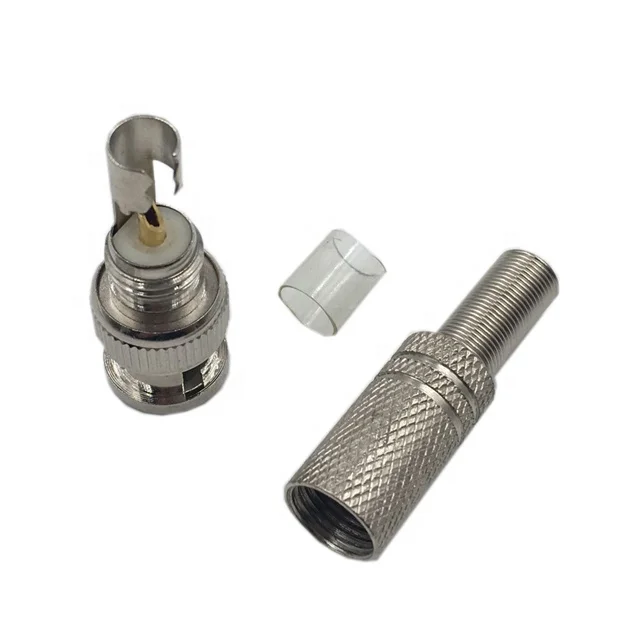

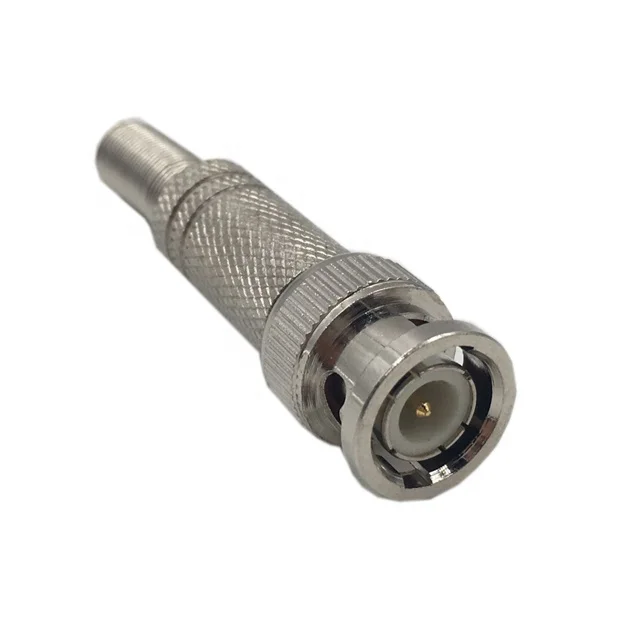

soldering BNC connector with spring

 These connectors are for low power ,quick connect / disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same type connectors of aborad. They are widely used connect of the RF coaxial -cables in electronic equipment and instuments. Characteristic impedance 50Ω ,  75Ω

Temperature  range------ -55~+155°C
Impedance------50 Ω  Or  75 Ω
Frequency range (required for the application is 2,4 GHz)-------0~2 GHz

Voltage rating-----------1500V

Contact resistance of center and outer conductor--------center ≤ 1.5 mΩ outer ≤ 1 mΩ
VSWR---------- Straight ≤ 1.22 , Right angle ≤ 1.30
Durability (in cycles)--------500 cycles
Dielectric withstanding voltage------ ≥ 5000 MΩ

We're professional electronic products supplier have strong OEM&ODM ability, RF coaxial connector products is our mainly products, have high quality level, strong develop capacity to produce custom design product. RG58,RG59,RG6,RG7,RG11....F connector and BNC connector, verious kinds of RF coaxial connector product. Zinc material and Copper material are all can produce into same high quality level.

1. How about your lead time?
A: it depends on order quantity. Usually 15-30 days.

2.How can we get a sample.
A: Free sample, Freight collected by your side.

3.How to contact us?
A: Just send us enquiry online via Alibaba. Our worker will reply you in 24 hours.
